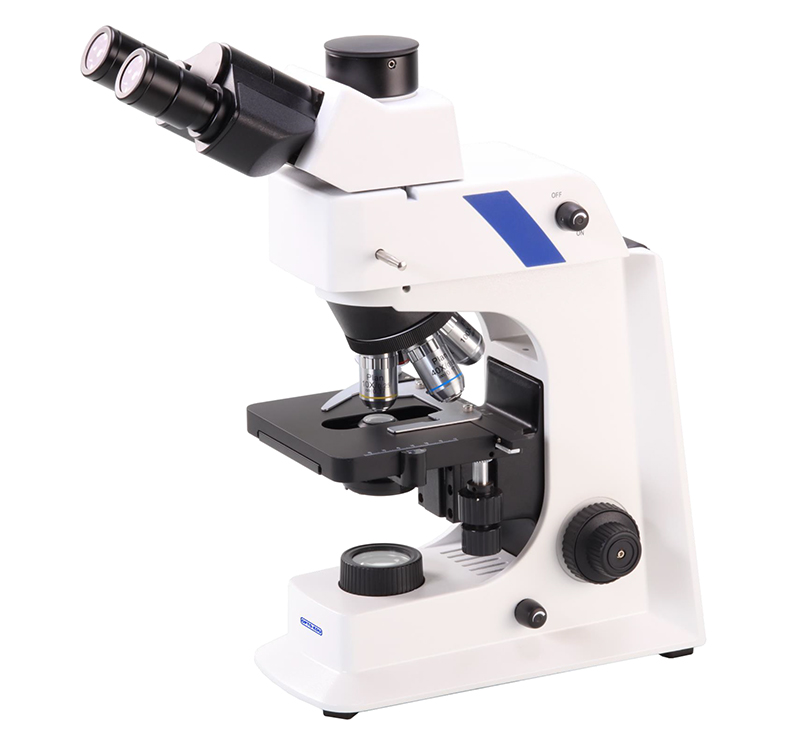

LED Fluorescent Microscope, Trinocular, B,G


  • Built-in All-in-One Fluorescent Media Unit 5W LED With 1 or 2 Filters
  • Semi-APO Infinity Plan Fluorescent Objective Available For High Quality Image
  • Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
  • High Rigidity Body Structure Design Supply High Steady And Easy Handle
  • Different Color Available To Customize Your Model!
Quantity:









ItemsA16.2601-NL LED Fluorescent Microscope Specification-1-2Cata. No.

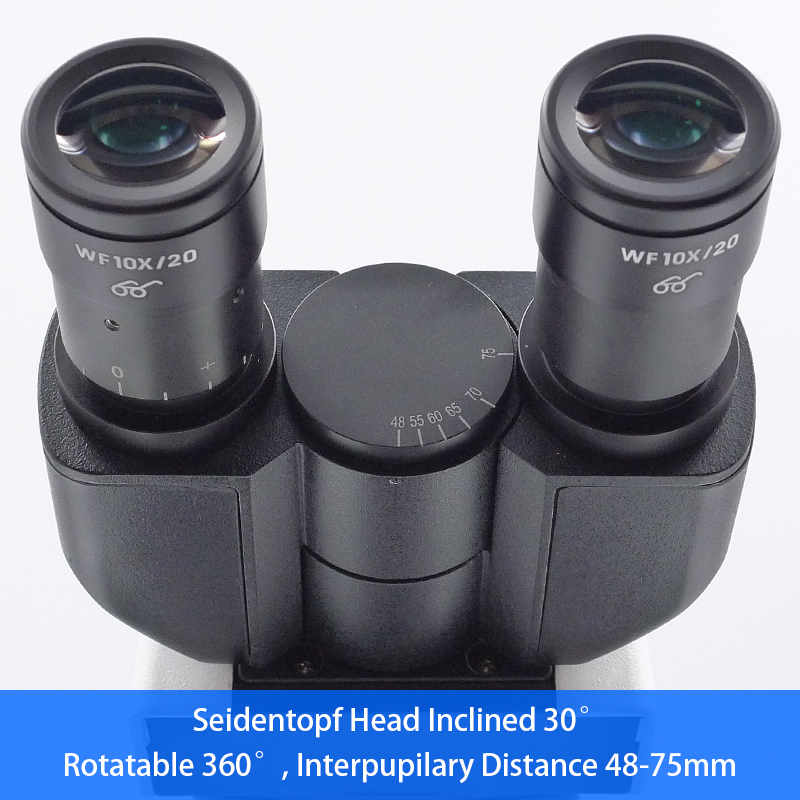

HeadSeidentopf Trinocular  Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80A53.2621-T
EyepieceWF10X/20mm (High Eyepoint)●●●●A51.2602-1020
NosepieceQuadruple, BackwardA54.2610-N734
Quintuple, BackwardA54.2610-N735
Infinity

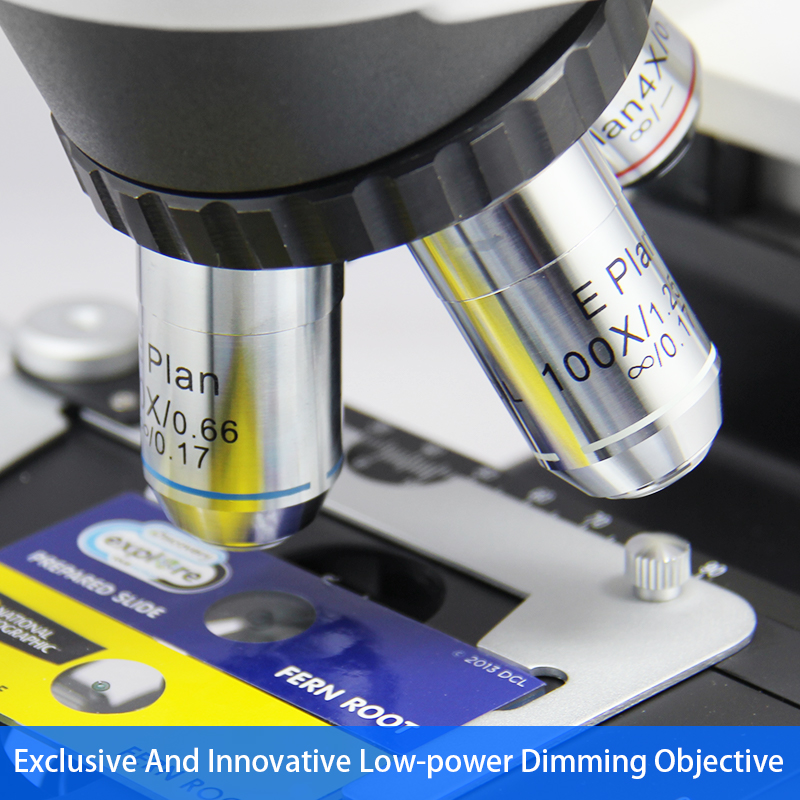

E-Plan Objective
EPLAN 4x/0.10,W.D.=12.1mmA52.2605-4
EPLAN 10x/0.25,W.D.=4.14mmA52.2605-10
EPLAN 40x/0.65(S),W.D.=0.58mmA52.2605-40
EPLAN 100x/1.25(S, Oil),W.D.=0.19mmA52.2605-100
Infinity Plan

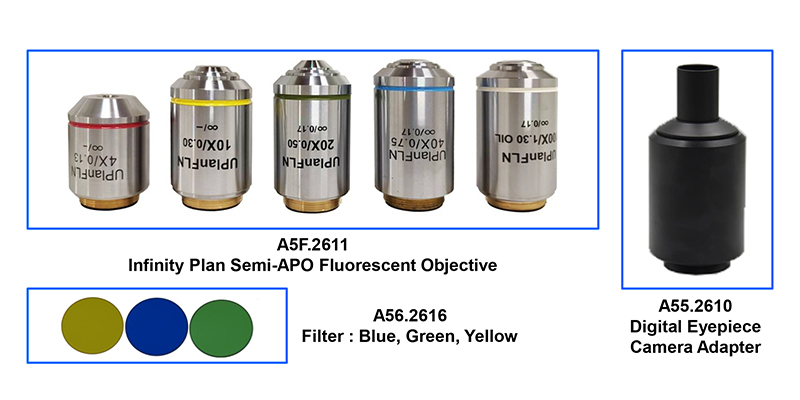

Semi-APO Fluorescent Objective
UplanFLN 4x, N.A.0.16W.D.=17.151mmA5F.2611-4
UplanFLN 10x, N.A.0.30W.D.=7.68mmA5F.2611-10
UplanFLN 20x, N.A.0.50W.D.=1.96mmA5F.2611-20
UplanFLN 40x, N.A.0.75W.D.=0.78mmA5F.2611-40
UplanFLN 100x(Oil), N.A.1.30W.D.=0.15mmA5F.2611-100

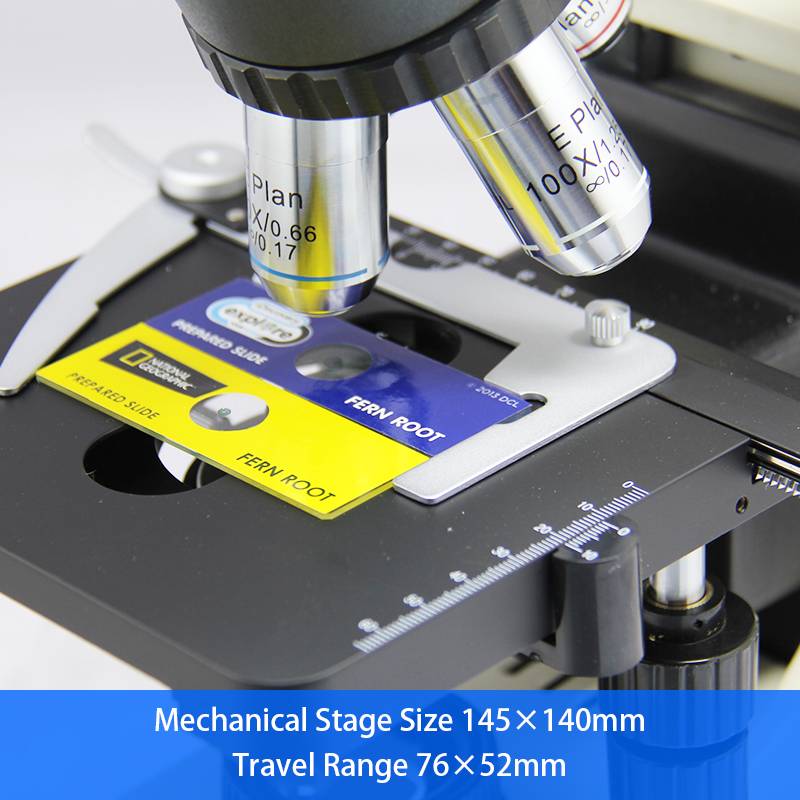

Working StageMechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide HolderA54.2601-S04
Rackless (Integrated) Stage, Size 140×135mm,
Travel Range 75×35mm, Double Slide Holder
A54.2601-S12

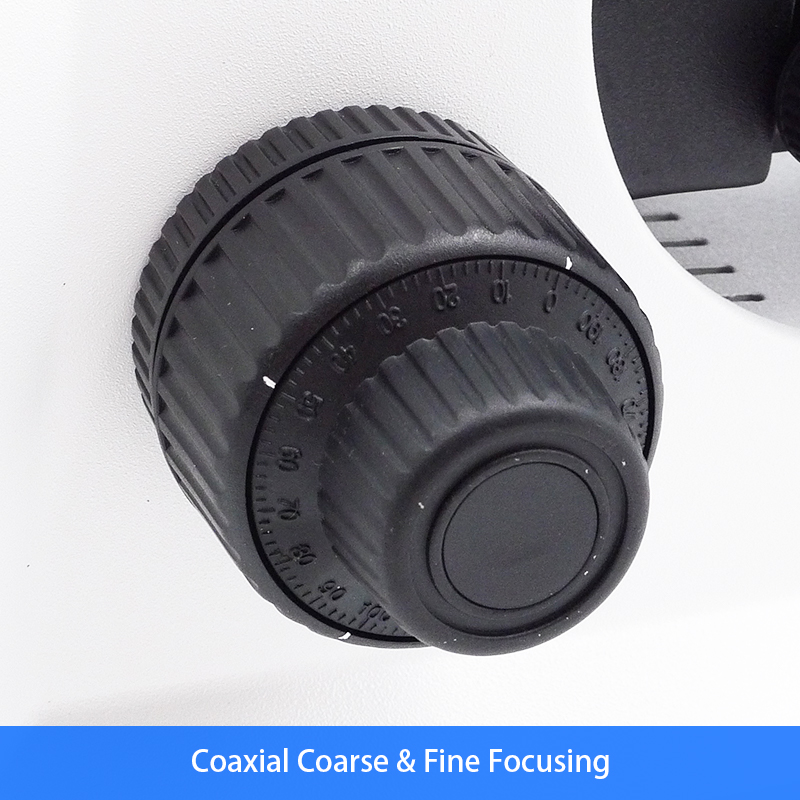

FocusingCoaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division

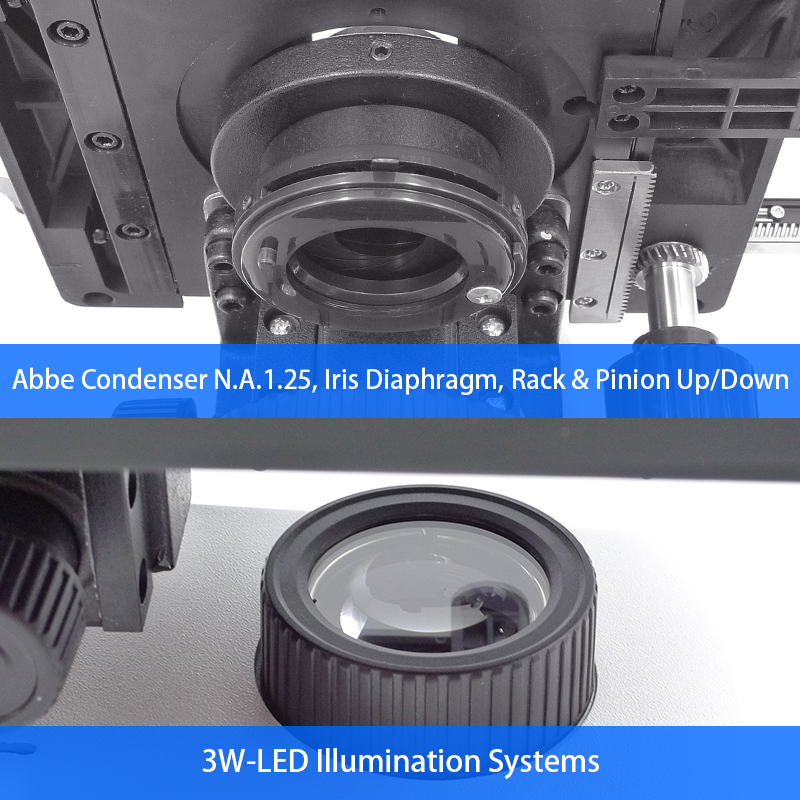

CondenserAbbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/DownA56.2614-C06b
Illumination3W-LED Illumination SystemsA56.2613-3W
12V/20W Halogen LampA56.2650-20W
6V/30W Halogen LampA56.2650-30W

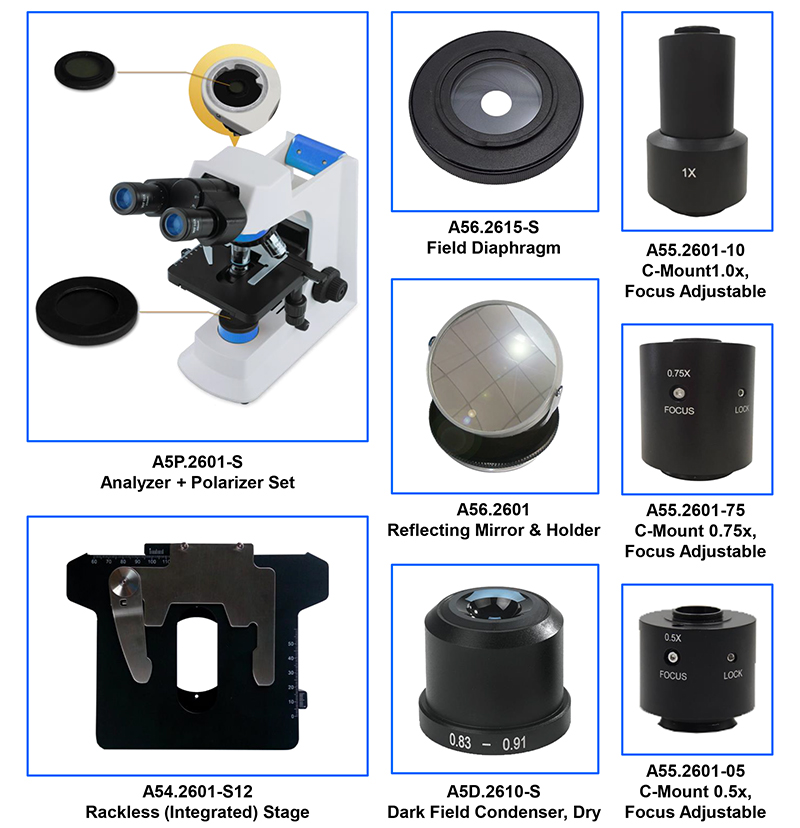

Field DiaphragmUpgrade To Kohler IllumnationA56.2615-S
FilterDia.45mm, Blue A56.2616-45B
Dia.45mm, GreenA56.2616-45G
Dia.45mm, YellowA56.2616-45A
Dark FieldDark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x ObjectiveA5D.2610-S
PolarizingAnalyzer + Polarizer SetA5P.2601-S

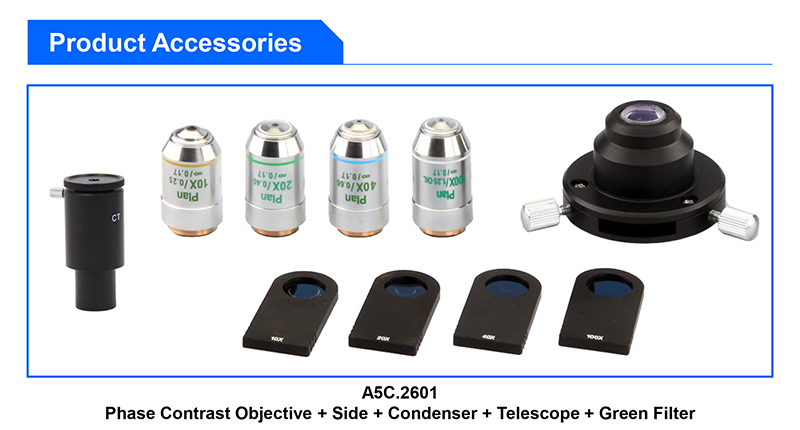

Phase ContrastInfinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2601-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2601-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2601-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green FilterA5C.2601-100

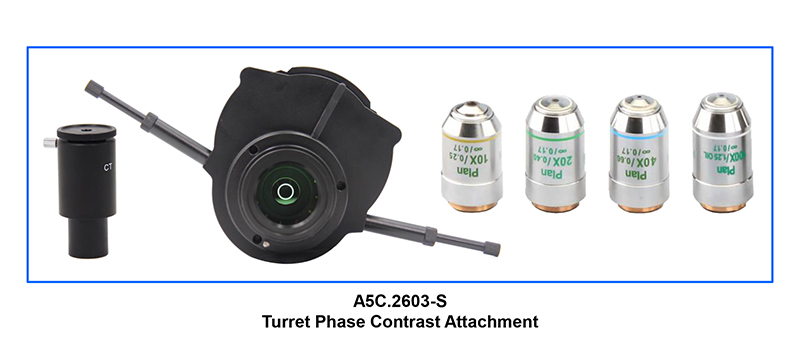

Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
A5C.2603-S

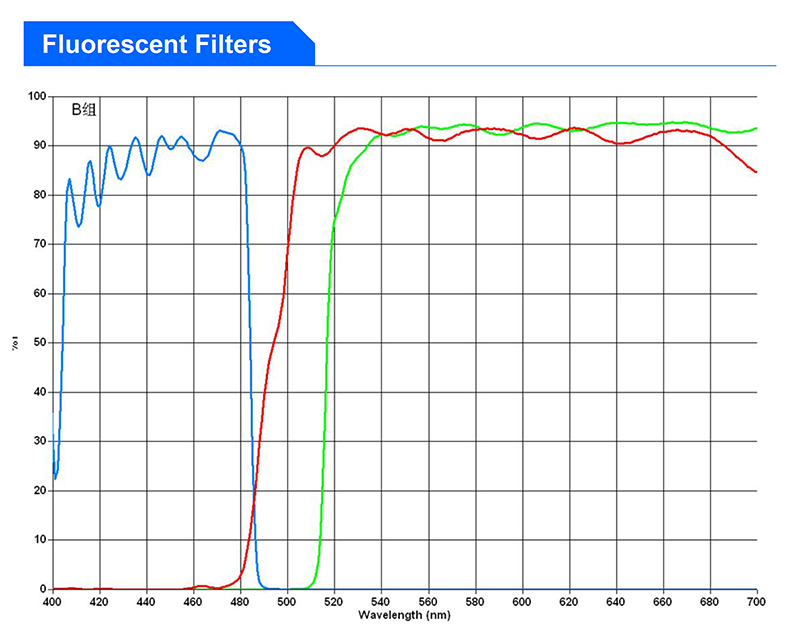

FluorescenceUpgrade From A12.2601-C/CT Biological Microscope With:

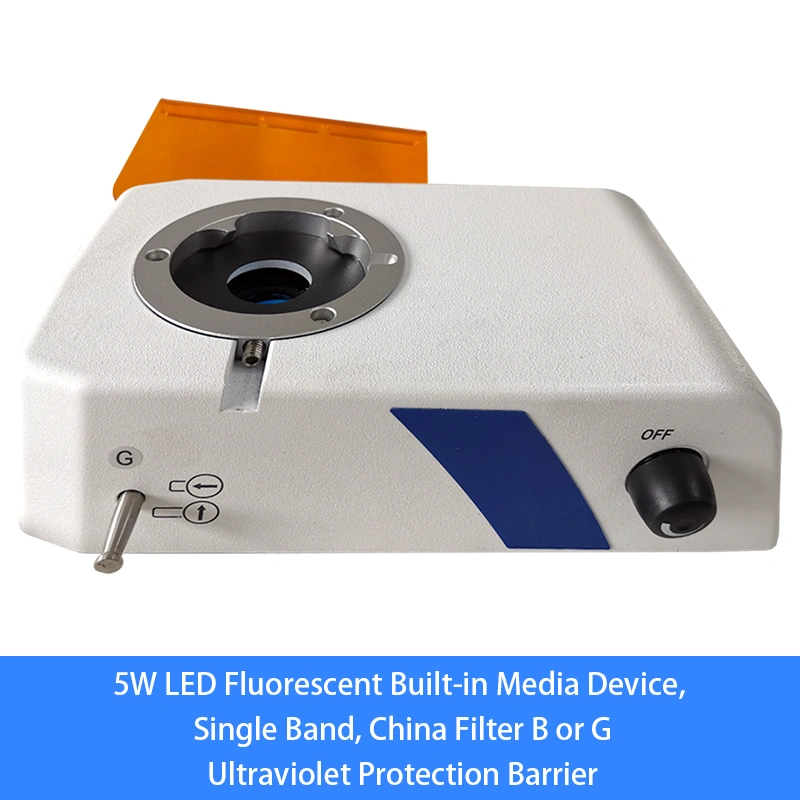

5W LED Fluorescent Built-in Media Device,
Single Band, China Filter B or G
Ultraviolet Protection Barrier
 A5F.2605-1
Upgrade From A12.2601-C/CT Biological Microscope With:
5W LED Fluorescent Built-in Media Device,
Double Band, China Filter B + G
Ultraviolet Protection Barrier
 A5F.2605-2
AdapterC-Mount 0.5x, Focus AdjustableA55.2601-05
C-Mount 0.75x, Focus AdjustableA55.2601-75
C-Mount1.0x, Focus Adjustable  A55.2601-10
Upgrade From A12.2601-C/CT Fluorescence Microscope With:  A55.2610
MirrorReflecting Mirror & HolderA56.2601

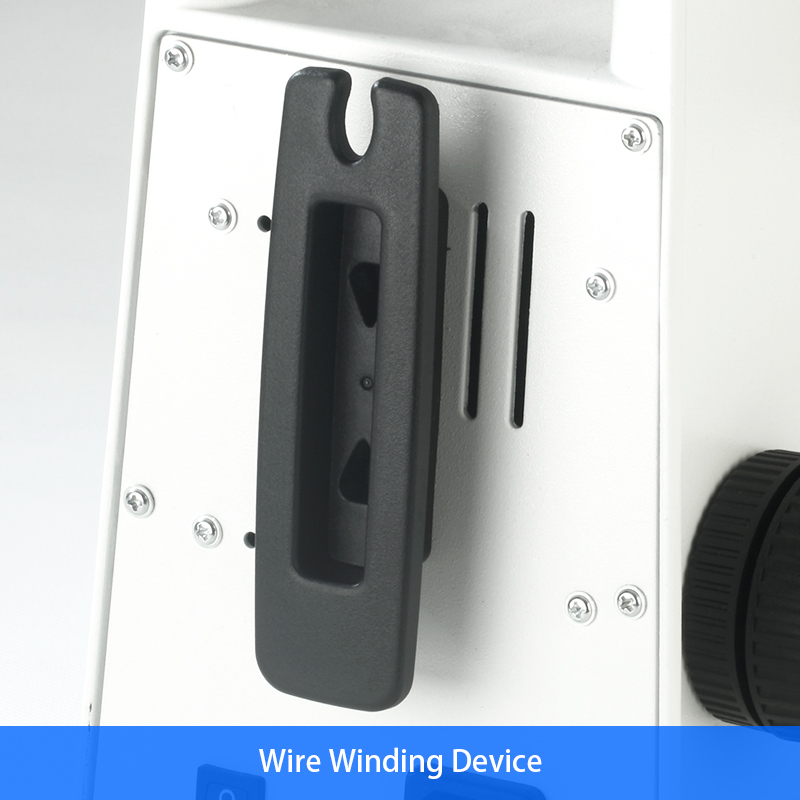

AttachmentWire Winding DeviceA50.2602-S
PackageCarton Size 970×340×440mm, 1 pc / Ctn
WeightGross Weight: 22 kgs, Net Weight: 18 kgs
Note:""In Table Is Standard outfits,""Is Optional Accessories
Pictures
Model No. A16.2601-NL-2 A16.2601-NL-1
Eyepiece
WF10x/20mm, 2 pc. WF10x/20mm, 2 pc.
Working Stage Size
145x140mm 145x140mm
Working Stage Moving
76x52mm 76x52mm
Focusing Range
26mm 26mm
Focusing Scale
0.002mm 0.002mm
Transmit Light
3W LED 3W LED
Fluorescene
B+G China Fluorescent Set
5W LED Lamp Built-in Media
Ultraviolet Protection Barrier
B or G China Fluorescent Set
5W LED Lamp Built-in Media
Ultraviolet Protection Barrier
Function Upgradeable
Dark Field
Polarizing
Phase Contrast
Dark Field
Polarizing
Phase Contrast
