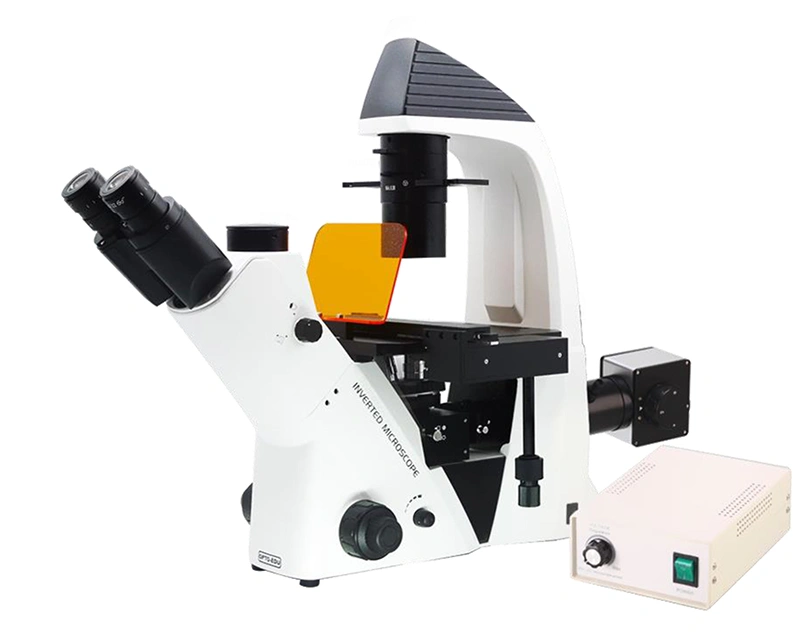

Inverted LED Fluorescent Microscope, Trinocular, B/G

3 Holes Fluorescent Slide + 5W LED Fluorescent Illumination

Seidentopf Trinocular Head, Light Split Switch E100:P0 / E20:P80

LWD Infinity Plan Objectives Bright Field & Phase Contrast Observation Supported

LWD Condenser N.A.0.3 Working Distance 72mm, Up To 195mm Without Condenser

Standard Halogen 6V30W Koehler Illumination, 5W LED Optional For Choice

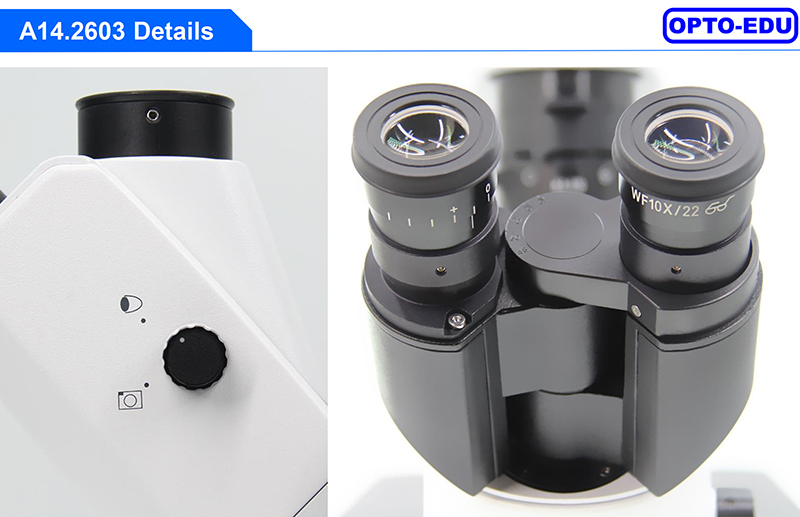

Head & Eyepiece

Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80;WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

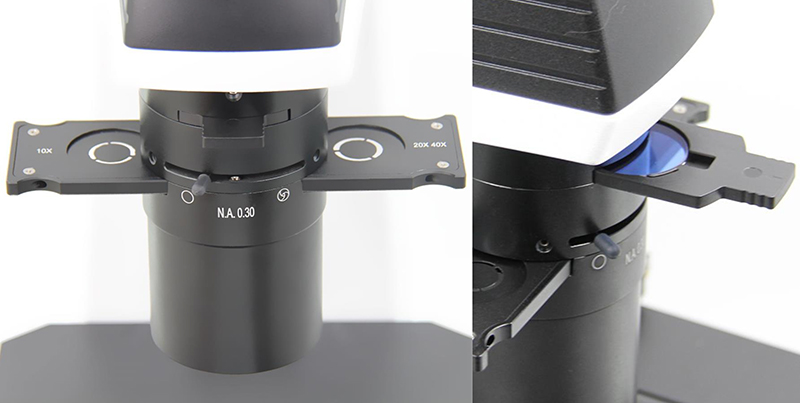

Condenser & Light Source

Condenser & Light Source With Filters: Blue, Dia.34mm; Green, Dia.34mm

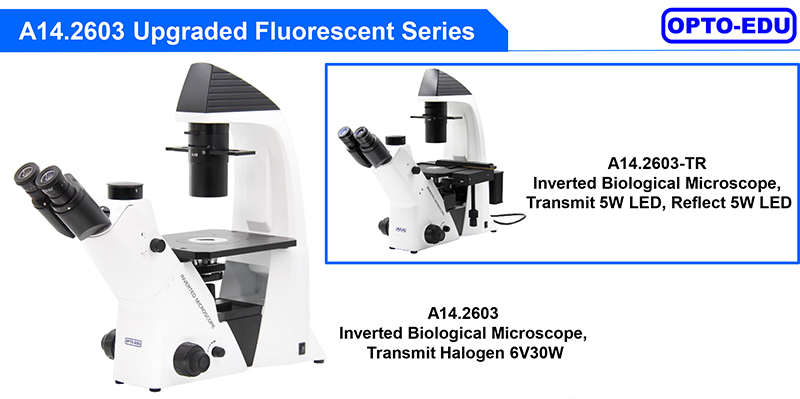

Koehler Illumination Halogen 6V/30W For A14.2603

Koehler Illumination 5W LED For A14.2603-TR

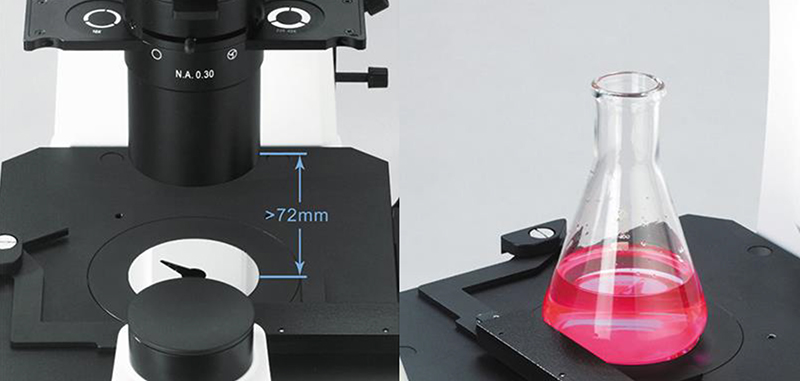

Long Working Distance

Working Distance 72mm (With Condenser), 195mm (Without Condenser)

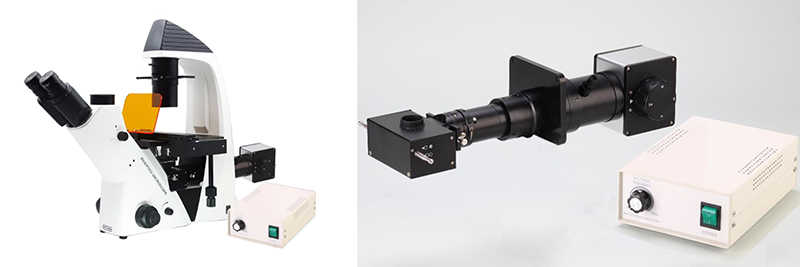

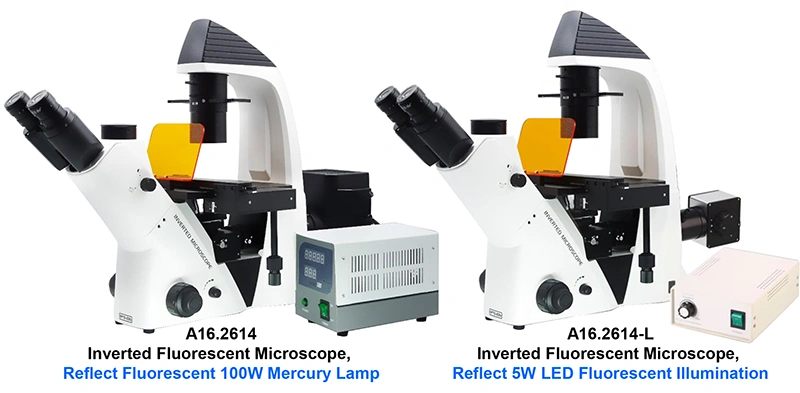

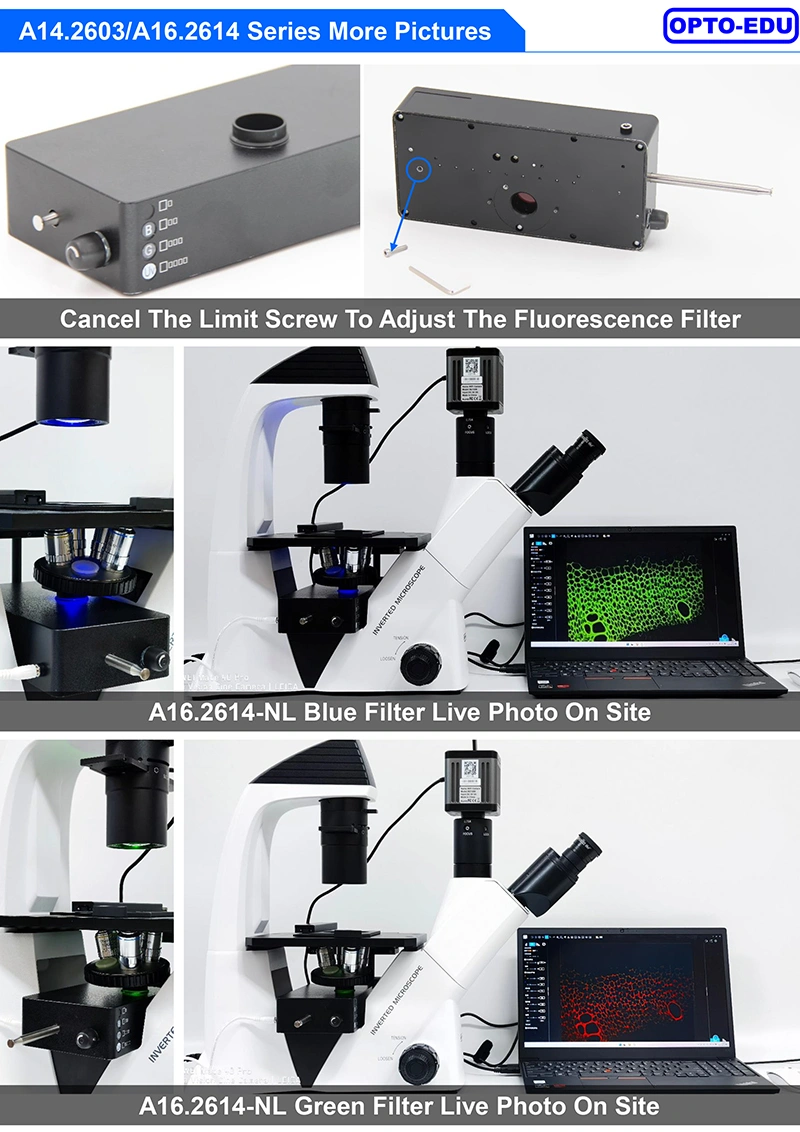

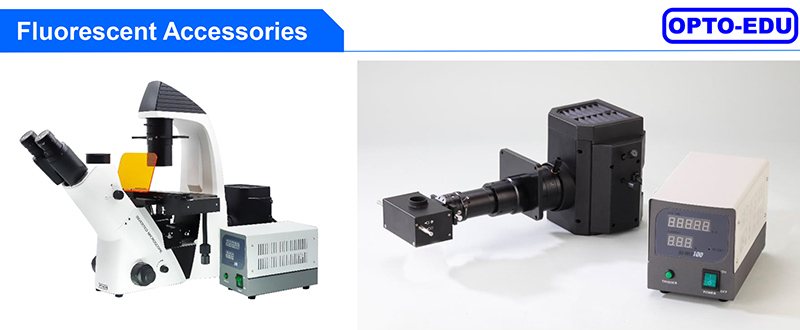

A5F.2603 Epi Fluorescence Accessories For A16.2614

3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
100W Mercury Lamp House, 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier

A5F.2604 Epi Fluorescence Accessories For A16.2614-L

3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable
5W LED Lamp House, 5W LED Power Box. Ultraviolet Protection Barrier

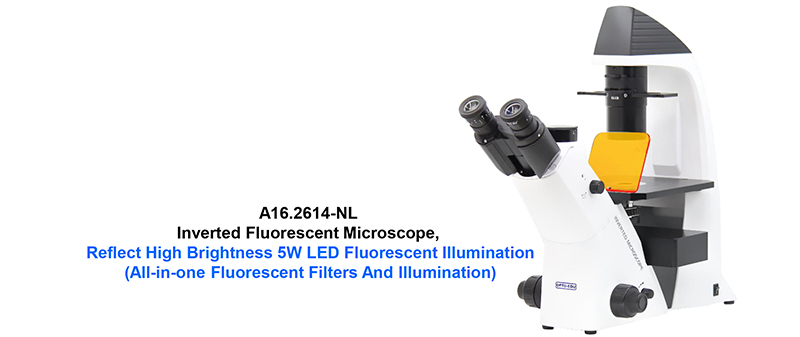

A5F.2606 Epi Fluorescence Accessories For A16.2614-NL

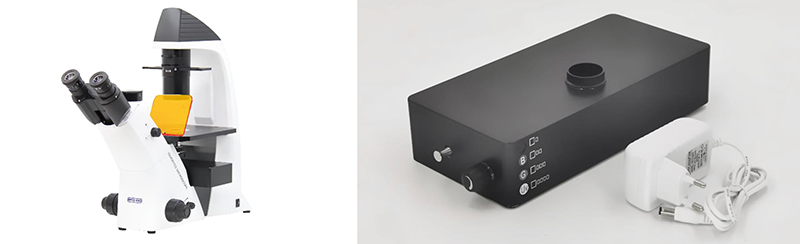

All-in-One, B+G Fluorescent Filter + 5W LED Fluorescent Light Source

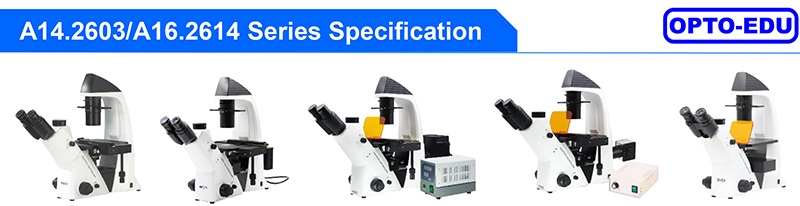

Items	A14.2603 Inverted Biological Microscope A16.2614 Inverted Fluorescent Microscope	A14.2603		A16.2614			Cata. No.
Items			-TR		-L	-NL
Head	Seidentopf Trinocular Head Inclined 45°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80	●	●	●	●	●	A53.2643

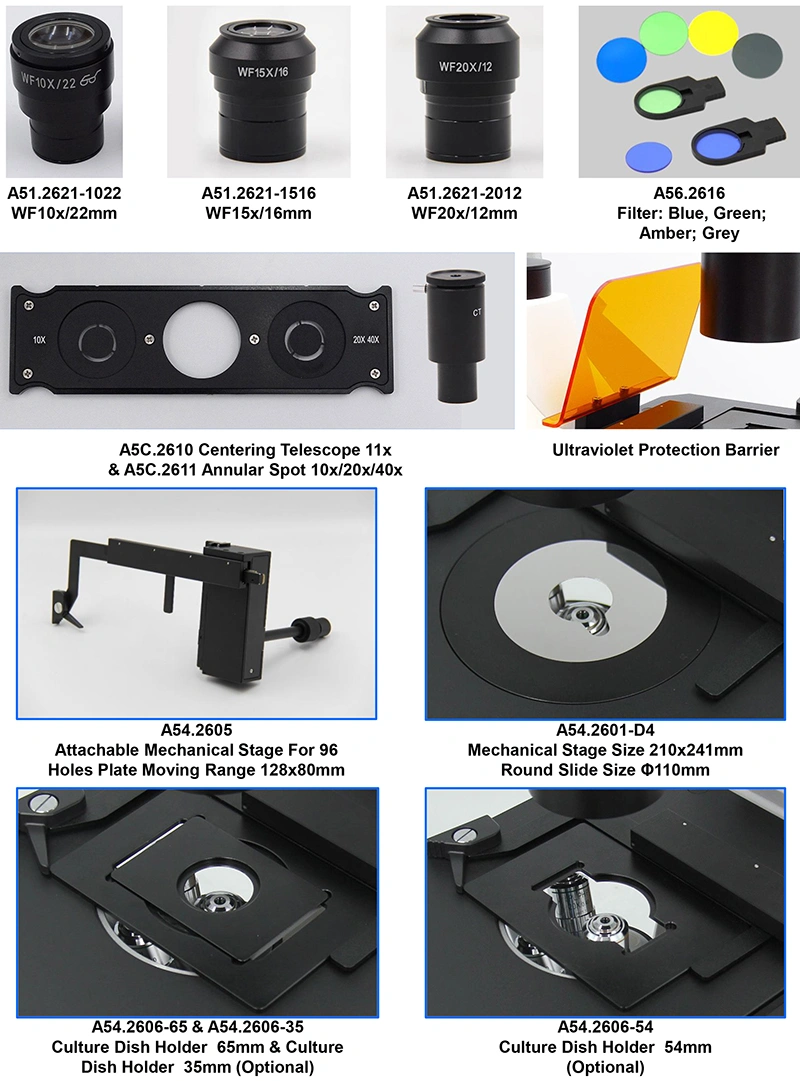

Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint,, Diopter Adjustable	●●	●●	●●	●●	●●	A51.2621-1022
	WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	○○	○○	○○	A51.2621-1516
	WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable	○○	○○	○○	○○	○○	A51.2621-2012
Nosepiece	Quintuple	●	●	●	●	●	A54.2610-N925

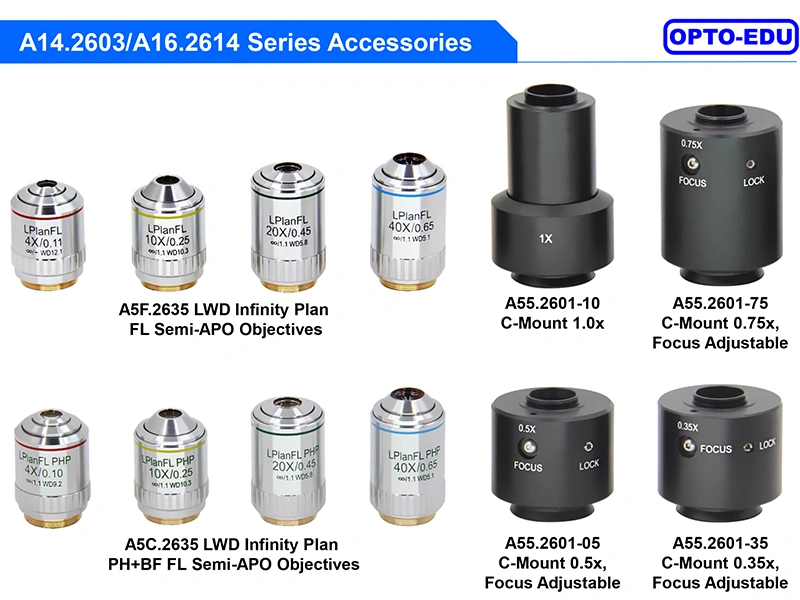

LWD Infinity Plan FL Semi-APO Objectives	Plan FL 2x/0.06 W.D.=7.2mm	○	○	○	○	○	A5F.2635-2
	L Plan FL 4x/0.11 W.D.=12.1mm	○	○	○	○	○	A5F.2635-4
	L Plan FL 10x/0.25 W.D.=10.3mm	○	○	○	○	○	A5F.2635-10
	L Plan FL 20x/0.45 W.D.=5.8mm	○	○	○	○	○	A5F.2635-20
	L Plan FL 40x/0.65 W.D.=5.1mm	○	○	○	○	○	A5F.2635-40

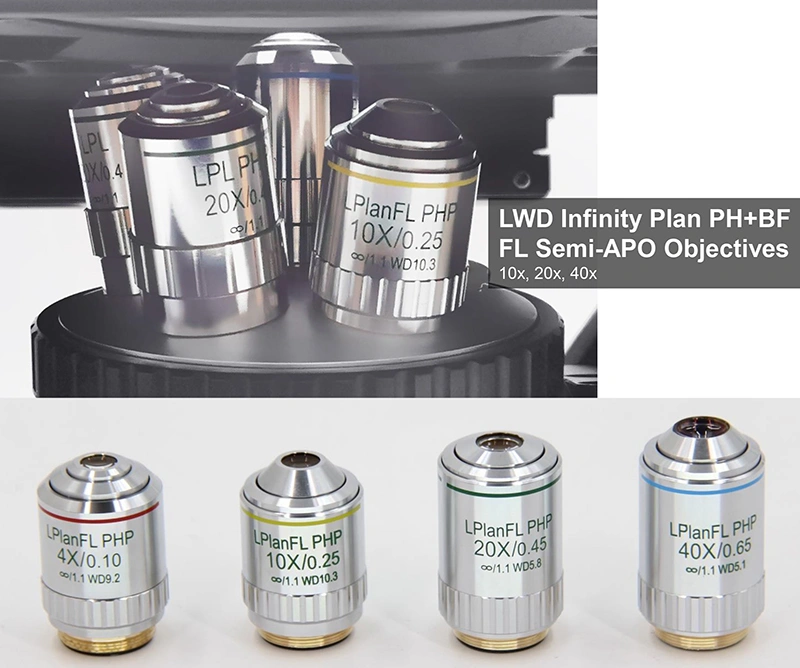

LWD Infinity Plan FL Semi-APO BF+PH Objectives	L Plan FL PHP 4x/0.10 W.D.=9.2mm	○	○	○	○	○	A5C.2635-4
	L Plan FL PHP 10x/0.25 W.D.=10.3mm	●	●	●	●	●	A5C.2635-10
	L Plan FL PHP 20x/0.45 W.D.=5.8mm	●	●	●	●	●	A5C.2635-20
	L Plan FL PHP 40x/0.65 W.D.=5.1mm	●	●	●	●	●	A5C.2635-40
LWD Infinity Plan Fluorescent Objectives	New Update 2024 Specialized For Fluorescent Observation!
	L PLAN Fluor 10x, N.A.0.3，W.D.=14.0mm	-	-	●	●	●	A5F.2636-10
	L PLAN Fluor 20x, N.A.0.45，W.D.=6.6mm	-	-	●	●	●	A5F.2636-20
	L PLAN Fluor 40x, N.A.0.65，W.D.=3.9mm	-	-	○	○	○	A5F.2636-40
Phase Contrast	Centering Telescope 11x	○	○	○	○	○	A5C.2610
	Annular Spot 4x	○	○	○	○	○	A5C.2611-4
	Annular Spot 20x/ 40x	●	●	●	●	●	A5C.2611-10
	Annular Spot 10x	●	●	●	●	●	A5C.2611-20/40

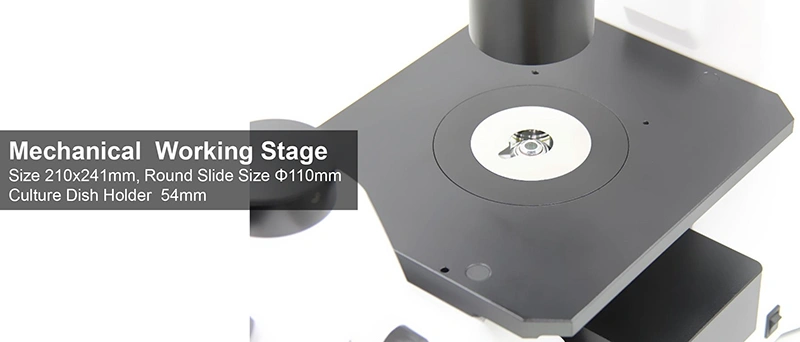

Working Stage	Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm	●	●	●	●	●	A54.2601-D4

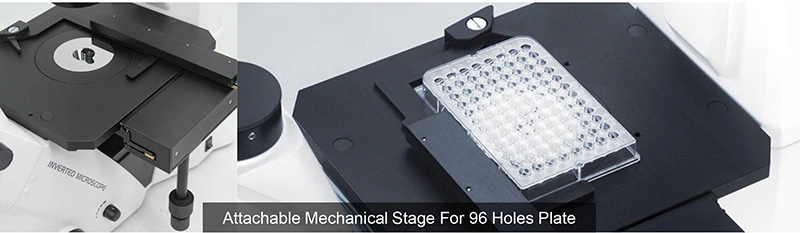

	Attachable Mechanical Stage For 96 Holes Plate Moving Range 128x80mm	○	○	○	○	○	A54.2605
	Culture Dish Holder 65mm	○	○	○	○	○	A54.2606-65
	Culture Dish Holder 54mm	○	○	○	○	○	A54.2606-54
	Culture Dish Holder 35mm	○	○	○	○	○	A54.2606-35
	Holder For Blood Cell Counter	○	○	○	○	○	A54.2606-BC
	Universal Holder (New Accessory 2021)	○	○	○	○	○	A54.2606-UH
	Round Glass Holder (New Accessory 2021)	○	○	○	○	○	A54.2606-GL
Condenser	Long Working Distance, Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser).	●	●	●	●	●	A56.2614-D4
Tranmist Illumination	Koehler Illumination Halogen 6V/30W, Input Voltage 100V~240V	●	○	●	●	●	A56.2650-6V30WH
Tranmist Illumination	Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	○	●	○	○	○	A56.2650-5WLED
Reflect Illumination	Koehler Illumination 5W LED, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	-	●	-	-	-	A56.2650-5WLED
Reflect Illumination	Polarizing Set	-	●	-	-	-
Power	ECO, Auto Power Off System. Power Off Automatically Upon User Leaving 10 Minutes, Power On Automatically Upon User Approaching Detected, This Function Can Be Shut Down Manually	○	○	○	○	○	A56.2660
Filter	Blue, Dia.34mm	●	●	●	●	●	A56.2616-34B
	Green, Dia.34mm	●	●	●	●	●	A56.2616-34G
	Amber, Dia.34mm	○	○	○	○	○	A56.2616-34A
	Grey, Dia.34mm	○	○	○	○	○	A56.2616-34N
Adapter	C-Mount 0.35x, Focus Adjustable	○	○	○	○	○	A55.2601-35
	C-Mount 0.5x, Focus Adjustable	○	○	○	○	○	A55.2601-05
	C-Mount 0.75x, Focus Adjustable	○	○	○	○	○	A55.2601-75
	C-Mount1.0x, Focus Adjustable	○	○	○	○	○	A55.2601-10
Epi Fluorescence Illumination	A16.2614 Inverted Fluorescence Microscope With: 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 100W Mercury Lamp House 100W Mercury Power Box, Digital Disp. Ultraviolet Protection Barrier A16.2614-2 B,G China Fluorescent Filters A16.2614-4 B,G,U,UV China Fluorescent Filters	○	-	●			A5F.2603
	A16.2614-L Inverted LED Fluorescence Microscope With: B,G China Fluorescent Filter 3 Holes Fluorescent Slide Unit, With Field Diaphragm, Center Adjustable 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier A16.2614-L2 B,G China Fluorescent Filters A16.2614-L4 B,G,U,UV China Fluorescent Filters	○	-		●		A5F.2604
	All-in-One, B+G Flourescent Filter + 5W LED Fluorescent Light Source	○	-			●	A5F.2606

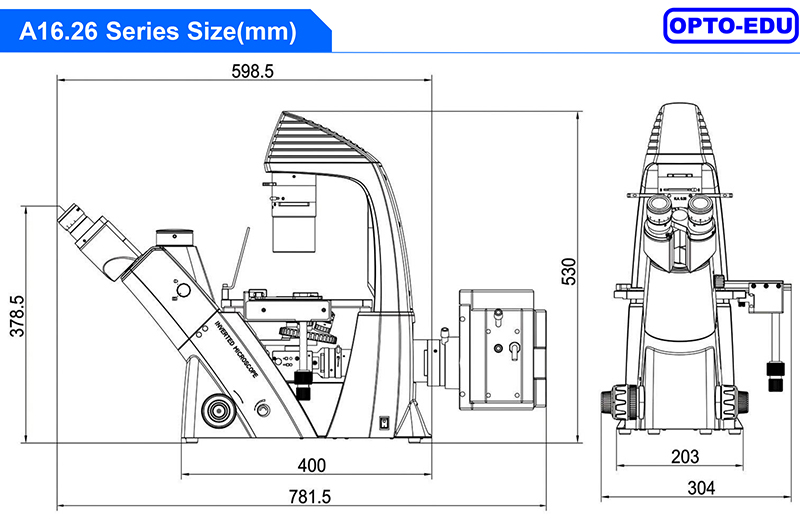

Package	Packing Size: 660mmx590mmx325mm Fluorescence Carton Size: 520x470x235mm
Weight	Gross Weight: 18 kgs, Net Weight: 13.5 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

Pictures Hide Same Show Difference
Model No.	A16.2614-L-2	A16.2614-L-4
Other Specification	Filte Blue&Green, Dia.34mm	——
Fluorescene	B,G China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable 5W LED B,G Lamp Each 1 pc	B,G,V,VU China Fluorescent Filter, 5W LED Lamp House 5W LED Power Box Ultraviolet Protection Barrier Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable 5W LED B,G,V,VU Lamp
Fluorescent Band	2 Bands	——
Phase Contrast	Annular Spot 10x, 20x/ 40x	Annular Spot 10x, 20x/ 40x
Power Supply Type	AC 110V-240V	——
Reflect Light	5W LED Fluorescent	5W LED Fluorescent
Transmit Light	6V30W Halogen	6V30W Halogen
Light Source Type	LED Halogen Fluorescent	Flourescent Halogen
Light Source Features	Halogen 30W LED 5W Transmit & Reflect Kohler	Halogen 30W LED 5W Kohler
Condenser	Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser).	Quickly Detachable, W.D.72mm, Up To 195mm Without Condenser
Condenser N.A.	0.3	0.3
Condenser Type	LWD/ELWD	LWD/ELWD
Focusing Type	Coaxial Coarse & Fine	——
Focusing Features	Tension Adjustable	Tension Adjustable
Working Stage	Round Slide Dia. 110mm, Culture Dish Dolder 54mm	Round Slide Dia. 110mm, Culture Dish Dolder 54mm
Working Stage Size	210x241mm	210x241mm
Working Stage Type	Fixed Plain Stage	Fixed Plain Stage
Working Stage Features	Size ≥140x180mm	Size ≥140x140mm
Objective	LWD Infinity Plan: LPL 10x/0.25, W.D.=8.3mm LPL 20x/0.40, W.D.=7.2mm LPL 40x/0.60, W.D.=3.4mm LWD Infinity Plan Phase Contrast: LPL Ph P 20x/0.40, W.D.=7.2mm	LWD Infinity Plan: LPL 10x/0.25, W.D.=8.3mm LPL 20x/0.40, W.D.=7.2mm LPL 40x/0.60, W.D.=3.4mm LWD Infinity Plan Phase Contrast: LPL Ph P 20x/0.40, W.D.=7.2mm
Objective Type	Infinity Plan Phase Contrast	Infinity Plan Phase Contrast
Objective Features	LWD	LWD
Nosepiece Holes	5 Holes	5 Holes
Eyepiece	WF10x/22mm, 2 pc.	WF10x/22mm, 2 pc.
Eyepiece Diameter	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable
Head Light Path	E100:P0/E20:P80	E100:P0/E20:P80
Head Interpupillary	48~76mm	48~76mm
Head Inclination	45°	——
Head Type	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	100x-400x	——
Optical System	Infinity Plan	Infinity Plan
Features	Infinity APO	Infinity
Standard Function	BF+FL+PH	——
Video Adapter	——	C-Mount 0.3x
Condenser Features	——	Slot For PH Slide

Pictures

Hide Same

Show Difference

Inverted LED Fluorescent Microscope, Trinocular, B/G

Inverted LED Fluorescent Microscope, Trinocular, B/G/U/UV

Model No.

A16.2614-L-2

A16.2614-L-4

Other Specification

Filte Blue&Green, Dia.34mm

——

Fluorescene

B,G China Fluorescent Filter,
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G Lamp Each 1 pc

B,G,V,VU China Fluorescent Filter,
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
5W LED B,G,V,VU Lamp

Fluorescent Band

2 Bands

——

Phase Contrast

Annular Spot 10x, 20x/ 40x

Power Supply Type

AC 110V-240V

——

Reflect Light

5W LED Fluorescent

Transmit Light

6V30W Halogen

Light Source Type

LED
Halogen
Fluorescent

Flourescent
Halogen

Light Source Features

Halogen 30W
LED 5W
Transmit & Reflect
Kohler

Halogen 30W
LED 5W
Kohler

Condenser

Quickly Detachable, N.A.0.3, Working Distance 72mm (With Condenser), 195mm (Without Condenser).

Quickly Detachable, W.D.72mm, Up To 195mm Without Condenser

Condenser N.A.

0.3

Condenser Type

LWD/ELWD

Focusing Type

Coaxial Coarse & Fine

——

Focusing Features

Tension Adjustable

Working Stage

Round Slide Dia. 110mm,
Culture Dish Dolder 54mm

Working Stage Size

210x241mm

Working Stage Type

Fixed Plain Stage

Working Stage Features

Size ≥140x180mm

Size ≥140x140mm

Objective

LWD Infinity Plan:
LPL 10x/0.25, W.D.=8.3mm
LPL 20x/0.40, W.D.=7.2mm
LPL 40x/0.60, W.D.=3.4mm

LWD Infinity Plan Phase Contrast:
LPL Ph P 20x/0.40, W.D.=7.2mm

Objective Type

Infinity Plan
Phase Contrast

Objective Features

LWD

Nosepiece Holes

5 Holes

Eyepiece

WF10x/22mm, 2 pc.

Eyepiece Diameter

30.0mm

Eyepiece Features

Diopter Adjustable

Head Light Path

E100:P0/E20:P80

Head Interpupillary

48~76mm

Head Inclination

45°

——

Head Type

Seidentopf Trinocular

Standard Magnification

100x-400x

——

Optical System

Infinity Plan

Features

Infinity
APO

Infinity

Standard Function

BF+FL+PH

——

Video Adapter

——

C-Mount 0.3x

Condenser Features

——

Slot For PH Slide
