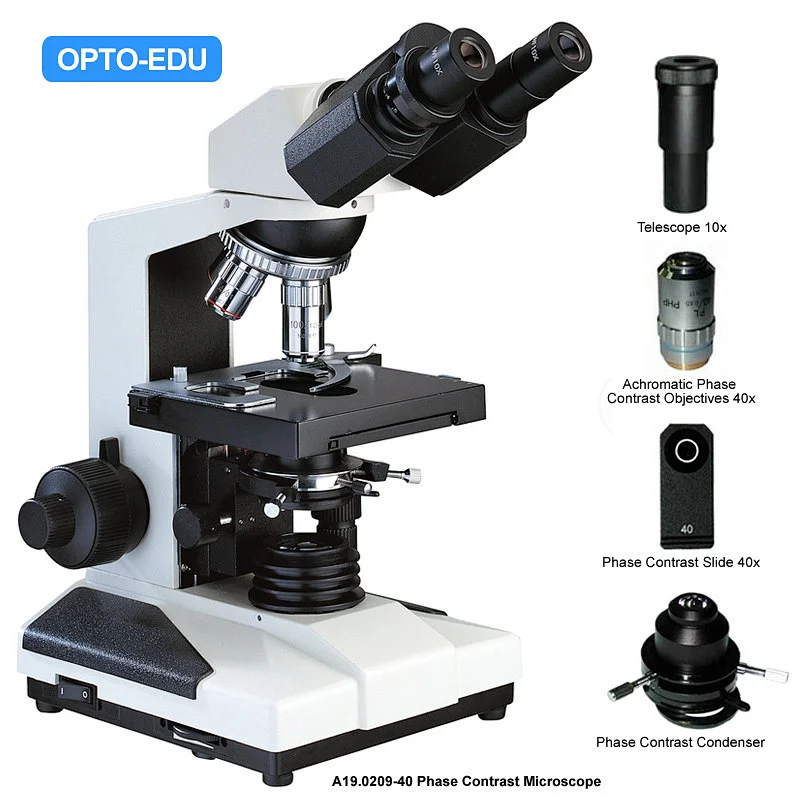

Phase Contrast Microscope

  • Sliding Binocular Head 30° Inclined, 360° Rotatable
  • Achromatic 4x,10x,100x, Achromatic Phase Contrast 40x Objective
  • Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
  • Phase Contrast Slide For 40x, Phase Contrast Condenser, Centering Telescope 10x
  • Built-in Illumination 6V20W Halogen Lamp, 100~240V
Quantity:



A19.0209-40 Phase Contrast Microscope
Magnification40x~1000x
HeadSliding Binocular Head, 30° Inclined, Interpupillary Distance 55~75mm, Left Eyepiece Tube Diopter Adjustable +/-5°
EyepieceWide Field WF10x/18mm
NosepieceBackward Quadruple Nosepiece
ObjectiveAchromatic 4x/0.10, 10x/0.25, 100xs/1.25(Oil)
StageDouble Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm
FocusingCoaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, Coarse Focusing Stroke 37.7mm/Rotation, With Tension Adjustment, With Up Limit, Base Bearing Black Plastic Cap
CondenserN.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder
FilterBlue, Yellow, Green
Phase ContrastPhase Contrast Objective 40x
Phase Contrast Slide 40x
Phase Contrast Condenser
Centering Telescope 10x
Light SourceBuilt-in Illumination 6V20W Halogen Lamp, 100~240V

Pictures
Model No. A19.0209-40
Optical System
Achromatic
Head Type
Seidentopf Binocular
Head Rotation
Head Rotate 360°
Head Interpupillary
55~75mm
Head Diopter
Left Tube Adjustable
Eyepiece Diameter
23.2mm
Eyepiece
WF10x/18mm, 2 pcs
Nosepiece Features
Inward
Nosepiece Holes
4 Holes
Objective Type
Achromatic
Objective
Achromatic Objective 10x20x100x,
Phase Contrast Objective 40x
Working Stage Features
Size ≥140x140mm
Working Stage Type
2 Layers Mechanical
Working Stage Size
140x140mm
Working Stage Moving
50x75mm
Focusing Features
Safety Stop Lock Ring
Tension Adjustable
Focusing Type
Coaxial Coarse & Fine
Focusing Range
37.7mm
Focusing Scale
0.002mm
Condenser Features
Rack & Pinionↆ↑
Filter Holder
Center Adjustable
Condenser Type
Abbe
Condenser N.A.
1.25
Light Source Type
Halogen
Transmit Light
6V20W Halogen
Video Adapter
C-Mount 0.3x
Phase Contrast
Phase Contrast Objective 40x

Phase Contrast Slide 40x

Phase Contrast Condenser

Centering Telescope 10x
