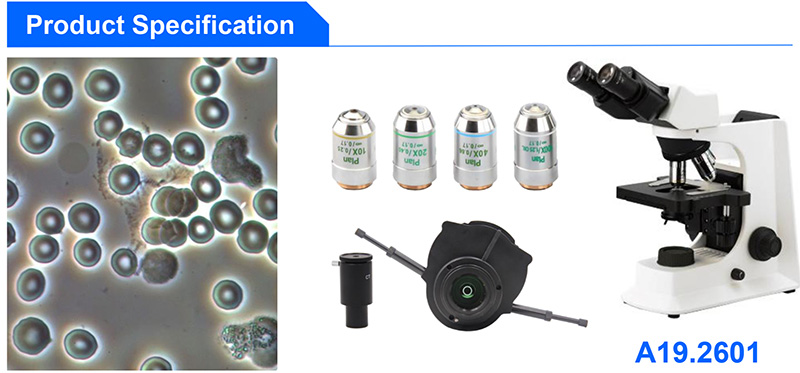

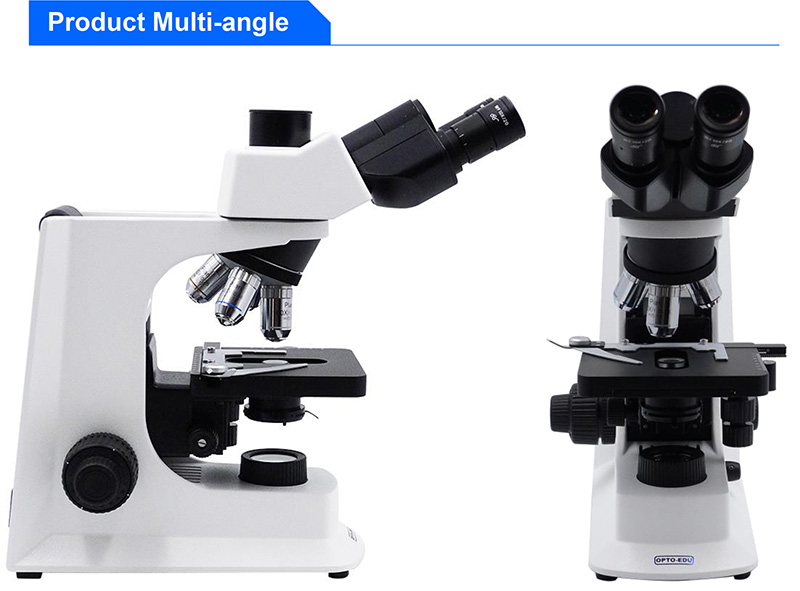

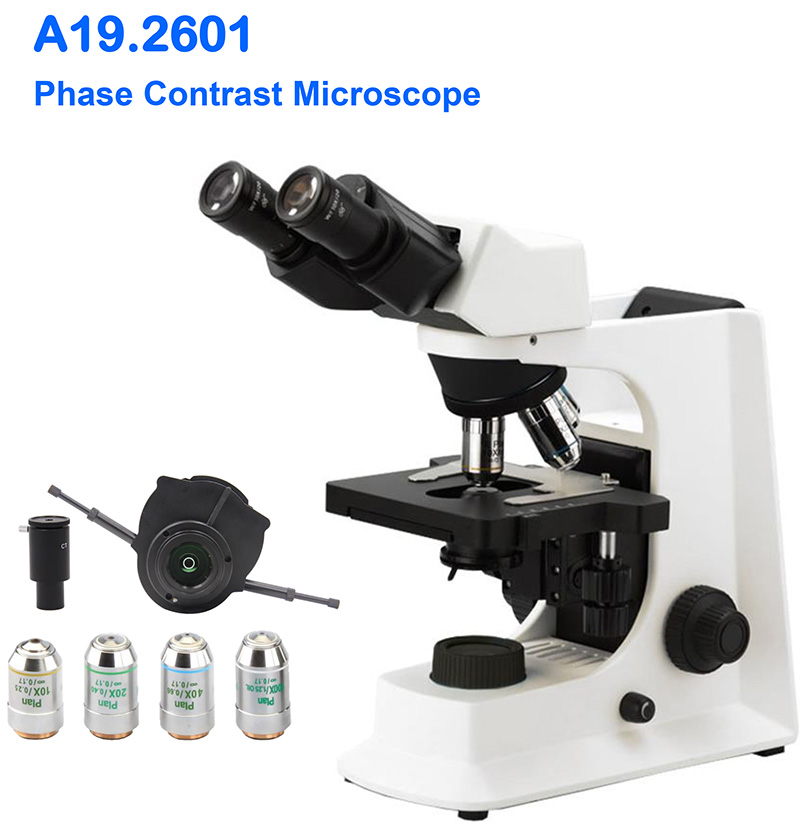

Phase Contrast Microscope, Infinity Plan, Turret Disc Condenser

A19.2601

Like Favorites

Phase Contrast Microscope, Infinity Plan, Turret Disc Condenser

Infinity Plan Achromatic Phase Contrast Optical System
WF10X/20mm High Eye-Point Eyepiece, Centering Telescope For PH
Infinity Plan Phase Contrast Objective 10x20x40x100x
Turret Disc Phase Contrast Condenser For 10x20x40x100x Objective
Double Layer Mechanical 145x140mm, Kohler 3W LED Illumination

Items	A19.2601 Phase Contrast Microscope Specification		Cata. No.

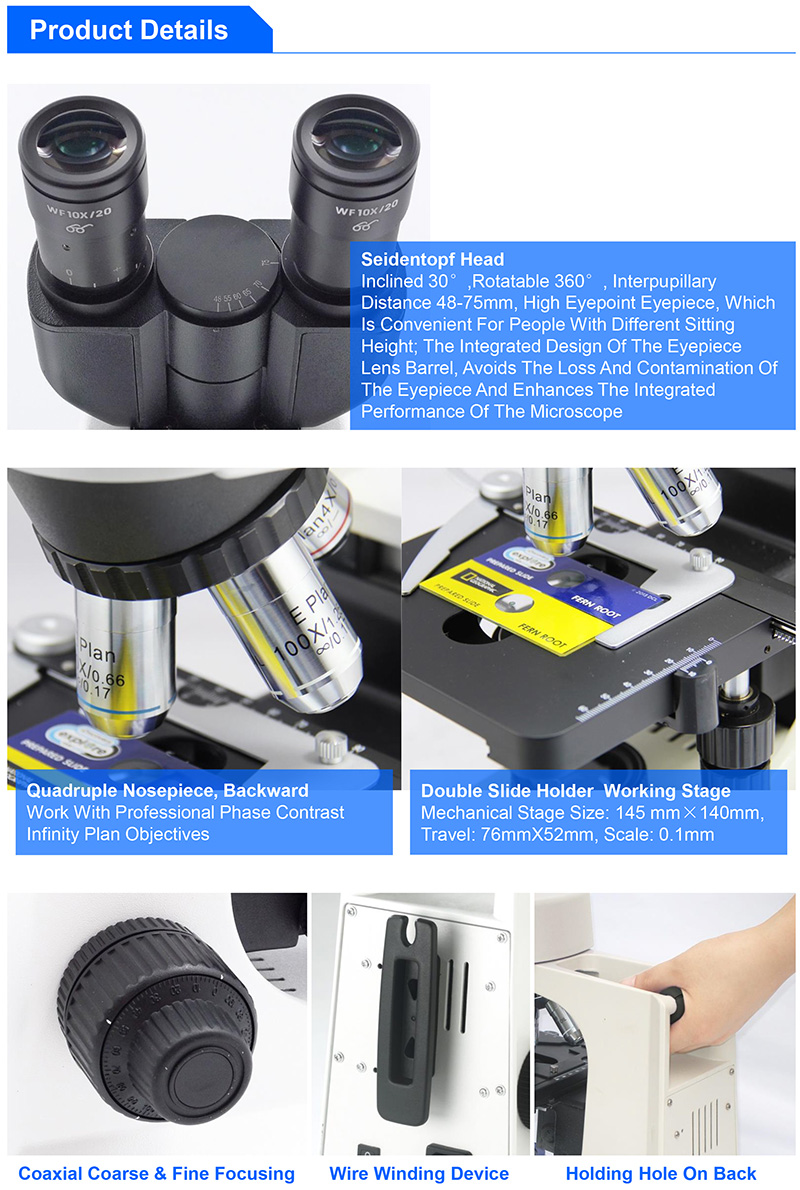

Head	Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm	○	A53.2621-B
Head	Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80	●	A53.2621-T
Eyepiece	WF10x/18mm	●	A51.2602-1018
Eyepiece	WF10X/20mm (High Eyepoint)	●	A51.2602-1020
Nosepiece	Quadruple, Backward	●	A54.2610-N734
Nosepiece	Quintuple, Backward	○	A54.2610-N735
Objectives	Infinity Plan Phase Contrast Objective
	10x/0.25	●	A5C.2629-10
	20x/0.4	●	A5C.2629-20
	40x/0.65	●	A5C.2629-40
	100x/1.25	●	A5C.2629-100
Working Stage	Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder	●	A54.2601-S04
Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division	●

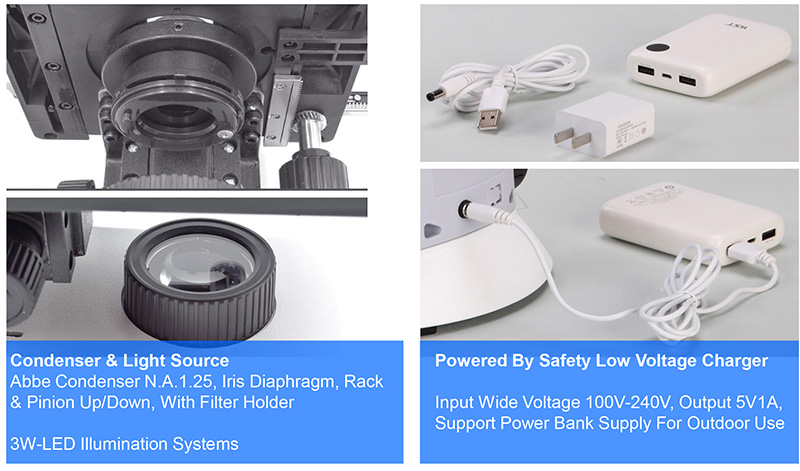

Condenser	Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder	○	A56.2614-C06b
Illumination	3W-LED Illumination Systems Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	A56.2650-3WLED

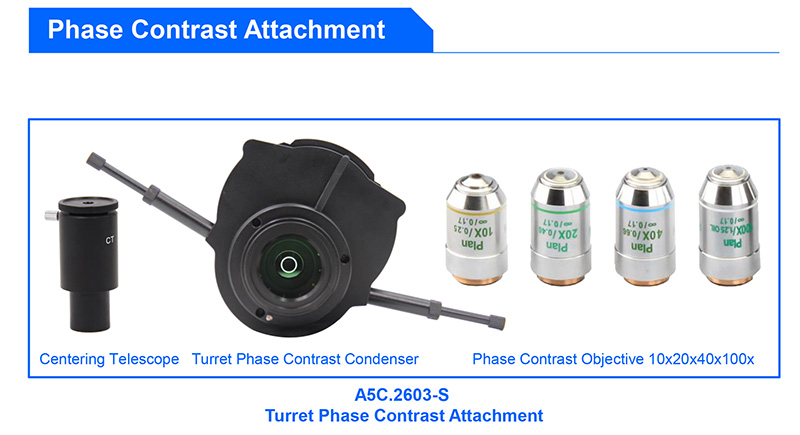

Phase Contrast	Turret Phase Contrast Attachment Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter	●	A5C.2603-S
Attachment	Wire Winding Device	○	A50.2602-S

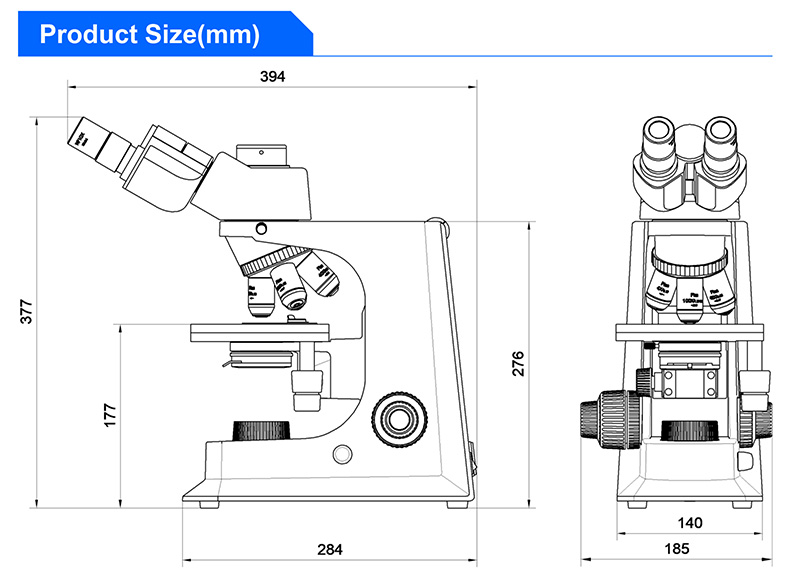

Package	Carton Size 390×280×450mm, 1 Unit/Ctn
Weight	Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories

Pictures
Model No.	A19.2601
Phase Contrast	Plan Phase Contrast 10x20x40x100x, Turret Disc PH Condenser, Centering Telescope
Video Adapter	C-Mount 0.5x
Power Supply Type	AC 110V-240V
Transmit Light	3W
Light Source Type	LED
Light Source Features	Kohler
Condenser	Turret Disc PH Condenser
Condenser N.A.	1.25
Condenser Type	Phase Contrast Abbe
Condenser Features	Center Adjustable Iris Diaphragm Rack & Pinionↆ↑
Focusing Scale	0.001mm
Focusing Type	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Lock Ring
Working Stage Moving	76x52mm
Working Stage Size	156x138mm
Working Stage Type	Double Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x140mm
Objective	Infinity Plan Phase Contrast 10x20x40x100x
Objective Type	Infinity Plan
Nosepiece Holes	4 Holes
Nosepiece Features	Inward
Eyepiece Diameter	23.2mm
Head Light Path	E80:P20
Head Diopter	Left Tube Adjustable
Head Interpupillary	52~75mm
Head Rotation	Head 360°
Head Inclination	30°
Head Type	Seidentopf Trinocular
Standard Magnification	100x-1000x
Optical System	Infinity Plan
Features	Infinity
Standard Function	BF+PH
