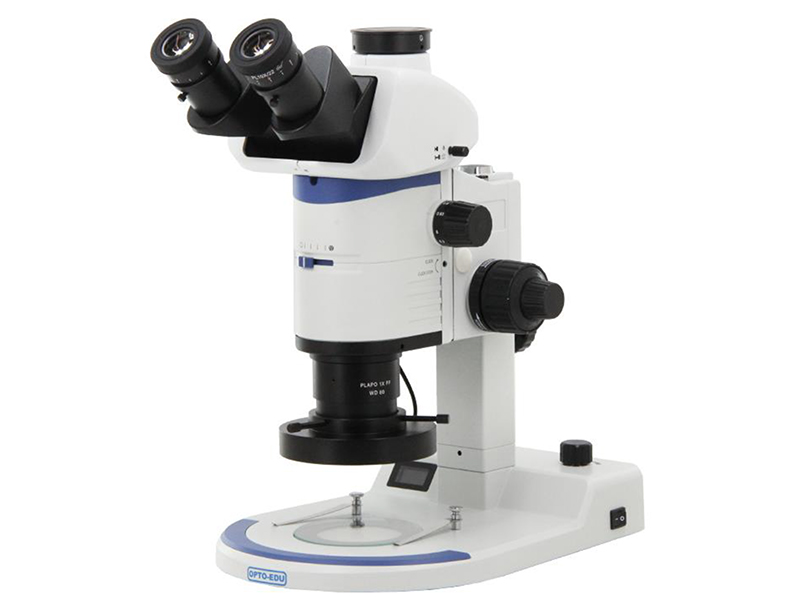

Zoom Stereo Microscope, Parallel Light, 0.63x~8x,1:12.5
Zoom Stereo Microscope, Parallel Light, 0.63x~8x,1:12.5
Zoom Stereo Microscope, Parallel Light, 0.63x~8x,1:12.5
Zoom Stereo Microscope, Parallel Light, 0.63x~8x,1:12.5

Zoom Stereo Microscope, Parallel Light, 0.63x~8x,1:12.5


수량:

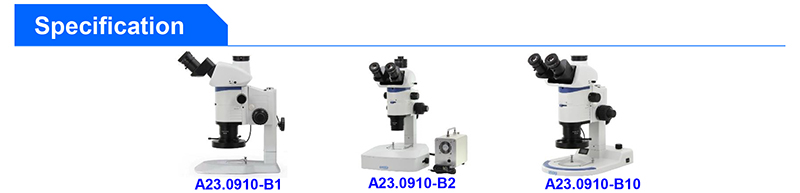

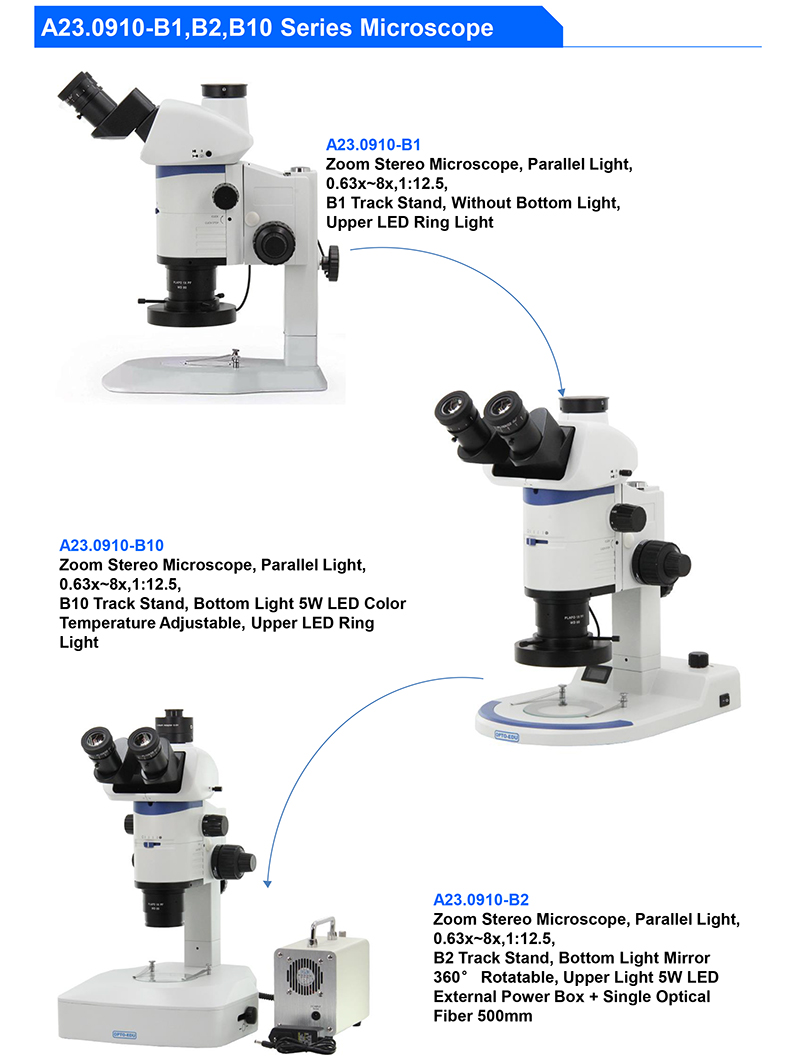

A23.0910 Zoom Stereo Microscope,Zoom Ratio 1:12.5, Parallel LightA23.0910-B1A23.0910-B2A23.0910-B10Cata. No.
Head5°~45° Tilting Trinocular Head, Light Splitting Switch E100:P0/E0:P100,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock

30° Inclined Trinocular Head, Light Splitting Fixed E50:P50,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock

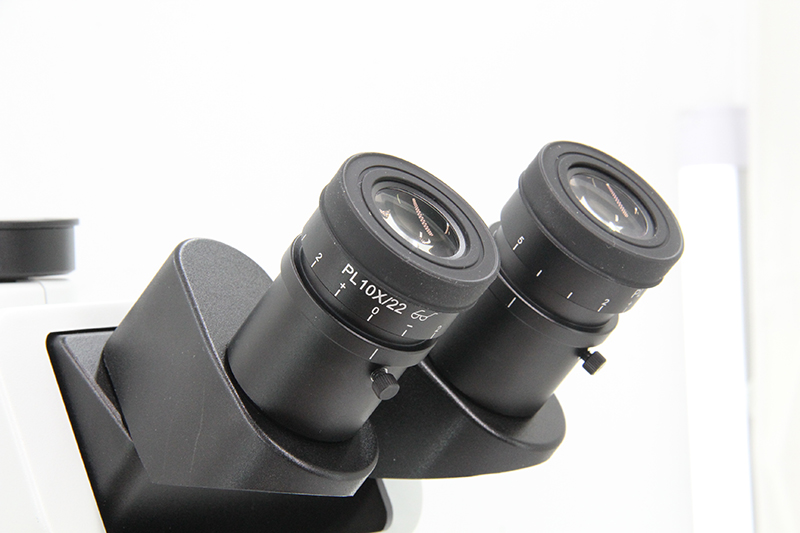

EyepiecePL10x/23mm High Eye-Point Wide Field Plan Eyepiece, Diopter AdjustableA51.0925-10
PL15x/16mm High Eye-Point Wide Field Plan Eyepiece, Diopter AdjustableA51.0925-15
PL20x/12.5mm High Eye-Point Wide Field Plan Eyepiece, Diopter AdjustableA51.0925-20
LensZoom Lens 0.63x~8x, Zoom Ratio 1:12.5,

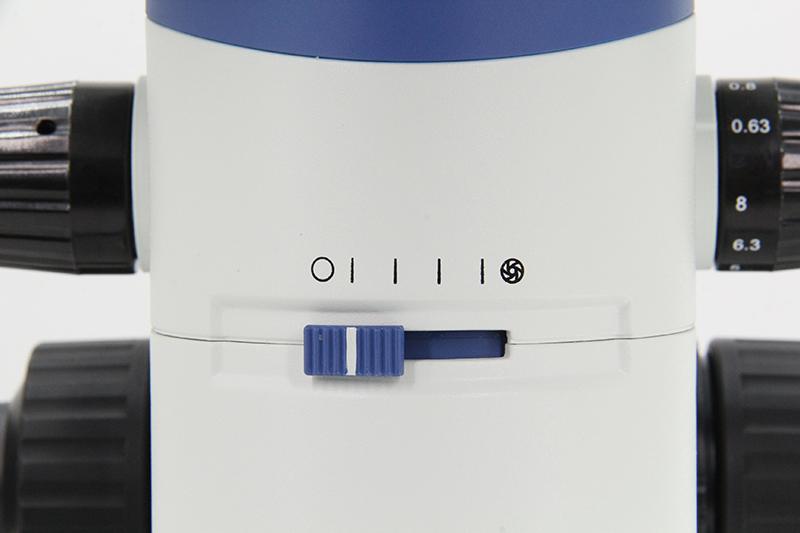

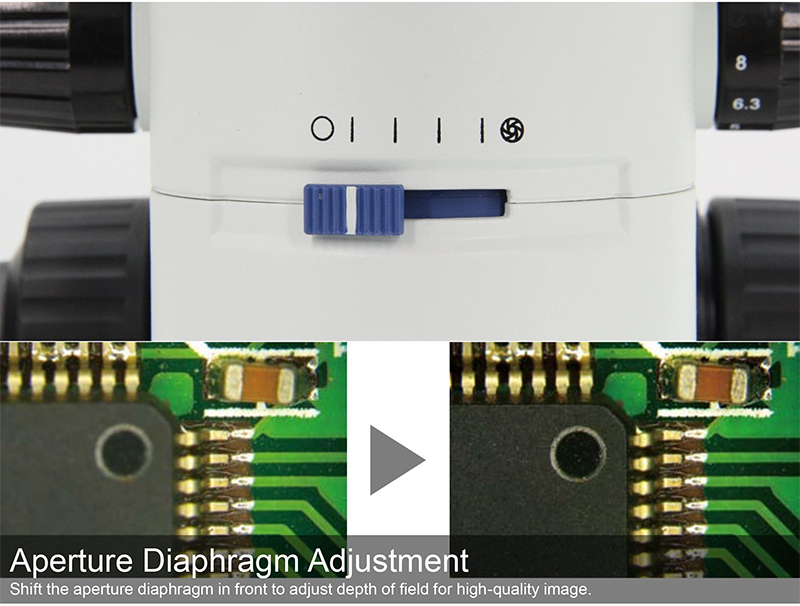

Built-in Aperture Diaphragm Adjustable,

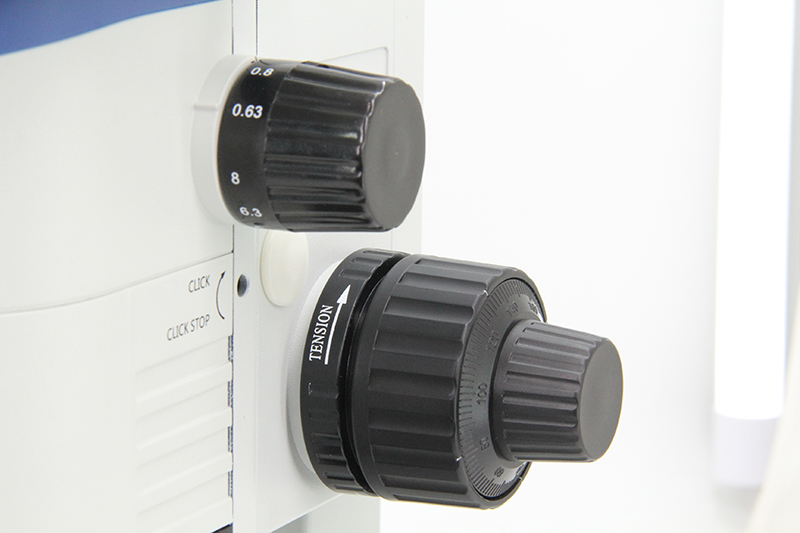

Main Scales On Zoom Knob 0.63x, 0.8x, 1.0x, 1.25x, 1.6x, 2.0x, 2.5x, 3.2x, 4x, 5x, 6.3x, 8x, Switch Between With/Without Click Stop

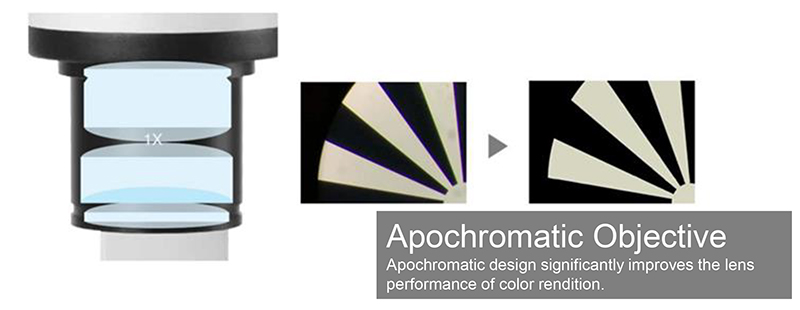

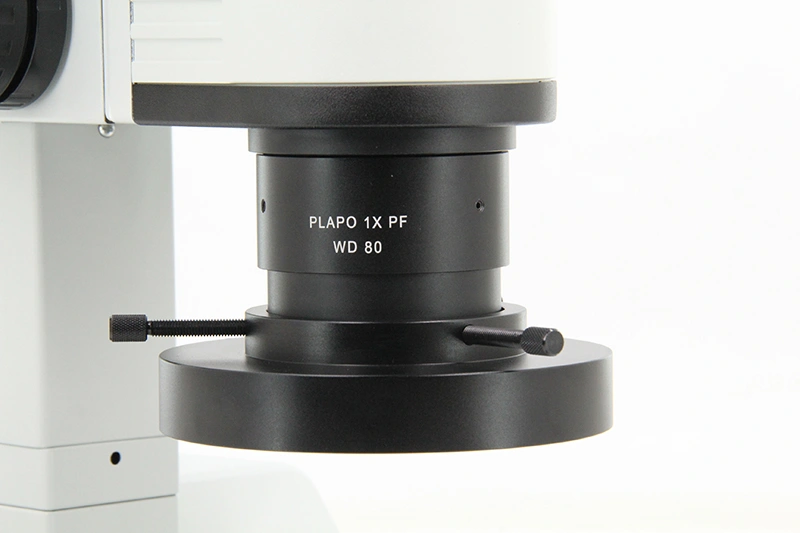

Auxiliary Objective0.5x Main Objective APO, Working Distance 70.5mmA52.0930-05

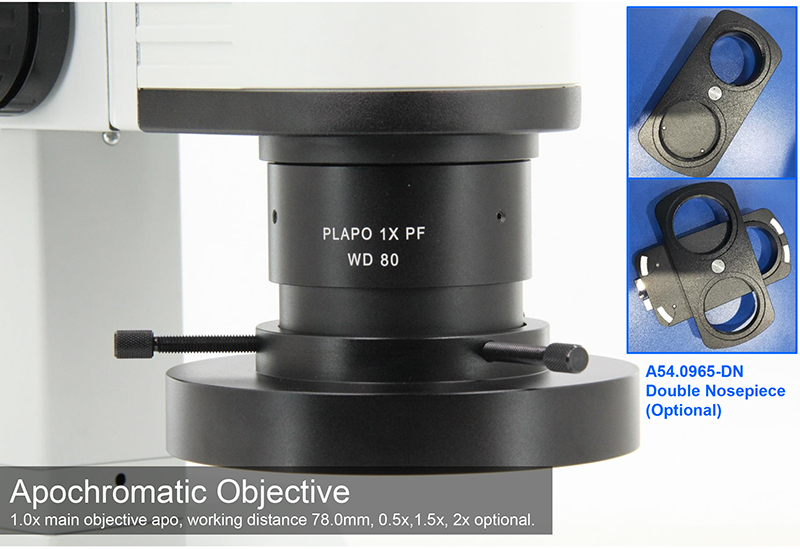

1.0x Main Objective APO, Working Distance 78.0mmA52.0930-10
1.5x Main Objective APO, Working Distance 31.1mmA52.0930-15
2.0x Main Objective APO, Working Distance 20.0mmA52.0930-20
NosepieceDouble Nosepiece

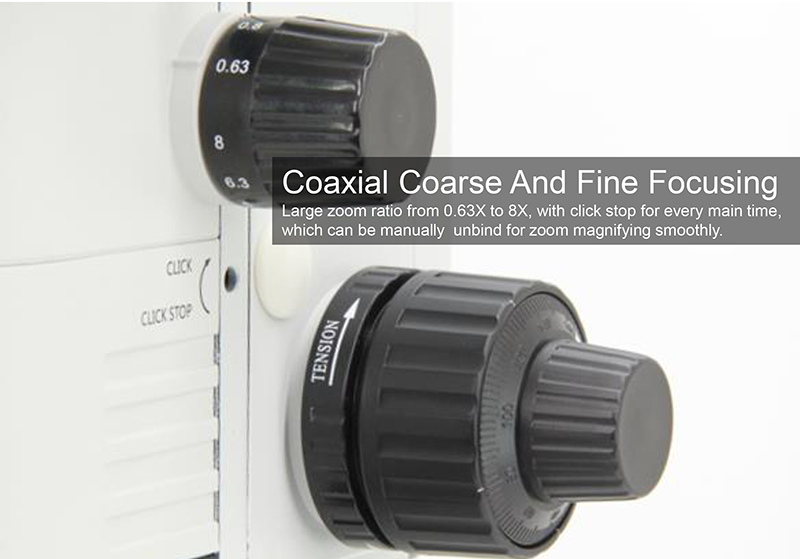

FrameCoaxial Fine & Coarse Focusing Mechanism, Intgrated Focus Holder And Stand, Focusing Range 50mm, Fine Focusing Precision 0.002mm

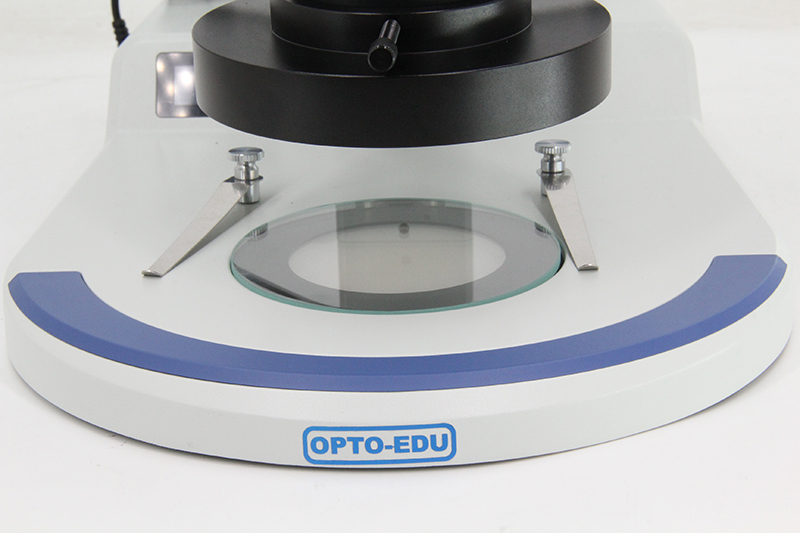

Base & Bottom Light Source(B1)Plan Base
Without Illumination, With Black/White Plate Dia.100mm
--
(B2)Plan Base
With Bottom Illumination Built-in Mirror 360° Rotatable + Position Adjustable
Use With Oblique Illumination 5W LED
--
Forearm Holder (Matching Use With B2 Base)--A54.0965
(B10)Ultra-thin Base,

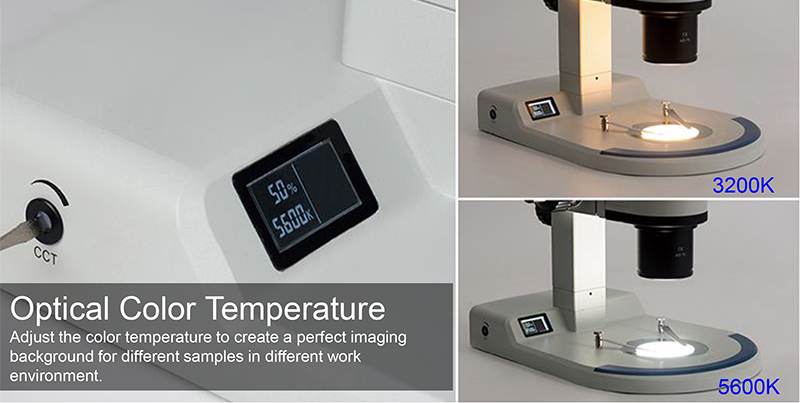

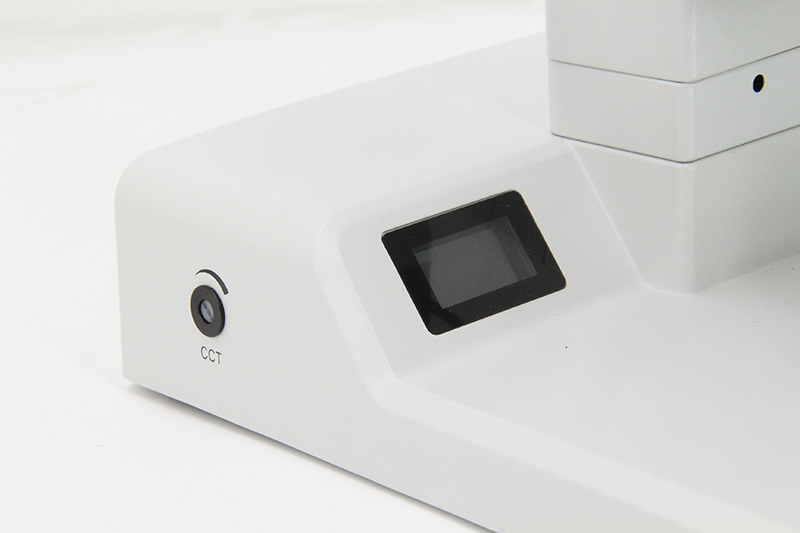

With Bottom Illumination 5W LED, Color Temperature 3200~5600K & Light Intensity Adjustable With Digital Readout LCD Screen
--
Uppler
Light Source

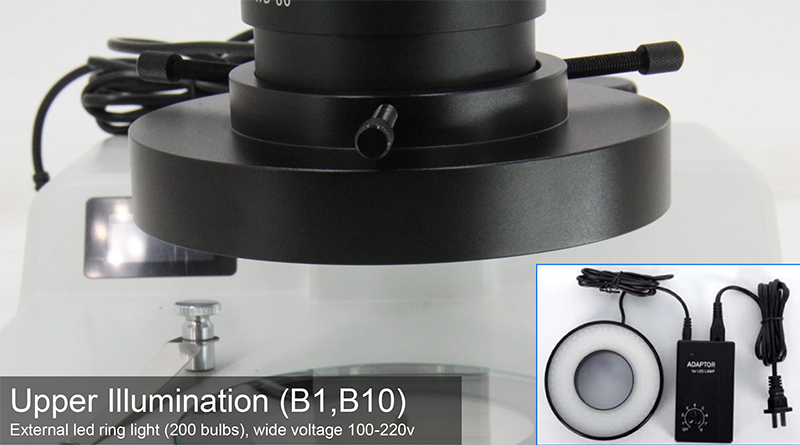

Upper Illumination:

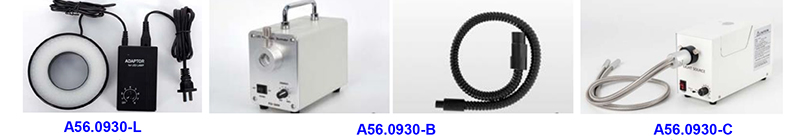

Attachable LED Ring Light (200 Bulbs), Wide Voltage 100-220V

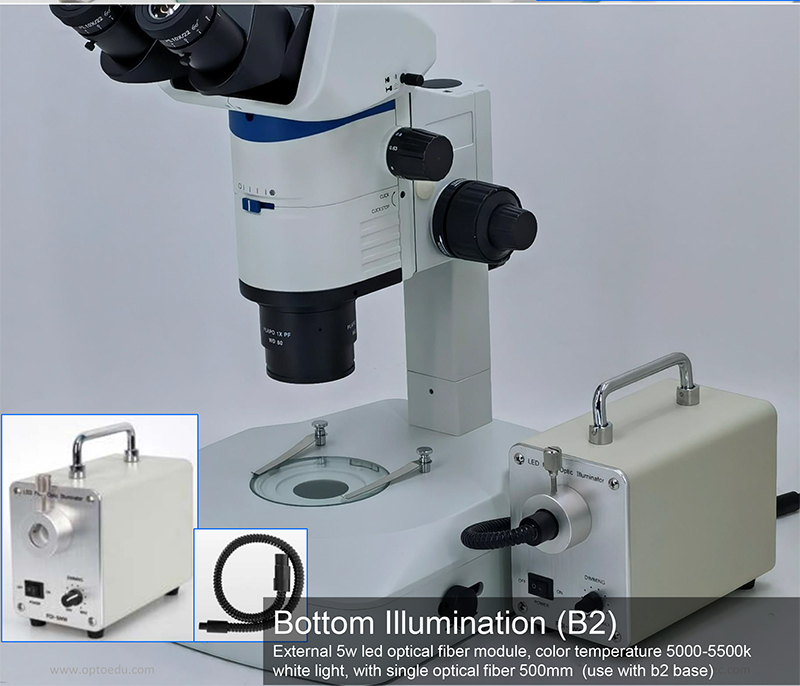

Oblique Illumination:
External5W LEDModule,ColorTemperature 5000-5500K White Light,WideVoltage 100-220V, Output 12V5W, Power Supply BoxSize 270×100×130mm, With Single Optical Fiber 500mm  (Matching Use With B2 Base)
--

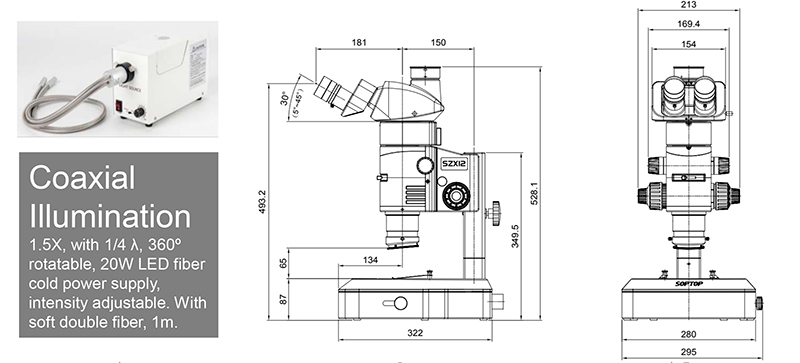

Coaxial Illumination:

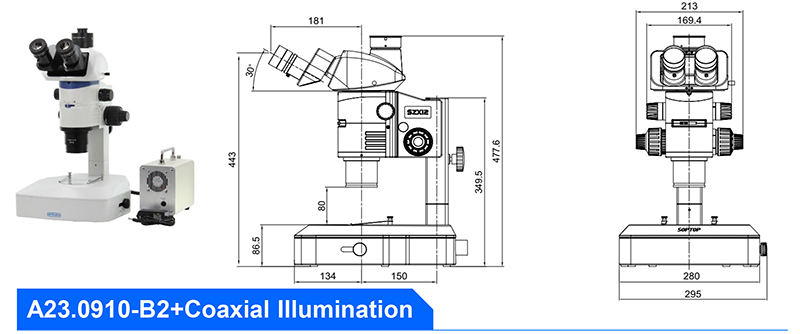

1.5x, With 1/4 λ, 360º Rotatable, 20W LED, Intensity Adjustable, With Power Supply Box, With Soft Double Optical Fiber 1000mm
---
PolarizingPolarizer Fixed On Bottom Light Source (For Transmit Light)-A5P.0925-P
Analyzer Attached Under Lens, 360° Rotatable  (For Transmit Light)-A5P.0925-A
Adapter0.35xC-mountAdapter,Focus AdjustableA55.0930-35
0.5xC-mountAdapter, Focus AdjustableA55.0930-05
0.65xC-mountAdapter,Focus AdjustableA55.0930-65
1.0xC-mount Adapter, Focus AdjustableA55.0930-10
Allen keyM4 allen key (3mm)

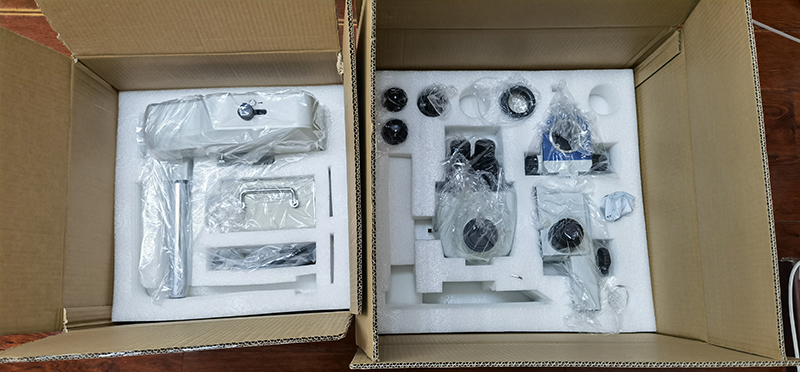

PackageSponge And Carton, One Set/Carton, Carton Size 58.5x55x81cm
Means Standard Outfit  Means Optional Parts  - Mean Not Match

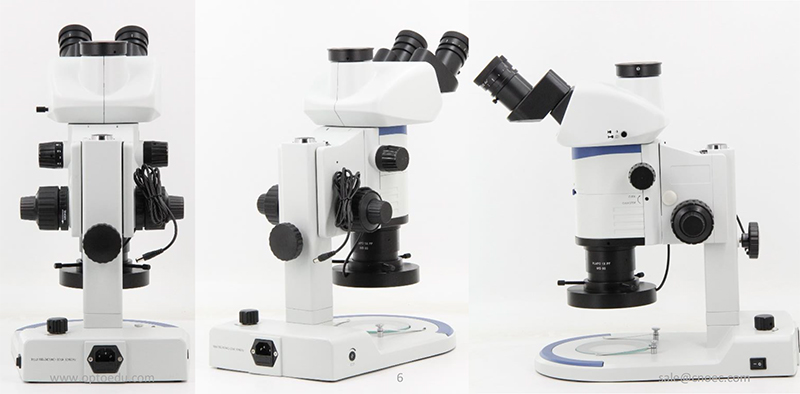

Pictures

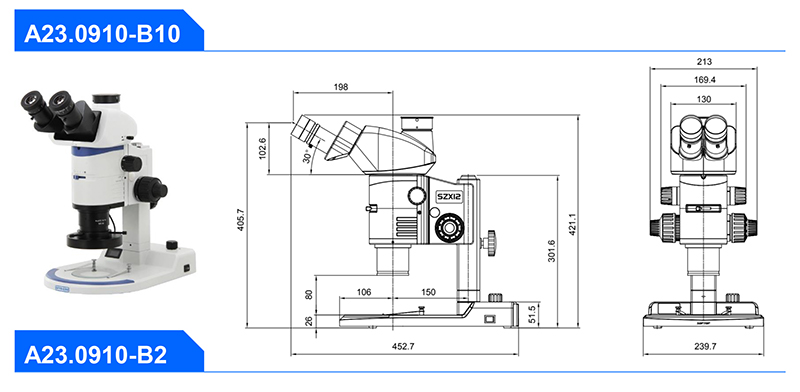

Model No. A23.0910-B10 A23.0910-B1
Features
DIC
Coding Nosepiece
Information LCD
DIC
Coding Nosepiece
Information LCD
New Product Year
2015 2015
Optical System
Parallel Parallel
Standard Magnification
8x~100x 8x~100x
Optional Magnification
4x~400x 4x~400x
Head Type
Seidentopf Trinocular Seidentopf Trinocular
Head Inclination
45°+45° 45°+45°
Eyepiece Features
Super Wide Field >22mm
High Eyepoint
Diopter Adjustable
Super Wide Field >22mm
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
30.0mm 30.0mm
Objective Type
APO (Apochromatic)
CMO (Stereo)
APO (Apochromatic)
CMO (Stereo)
Light Source Feature
Brightness Adjustable
LED 3W
Brightness Adjustable
Light Source Type
LED LED
Power Supply Type
AC 100V-240V Wide Voltage AC 100V-240V Wide Voltage
Stereo Zoom Ratio
1:9 1:9
Stereo Stand Type
Track Stand Track Stand
