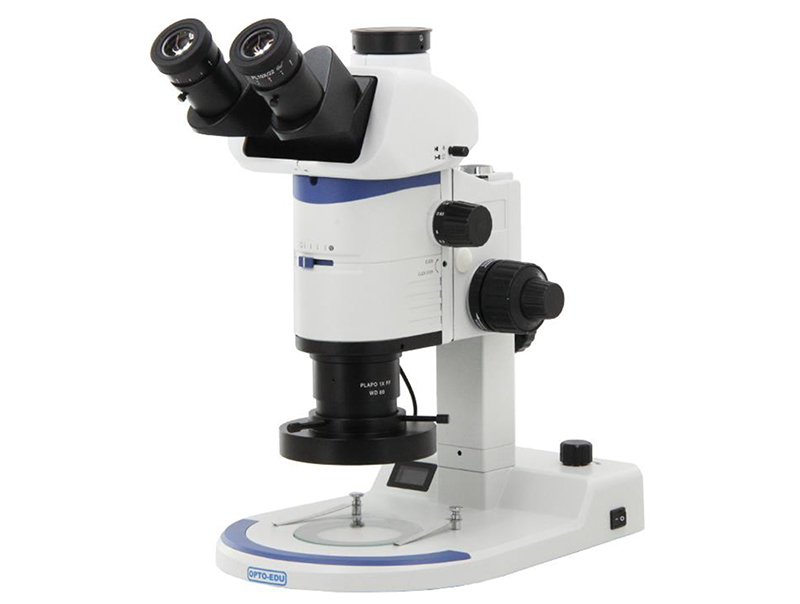

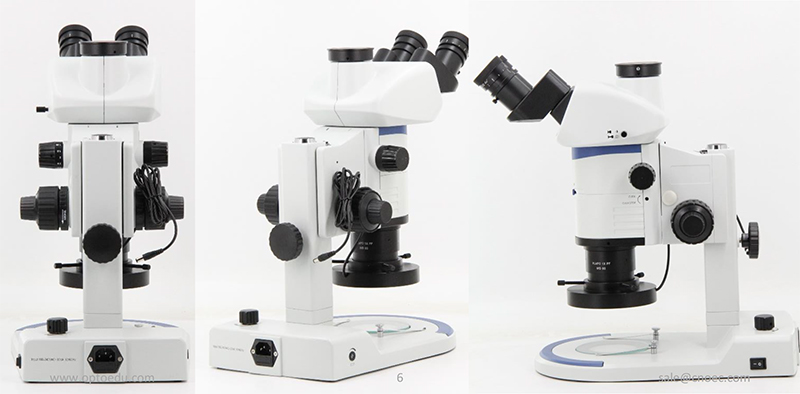

Zoom Stereo Microscope, Parallel Light, 0.63x~8x,1:12.5, B2 Track Stand, Bottom Light Mirror 360° Rotatable, Upper Light 5W LED


  • Parallel Light Zoom Stereo Microscope 0.63x~8x Zoom Lens, Large Zoom Ratio1:12.5
  • 5-45° Titable Trinocular Inclination Adjustable For Easy Use
  • PL10x/23mm High Eye-Point Wide Field Plan Eyepiece, Diopter Adjustable
  • Upper/Bottom/Oblique/Coaxial Illumination, Polarizer & Analyzer Optional
  • Zoom Knob Can Switch Between With/Without Click Stop
Quantity:

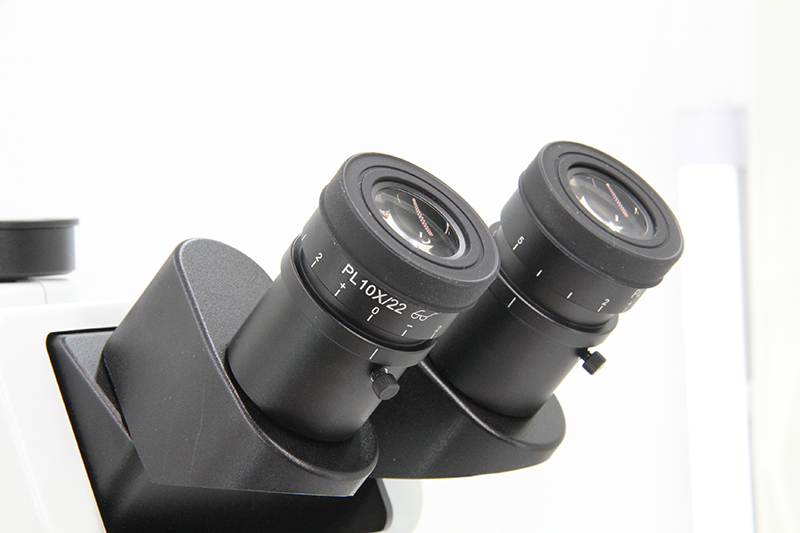

Head & Eyepiece

5~45°TiltingTrinocular Head, Whether Standing Or Sitting, FullyMeet Your Operating Posture

HighEye-Point Wide Field Plan Eyepiece, Diopter Adjustable, With A Larger Field Of View Than

Traditional Eyepieces,A Wider And Clearer Image Can BeObtained

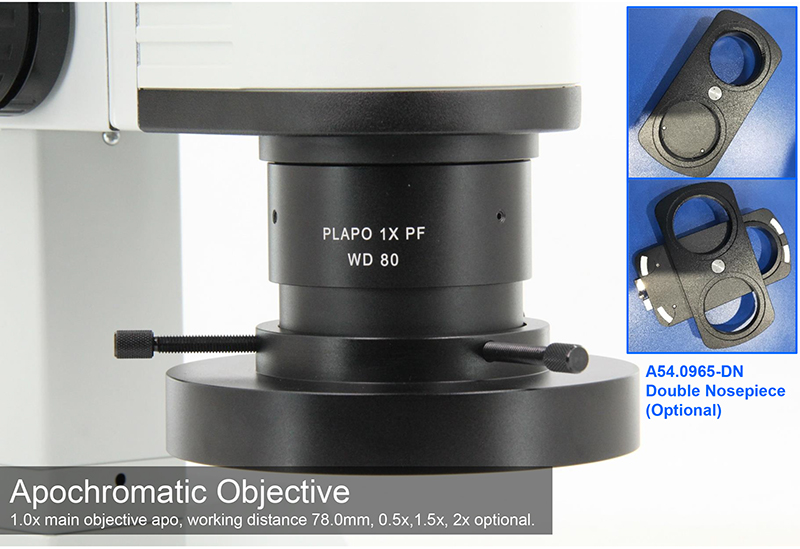

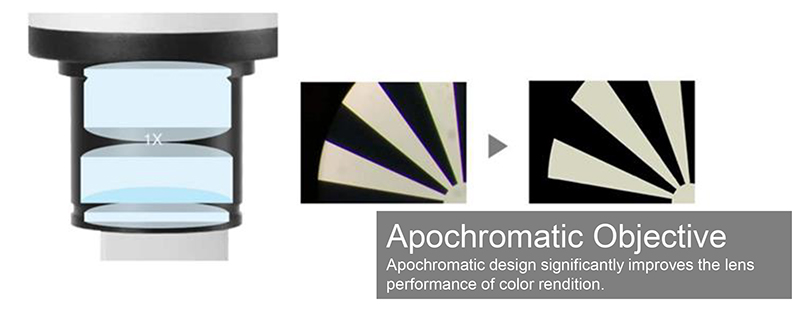

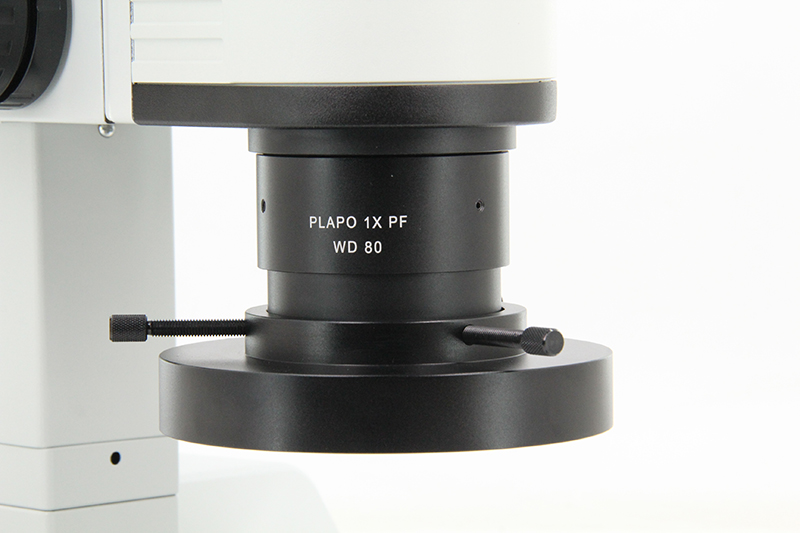

ApochromaticObjective

ApochromaticDesign Significantly Improves The LensPerformanceofColor Rendition.

CorrectingThe Axial ChromaticAberration Of Red/green/blue/purple, And ConvergeThem On A

FocalPlane, The Objective Is AbleTo Present The Real Color Of The Samples.

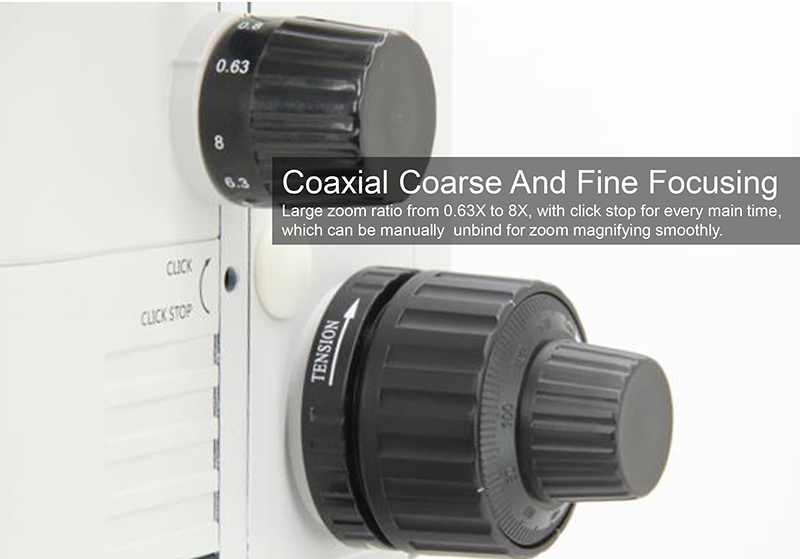

Zoom Ratio 1:12.5

Has Large Zoom Ratio From 0.63xTo8x, With Click Stop For Every Main Time,

WhichCan Be Manually Unbind For Zoom Magnifying Smoothly

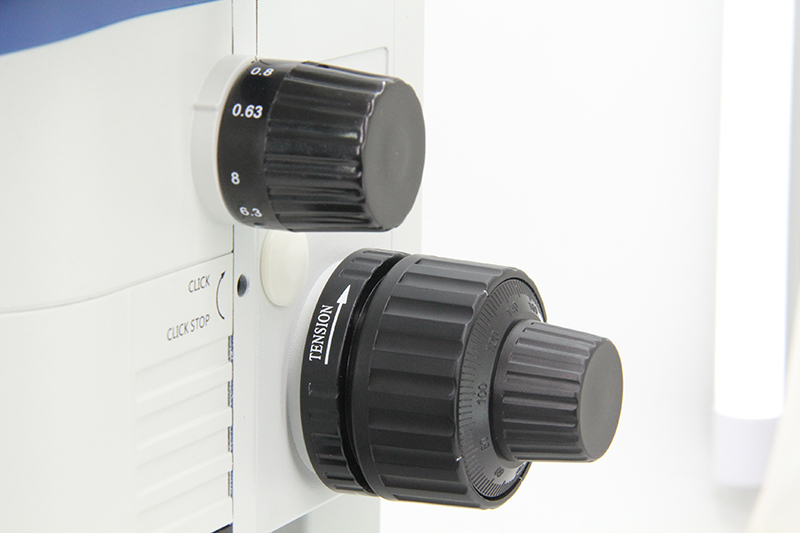

Switch Between Click / Click Stop

Click Mode, the zoom knob will click at each integer magnification like 1x, 2x, 3x...,

for user to know which magnification is under view easily.

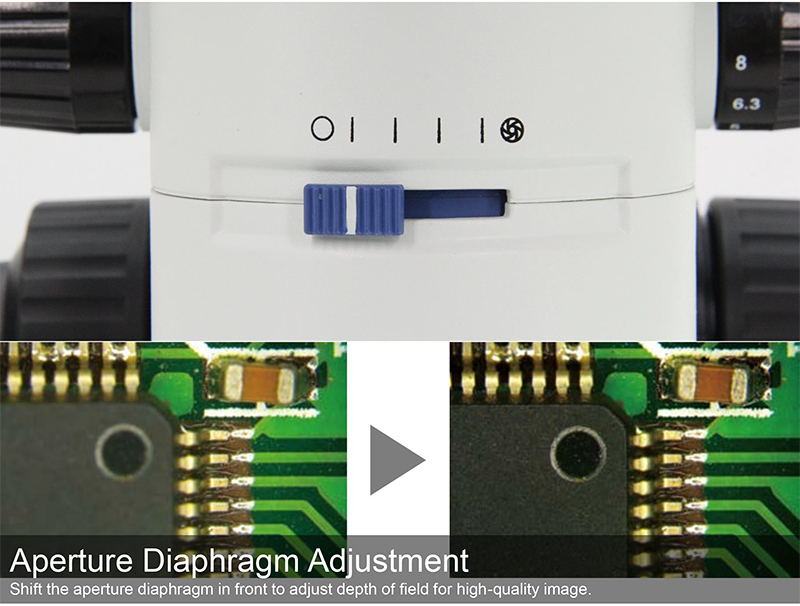

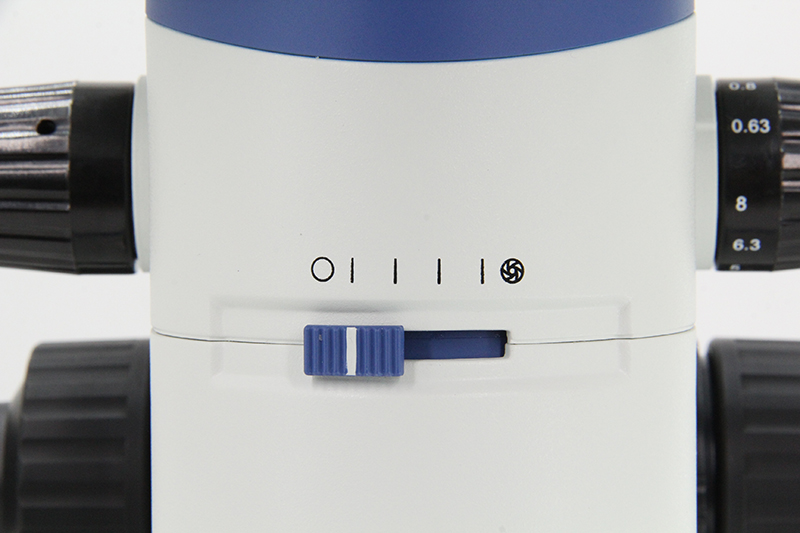

Aperture Diaphragm Adjustment

Shift The Aperture Diaphragm In Front To Adjust Depth Of Field For High-quality Image

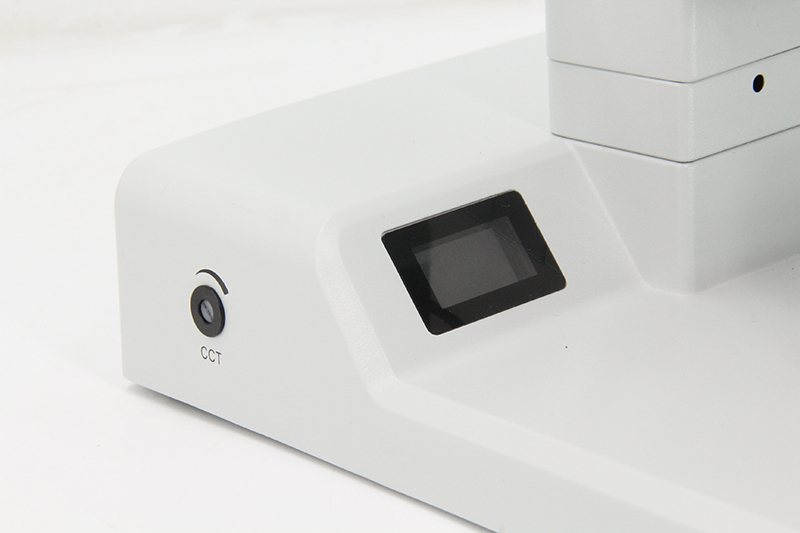

Humanized Light Intensity

Rotate The Dimmer To Adjust Light Intensity, The Detailed Percent Of Brightness

Will Be Displayed From The Lcd On The Base. It Is Helpful To Record Data Of The Best Back Light For Sample Observation

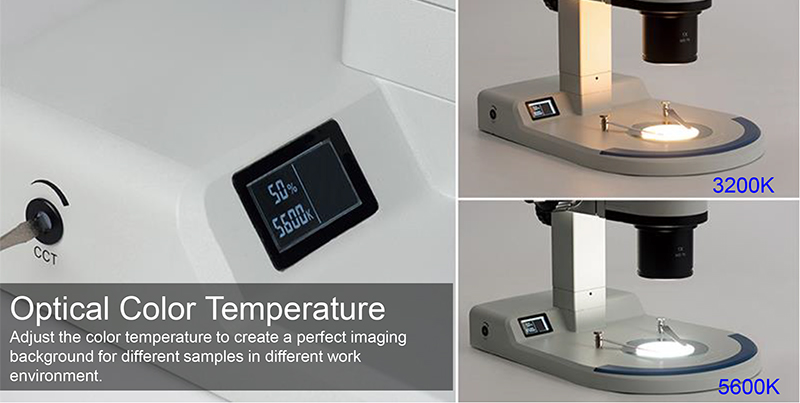

Optional Color Temperature

Adjust The ColorTemperatureTo Create A Perfect Imaging BackgroundFor Different SamplesIn Different WorkEnvironment

Mirror Adjustment Device

The Base Has A Built-in Mirror, And The Mirror Can Be Rotated 360 ° By Adjusting The Knob To

ChangeThe Illumination Range Of The Light Passing Through The Mirror. The Reflector Is Two

Sides, That Is, A Flat Mirror And A Matte Surface, Which Can Obtain Images With Different Effects

ToMeet The Various Needs Of Users For Lighting Effects





Support For Life Science Research, Meet The Demands Of Biological Experiment, Chemical Analysis And Cell Culture.
Indispensable Testing Tool, Widely Applied For Surface Detection Of Pcb, Smt, Semiconductor Chip, Metal Material And Precision Components.

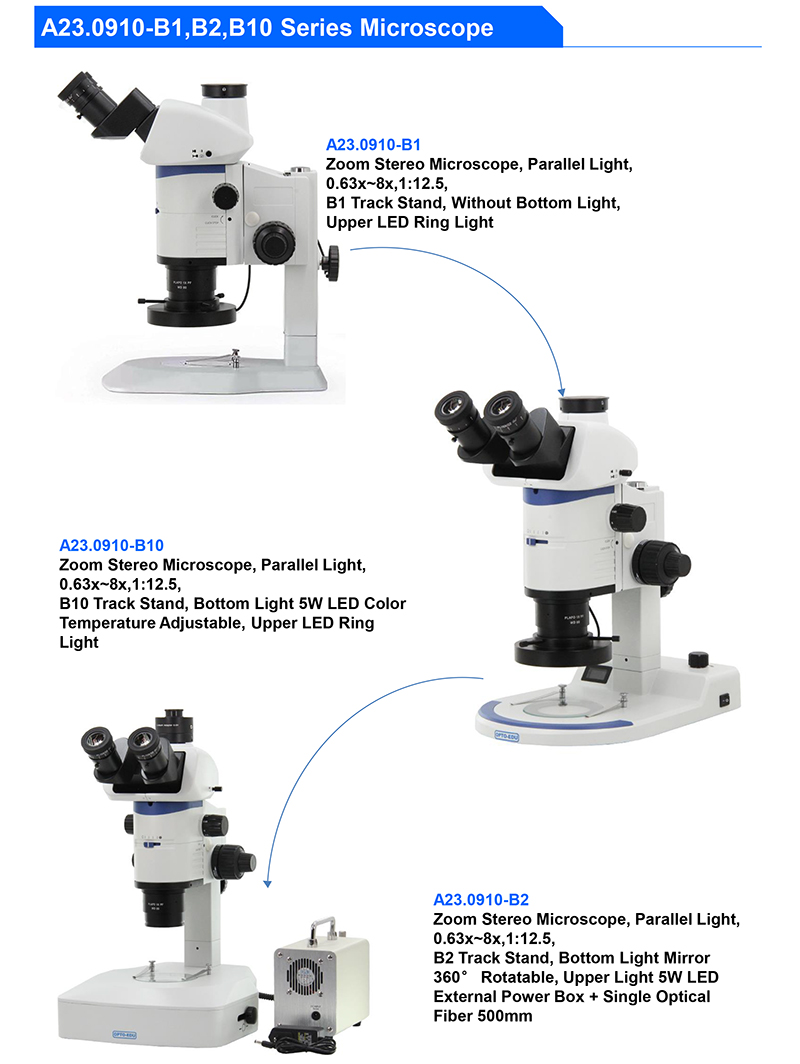

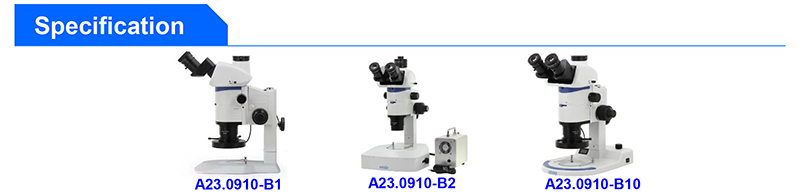

A23.0910 Zoom Stereo Microscope,Zoom Ratio 1:12.5, Parallel LightA23.0910-B1A23.0910-B2A23.0910-B10Cata. No.
Head5°~45° Tilting Trinocular Head, Light Splitting Switch E100:P0/E0:P100,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock

30° Inclined Trinocular Head, Light Splitting Fixed E50:P50,
Inter-Pupillary Distance 50~76mm, With Eyepiece Lock

EyepiecePL10x/22mm High Eye-Point Wide Field Plan Eyepiece, Diopter AdjustableA51.0925-10
PL15x/16mm High Eye-Point Wide Field Plan Eyepiece, Diopter AdjustableA51.0925-15
PL20x/12.5mm High Eye-Point Wide Field Plan Eyepiece, Diopter AdjustableA51.0925-20
LensZoom Lens 0.63x~8x, Zoom Ratio 1:12.5,
Built-in Aperture Diaphragm Adjustable,
Main Scales On Zoom Knob 0.63x, 0.8x, 1.0x, 1.25x, 1.6x, 2.0x, 2.5x, 3.2x, 4x, 5x, 6.3x, 8x, Switch Between With/Without Click Stop

Auxiliary Objective0.5x Main Objective APO, Working Distance 70.5mmA52.0930-05
1.0x Main Objective APO, Working Distance 78.0mmA52.0930-10
1.5x Main Objective APO, Working Distance 31.1mmA52.0930-15
2.0x Main Objective APO, Working Distance 20.0mmA52.0930-20
NosepieceDouble Nosepiece
FrameCoaxial Fine & Coarse Focusing Mechanism, Intgrated Focus Holder And Stand, Focusing Range 50mm, Fine Focusing Precision 0.002mm

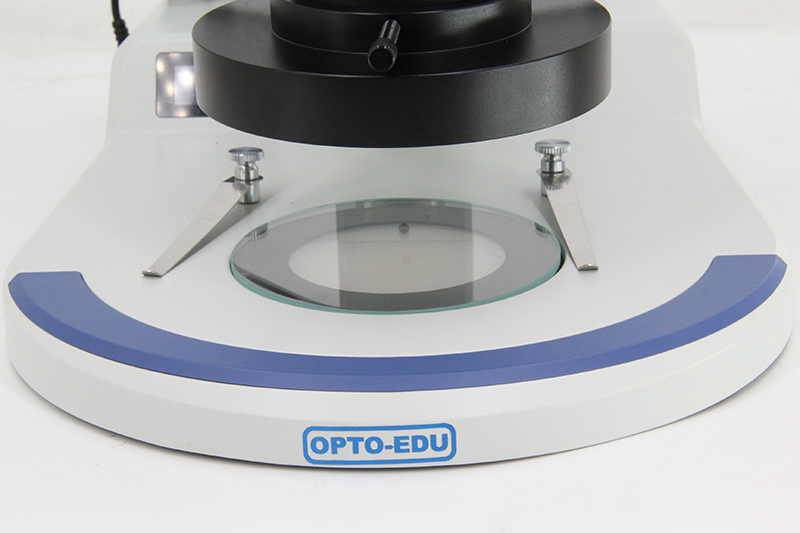

Base & Bottom Light Source(B1)Plan Base
Without Illumination, With Black/White Plate Dia.100mm
--
(B2)Plan Base
With Bottom Illumination Built-in Mirror 360° Rotatable + Position Adjustable
Use With Oblique Illumination 5W LED
--
Forearm Holder (Matching Use With B2 Base)--A54.0965

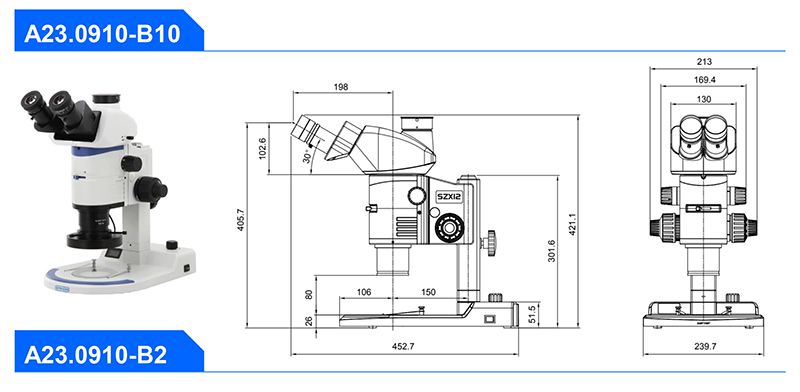

(B10)Ultra-thin Base,
With Bottom Illumination 5W LED, Color Temperature 3200~5600K & Light Intensity Adjustable With Digital Readout LCD Screen
--

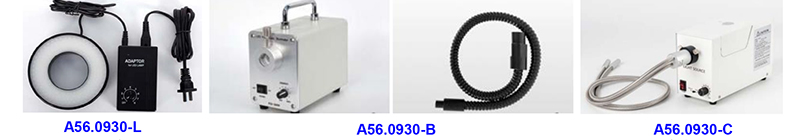

Uppler
Light Source

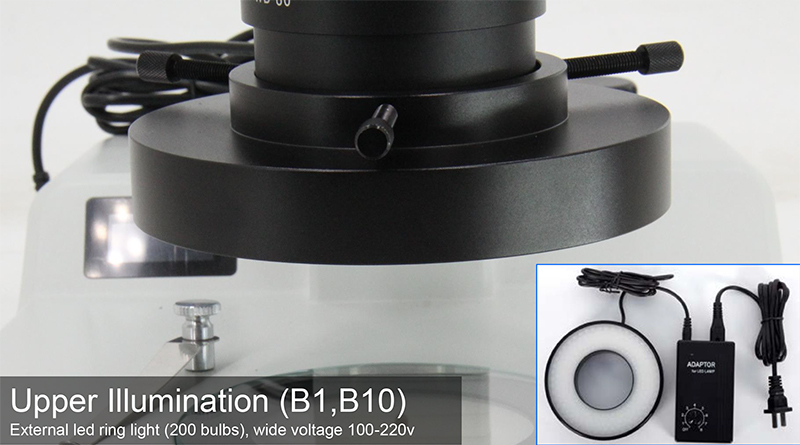

Upper Illumination:
Attachable LED Ring Light (200 Bulbs), Wide Voltage 100-220V

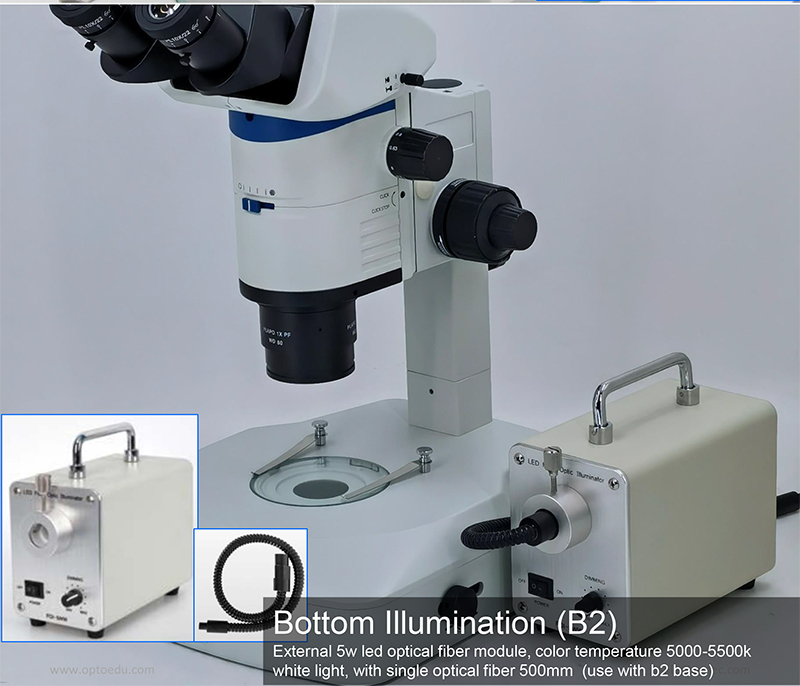

Oblique Illumination:
External5W LEDModule,ColorTemperature 5000-5500K White Light,WideVoltage 100-220V, Output 12V5W, Power Supply BoxSize 270×100×130mm, With Single Optical Fiber 500mm (Matching Use With B2 Base)
--

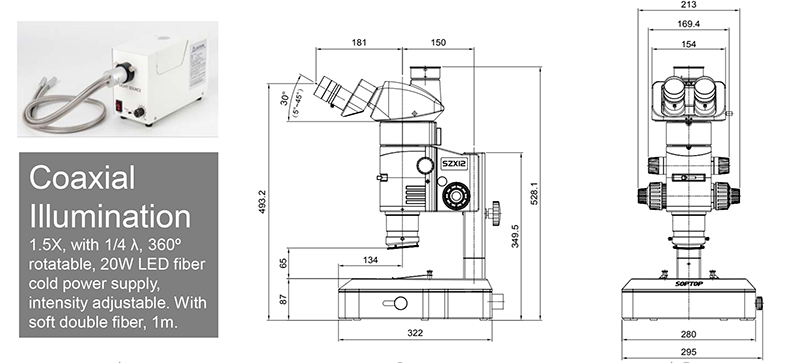

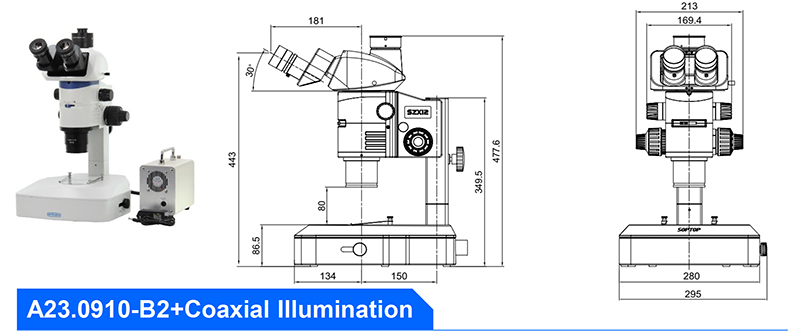

Coaxial Illumination:
1.5x, With 1/4 λ, 360º Rotatable, 20W LED, Intensity Adjustable, With Power Supply Box, With Soft Double Optical Fiber 1000mm
---
PolarizingPolarizer Fixed On Bottom Light Source (For Transmit Light)-A5P.0925-P
Analyzer Attached Under Lens, 360° Rotatable (For Transmit Light)-A5P.0925-A
Adapter0.35xC-mountAdapter,Focus AdjustableA55.0930-35
0.5xC-mountAdapter, Focus AdjustableA55.0930-05
0.65xC-mountAdapter,Focus AdjustableA55.0930-65
1.0xC-mount Adapter, Focus AdjustableA55.0930-10
Allen keyM4 allen key (3mm)

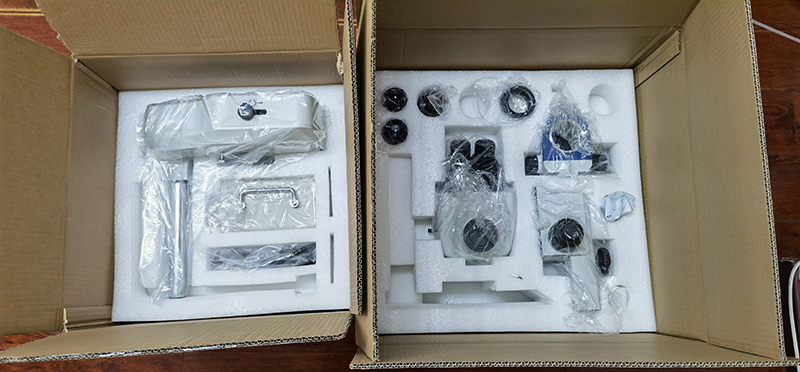

PackageSponge And Carton, One Set/Carton, Carton Size 58.5x55x81cm
Means Standard Outfit Means Optional Parts - Mean Not Match
Pictures
Model No. A23.0910-B2
Function
Polarizing
Features
Parellal Optical System
Coaxial Illumination
APO (Apochromatic)
New Product Year
2017
Optical System
Parallel
Standard Magnification
8x~100x
Optional Magnification
4x~400x
Head Type
Seidentopf Trinocular
Head Inclination
5-45° Tiltable
Head Interpupillary
50~76mm
Head Light Path
Switch E100:P0/E0:P100
Head Specification
With Eyepiece Lock
Eyepiece Features
Super Wide Field >22mm
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
30.0mm
Working Distance
78.0mm
Eyepiece
PL10x/22mm High Eye-Point Wide Field Plan Eyepiece, Diopter Adjustable
Objective Type
APO (Apochromatic)
CMO (Stereo)
Objective
1.0x Main Objective APO, Working Distance 78.0mm
Working Stage Size
Glass Plate Dia.100mm
Focusing Type
Coaxial Coarse & Fine
Focusing Range
50mm
Focusing Scale
0.002mm
Light Source Feature
Brightness Adjustable
Oblique Illumination
LED 5W
Transmit & Reflect
Light Source Type
Mirror
LED
Fiber Optic
Transmit Light
Built-in Mirror 360° Rotatable + Position Adjustable
Reflect Light
External 5W LED Module, Color Temperature 5000-5500K White Light, With Single Optical Fiber 500mm
Power Supply Type
AC 100V-240V Wide Voltage
Power Supply
Wide Voltage 100-220V, Output 12V5W, Power Supply Box Size 270×100×130mm,
Stereo Zoom Ratio
>=1:10
Stereo Stand Type
Table Stand Track
Stereo Stand
(B2) Plan Base

With Bottom Illumination Built-in Mirror 360° Rotatable + Position Adjustable
Use With Oblique Illumination 5W LED
Function Upgradeable
Polarizing
Optional Accessory
Auxiliary Lens 0.5x, 1.5x, 2.0x

C-Mount 0.5x, 0.65x, 1.0x

Forearm Holder
