| Zoom Stereo Microscope General Layout Diagram |
| Items | Zoom Stereo Microscope Specification | A23.2603 | A23.2604 | A23.2605 | Cata. No. | |||||||
| -B | -BL | -B | -BL | -T | -TL | -B | -BL | -T | -TL | |||
| Head | Seidentopf Head, Interpupilary Distance 50-75mm | |||||||||||
| Binocular Head Inclined 40° | ● | ● | A23.2603-BH | |||||||||
| Binocular Head Inclined 35° | ● | ● | ● | ● | A23.2604/A23.2605-BH | |||||||
| Trinocular Head Inclined 35°, Light Split Switch E100:P0/E0:P100 | ● | ● | ● | ● | A23.2604/A23.2605-TH | |||||||
| Trinocular Head Inclined 35°, Light Split Fixed E50:P50 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | A53.2650-E50P50 | |||
| Eyepiece | Wide Field Eyepiece, Dia.30mm, High Eyepoint, Diopter Adjustable | |||||||||||
| WF10x/22mm | ●● | ●● | A51.2621-1022 | |||||||||
| WF10x/23mm | ●● | ●● | ●● | ●● | A51.2621-1023 | |||||||
| WF10x/24mm | ●● | ●● | ●● | ●● | A51.2621-1024 | |||||||
| Zoom Lens | 0.7~4.5x | ● | ● | |||||||||
| 0.68~4.7x, Zoom Knob With Magnifying Stop Pin | ● | ● | ● | ● | ||||||||
| 0.65~5.3x, Zoom Knob With Magnifying Stop Pin | ● | ● | ● | ● | ||||||||
| Zoom Ratio | 1:6.5 | 1:6.8 | 1:8.1 | |||||||||
| Magnification | 7x~45x, Max 3.5x~180x With Optional Eyepiece & Auxiliary Lens | ● | ● | |||||||||
| 6.8x~47x, Max 3.4x~188x With Optional Eyepiece & Auxiliary Lens | ● | ● | ● | ● | ||||||||
| 6.5x~53x, Max 3.25x~212x With Optional Eyepiece & Auxiliary Lens | ● | ● | ● | ● | ||||||||
| Working Distance | 108mm, With Standard 1x Lens | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | A54.2601-S04 |
| Stand | Large Track Stand, Base Size 330x300cm, No Light Track Stand Focusing Range 80mm | ● | ○ | ● | ○ | ● | ○ | ● | ○ | ● | ○ | A54.2609-T |
| Large Track Stand, Base Size 330x300cm, Up/Bottom 3W LED Track Stand Focusing Range 80mm | ○ | ● | ○ | ● | ○ | ● | ○ | ● | ○ | ● | A54.2609-TL | |
| Package | Carton Size 480×370×475mm, 1 Unit/Ctn | |||||||||||
| Weight | Gross Weight: 8 kgs, Net Weight: 6.5 kgs | |||||||||||
| Remark: | ◎ With additional objective 0.5X , arm stand bracket should be removed to high position. ◎ No matter how much zoom magnification is, working distance is constant. ◎ According to the following formula for total magnification and actual field of view: ◎ Total magnification = Zoom magnification×Eyepiece magnification×Additional objective magnification ◎ Actual field of view=Eyepiece field of view / Zoom magnification×Additional objective magnification. | |||||||||||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories | ||||||||||||
| Items | Zoom Stereo Microscope Optional Accessories | Cata. No. | ||||||||||
| Eyepiece | WF15X/16mm, Dia.30mm, High Eyepoint, Diopter Adjustable | A51.2621-1516 | ||||||||||
| WF20X/12mm, Dia.30mm, High Eyepoint, Diopter Adjustable | A51.2621-2012 | |||||||||||
| Auxiliary Lens | 0.5x, W.D.189mm | A52.2621-05 | ||||||||||
| 0.75x, W.D.128mm | A52.2621-75 | |||||||||||
| 2.0x, W.D.36mm | A52.2621-20 | |||||||||||
| Stand | Small Pole Stand, Base Size 300x220cm, No Light, Pole Stand Focusing Range 115mm | A54.2609-P | ||||||||||
| Large Track Stand, Coaxial Coarse/Fine Focus, Base Size 330x300cm, No Light, Track Stand Focusing Range 80mm | A54.2609-TF | |||||||||||
| Large Track Stand, Coaxial Coarse/Fine Focus, Base 330x300cm, 3W LED Up/Bottom Light, Track Stand Focusing Range 80mm | A54.2609-TFL | |||||||||||
| CCD Adapter | 1.0x, Focus Adjustable | A55.2601-SZ10 | ||||||||||
| 0.7x, Focus Adjustable | A55.2601-SZ07 | |||||||||||
| 0.5x, Focus Adjustable | A55.2601-SZ05 | |||||||||||

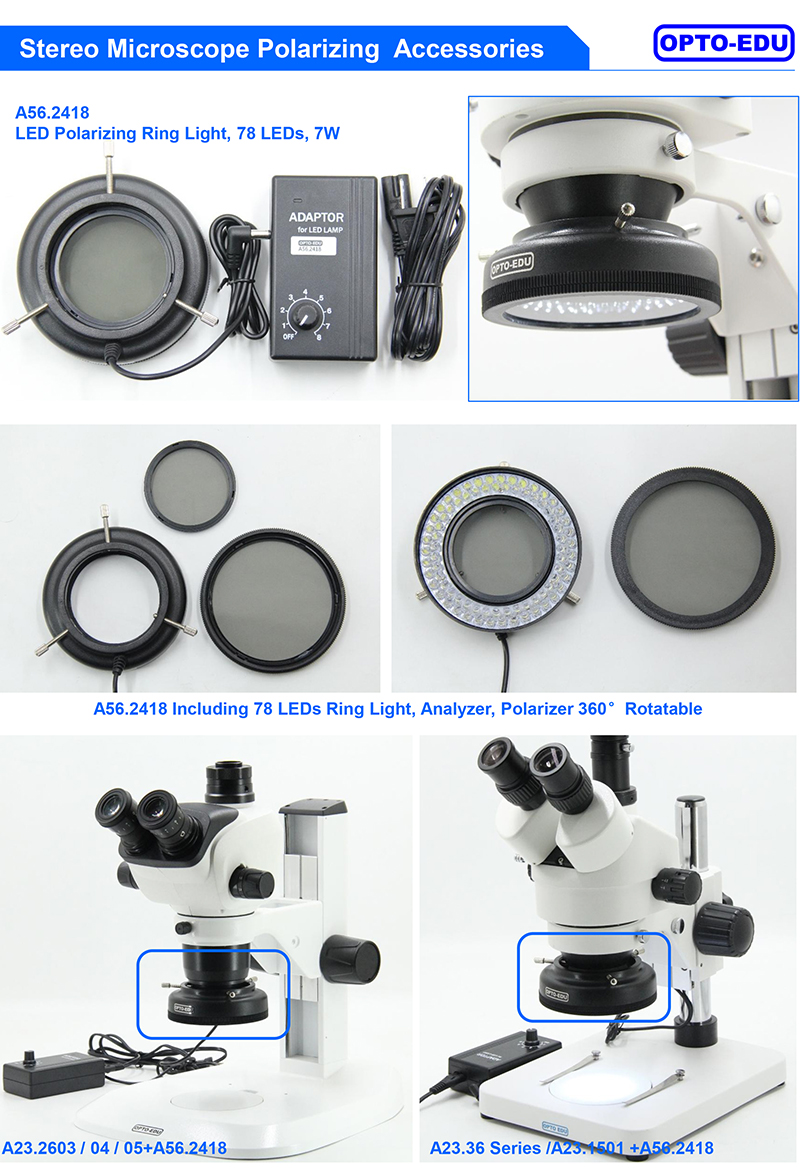

| Polarizing | Polarizer + Analyzer, For Stereo Microscope | A5P.2604 | ||||||||||
| Connect Ring | LED Light Connect Ring | A56.2602-R | ||||||||||
| Mecahnical Stage | XY Travel Range 75x56mm, Stage Size 180x155x27mm, Glass Size 116x96mm, Min Scale 0.1mm, Diameter Φ95 for Connecting stand base: 95mm | A54.1632 | ||||||||||
| Micrometer | 10 Kinds Of Regular Eyepiece Micrometer Model | A58.2002 | ||||||||||
| Light Source | LED Ring Light, 56 LEDs, 4.5W, AC 100~240V, Inner Dia. 58mm | A56.2103-A | ||||||||||
| LED Cold Light, 10W-30W | A56.2617 | |||||||||||
| Cold Light Source, 150W Halogen | A56.2618 | |||||||||||
| Zoom Stereo Microscope Size(mm) |
| Accessories |
