USB2.0 CMOS Digital Camera, 5.0M
USB2.0 CMOS Digital Camera, 5.0M

A59.3804

Like Favorites

USB2.0 CMOS Digital Camera, 5.0M

Quantity：

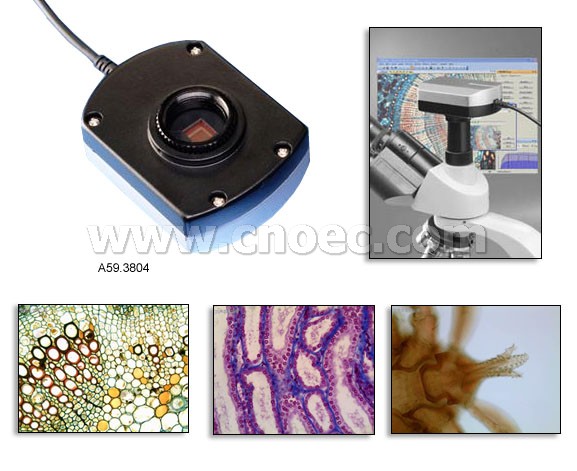

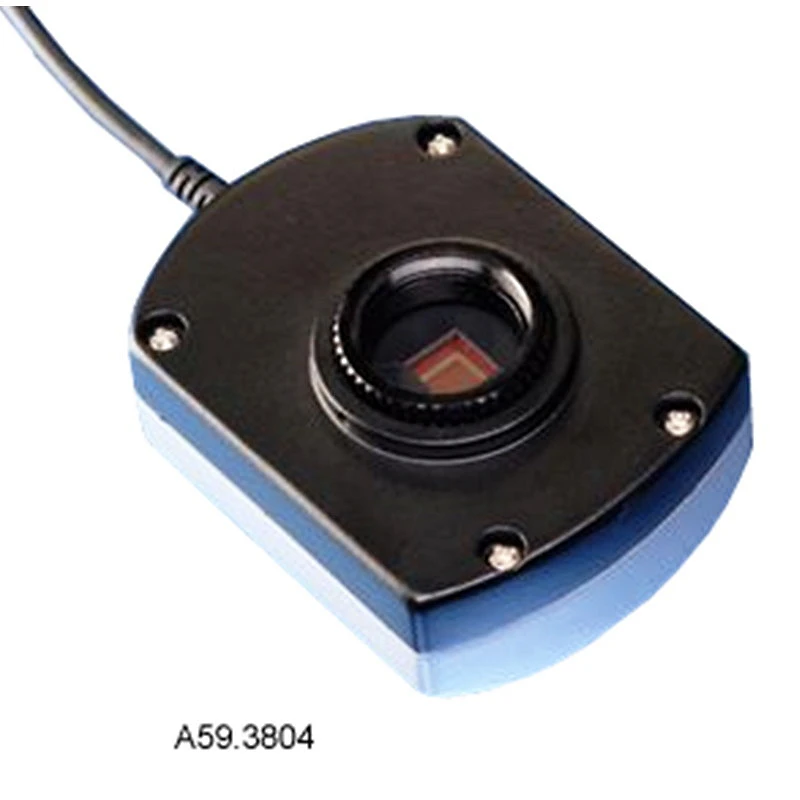

A59.3804 CMOS Camera
Sensor
Micron
Sensor Type
MT9P031
Sensor Size
1/2.5"
Pixel Size
2.2μm×2.2μm
Optical Port
Cmount
Exposure Time
1ms-0.3s
S/N Raito
40.5dB
RGB
8bit

Sensitivity

0.53V/Luxs
Max Resolution (Hardware)
2592*1944
Frame Rate6fps(2592*1944)
Low Speed Readout
Yes
Video Mode

2592*1944
280*960
1024*768
640*480

Dynamic Range
>60dB
Wave Length(nm)
400-650nm (IR-Cut added)
Exposure
ERS (Electronic Rolling Shutter)
White Balance
Automatic / Advanced Manual
Sensor Format
progressive
Auto-exposure
Automatic / Advanced Manual
Image Output
USB2.0/480Mb/s
Power Supply
USB2.0 5V 500mA
Programmable Control
Image size, exposure time, brightness, gain, Gamma Correction, color, contrast, Saturation
USB Cable
USB cable, length 1.8m
Working Temperature
-20-70℃
Accessories Included
2 adaptors (Ф23.2 to Ф30, Ф23.2 to Ф30.50, one each) TS-M1 stage micrometer available for option at extra cost
Software

Driver: support Direct Show and Twain Application software: Tsview

Operating System
Windows 2000 / Me / XP(SP2/SP3) / 2003 / Vista / 2008 32Bit system/Window 7
