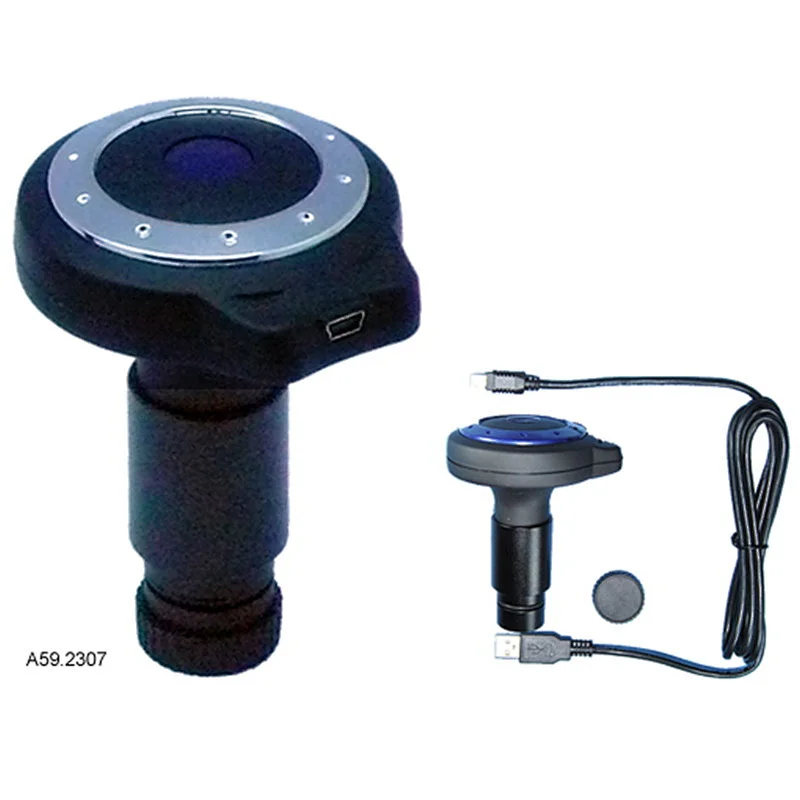

USB2.0 CMOS Digital Eyepiece Camera 5.0M
USB2.0 CMOS Digital Eyepiece Camera 5.0M

A59.2307

Like Favorites

USB2.0 CMOS Digital Eyepiece Camera 5.0M

Quantity：


Specification
A59.2307
Power supplyUSB port
Tube diameter3.2mm or 30mm
ConnectionOcular tube or C-mount
Uniform focusingYES
Magnification10X
Rate of field 1/3
Matching lens YES
Functiong of softwareImage file management: set up, open up, save, lead in image file;
Image capture: switch, setting, shoot, measure, full screen view
Image edit: picture turn, zoom, cut, modify, email, print
USB cable1.5 m
Resolutiong of display2560*1944
Resolution of picture2560*1944
Resolution of video2560*1944
Weight of device0.1kg
Sensor Parameter1/2.5"5.0MP CMOS
Resolution2560*1944
USB portUSB 2.0
Frame Rate3.75fps for 5.0 MP
Pixel Size2.2μm *2.2μm
Color FilterRGB Bayer Pattern
White balance AUTO
O/P compatibilityWINDOWS-XP2/VISTA
