Laboratory Microscope, ECO

A12.1035, A12.1036, Laboratory Microscope		Model No.	A12.1035	A12.1036

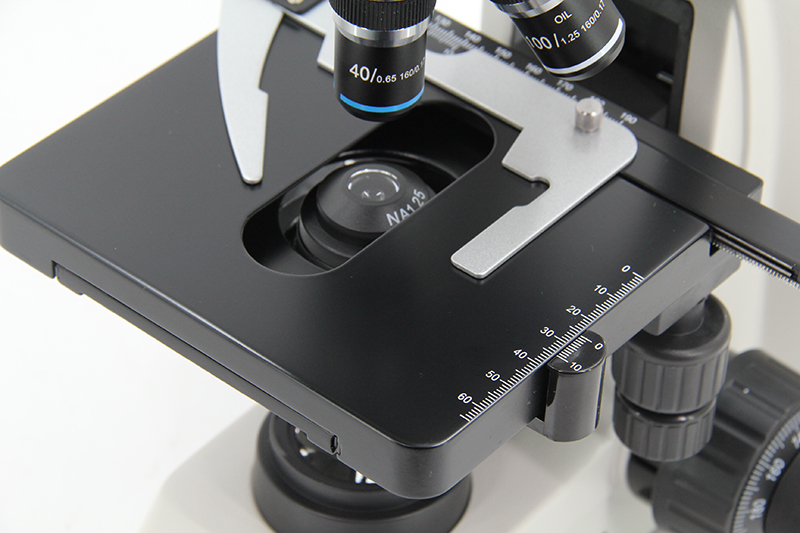

Nosepiece And Working Stage	4 Holes, Double Layers Mechanical Stage		●	/
	4 Holes, Double Layers Mechanical Rackless Stage		○	●
	4 Holes, Double Layers Mechanical Rackless Stage (Double Slide Holder)		○	●
	4 Holes, Double Layers Mechanical Rackless Glass Stage		○	○
	4 Holes, Double Layers Mechanical Rackless Glass Stage (Double Slide Holder)		○	○
	5 Holes, Double Layers Mechanical Stage		○	/
	5 Holes, Double Layers Mechanical Rackless Stage		○	○
	5 Holes, Double Layers Mechanical Rackless Glass Stage		○	○

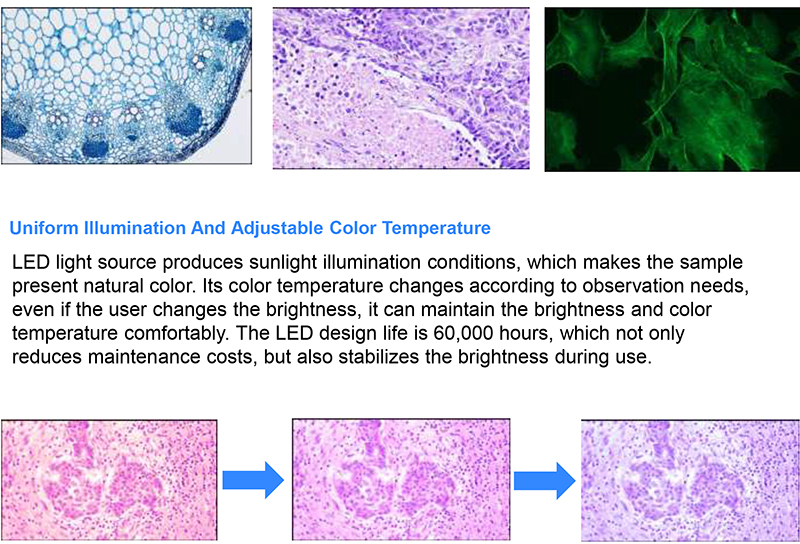

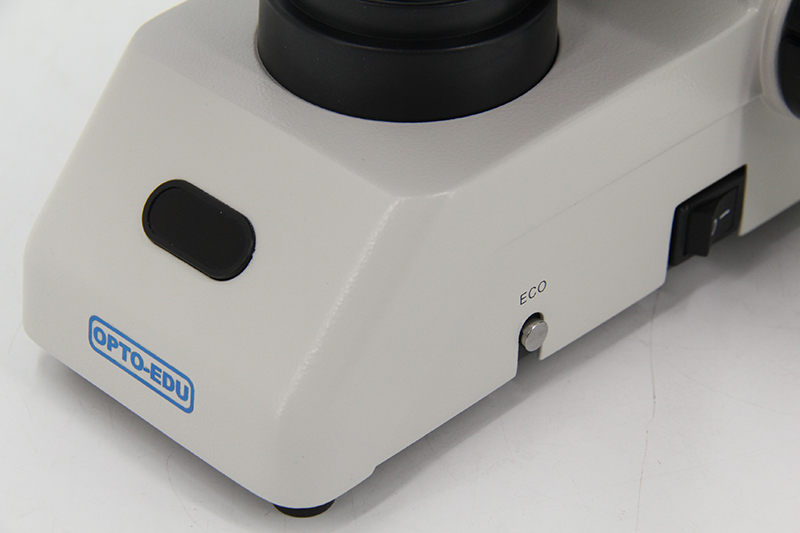

Transmit Illumination	1W SLED；With Power Cable		●	●
	1W SLED；Rechargable, With Power Cable		○	○
	1W SLED；Auto Power-Off With Power Cable		○	○
Eyepiece	P10x/18mm, Metal Shell, Dia.23.2mm	A51.1002-1080	○	○
	P10x/18mm，Dia.23.2mm	A51.1002-1080P	●	●
	Wide Field Eyepiece, WF10x/20mm, Dia.23.2mm	A51.1002-1020	/	/
	WF10x/20mm, Diapoter Adjustable, Metal Shell, Dia.23.2mm	A51.1005-1020	○	○
	Retical Eyepiece, WF10x/18, Metal Shell, With Micrometer Ring, Dia.23.2mm	A51.1007-1018	○	○
	WF10x/20 With Micrometer, Dia.23.2mm	A51.1007-1020	/	/
	WF10x/18mm, With Pointer Dia.23.2mm	A51.1010-1018	○	○
	WF10x/18mm, With Pointer, Metal Shell, Dia.23.2mm	A51.1010-1018B	○	○
	WF10x/20mm, With Pointer	A51.1010-1020	/	/
Head	Single Head, Dia.23.2mm	A53.1035-M	○	/
	Single Head (Teaching）, With 1X C-Mount, Light Split Switch: E50:P0/E0:P50, Dia.23.2mm	A53.1035-V	○	/

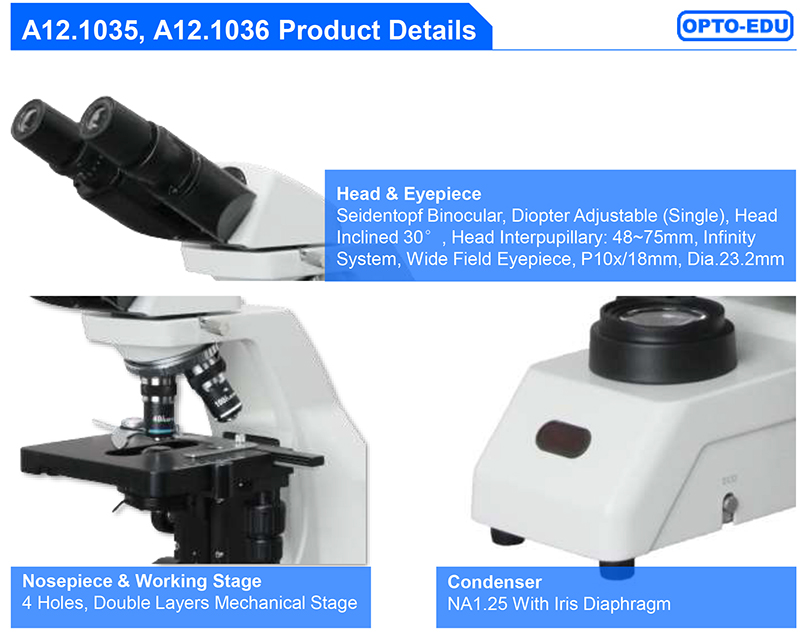

	Seidentopf Binocular, Diapoter Adjustble (Single), Head Inclined 30°, Head Interpupillary: 48~75mm, Dia.23.2mm	A53.1035-B	●	/
	Seidentopf Trinocular, Diapoter Adjustble (Single), Head Inclined 30°, Head Interpupillary: 48~75mm, Dia.23.2mm, Light Split Switch E70:P0/E0:P30, Photograpy Attachment Not Included	A53.1035-T	○	/
	Seidentopf Binocular, Diapoter Adjustble (Single), Head Inclined 30°, Head Interpupillary: 48~75mm, Dia.23.2mm; InfinitySystem	A53.1036-B	/	●
	Seidentopf Trinocular, Diapoter Adjustble (Single), Head Inclined 30°, Head Interpupillary: 48~75mm, Dia.23.2mm, Light Split Switch E70:P0/E0:P30, Photograpy Attachment Not Included; Infinity System	A53.1036-T	/	○
	Seidentopf Trinocular, With 0.5x C-Mount	A53.1036-T05	/	○
Video Adapter	Eyepiece Adapter, Dia.23.2mm	A55.1035-E	●	/
	Video Adapter, 1.0x C-Mount	A55.1035-10	○	/
	Eyepiece Adapter, Dia.23.2mm	A55.1036-E	/	●
	Video Adapter, 1.0x C-Mount	A55.1036-10	/	○
Phase Contrast	NIS45 Plan Phase Contrast Objective, Tube 195mm, Confocal 45mm, WJ4/5"×1/36", Cover Glass 0.17, Shiny Shell	A5C.1031
	10x NA=0.25 WD=12.2	A5C.1031-10	○	/
	20x NA=0.4 WD=5	A5C.1031-20	○	/
	40x(S) NA=0.65 WD=-	A5C.1031-40	○	/
	100x(S,Oil) NA=1.25 WD=0.16	A5C.1031-100	○	/
	NIS45 Infinity Plan Phase Contrast Objective, Tube 180mm, Confocal 45mm, WJ4/5"×1/36", Cover Glass 0.17, Shiny Shell	A5C.1032
	10x, NA=0.25 WD=10.5 Cover Glass 0.17	A5C.1032-10	/	○
	20x, NA=0.4 WD=5.5 Cover Glass 0.17	A5C.1032-20	/	○
	40x, NA=0.65 WD=0.7 Cover Glass 0.17	A5C.1032-40	/	○
	100x(Oil), NA=- WD=-	A5C.1032-100	/	○
	Centering Telescope, 10x, Dia.23.2mm	A5C.1010-23	○	○
Condenser	NA1.25	A56.1035-A	●	●
	NA1.25 With Iris Diaphram	A56.1035-B	/	○
	Blue Filter	A56.1035-45B	○	○
	Green Filter	A56.1035-45G	○	○
	Phase Contrast Condenser, Work With Tube 195mm	A5C.1018-A	○	○
	Phase Contrast Condenser, Work With Tube 180mm Infinity System	A5C.1018-I	○	○
Dark Field	Dark Field Condenser(Dry)	A5D.1015-D
Dark Field	Dark Field Condenser(Oil)	A5D.1015-I
Polarizing	Polarizer	A5P.1035-P	○	○
Polarizing	Analyzer	A5P.1035-A	○	○

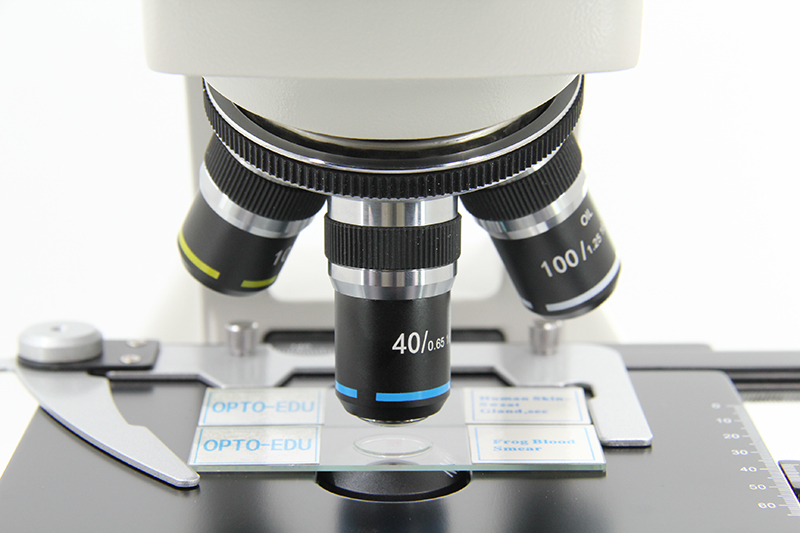

Objective	NIS45 Achromatic Objective, Tube 195mm, Confocal 45mm, WJ4/5"×1/36", Cover Glass 0.17, Bright Field, Black Shell	A52.1001
	4x, NA=0.10 WD=17.9	A52.1001-4	●	/
	10x, NA=0.25 WD=6.7	A52.1001-10	●	/
	20x, NA=0.4 WD=0.32	A52.1001-20	○	/
	40x, NA=0.65(s) WD=0.32	A52.1001-40	●	/
	60x, NA= WD=	A52.1001-60	○	/
	100x(Oil), NA=1.25 WD=-	A52.1001-100	●	/
	NIS45 Semi-Plan Objective, Tube 195mm, Confocal 45mm, WJ4/5"×1/36", Cover Glass 0.17, Bright Field, Black Shell	A52.1002
	4x, NA=0.1 WD=15	A52.1002-4	○	/
	10x, NA=0.25 WD=6.76	A52.1002-10	○	/
	40x, NA=0.65 WD=0.4	A52.1002-40	○	/
	100x(S,Oil), NA= WD=	A52.1002-100	○	/
	NIS45 Plan Objective, Tube 195mm, Confocal 45mm, WJ4/5"×1/36", Cover Glass 0.17, Bright Field, Shiny Shell	A52.1003
	4x, NA=0.1 WD=14.9	A52.1003-4	○	/
	10x, NA=0.25 WD=12.2	A52.1003-10	○	/
	20x, NA=0.4 WD=5	A52.1003-20	○	/
	40x(S), NA=0.65 WD=-	A52.1003-40	○	/
	60x(S), NA=- WD=-	A52.1003-60	○	/
	100x(S,Oil), NA=1.25 WD=0.16	A52.1003-100	○	/
	NIS45 Infinity Semi Plan Objective, Tube 180mm, Confocal 45mm, WJ4/5"×1/36", Cover Glass 0.17, Bright Field, Black Shell	A52.1004
	4x, NA=0.10 WD=16.8, Cover Glass-	A52.1004-4	/	●
	10x, NA=0.25 WD=6.1, Cover Glass0.17	A52.1004-10	/	●
	20x, NA=0.4 WD=5.5, Cover Glass0.17	A52.1004-20	/	○
	40x, NA=0.65 WD=0.4, Cover Glass0.17	A52.1004-40	/	●
	100x，NA=1.25 WD=0.13, Cover Glass0.17	A52.1004-100	/	●
	NIS45 Infinity Semi Plan Objective, Tube 180mm, Confocal 45mm, WJ4/5"×1/36", For 5 Holes Nosepiece, Bright Field, Black Shell	A52.1005
	4x, NA=0.10 WD=16.8, Cover Glass-	A52.1005-4	/	○
	10x, NA=0.25 WD=6.1, Cover Glass0.17	A52.1005-10	/	○
	40x(S), NA=0.65 WD=0.4, Cover Glass0.17	A52.1005-40	/	○
	100x(S,Oil), NA=1.25 WD=0.13, Cover Glass0.17	A52.1005-100	/	○
	NIS45 Infinity Plan Objective, Tube 180mm, Confocal 45mm, WJ4/5"×1/36", Cover Glass 0.17, Bright Field,Shiny Shell	A52.1008
	2x, NA=0.05 WD=18.5 Cover Glass-	A52.1008-2	/	○
	4x, NA=0.1 WD=28 Cover Glass-	A52.1008-4	/	○
	10x, NA=0.25 WD=7.4 Cover Glass 0.17	A52.1008-10	/	○
	20x, NA=0.4 WD=6.2 Cover Glass 0.17	A52.1008-20	/	○
	40x, NA=0.65 WD=0.7 Cover Glass 0.17	A52.1008-40	/	○
	60x, NA=0.8 WD=- Cover Glass 0.17	A52.1008-60	/	○
	100x(Oil), NA=1.25 WD=0.14 Cover Glass 0.17	A52.1008-100	/	○
Note:"●"In Table ls Standard Outfits"○"In Table ls Optional Outfits
