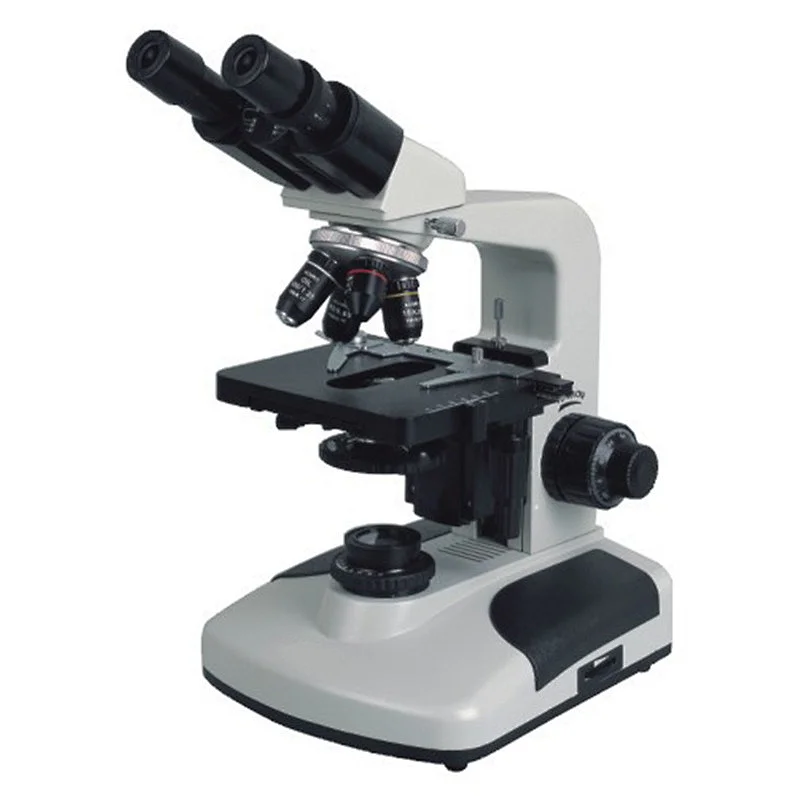

A12.1301 Laboratory Microscope | M | B | T | |
Head | Monocular Head, 30°inclined, 360° rotatable | ● | ||
Compensation Free Binocular Head | ● | |||
Compensation FreeTrinocular Head | ● | |||
Eyepiece | WF10X | ● | ● | ● |
WF16X | ● | ● | ● | |
Objective | Achromatic 4X | ● | ● | ● |
Achromatic 10X | ● | ● | ● | |
Achromatic 40X(S) | ● | ● | ● | |
Achromatic 100X(S,Oil) | ● | ● | ● | |
Nosepiece | Quadruple Revolving Nosepiece | ● | ● | ● |
Stage | Double Layers Mechanical Stage 140X155mm/70X50mm | ● | ● | ● |
Focusing | Coarse & fine focusing knob, Range 30mm, precision: 0.002mm | ● | ● | ● |
Condenser | ABBE Condenser:N.A.1.25, Φ2-Φ30mm Iris diaphragm and Φ32 filter | ● | ● | ● |
Light Source | Halogen lamp 6V/20W and Koblar Illumination System | ● | ● | ● |
