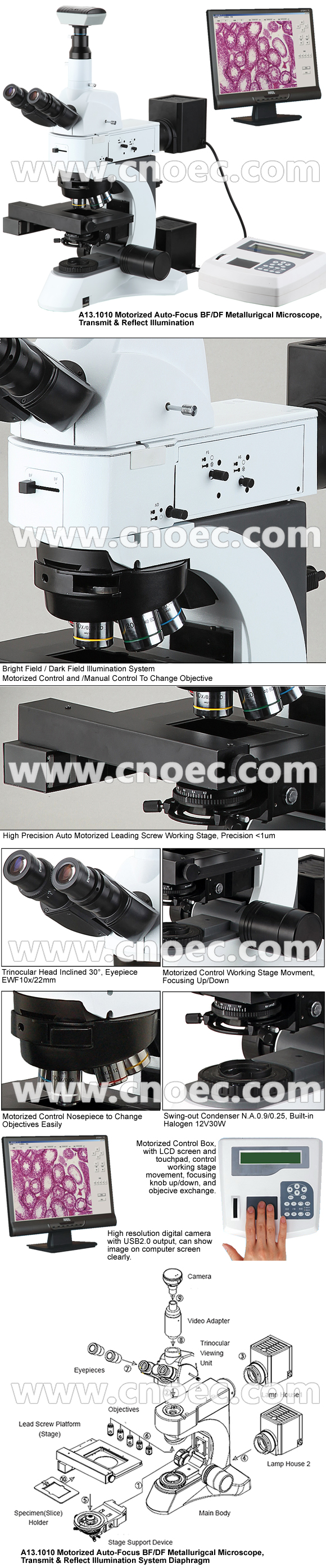

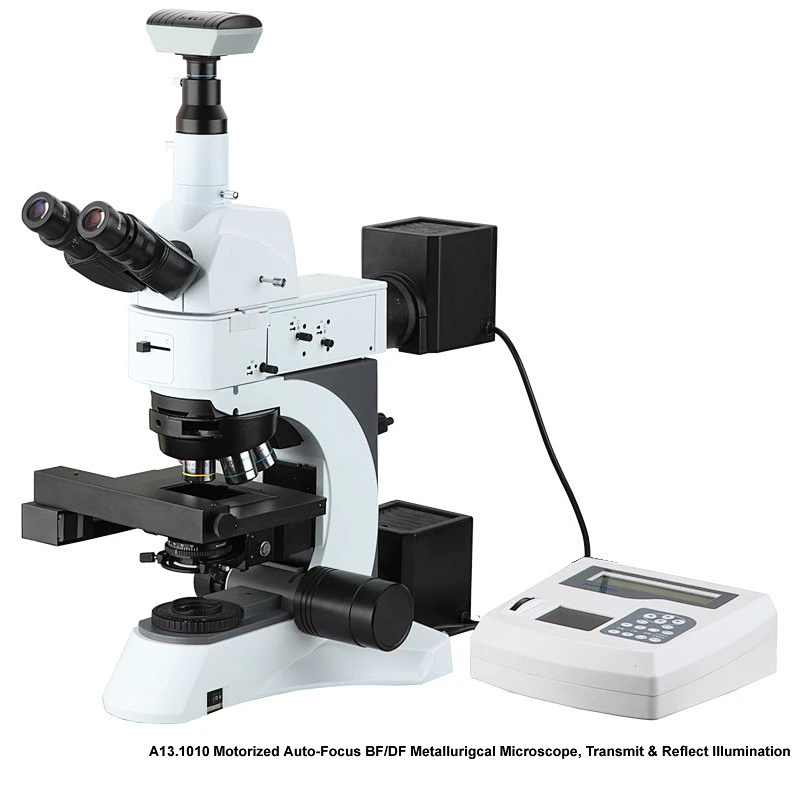

| A13.1010 Motorize Auto-Focu BF/DF Metallurgical Microscope | A | B | ||
|---|---|---|---|---|
Optical System | Infinity Optical System, Bright Field/Dark Field, Polarizing | |||
Head | Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm | |||
Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |||
Nosepiece | Backward Quintuple Nosepiece Motorized Control and /Manual Control To Change Objective With 2 Adaptor Ring For BF/DF Objective Changeover | |||
| Objective | Infinity Plan Achromatic Objectives 5x/ 0.12/ ∞/ - (BF/DF), W.D.12mm | |||
| Infinity Plan Achromatic Objectives 10x/ 0.25/ ∞/ - (BF/DF),W.D.10mm | ||||
| Infinity Plan Achromatic Objectives 20x/ 0.4/ ∞/ 0 (BF/DF),W.D.4.3mm | ||||
| Infinity Plan Achromatic Objectives 50x/ 0.75/ ∞/ 0 (BF/DF),W.D.0.32mm | ||||
| Infinity Plan Achromatic Objectives100x/0.80/∞/0 (BF/DF),W.D.2mm | ||||
| Infinity Plan Achromatic Objectives 40x/0.65/∞/0.17, W.D.0.54mm | o | |||
| Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17 ,W.D.0.13mm | o | |||
| Focusing | Coaxial Coarse & Fine Adjustment, Auto-FocusFuntion Motorized Control Built-in Dynamic Focusing System, Auto-Focus W/O Computer, Precision <1um | |||
| Working Stage | Maximum Sample Height 30mm | |||
| Leading Screw Stage, Size 234*176mm Motorized Control, Movring Range X +/-38mm, Y +/-28mm, Precision <1um Including: | ||||
| --Specimen Holder --Specimen Preparation Plate | ||||
| --Slide Glass | o | |||
| Reflect Illumination | 24V 100W Halogen Light, Brightness Adjustable Kohler Illumination With Aspherical Condenser Blue, Green, Yellow Filter, Gound Glass | |||
| Transmit Illumination | Swing-Out Condenser N.A.0.9/0.25 24V 100W Halogen Light With Aspherical Condenser Blue Filter | o | ||
| Digital Camera | 3.0M Pixels CMOS Camera | |||
| Resolution 2048*1536 | ||||
| Pixel Size 3.2um*3.2um | ||||
Maximum Frame Fate: 2048*1536 12f/s 1600*1200 20f/s 1280X1024 27f/s 1024X768 43f/s | ||||
Responsivity:1.0V/lux/s@550nm | ||||
Manual or Auto Exposure，Exposure Time Adjustable（1-500ms） | ||||
SNR: >43dB | ||||
| Hardware System | USB2.0 Cable | |||
| USB Dog | ||||
| Micrometer 0.01mm | ||||
| Control Box of Motorized Auto-Focus Microscope | ||||
| 9-PIN Control Port Line | ||||
| 15-PIN Control Port Line | ||||
| 25-PIN Control Port Line | ||||
| 9-PIN Serial Port Line | ||||
| 3.5mm Auto Focus Signal Cable | ||||
| Motorized Auto-Focus Microscope Control Software | ||||
| A13.1010 Motorize Auto-Focu BF/DF Metallurgical Microscope | A | B | ||
| Objective | Infinity Plan Achromatic Objectives 40x/0.6/∞/0 (BF/DF),W.D.2.9mm | A5M.1036-40 | ||
| Polarizing | Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer | For Reflect Illumination | A5P.1002 | ||
| Filter | Netural Filter ND25 | A5F.1011-25 | ||
| Netural Filter ND6 | A5F.1011-6 | |||
| Other | Specimen Presser | A5M.1010 | ||
