Trinocular Laboratory Biological Microscope
Trinocular Laboratory Biological Microscope
Trinocular Laboratory Biological Microscope
Trinocular Laboratory Biological Microscope
Trinocular Laboratory Biological Microscope
Trinocular Laboratory Biological Microscope

A12.1305-T2

Like Favorites

Trinocular Laboratory Biological Microscope


  • Supply Ability:1000 piece / Month
  • Country of Origin:China port
Quantity:
  • Place of Origin:CN;BEI
  • Theory:Biological Microscope
  • Drawtube:Trinocular
  • Brand Name:Opto-Edu
  • Model Number:A12.1305-T2

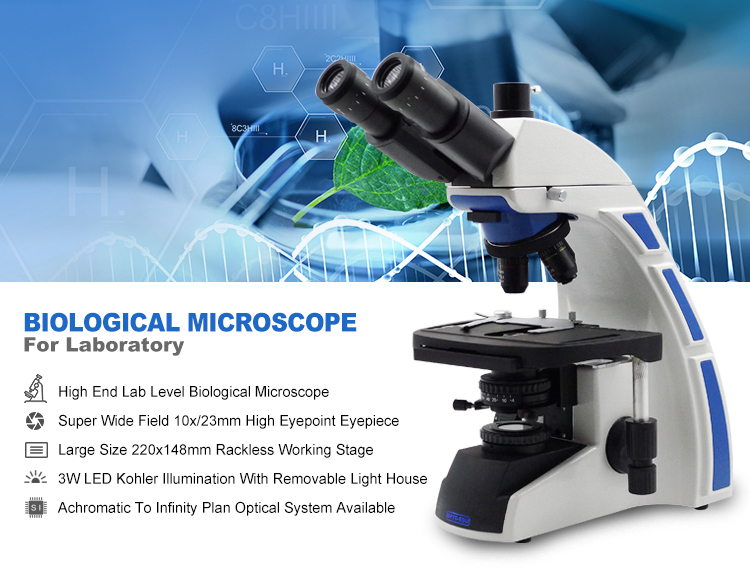

Opto-Edu A12.1305-T2 Trinocular Laboratory Biological Microscope

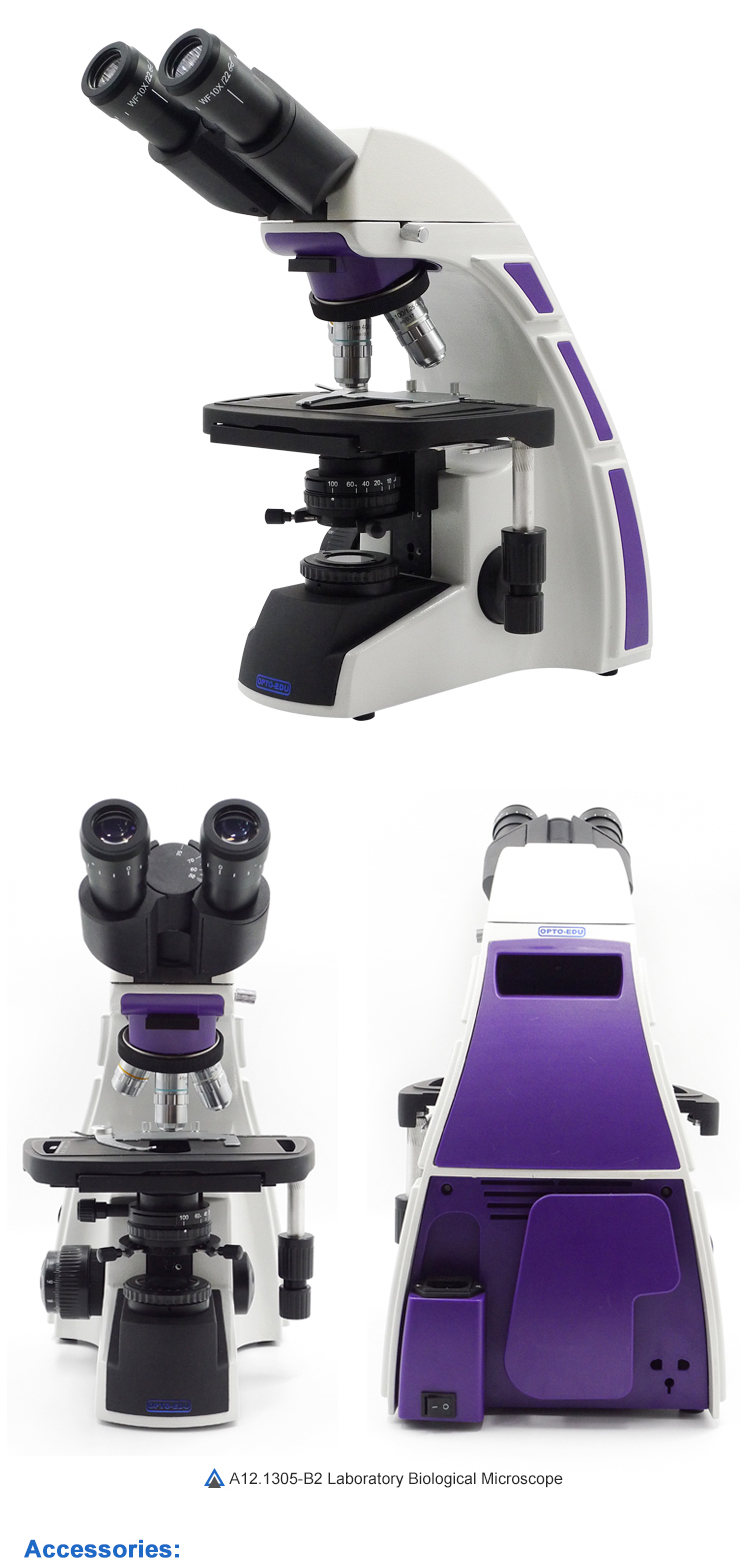

A12.1305 is a type of professional biological microscope for laboratory or hospital, so its cost is a little higher than student microscope. Two colors can be choosing just up to you. What’s more, all models are equipped with an integrated X-Y mechanical stage and are supplied with an Abbe N.A. 1.25 condenser. There are 3 types of objective to choose, 3W LED Kohler illumination is very bright.


Parameter

Specification

A12.1305 Laboratory Microscope

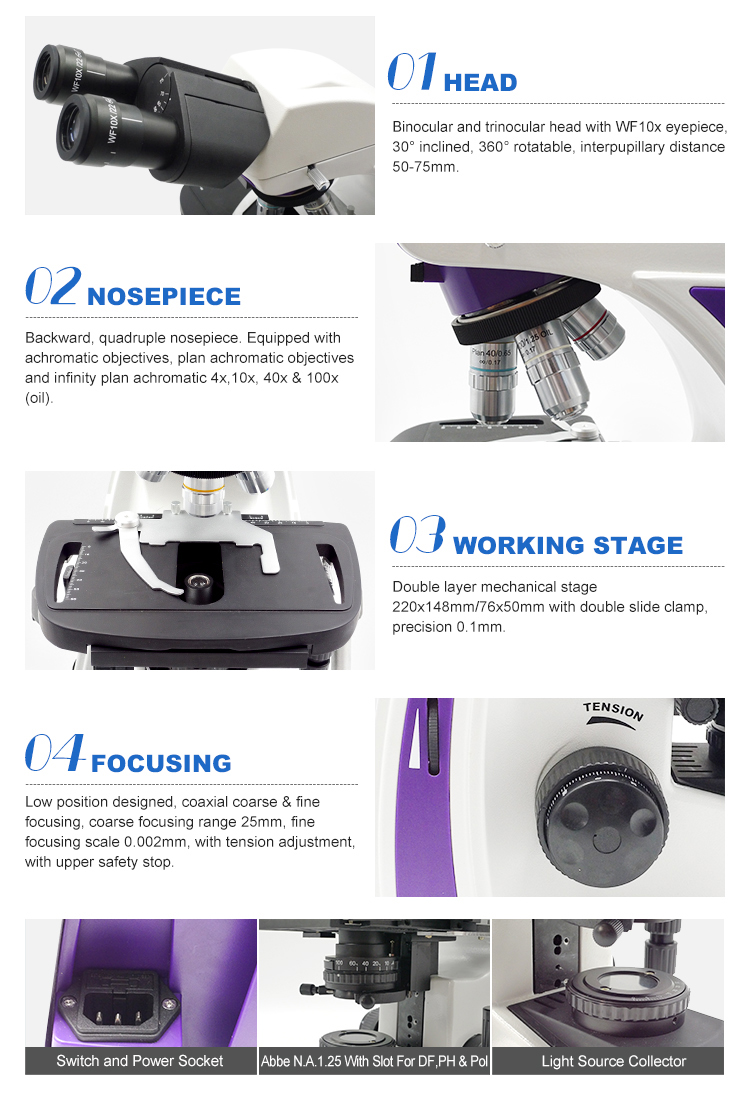

Head

Seidentopf Binocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 50-75mm

Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 50-75mm

Eyepiece

WF10x/23mm, Dia.30mm, High Eyepoint, Dioper Ajustment -/+5

Objective

A12.1305-B

A12.1305-T

Achromatic Objectives 4x, 10x, 40x & 100x (oil)

A12.1305-B1

A12.1305-T1

Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)

A12.1305-B2

A12.1305-T2

Infinity Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)

Adapter

1xC-Mount

Nosepiece

Backward Quadruple Nosepiece

Focus System

Coaxial Coarse And Fine Adjustment, Fine Division 0.002mm

Stage

Double Layer Mechanical Stage 220x148mm/76x50mm, Precision 0.1mm, Double Slide Clamp (Steel Wire Transmission)

Condenser

Abbe N.A.1.25 With Slot For DF,PH & Pol

Light Source

3W LED With Kohler Illumination System, Brightness Adjustable

Product Display

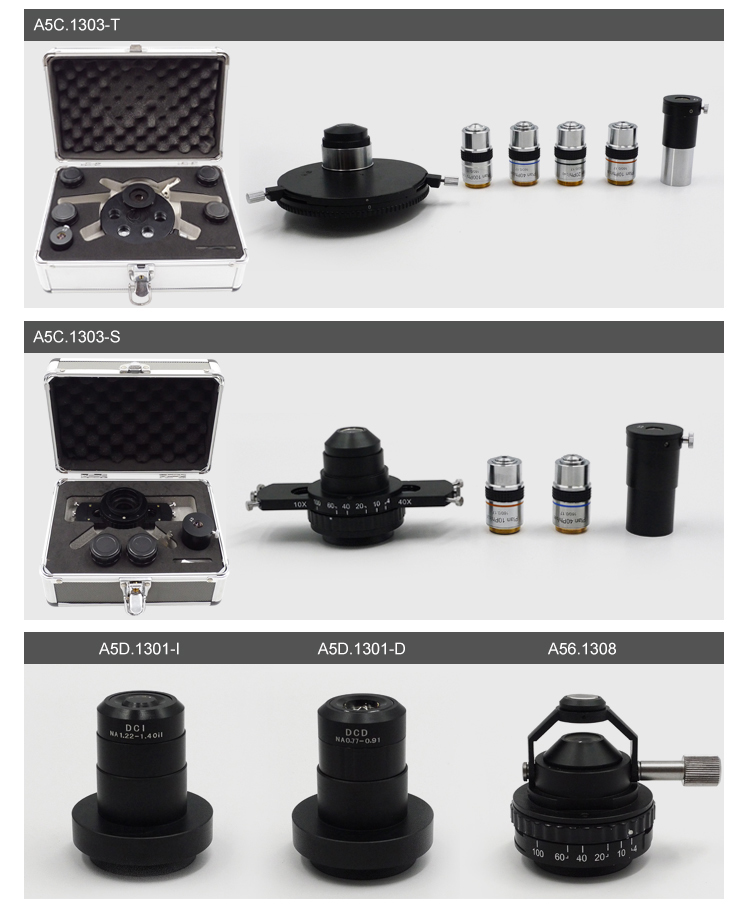

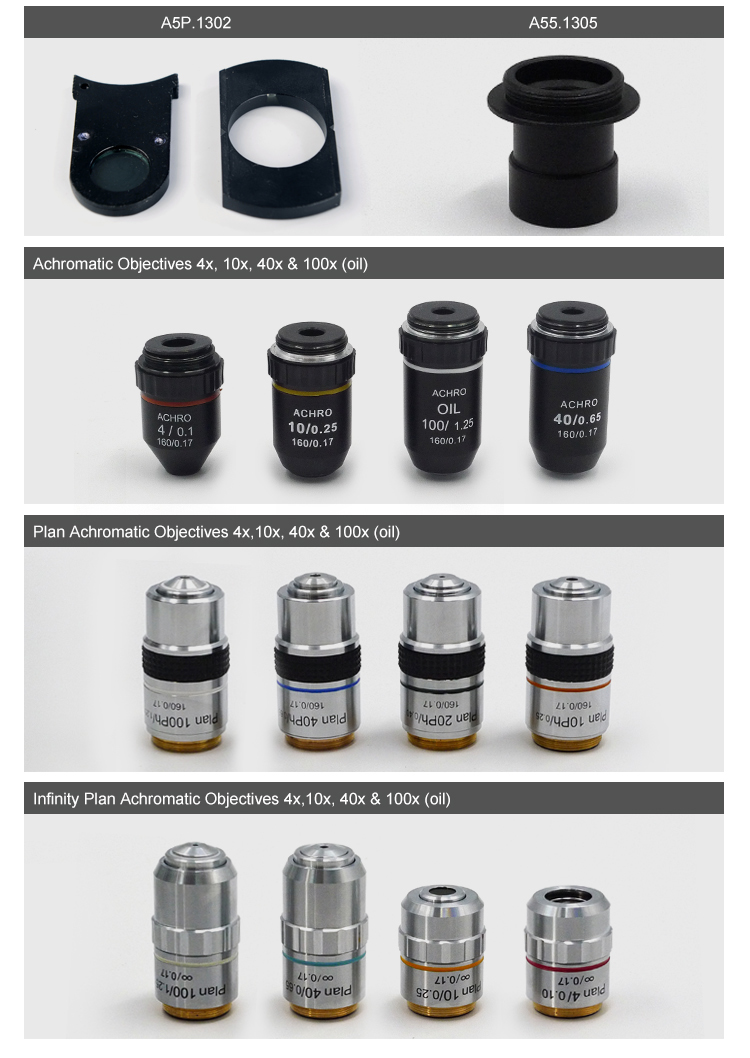

A12.1305 Laboratory Microscope Optional Accessories

Item No.

Dark Field

DF Condenser, Immersion

A5D.1301-I

DF Condenser, Dry

A5D.1301-D

Phase Contrast Set

Turret Type

A5C.1303-T

Slider Type

A5C.1303-S

Polarzing Set

Analyzer & Polarizer

A5P.1301-2

Condenser

Swing-Out Type

A56.1308

Adapter

C-Mount

A55.1305-1.0

Objective

Achromatic Objectives 4x, 10x, 40x & 100x (oil)

Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)

Infinity Plan Achromatic Objectives 4x,10x, 40x & 100x (oil)



Product Details

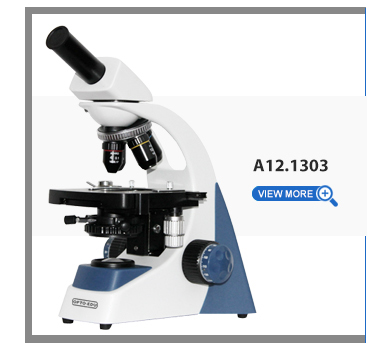

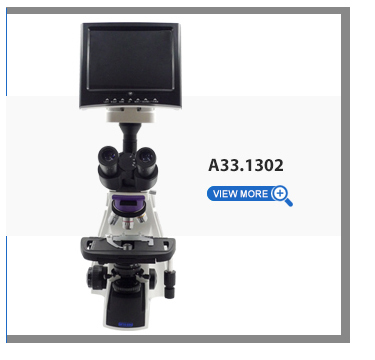

Related Products


Product Application

Biological microscope is widely used to observe biological slices, biological cells, bacteria and living tissue culture, fluid precipitation observation and research, while observing other transparent or translucent objects and powder, fine particles and other objects.


Packaging & Shipping

Package

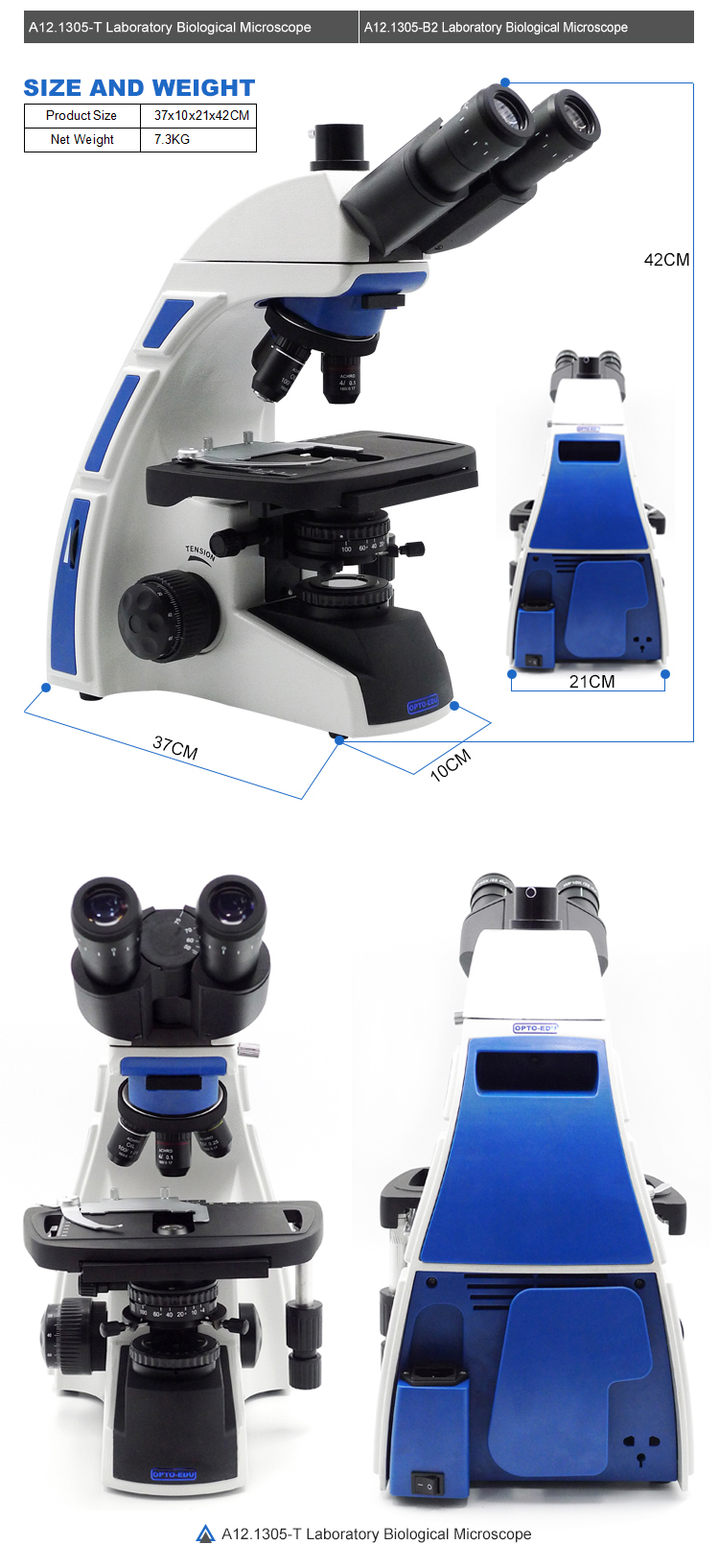

1 Set/Carton, 36x31x47CM

Gross Weight

8KG

Packing

Polyfoam Protection And Strong Carton

Shipping Time

5~20 Days After Receive The Deposit

Company Information


OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
