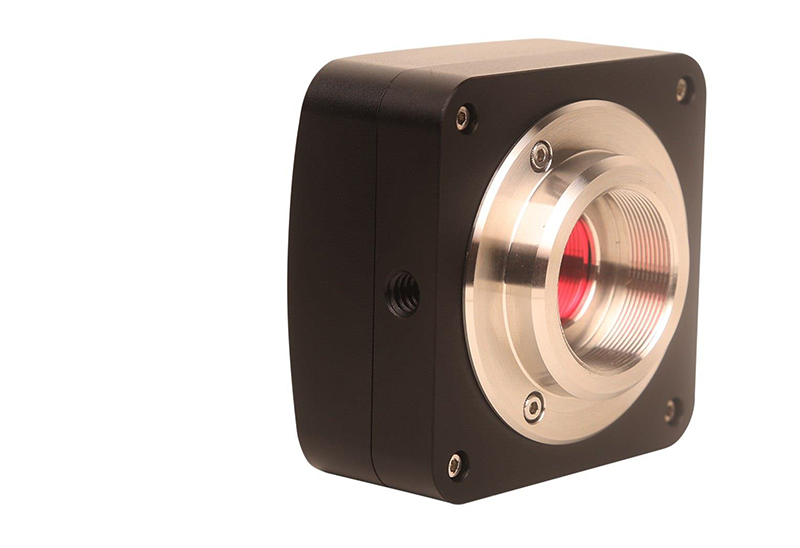

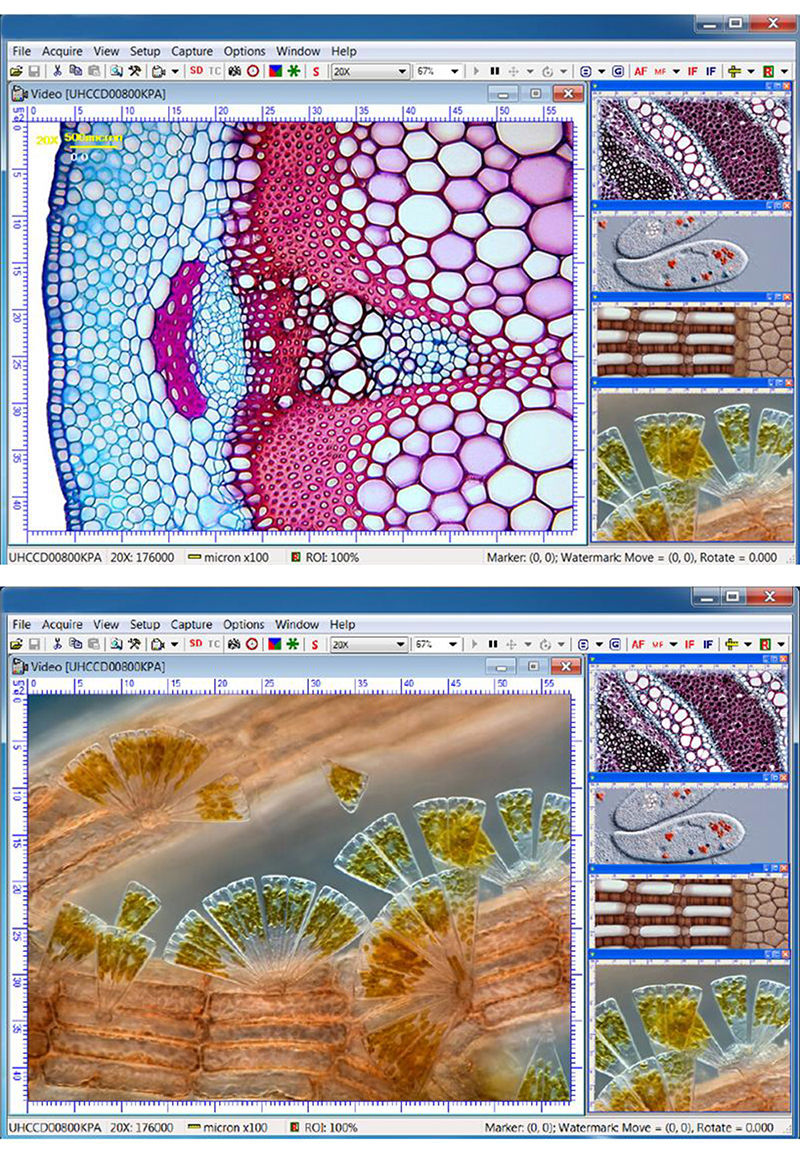

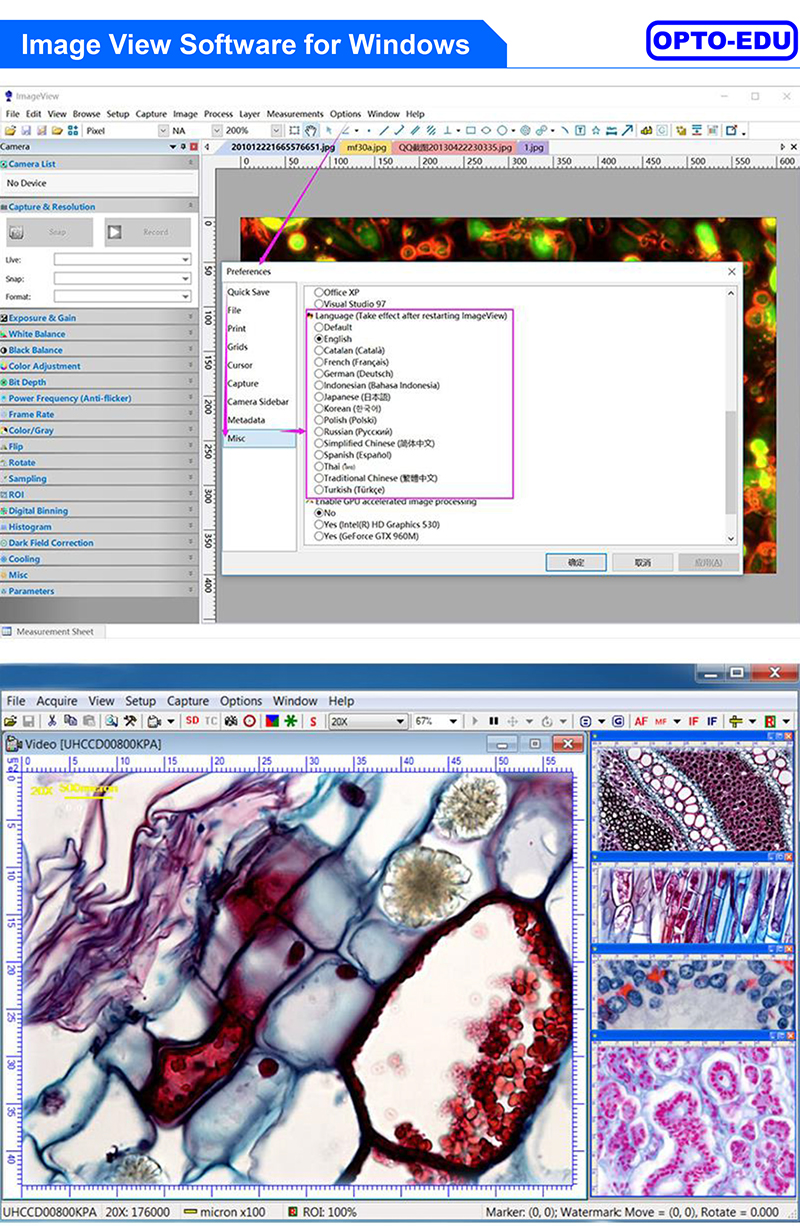

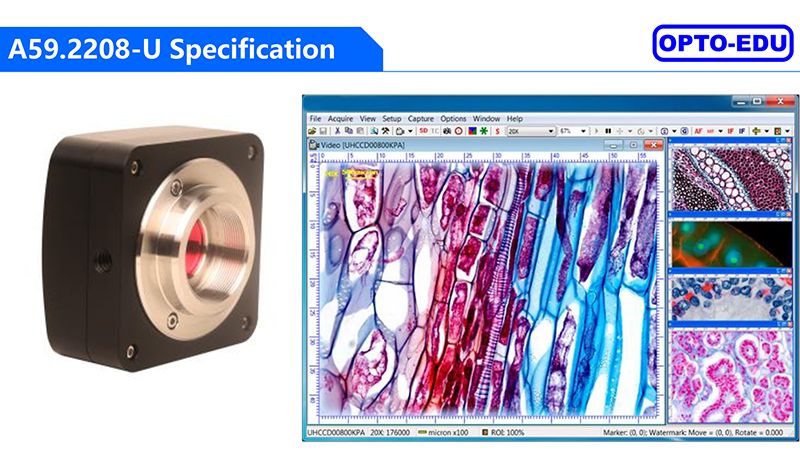

A59.2208-U USB2.0 CMOS Digital Camera, Buffer Memory A59.2208-U:ToupTek A59.2208-U series Microscope Camera is an Advanced USB2.0 CMOS Camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.External dedicated on-board buffer is added to achieve maximum performance of USB2.0. A59.2208-U Camera hardware resolutions range from 1.3M to 12M and comes with the CNC aluminum alloy compact housing. A59.2208-U comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); The A59.2208-U can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate. |
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Responsivity Dynamic range SNRmax | FPS/Resolution | Binning | Exposure |
| 12MCA | 12M/IMX577© 1/2.1“ (5.95x4.71) | 1.55x1.55 | 250mv with 1/30s 0.25mv with 1/30s | 3@3840x3040 11@1920x1516 47@960x758 | 1x1 2x2 4x4 | 0.4ms~2000ms |
| 10MCA | 10M/IMX577© 1/2.3“ (5.56x4.26) | 1.55x1.55 | 250mv with 1/30s 0.25mv with 1/30s | 3.3@3584x2748 12@1792x1374 53@896x684 | 1x1 2x2 4x4 | 0.4ms~2000ms |
| 6.3MCA | 6.3M/IMX178© 1/1.8“ (7.37x4.92) | 2.4x2.4 | 425mv with 1/30s 0.15mv with 1/30s | 5fps@3072×2048 20fps@1536×1024 | 1x1 2x2 | 0.244ms~15000ms |
| 6.3MMA | 6.3M/IMX178(M) 1/1.8“ (7.37x4.92) | 2.4x2.4 | 760mv with 1/30s 0.15mv with 1/30s | 5fps@3072×2048 20fps@1536×1024 | 1x1 2x2 | 0.244ms~15000ms |
| 5.1MCA | 5.1M/AR0521© 1/2.5“ (5.70x4.28) | 2.2x2.2 | 18.8ke-/lux 73dB 40dB | 7.0@2592x1944 27.7@1296x972 100.5@648x486 | 1x1 2x2 4x4 | 0.2ms~2000ms |
| 4.1MCA | 4.1M/IMX347© 1/1.8“ (7.795x4.408) | 2.9x2.9 | 2376mv with 1/30s 0.15mv with 1/30s | 8.5@2688x1536 11.5@2048x1536 15@1536x1536 34@1344x768 | 1x1 1x1 1x1 1x1 | 0.1ms~2000ms |
| 4.1MCB | 4.1M/IMX664© 1/1.8“ (7.795x4.408) | 2.9x2.9 | 5970mv with HCG mode 0.13mv with 1/30s | 8.5@2688x1520 34@1344x760 | 1x1 2x2 | 0.1ms~2000ms |
| 3.1MCB | 3.1M/IMX123© 1/2.8“ (5.12x3.84) | 2.5x2.5 | 600mv with 1/30s 0.15mv with 1/30s | 11.5@2048x1536 29.5@1024x768 | 1x1 2x2 | 0.2ms~2000ms |
| 1.23MCA | 1.23M/SC1235© 1/3“ (4.80x3.60) | 3.75x3.75 | 4.5V/lux-sec 74dB 38dB | 25@1280x960 25@1280x720 | 1x1 1x1 | 0.1ms~2000ms |
| Other Specification | |
| Spectral Range | 380-650nm (with IR-cut Filter) |
| White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
| Color Technique | Ultra-Fine Color Engine/NA for Monochromatic Sensor |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| ADC | 8 Bit |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| Operating Environment | |
| Operating Temperature(in Centidegree) | -10~ 50 |
| Storage Temperature(in Centidegree) | -20~ 60 |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| Software Environment | |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory:2GB or More USB Port:USB2.0 High-speed Port Display:17” or Larger CD-ROM |

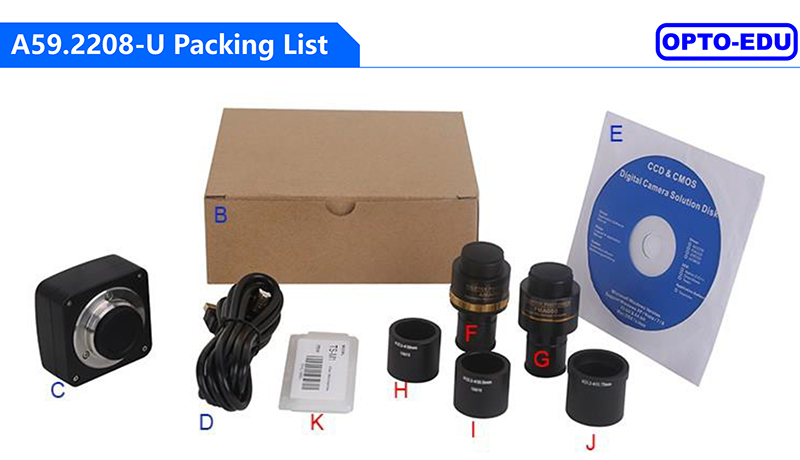

| Standard Camera Packing List | |||
| A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
| B | Gift box L:15cm W:15cm H:10cm (0.5~0.55Kg/ box) | ||
| C | One UA series camera | ||
| D | High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m | ||
| E | CD (Driver & utilities software, Ø12cm) | ||
| Optional Accessory | |||

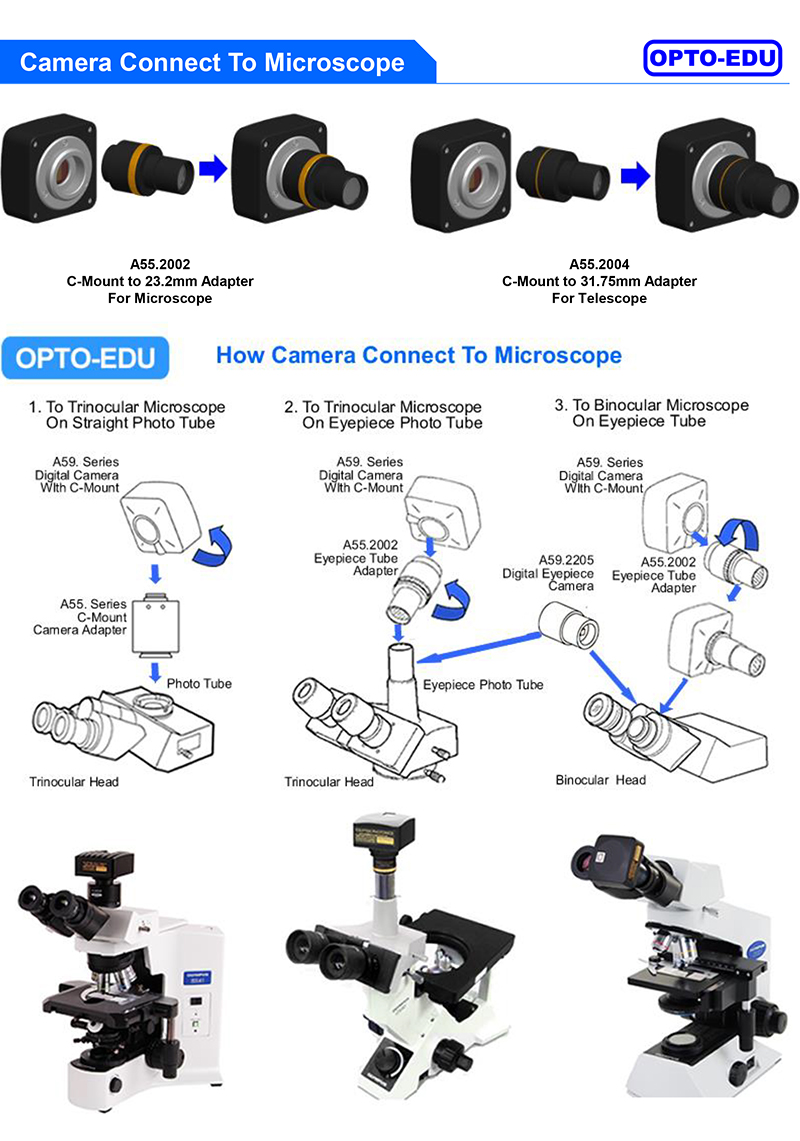

| F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108001/AMA037 108002/AMA050 108003/AMA075 |
| C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) | 108008/ATA037 108009/ATA050 108010/ATA075 | ||
| G | Fixed lens adapter | C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) | 108005/FMA037 108006/FMA050 108007/FMA075 |
| C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) | 108011/FTA037 108012/FTA050 108013/FTA075 | ||
| Note: For F and G optional items, please specify your Camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
| H | 108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube | ||
| I | 108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube | ||
| J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | ||
| K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) | |
