A41.1952 Operating Microscope, is Best Choice for Neurosurgery, Brain Surgery Operation. It has one main head and one assistant head which can rotate 360° freely, using 2 set Xenon 300W Light for coaxial illumination up to 100000 lux, 1:6Zoom Body, has total magnification 1.8x~19x, featured with Motorized Focusing, and 12 Functions control handle, it is widely used in hospital for Neurosurgery, Spinal, Vascular, ENT, Plastic, Reconstructive Surgery, Brain Surgery, Dental, and etc
|

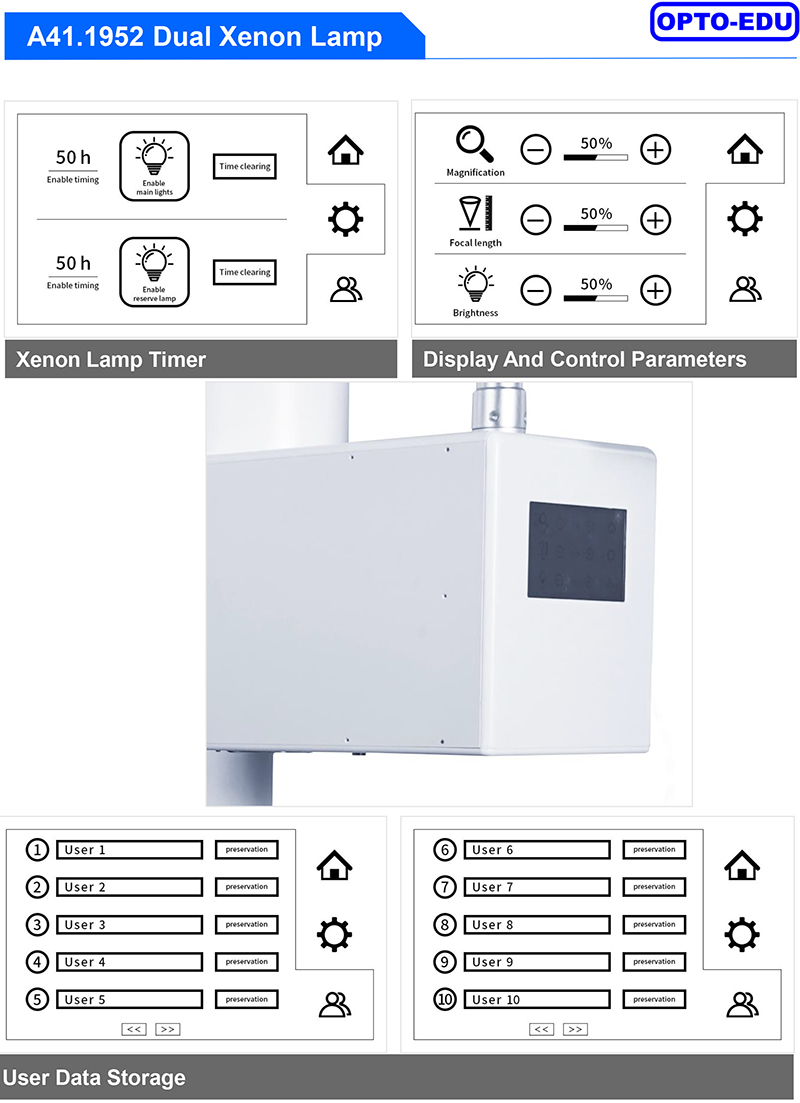

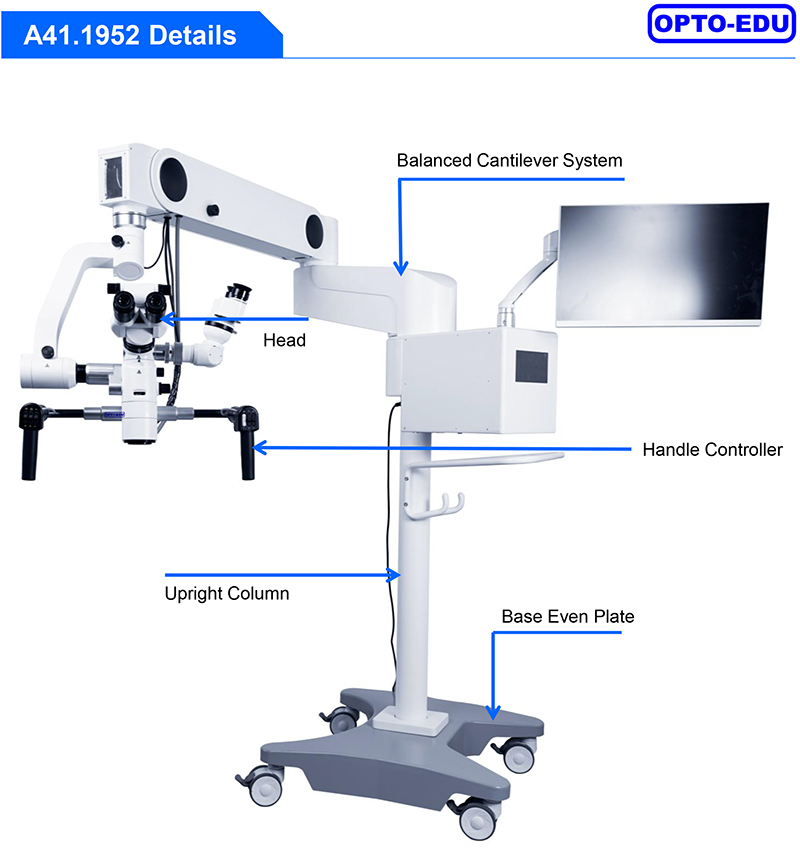

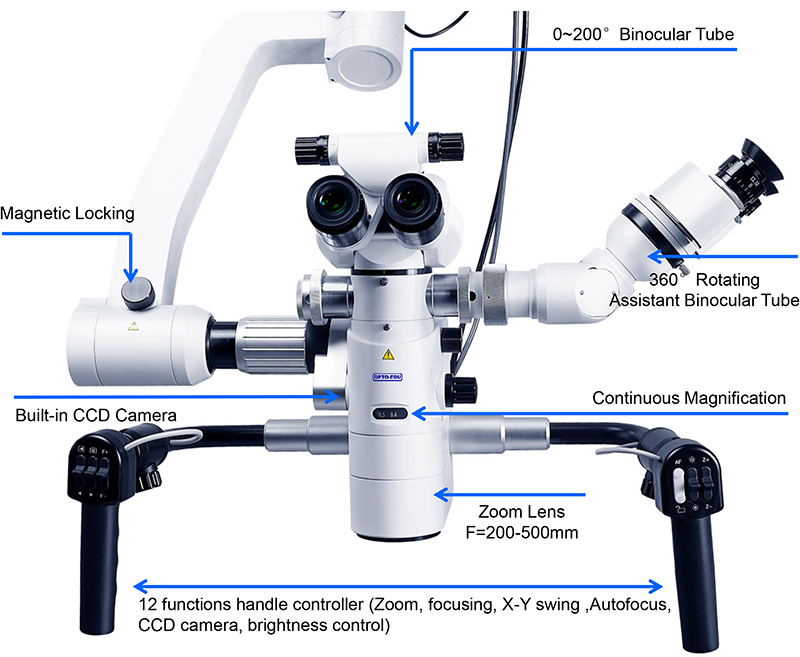

A41.1952 Features --2021 New Best Choice For Neurosurgery, Brain Surgery, Dental, ENT Operation Microscope --Dual Head Binocular, Eyepiece 12.5x, Motorized Zoom 1.8x~19x, Objective F=200~500mm --Main Binocular Variable Angle 0-200°, With Built-in CCD Camera & Software, Assistant Head 3x-16x --12 Function Handle, Zoom, Focusing, Magnetic Lock, Photo/Video, Review, Auto Focus, Brightness Adjust --Built-in Dual Xenon 300W Light, 100000 Lux, Stand Max Extend Range 1250mmm, With Magnetic Lock |

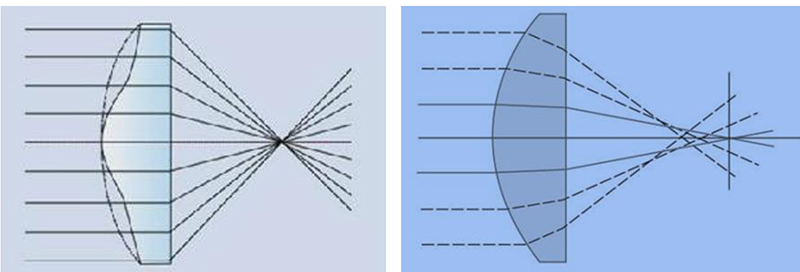

Aspheric Lighting Technology, Better Light Gathering Effect The spherical illumination can not refract the light to the same surface, and cause the light to be more dispersed on the surface. The aspheric technology can increase the concentration effect and improve the brightness. |

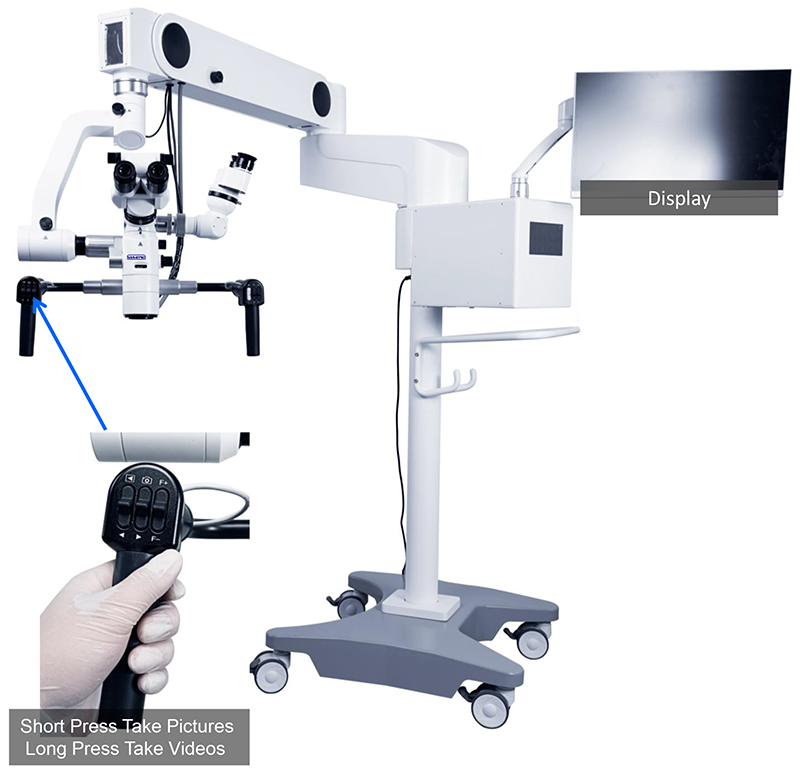

A41.1952 Camera System Configure the wireless mouse operation, without the computer, free access to high definition images. The product interface is rich, HDMI and USB are synchronously output, high speed SD cards are photographed or recorded video. At the same time, it has the same screen image contrast, HDR (wide dynamic), image freezing, image inversion, digital amplification and other functions. It is widely used in video conferencing, telemedicine, micrograph, video projection and other fields. |

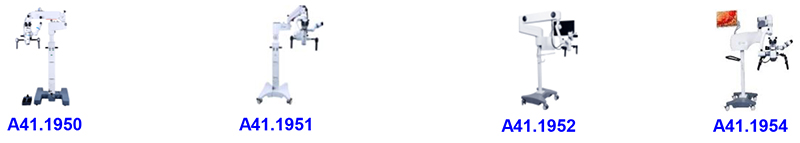

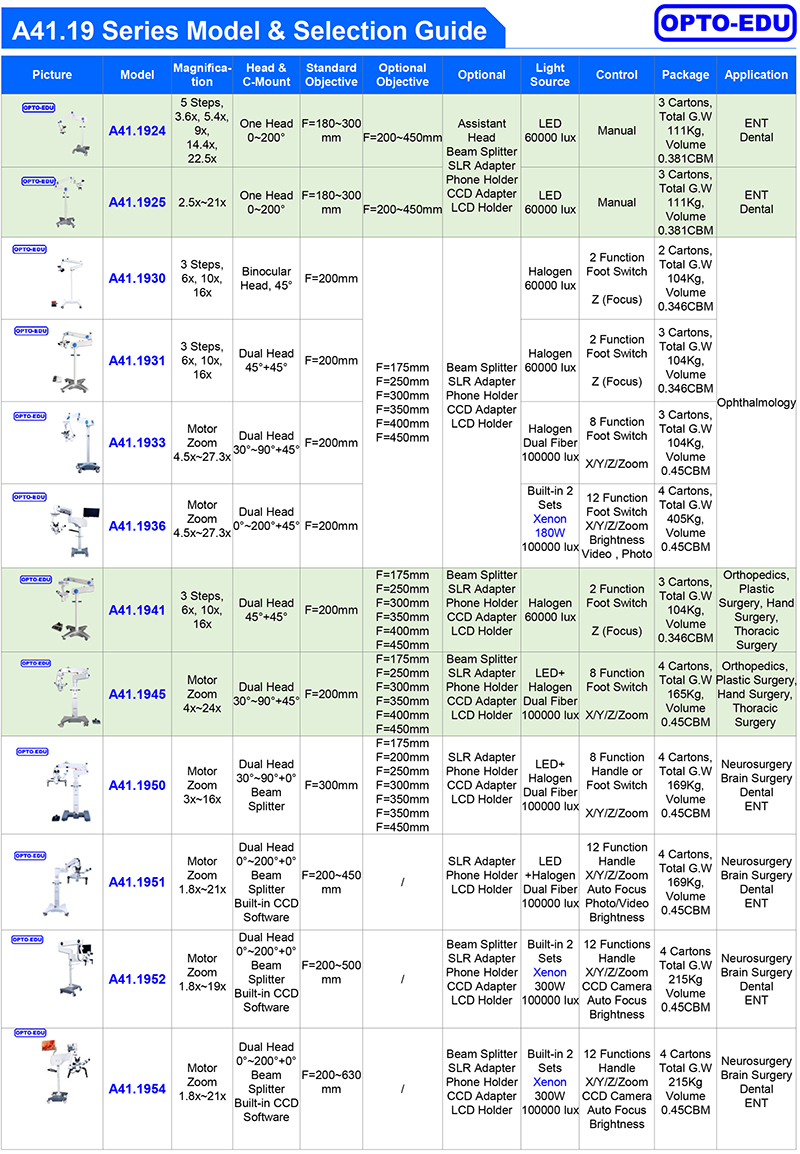

| A41.1950, A41.1951, A41.1952, A41.1954 Surgical Operation Microscope | ||||||
| A41.1950Operating Microscope, is Best Choice for Neurosurgery, Brain Surgery Operation. It has one main head and one assistant head which can rotate 360° freely, Dual Optical fiber coaxial LED + Halogen ,illumination up to 100000 lux, 1:6 Zoom Body, has total magnification 3x~16x, objective F=300mm or 250mm, featured with Motorized Focusing, and 8 Functions foot switch or control handle, it is widely used in hospital for Neurosurgery, Brain Surgery, Spinal, Vascular operation, it can also used for Orthopedics, Hand, Chest, Burn And Plastic Surgery, or Dental, ENT, Andrology, Genitourinary, Animal Anatomy etc. A41.1951is the upgraded version, with built-in CCD camera & software, zoom objective F=200~450mm, 12 functions handle, and dual optical fiber LED + Halogen 100000 Lux light source. A41.1952 is the high-end model in this series, built-in 2 sets Xenon 300W Light, magnetic lock, and 12 functions handle, it can meet most of surgery operation work with best quality & control. A41.1954 is the highest model in this series, built-in 2 sets Xenon 300W Light, magnetic lock, zoom objective F=200~630mm,and 12 functions handle, equipped with Sony 4K 3D monitor , it can meet most of surgery operation work with best quality & control. Features: --Best Choice For Neurosurgery, Brain Surgery, Dental, ENT Operation Microscope --Dual Head Binocular, Eyepiece 12.5x, Motorized Continuous 1:6 Zoom 3x~16x --Main Binocular Variable Angle 30-90°, Assistant's Binocular 30° Can Swing 90° or 270° --8,12 Functions Foot or Handle Control For Zoom, Auto Focus, X-Y Moving, Photo/Video Taking, etc. --Dual Optical Fiber Coaxial Halogen, LED or Xenon Light 100000 lux, Stand Max Extend Range 1452mm | ||||||
| A41.1950 | A41.1951 | A41.1952 | A41.1954 | |||
| Main Usage | For Neurosurgery, Brain Surgery, Spinal, Vascular | |||||
| Eyepiece | WF12.5x | |||||
| Head | Dual Heads For Two People Operation, Assistant Binocular Can Swing 90° to 270° Against Main Head Motorized Swing Head In X Direction +/-45°, In Y Direction +90°, Can Stop At Any Angle Interpupillary Distance 55~75mm, Both Left & Right Eyetube Diopter Adjustable ±6D，A41.1954 Diopter Adjustment ±7D. | |||||
| Main Head | Inclined 30°~90° | Inclined 0°~200° | ||||
| Magnification | 3x~16x Continuous Zoom | 1.8x~21x Continuous Zoom | 1.8x~19x Continuous Zoom | 1.8x~21x Continuous Zoom | ||
| View Field | Dia.74~12mm | Dia.13~110mm | Dia.12~113mm | Dia. 13.2~180mm | ||
| Zoom Body | 1:6 Motorized Continuous Zoom, Parallel Light System | |||||
| Assist Head | Inclined 0° | |||||
| Magnification | 3x~16x Continuous Zoom | 3x~16x Continuous Zoom | 3x~16x Continuous Zoom | 1.8x~21x Continuous Zoom | ||
| View Field | Dia.74~12mm | Dia.74~12mm | Dia.94~13mm | Dia. 13.2~180mm | ||
| Main Obj. | F=300mm | F=200~450mm | F=200~500mm | F=200~630mm | ||
| Assist Obj. | F=180mm | |||||
| Focus | Motorized Focus, +/-25mm | Motorized Focus 200~450mm | Motorized Focus 200~500mm | Motorized Focus 200~630mm | ||

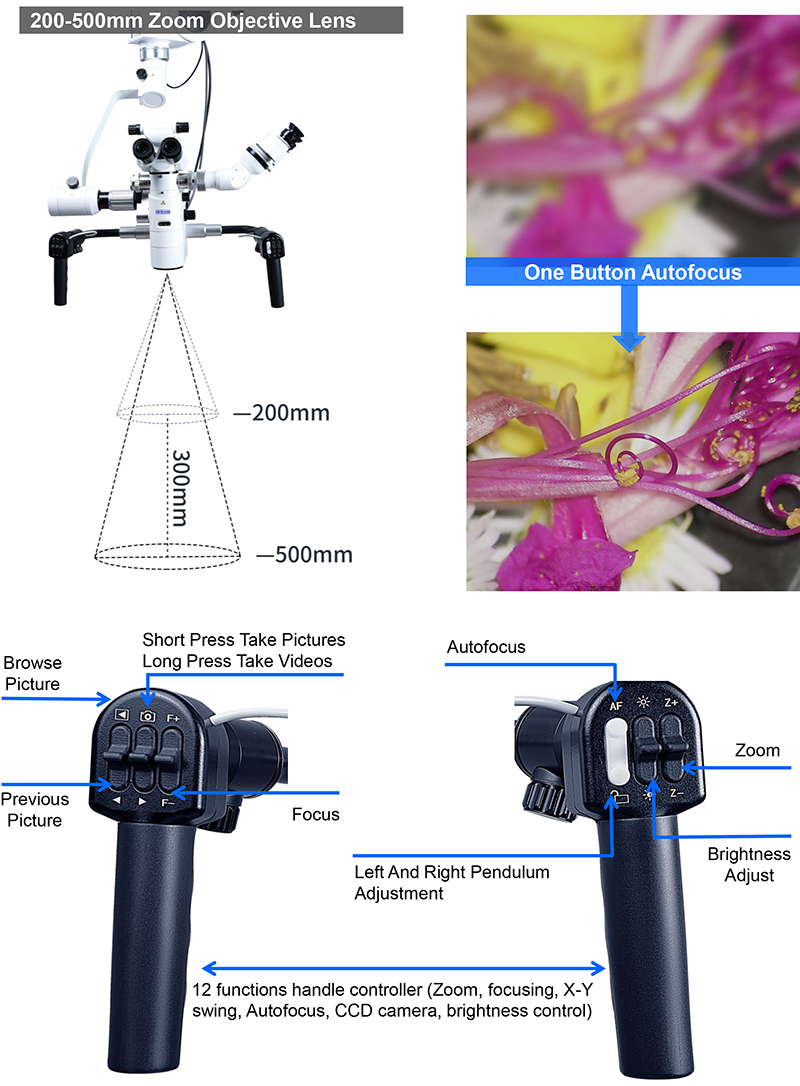

| Control Switch | 8 Functions Handle or Foot X/Y Moving Z Focusing Zoom | 12 Functions Handle X/Y Moving Z Focusing Zoom Take Photo/Video Review Photo/Video Auto Focus Brightness Adjust | 12 Functions Handle X/Y Moving Z Focusing Zoom CCD Camera Auto Focus Brightness Adjust | 12 Functions Handle X/Y Moving Z Focusing Zoom CCD Camera Auto Focus Brightness Adjust | ||

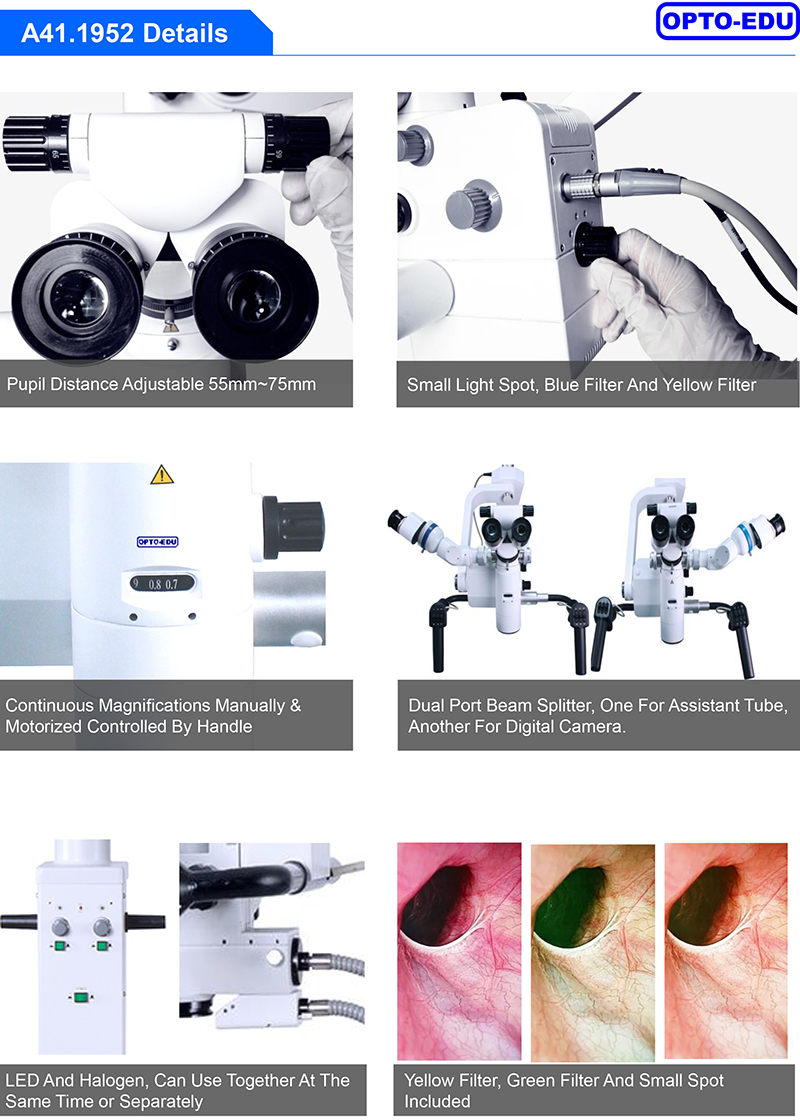

| Filter | Yellow Filter, Green Filter, Small Spot | |||||
| Stand | Four Wheels Moving Stand --Max Extended Length 1200mm --Max Rotatable Swing Angle of Arm 0~300° --Height From Objective to Floor 800~1250mm | Four Wheels Moving Stand --Max Extended Length 1715mm --Max Rotatable Swing Angle of Arm 0~300° --Height From Objective to Floor 690~1452mm | ||||

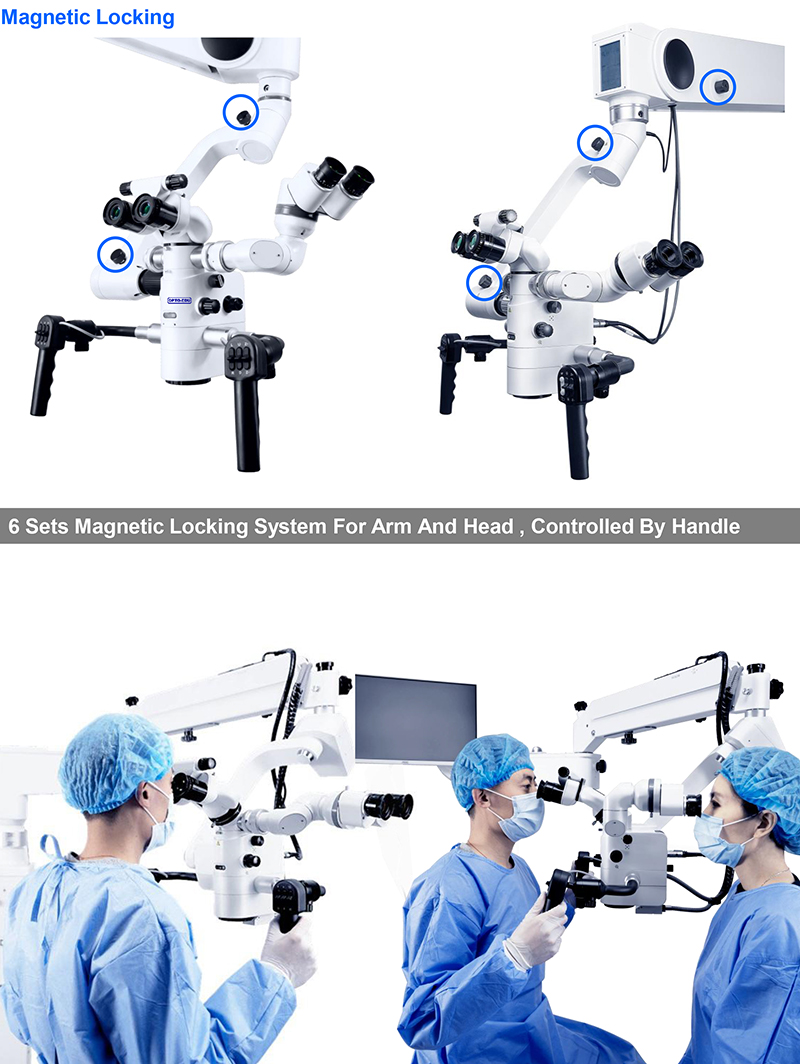

| Lock | Mechanical Lock | Electro Magnetic Lock | ||||
| Illumination | Dual Optical Fiber Coaxial LED + Halogen Light, Light Spot Dia.50mm, Intensity 100000 Lux. | Dual Optical Fiber Coaxial Built-in 2 Sets Xenon300W, Light Spot Dia.50mm, Intensity 100000 Lux. | ||||
| Beam Splitter | Built-in Beam Splitter | |||||
| Camera, LCD | None | Built-in Camera & Software | Built-in Camera & Software, LCD Monitor | |||
| Packing | 4 Cartons Total G.W 165Kg Volume 0.45CBM Head：595×460×230(mm)/14KG Body：890×650×265(mm)/41KG Control：1025×260×300(mm)/32KG Stand：890×865×200(mm)/78KG | 4 Cartons Total G.W 215Kg Volume 0.45CBM Head：595×460×230(mm)/14KG Body：890×650×265(mm)/41KG Control：1025×260×300(mm)/32KG Stand：890×865×200(mm)/128KG | ||||
