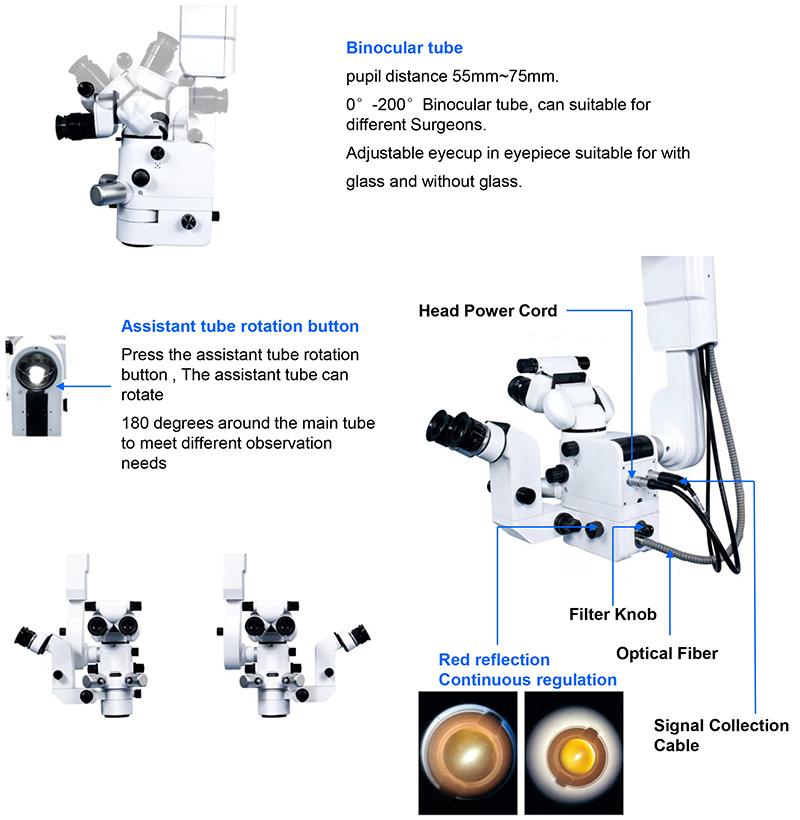

Features: ●180W xenon lamps exchangeable ●Macular protector can protect Retina ●Main binocular tube and assistant tube use independent optical system, the same luminance , the same magnification, motorized continuous change 4-27 times ●Depth regulator to increase field depth of field of viewMagnetic brakes ● 0°~200 Variable angle binocular tube, Alleviating long-term fatigue |

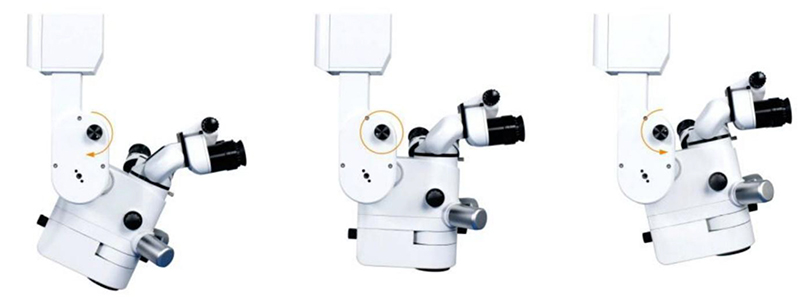

Pitch adjustment Adjusting the pitch angle of the microscope head through a knob is beneficial for the chief surgeon to obtain the best viewing angle.  |

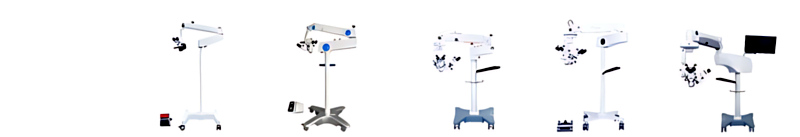

| A41.1930, A41.1931, A41.1934, A41.1935, A41.1936 Surgical Operation Microscope |
A41.1930Operating Microscope is a basic Operation Microscope with 3 steps magnification. |
A41.1931is a very practical version , with 6 functions foot switch to control motorized X/Y move, Z focus and 5 steps magnification. |
A41.1934comes fitted with a integrated camera and an individual LED light source to deliver well-lit imaging at all times. |

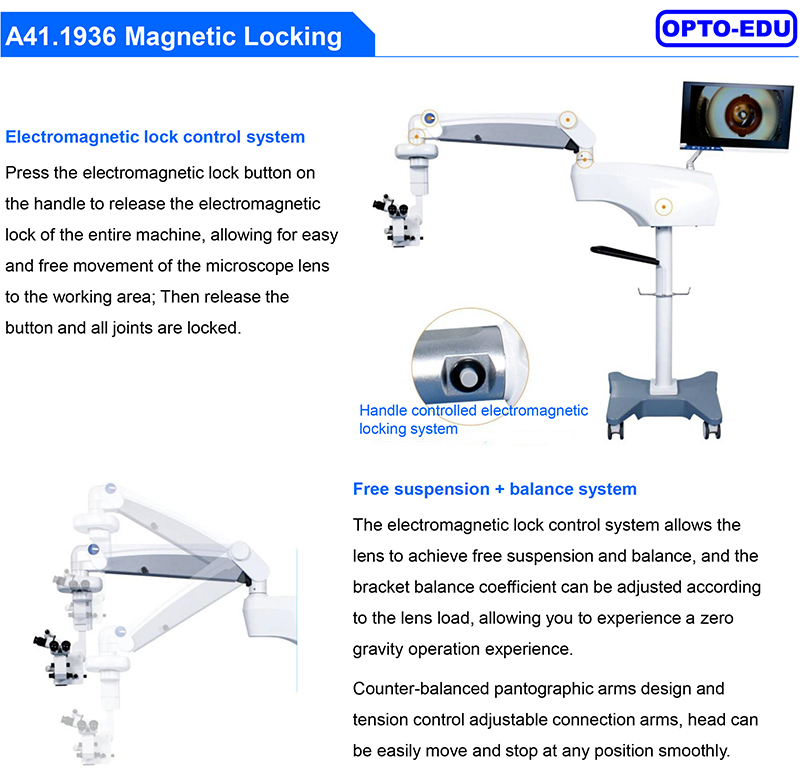

A41.1935is our flagship model, upgraded with three electromagnetic lock assemblies, continuously variable zoom main lens and a integrated camera, 4-inch screen, 3 sets of electromagnetic locks |

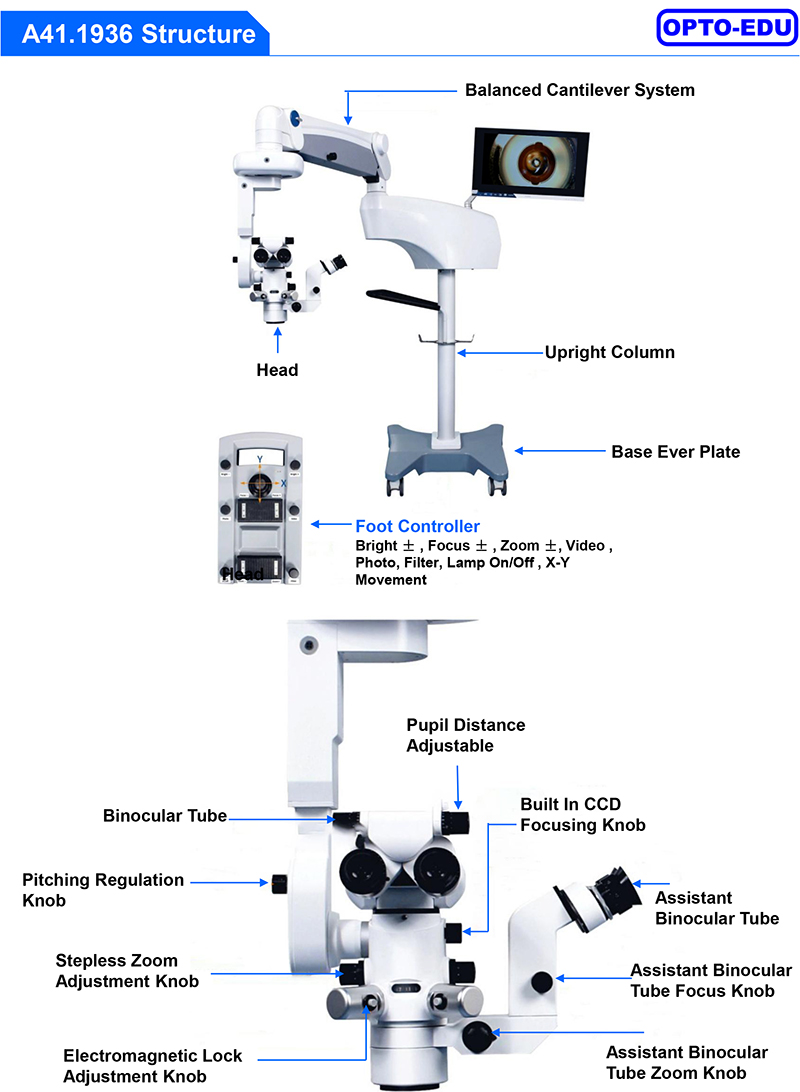

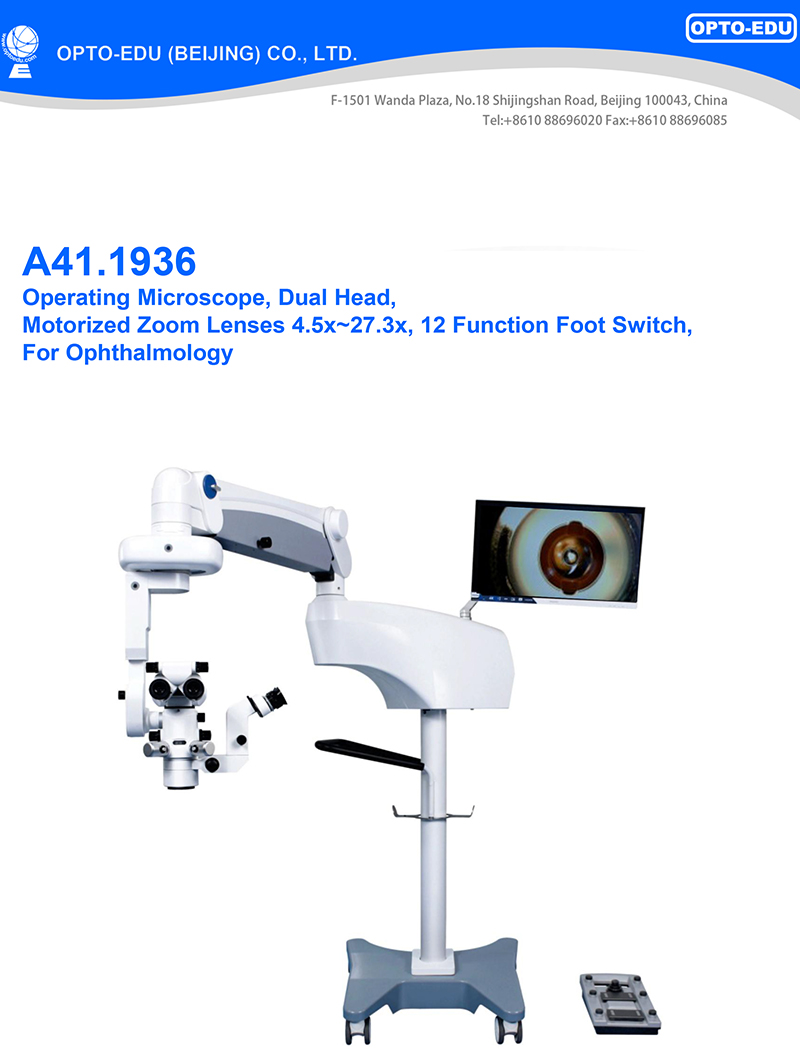

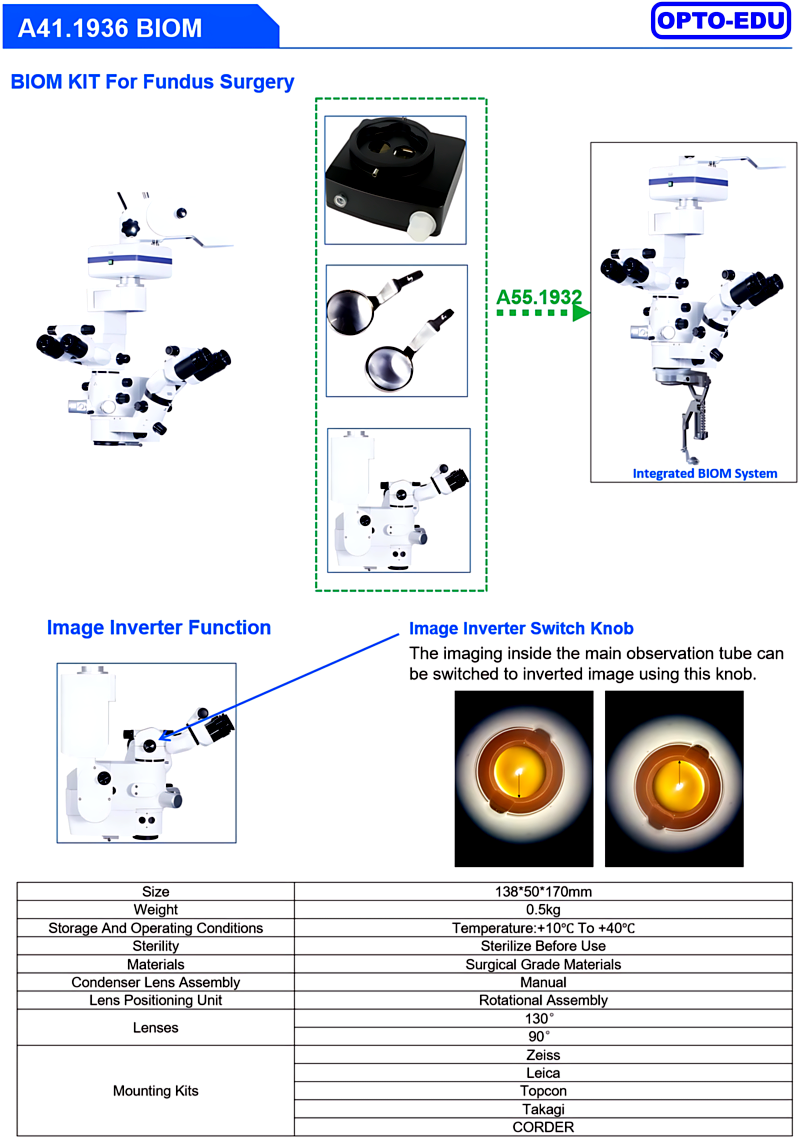

A41.1936 is the highest model in this series, with motorized zoom 4.5x~27.3x objective, dual Xenon light 100000 lux, 12 functions foot switch to control motorized X/Y move, Z focus & Zoom,4K camera integrated BIOM system, 4 sets of electromagnetic locks |

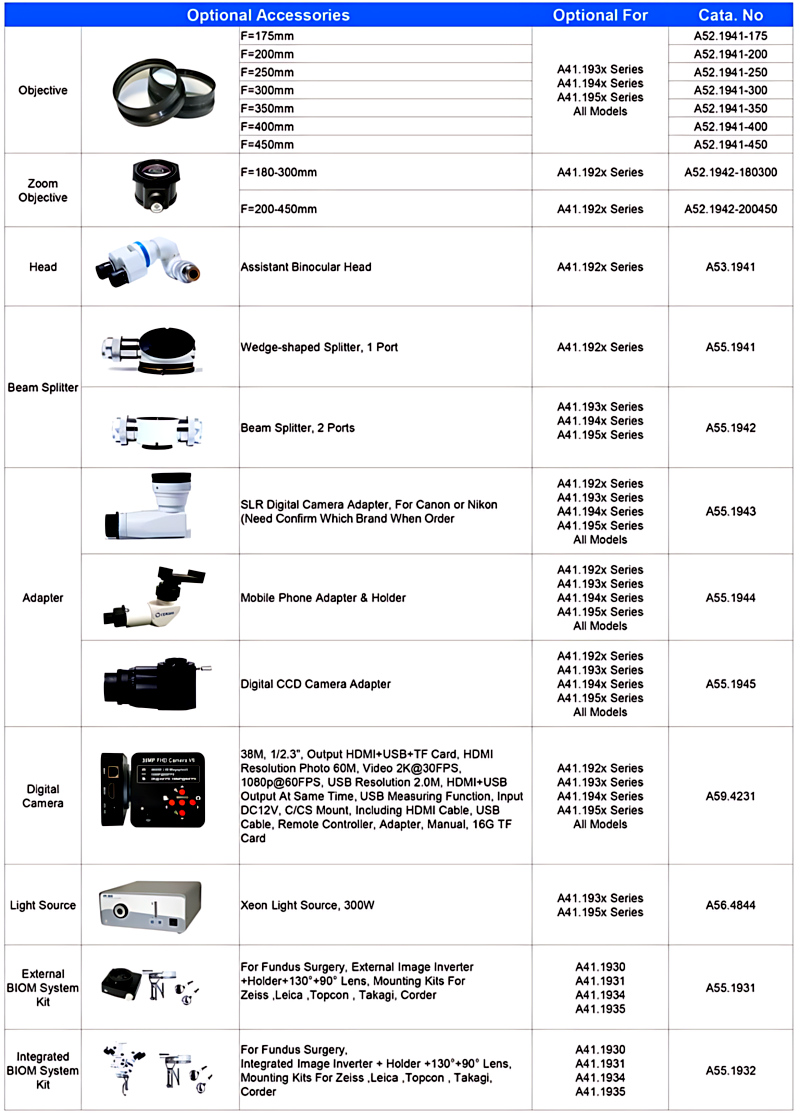

All 5 models can upgrade with optional beam splitter, SLR camera adapter, phone holder, CCD adapter for digital camera, for sharing real time image to LCD monitor, mobile phone or computer. |
Features: |
—Dual Head 45° Opposite, With Red Reflection & Macular Protector, For Ophthalmology |
—Eyepiece 12.5x, 3 Steps Manual Zoom 6x10x16x, 5 Steps Manual Zoom 4x 6x10x16x 24x, or Continuous Zoom 4.5x~27.3x |
—Objective F=200mm, 2nd Objective F=125mm, LED, Max Brightness 60000 Lux to 100000 Lux |
—2 Functions, 12 Functions, 14 Functions Foot Switch, Control X/Y Movie, Z Focus, Zoom |
—Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 800mm |

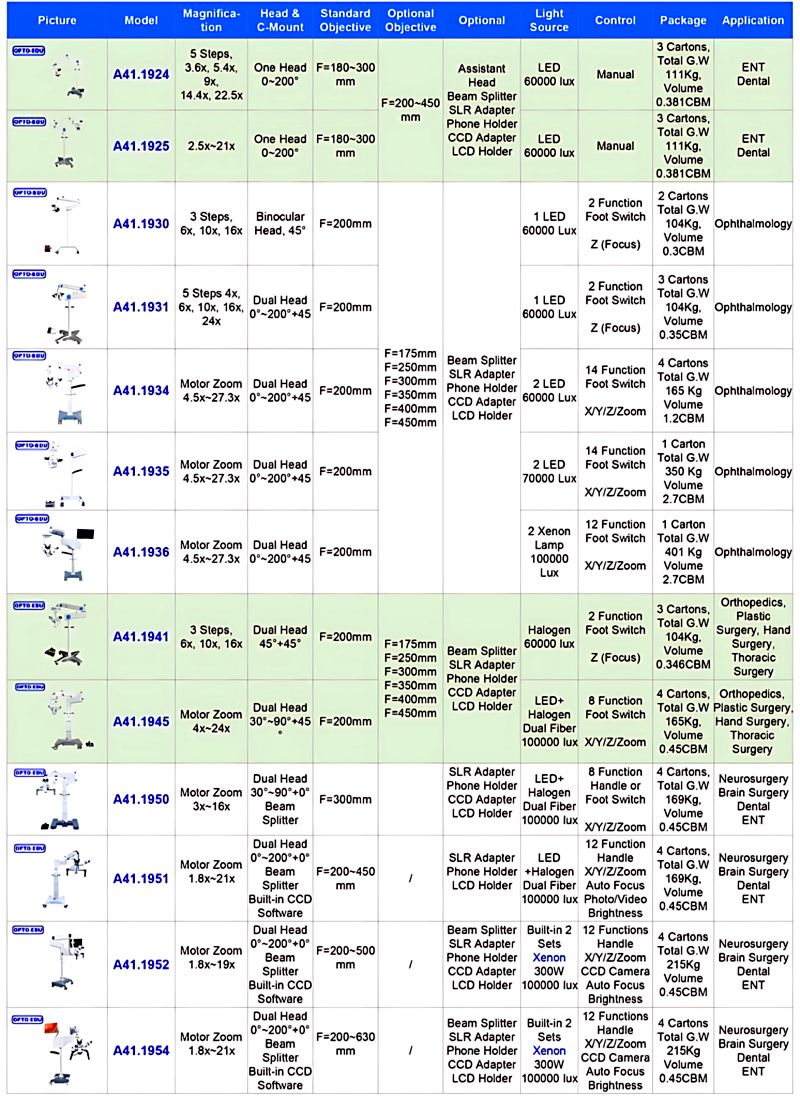

| A41.1930 | A41.1931 | A41.1934 | A41.1935 | A41.1936 |
Main Usage | —— | With Red Reflection & Macular Protector, For Ophthalmology | |||
Eyepiece | WF12.5x | ||||
Head | Single Head | Dual Heads For Two People Operation, Opposite In 45° | |||
Interpupillary Distance 55~75mm, Eyetube Diopter Adjustable ±6D | |||||
| Main Head | Inclined 45°,Optionl 0~200° | Inclined 0~200° | Inclined 0~200° | Inclined 0~200° | Inclined 0~200° |
Magnification | 3 Steps 6x,10x,16x | 5 Steps 4x,6x,10x,16x,24x | 4.5x~27.3x Continuous Zoom | ||
View Field | Dia.41.77mm, 25.06mm, 15.66mm | Dia.50mm, 32mm, 20mm, 12mm, 8mm | Dia.44~7.7mm | Dia.45~7.5mm | Dia.49.4~8.2mm |
Zoom Body | —— | —— | 1:6 Motorized Continuous Zoom, Parallel Light System | ||
Assistant Head | —— | 180° Rotatable | |||
Magnification | —— | 3 Steps 6x, 10x, 16x | 5 Steps 4x,6x,10x,16x,24x | 5 Steps 4x,6x,10x,16x,24x | 5 Steps 4x,6x,10x,16x,24x |
View Field | —— | Dia.34mm, 20mm, 13mm | Dia.50mm, 32mm, 20mm, 12mm, 8mm | Dia.50mm, 32mm, 20mm, 12mm, 8mm | Dia.50mm, 32mm, 20mm, 12mm, 8mm |
Main Objective | F=200mm, Optional F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm | ||||
Assistant Obj. | F=200mm | ||||
Focus | Motorized Focus, Range +/15mm, Speed 33s/Full Distance | Motorized Focus, Range +/-25mm, Speed 33s/Full Distance | Motorized Focus, Range +/-30mm, Speed 33s/Full Distance | Motorized Focus, Range +/-30mm, Speed 33s/Full Distance | Motorized Focus, Range +/-40mm, Speed 33s/Full Distance |
EM Lock | —— | —— | —— | 3 Sets | 4 Sets |
Touchscreen | —— | —— | 4'' Touchscreen | 4'' Touchscreen | 7'' Touchscreen |
Control | 2 Functions Foot Switch | 2 Functions Foot Switch | 14 Functions Foot Switch | 14 Functions Foot Switch | 12 Functions Foot Switch |
Control Z Focus | Control Z Focus | Control X/Y Move, Z Focus, Zoom | Control X/Y Move, Z Focus, Zoom | Control X/Y/Z Move, Z Focus, Zoom | |
Stand | Four Wheels Moving Stand | ||||
Max Extended Length 1100mm | Max Extended Length 1100mm | Max Extended Length 1200mm | Max Extended Length 1508mm | Max Extended Length 1815mm | |
Max Rotatable Swing Angle of Arm 0~300° | |||||
Distance Between Objective And Ground Surface 800mm~1250mm | Distance Between Objective And Ground Surface 800mm~1250mm | Distance Between Objective And Ground Surface 800mm~1250mm | Distance Between Objective And Ground Surface 813mm~1573mm | Distance Between Objective And Ground Surface 690mm~1452mm | |
Illumination | 1 Coaxial LED | 1 Coaxial LED | 2 Coaxial LED | 2 Coaxial LED | 2 Coaxial 180W Xenon |
Light Spot Dia.70mm, Intensity 60000 Lux | Light Spot Dia.50mm, Intensity 60000 Lux | Light Spot Dia.50mm, Intensity 60000 Lux | Light Spot Dia.50mm, Intensity 70000 Lux | Light Spot Dia.50mm, Intensity 100000 Lux | |
Red Reflection | Non-adjustable | Adjustable ±2° | Adjustable ±2° | Adjustable ±2° | Adjustable ±2° |
Filter | Heat Absorber | Heat Absorber | Heat Absorber | Heat Absorber | Heat Absorber |
Macular Protection | Macular Protection | Macular Protection | Macular Protection | Macular Protection | |
Green Filter | Green Filter | Green Filter | Green Filter | Green Filter | |
| Blue Filter | Blue Filter | Blue Filter | Blue Filter | |
—— | —— | Yellow Filter | Yellow Filter | Yellow Filter | |
—— | —— | Gray Filter | Gray Filter | Gray Filter | |
Optional Cobalt Blue Filter | Optional Cobalt Blue Filter | Optional Cobalt Blue Filter | Optional Cobalt Blue Filter | Optional Cobalt Blue Filter | |
BIOM | Optional Integrated/External | Optional Integrated/External | Optional Integrated/External | Optional Integrated/External | Standard Integrated |
Packing | 2 Cartons Total G.W 104Kg, Volume 0.3CBM | 3 Cartons Total G.W 104Kg, Volume 0.35CBM | 4 Cartons Total G.W 165 Kg Volume 1.2CBM | 1 Carton Total G.W 350 Kg Volume 2.7CBM | 1 Carton Total G.W 401 Kg Volume 2.7CBM |
