Upright Fluorescent Microscope, Semi-APO, Semi-Motorized, LED + LED

Research Level Fluorescent Microscope With 6 Position Turret Disc Epi-Fluorescent Illuminator

Extra Wide Eyepiece EW10x/22mm Dia.30mm Diopter Adjustable

Auto 6 Holes Nosepiece With Infinity Plan Objective 4x10x20x40x100x

Rackless Working Stage With Sapphire Crystal Glass Insert 190x152mm Moving Range 78x54mm

Auto Brightness Adjust ECO Function Kohler Illumination 24V100W Halogen Or 3W SLED Optional

A16.1093 Research Level Fluorescent Laboratory Microscope		A16.1093				Cata. No.
A16.1093 Research Level Fluorescent Laboratory Microscope		HM	LM	HL	LL
Optical System	NIS60 Infinity Optical System	●	●	●	●
Observation Method	Bright Field	●	●	●	●
	Dark Field	○	○	○	○
	Polarizing	○	○	○	○
	Phase Contrast	○	○	○	○
	Flourescent	●	●	●	●
	DIC	○	○	○	○
Main Body	ATLSemi-Auto Body + LEDIllumination. Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	●	●	●	●	A54.1090-ATL

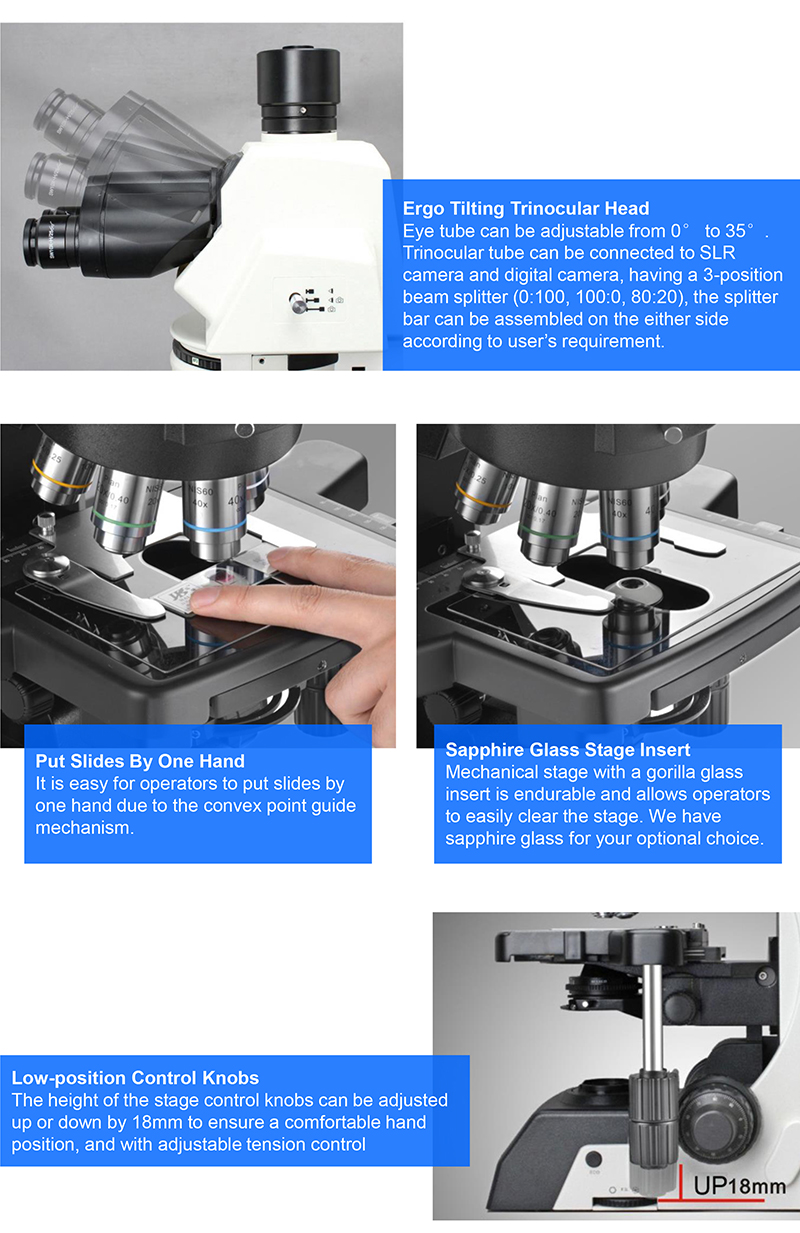

Head	Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Ligth Split Switch E100:P0/E20:P80/E0:P100	●	●	●	●	A53.1090-TT
Eyepiece	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm	●●	●●	●●	●●	A51.1090-1025
	SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	A51.1090-1022
	EW12.5x/16mm, High Eyepoint	○	○	○	○	A51.1090-12516
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	A51.1090-1516
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	○	○	○	○	A51.1090-2012
Nosepiece	Auto Coded Nosepiece, Sextuple, Backward, Motorized Switch Objectives, Controled By: 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them	●	●	●	●	A54.1091-6A
Nosepiece	With Slot For Polarizing Compensator Slider Or DIC Slider	●	●	●	●

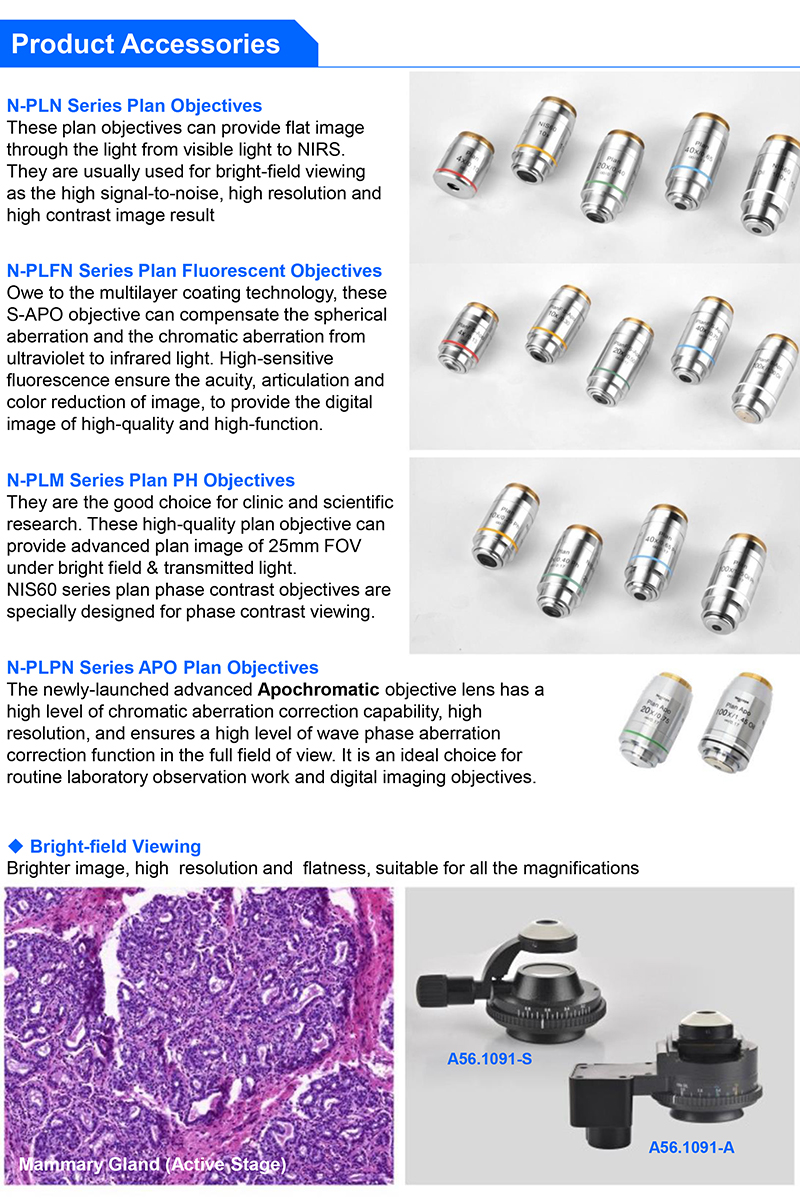

N-PLFN Infinity Plan Semi-APOFluorescentObjective	PlanF S-APO 4x/0.13, W.D.16.5mm, Cover Glass 0.17mm	●	●	●	●	A5F.1091-4
	PlanF S-APO 10x/0.30, W.D.8.1mm, Cover Glass 0.17mm	●	●	●	●	A5F.1091-10
	PlanF S-APO 20x/0.50, W.D.2.1mm, Cover Glass 0.17mm	●	●	●	●	A5F.1091-20
	PlanF S-APO 40x/0.75, W.D.0.7mm, Cover Glass 0.17mm	●	●	●	●	A5F.1091-40
	PlanF S-APO 100x/1.30(Oil), W.D.0.15mm, Cover Glass 0.17mm	●	●	●	●	A5F.1091-100
Working Stage	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,LeftHandle	○	○	○	○	A54.1092-SL
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,RightHandle	●	●	●	●	A54.1092-SR
	Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw	●	●	●	●

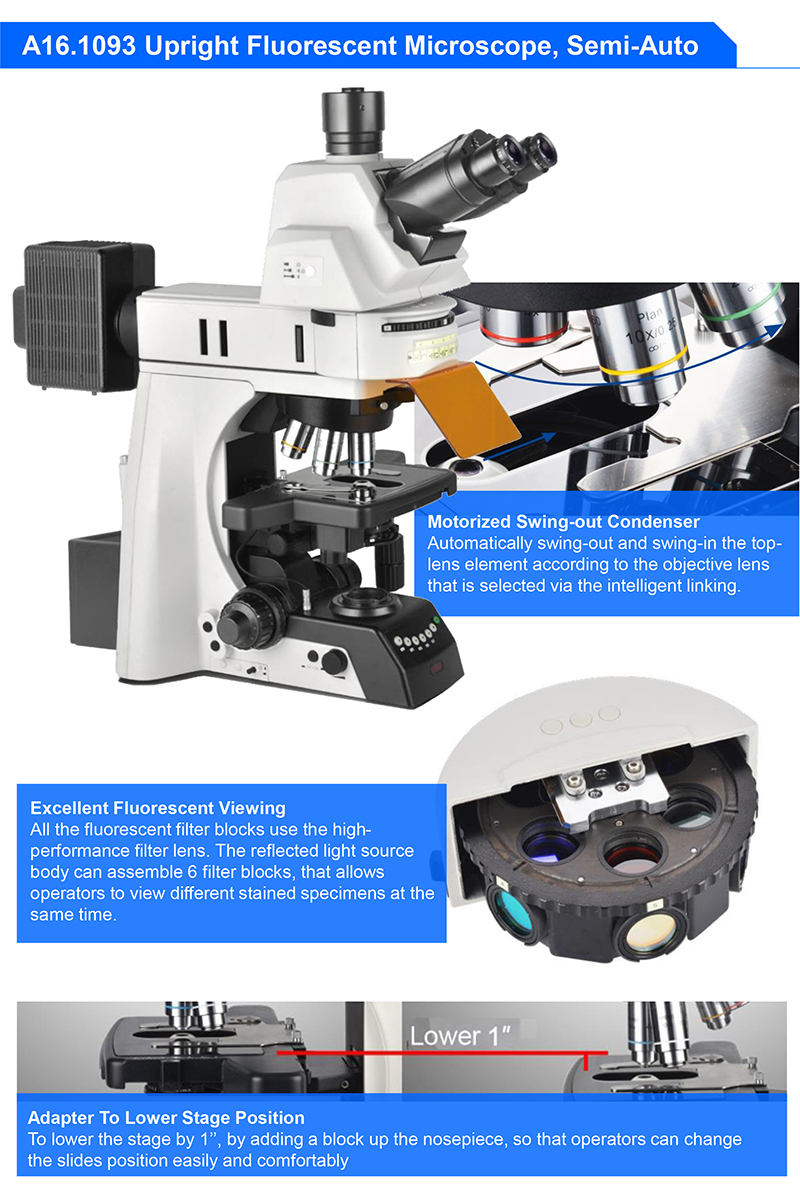

Condenser	AutoSwing-Out Condenser NA0.9/0.25	●	●	●	●	A56.1091-A
Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ	●	●	●	●
Light Source	TransmitKohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House	●		●		A56.1090-12V100W
	TransmitKohler Illumination, Brightness Adjustable, 3W S-LED, Built-in Main Body		●		●	A56.1090-3WLED
	ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy	●	●	●	●	A56.1090-ECO
	AutoBrightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected	●	●	●	●	A56.1090-AB
Filter For Transmit Light	Filter Holder On Base, Can Hold 3 Filters	●	●	●	●	A56.1092-H
	Filter LBD	●	●	●	●	A56.1092-LBD
	Filter Green	●	●	●	●	A56.1092-G
	Filter Yellow	●	●	●	●	A56.1092-Y
	Filter ND6	●	●	●	●	A56.1092-ND6
	Filter ND25	●	●	●	●	A56.1092-ND25
Adapter	Eyepiece Adapter Dia.23.2mm	○	○	○	○	A55.1090-E
	C-Mount 1.0x	○	○	○	○	A55.1090-1.0x
	C-Mount 0.5x	○	○	○	○	A55.1090-0.5x

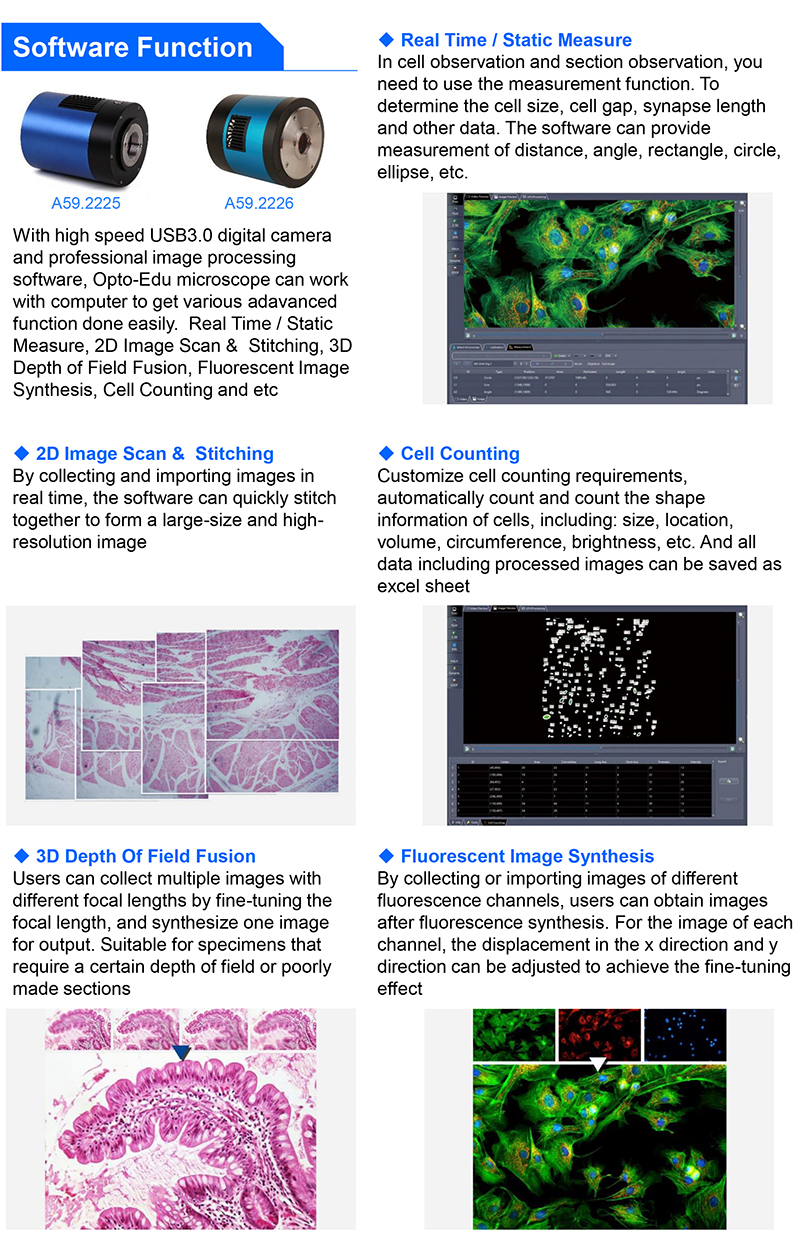

Software	NOMIS Basic Image Processiing Software	○	○	○	○	A30.1090
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry	○	○	○	○	A5D.1090-D
	Dark Field Condenser, N.A. 1.25~1.36, Immersion	○	○	○	○	A5D.1090-I
	Dark Field Objective, Infinity Plan 100X, For Immersion Dark Field Observation	○	○	○	○	A5D.1030-3
	Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, For Immersion Dark Field Observation	○	○	○	○	A5D.1030-4

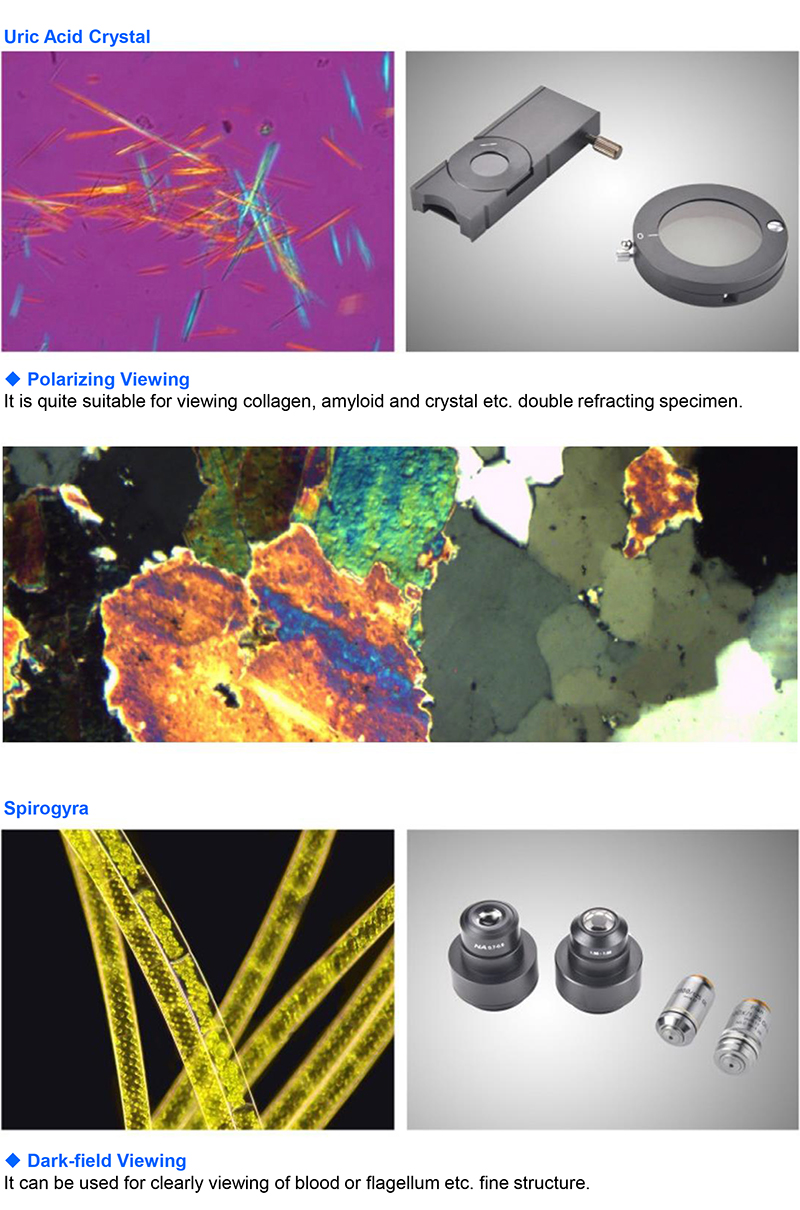

Polarizing	Polarizer For Transmit Light Source	○	○	○	○	A5P.1091-P
	Analyzer Slide For Transmit Light Source	○	○	○	○	A5P.1091-A
	Gout Set: Polarizer, λ Slide, Quaterz Wedge Slide	○	○	○	○	A5P.1091-T
	Upgrade To A15.1091Professional Polarizing Microscope					A15.1091

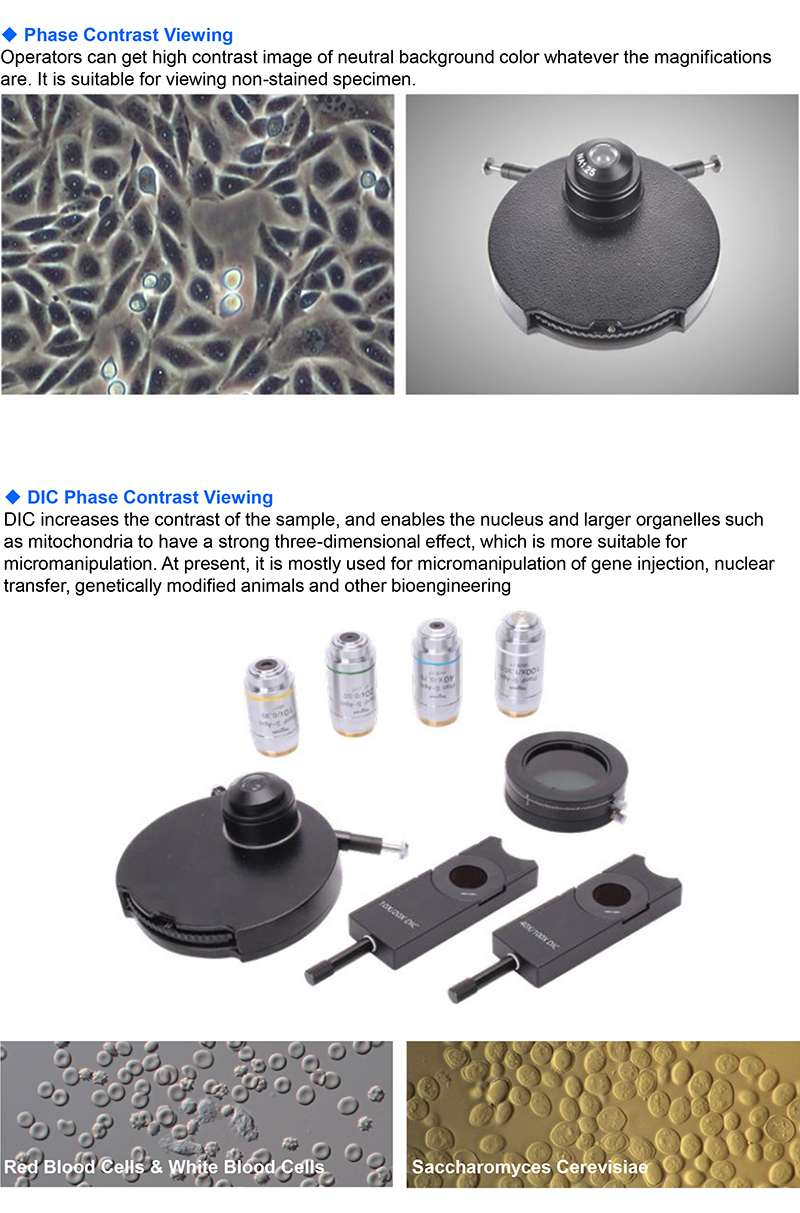

Phase Contrast	Turret Phase Contrast Condenser, Center Adjustable	○	○	○	○	A5C.1090
	Centering Telescope 10x	○	○	○	○	A5C.1092
	Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25	○	○	○	○	A5C.1091-10
	Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40	○	○	○	○	A5C.1091-20
	Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65	○	○	○	○	A5C.1091-40
	Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil)	○	○	○	○	A5C.1091-100
DIC	Polarizer For Transmit Light Source	○	○	○	○	A5P.1090-TP
	Turret DIC Condenser	○	○	○	○	A5C.1095
	DIC Slide 10x, Used With Semi-APO Fluorescent Objective	○	○	○	○	A5C.1095-10
	DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective	○	○	○	○	A5C.1095-2040
	DIC Slide 100x, Used With Semi-APO Fluorescent Objective	○	○	○	○	A5C.1095-10
	DIC Slide With Analyzer 10x-20x	○	○	○	○	A5C.1095-1020P
	DIC Slide With Analyzer 40x-100x	○	○	○	○	A5C.1095-40100P

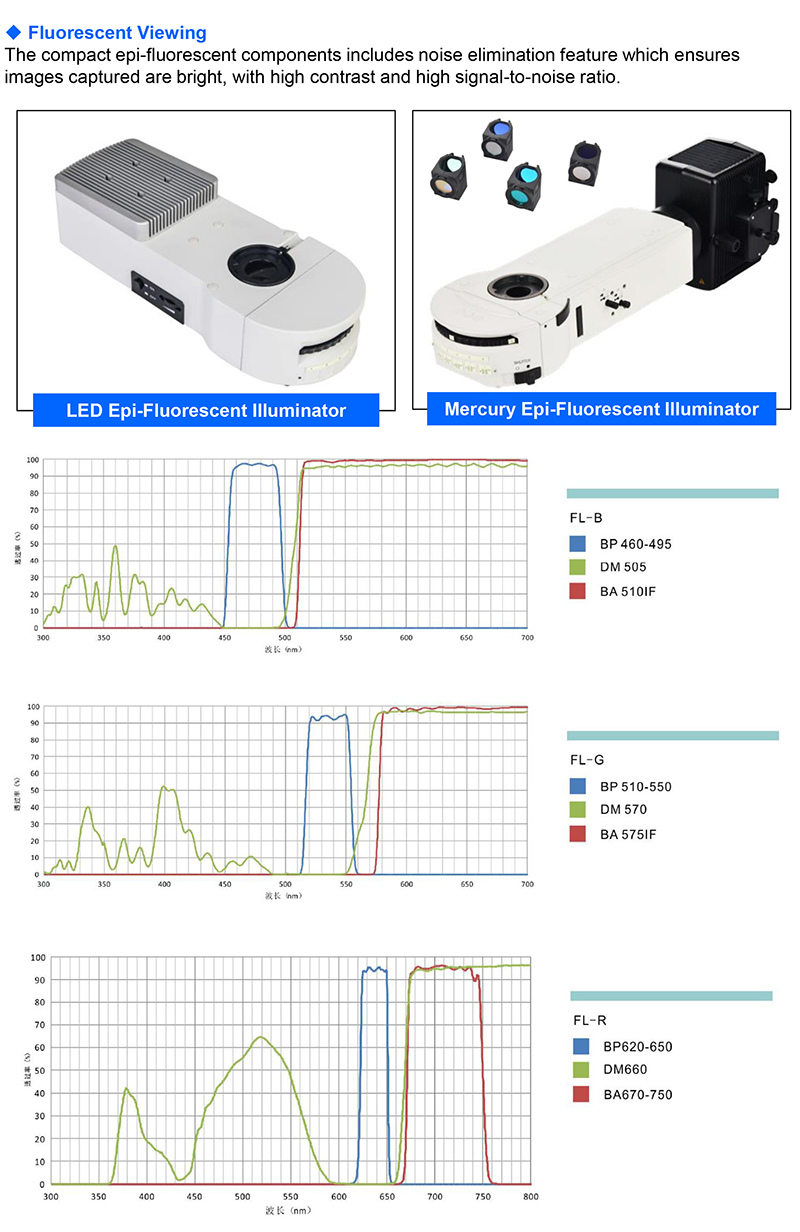

Fluorescent Attachment	Reflect Mercury Epi-Fluorescent Illuminator, Turret Disc With 6 Positions For Fluroescent Filter Block, With Protect Barrier	●	●	○	○	A5F.1090
	Power Supply Box 220V/110V Interchargeable, Digital Display	●	●	○	○	A5F.1090-100WH
	100W Mercury Lamp Housing	●	●	○	○	A5F.1090-100WP
	Reflect LED Epi-Fluorescent Illuminator, Turret Disc With 6 Positions For Fluroescent Filter Block, With Protect Barrier	○	○	●	●	A5F.1090-LED
	LED Light Source Module, For Fluorescent Filter B	○	○	●	●	A5F.1090-LB
	LED Light Source Module, For Fluorescent Filter G	○	○	●	●	A5F.1090-LG
	LED Light Source Module, For Fluorescent Filter U	○	○	●	●	A5F.1090-LU
	LED Light Source Module, For Fluorescent Filter V	○	○	●	●	A5F.1090-LV

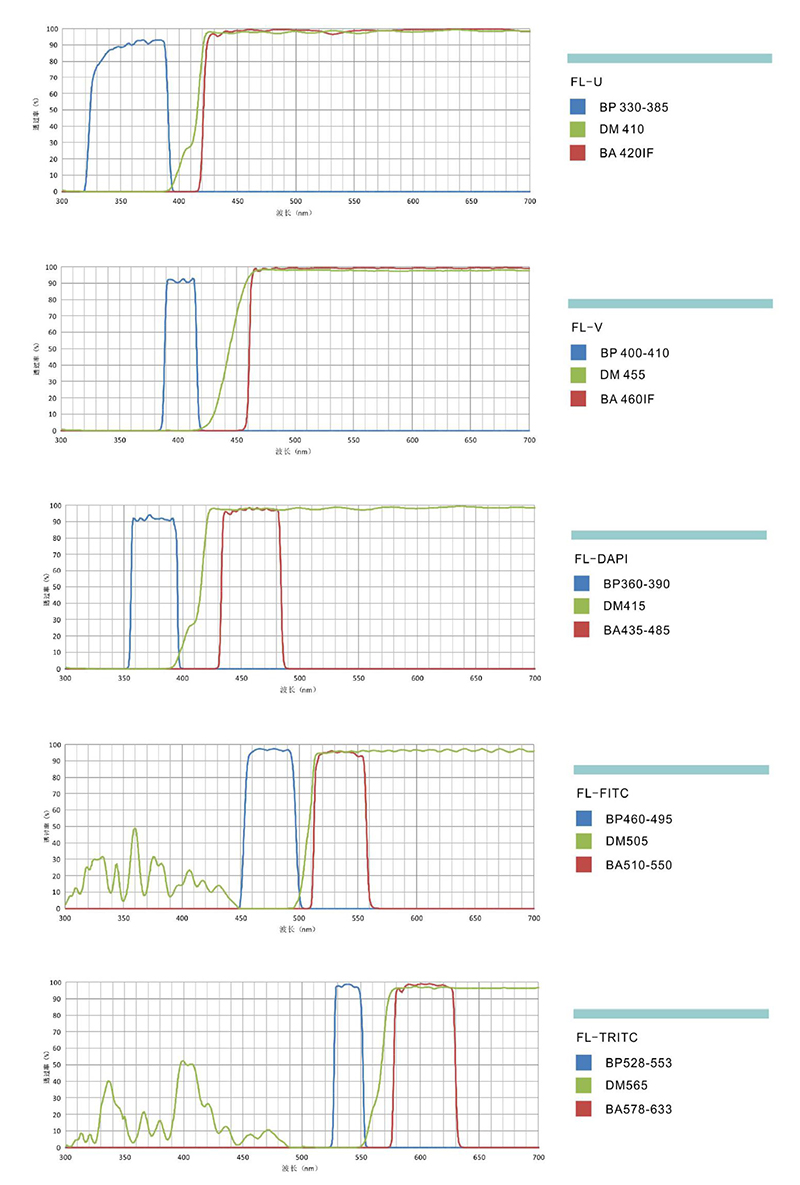

	Fluorescent Filter B, BP460-490, BA520, DM500	●	●	●	●	A5F.1090-B
	Fluorescent Filter G, BP510-550, BA590, DM570	●	●	●	●	A5F.1090-G
	Fluorescent Filter U, BP330-385, BA420, DM400	●	●	●	●	A5F.1090-U
	Fluorescent Filter V, BP400-410, BA455, DM455	●	●	●	●	A5F.1090-V
	Fluorescent Filter FITC, BP460-495, BA510-550, DM505	○	○	○	○	A5F.1090-FITC
	Fluorescent Filter DAPI, BP360-390, BA435-485, DM415	○	○	○	○	A5F.1090-DAPI
	Fluorescent Filter TRITC, BP528-553, BA578-633, DM565	○	○	○	○	A5F.1090-TRITC
	Fluorescent Filter R, BP620-650, BA670-750, DM660	○	○	○	○	A5F.1090-R
	Fluorescent Filter Empty Block	○	○	○	○	A5F.1090-E
	Filter ND6	●	●	●	●	A5F.1090-ND6
	Filter ND25	●	●	●	●	A5F.1090-ND25
	Centering Plate	○	○	○	○	A5F.1090-01
	Protect Cover For Reflect Fluorescent Light, Placed On Light Collectory On Stand, For Auto Model	○	○	○	○	A5F.1090-02
Other Accessories	Working Stage Holder Bracket	●	●	●	●	A54.1096
	Adapter To Adjust Eye Position	○	○	○	○	A54.1096-A1
	Adapter To Lower The Stage Position 1"	○	○	○	○	A54.1096-A2
	Immersion Oil	●	●	●	●	A50.1090-01
	Allen Wrench	●	●	●	●	A50.1090-02
	Power Cord	●	●	●	●	A50.1090-03
	Short Eye Cover, For Eyepiece	○	○	○	○	A50.1090-04
	Long Eye Cover, For Eyepiece	○	○	○	○	A50.1090-05
	Eyepiece Micrometer, Cross	○	○	○	○	A50.1090-06
	Adapter Ring To Install Eyepiece Micrometer	○	○	○	○	A50.1090-07
	USB Cable	○	○	○	○	A50.1090-08
Note:"●"In Table Is Standard Outfits,"○"Is Optional Accessories"-"Is Unavailable

Pictures Hide Same Show Difference
Model No.	A16.1093-LL	A16.1093-HM	A16.1093-LM	A16.1093-HL

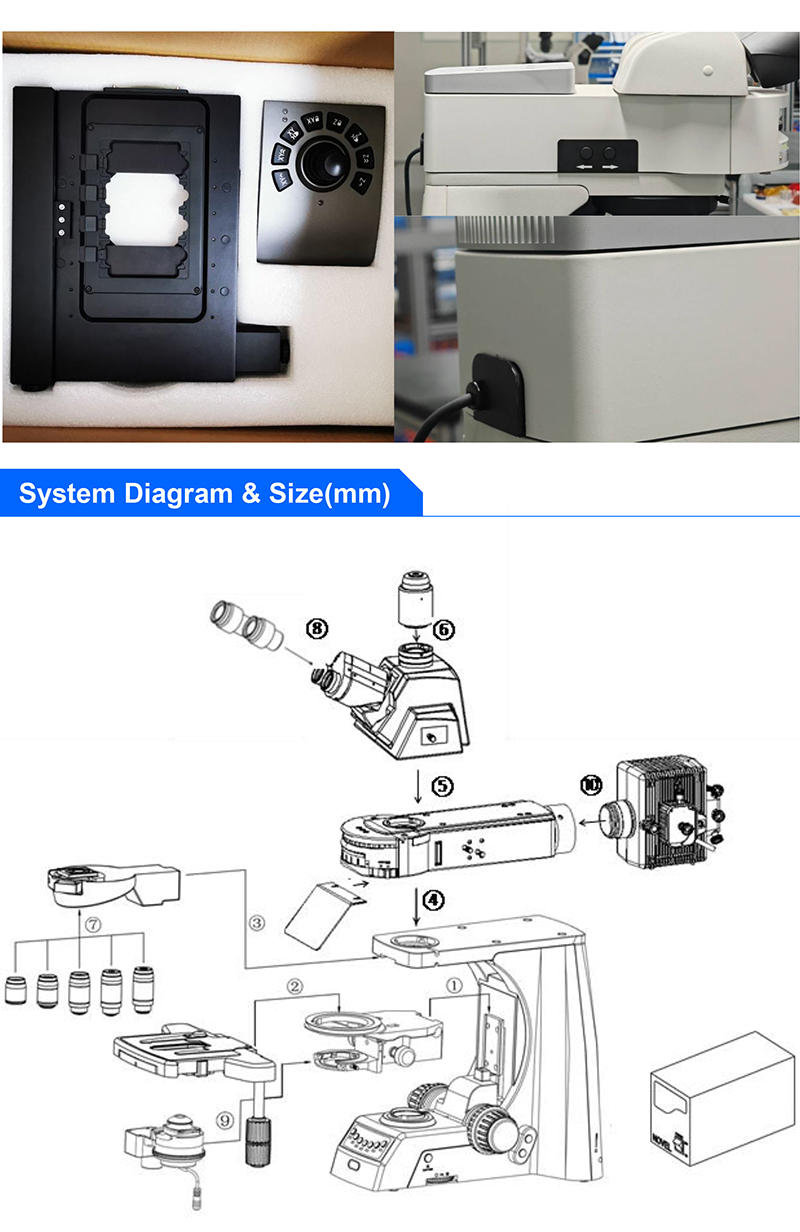

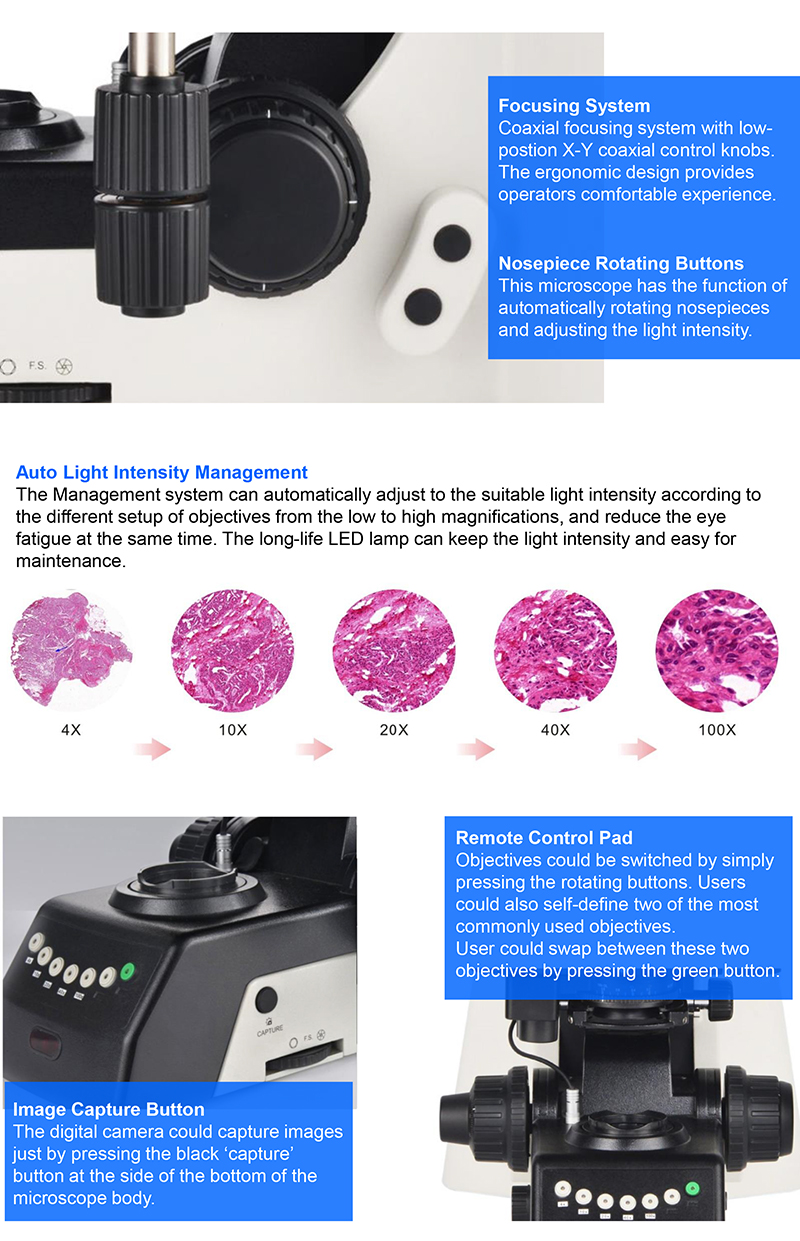

Other Specification	Remote Control Pad, Shortcut Button To Motor Switch Objectives	Remote Control Pad, Shortcut Button To Motor Switch Objectives	Remote Control Pad, Shortcut Button To Motor Switch Objectives	Remote Control Pad, Shortcut Button To Motor Switch Objectives
Fluorescene	Turret Disc With 6 Positions Protect Barrier Power Supply Box 100W Mercury Lamp Housing Filter ND6 Filter ND25 Fluorescent Filter B,G,UV,U	Turret Disc With 6 Positions Protect Barrier Power Supply Box 100W Mercury Lamp Housing Filter ND6 Filter ND25 Fluorescent Filter B,G,UV,U	Turret Disc With 6 Positions Protect Barrier Power Supply Box 100W Mercury Lamp Housing Filter ND6 Filter ND25 Fluorescent Filter B,G,UV,U	Turret Disc With 6 Positions Protect Barrier Power Supply Box 100W Mercury Lamp Housing Filter ND6 Filter ND25 Fluorescent Filter B,G,UV,U
Power Supply Type	Power Cord Detachable AC 100V-240V Wide Voltage	Power Cord Detachable AC 100V-240V Wide Voltage	Power Cord Detachable AC 100V-240V Wide Voltage	Power Cord Detachable AC 100V-240V Wide Voltage
Reflect Light	Epi-Fluorescent Reflected Light 100W Mercury Lamp	Epi-Fluorescent Reflected Light 100W Mercury Lamp	Epi-Fluorescent Reflected Light 100W Mercury Lamp	Epi-Fluorescent Reflected Light 100W Mercury Lamp
Transmit Light	3W LED, With Lamp Box, ECO Function, Auto Adjust Brightness	12V100W Halogen, With Lamp Box, ECO Function, Auto Adjust Brightness	3W LED, With Lamp Box, ECO Function, Auto Adjust Brightness	12V100W Halogen, With Lamp Box, ECO Function, Auto Adjust Brightness
Light Source Type	LED Fluorescent	Halogen Fluorescent	LED Fluorescent	Halogen Fluorescent
Light Source Features	——	Halogen 100W Kohler	——	Halogen 100W Kohler
Condenser	Auto Swing-Out Condensor	Auto Swing-Out Condensor	Auto Swing-Out Condensor	Auto Swing-Out Condensor
Condenser N.A.	0.9/0.25	0.9/0.25	0.9/0.25	0.9/0.25
Condenser Type	Swing-Out	Swing-Out	Swing-Out	Swing-Out
Condenser Features	Rack & Pinionↆ↑	Rack & Pinionↆ↑	Rack & Pinionↆ↑	Rack & Pinionↆ↑

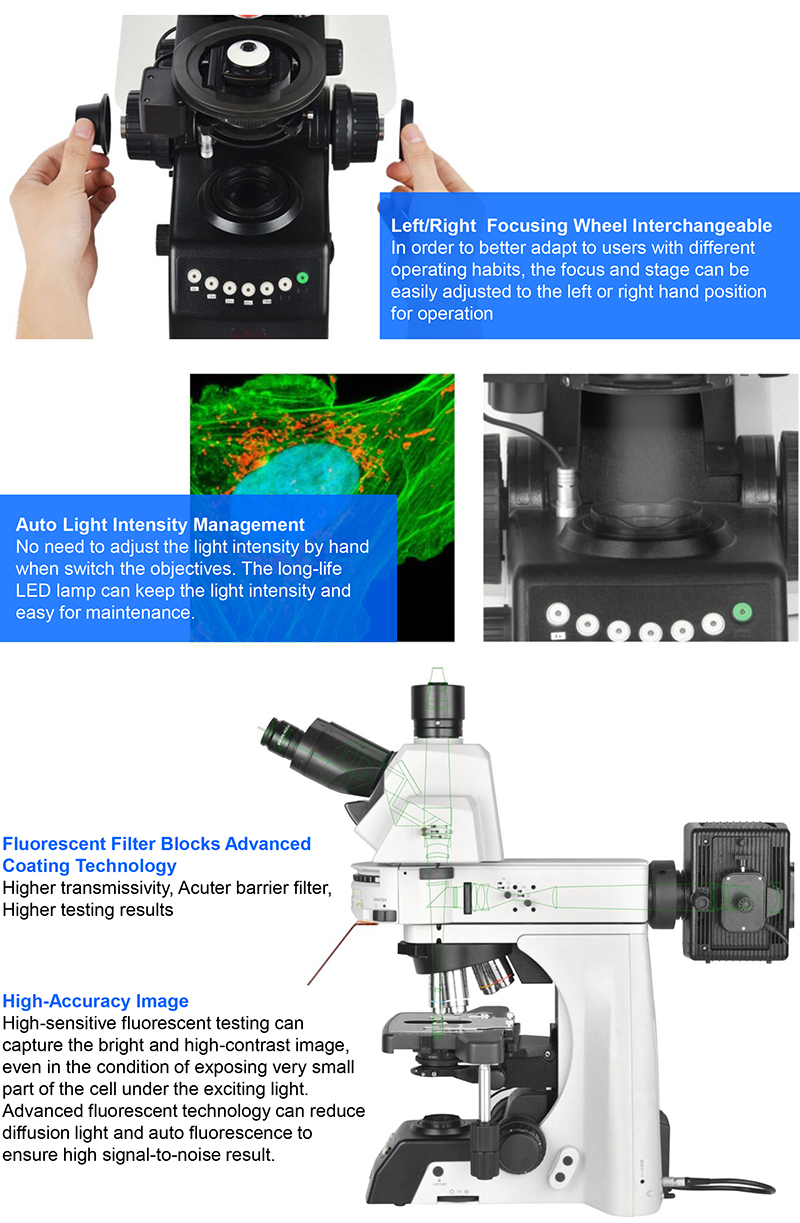

Focusing Knob	Can Exchange Hand Wheel Between Left/Right	Can Exchange Hand Wheel Between Left/Right	Can Exchange Hand Wheel Between Left/Right	Can Exchange Hand Wheel Between Left/Right
Focusing Scale	0.001mm	0.001mm	0.001mm	0.001mm
Focusing Range	35mm	35mm	35mm	35mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring	Tension Adjustable Safety Stop Lock Ring
Working Stage	With Sapphire Crystal Glass Insert	With Sapphire Crystal Glass Insert	With Sapphire Crystal Glass Insert	With Sapphire Crystal Glass Insert
Working Stage Moving	78x32mm	78x32mm	78x32mm	78x32mm
Working Stage Size	190x152mm	190x152mm	190x152mm	190x152mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x180mm Rackless Safety Edge Knob Height Adjustable	Double Slide Holder Size ≥140x180mm Rackless Safety Edge Knob Height Adjustable	Double Slide Holder Size ≥140x180mm Rackless Safety Edge Knob Height Adjustable	Double Slide Holder Size ≥140x180mm Rackless Safety Edge Knob Height Adjustable
Objective	Infinity Plan Semi-APO Fluorescent Objectives N-PLFN 4x10x20x40x100x	Infinity Plan Semi-APO Fluorescent Objectives N-PLFN 4x10x20x40x100x	Infinity Plan Semi-APO Fluorescent Objectives N-PLFN 4x10x20x40x100x	Infinity Plan Semi-APO Fluorescent Objectives N-PLFN 4x10x20x40x100x
Objective Type	Infinity Plan Fluorescent Semi-APO (Apochromatic)	Infinity Plan Fluorescent Semi-APO (Apochromatic)	Infinity Plan Fluorescent Semi-APO (Apochromatic)	Infinity Plan Fluorescent Semi-APO (Apochromatic)
Objective Features	APO	APO	APO	APO
Nosepiece Holes	6 Holes	6 Holes	6 Holes	6 Holes
Nosepiece Features	Inward With DIC Slot With Polarzing Slot Coded	Inward With DIC Slot With Polarzing Slot Coded	Inward With DIC Slot With Polarzing Slot Coded	Inward With DIC Slot With Polarzing Slot Coded
Eyepiece	EW10x/22mm, 2pcs	EW10x/22mm, 2pcs	EW10x/22mm, 2pcs	EW10x/22mm, 2pcs
Eyepiece Diameter	30.0mm	30.0mm	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm	Diopter Adjustable Super WF ≥23mm
Head Light Path	E100:P0/E20:P80/E0:P100	E100:P0/E20:P80/E0:P100	E100:P0/E20:P80/E0:P100	E100:P0/E20:P80/E0:P100
Head Interpupillary	47~78mm	47~78mm	47~78mm	47~78mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Inclination	Tiltable	Tiltable	Tiltable	Tiltable
Head Type	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	40x-1000x	40x-1000x	40x-1000x
Optical System	Infinity Plan	Infinity Plan	Infinity Plan	Infinity Plan
Features	Infinity APO DIC Coded Nosepiece Motorized ECO(Auto Power Off)	Infinity APO DIC Coded Nosepiece Motorized ECO(Auto Power Off)	Infinity APO DIC Coded Nosepiece Motorized ECO(Auto Power Off)	Infinity APO DIC Coded Nosepiece Motorized ECO(Auto Power Off)
Upgrade Function	BF+DF+PL+PH+FL+DIC	BF+DF+PL+PH+FL+DIC	BF+DF+PL+PH+FL+DIC	BF+DF+PL+PH+FL+DIC
Standard Function	BF+FL	BF+FL	BF+FL	BF+FL
New Product Year	2020	2020	2020	2020

Pictures

Hide Same

Show Difference

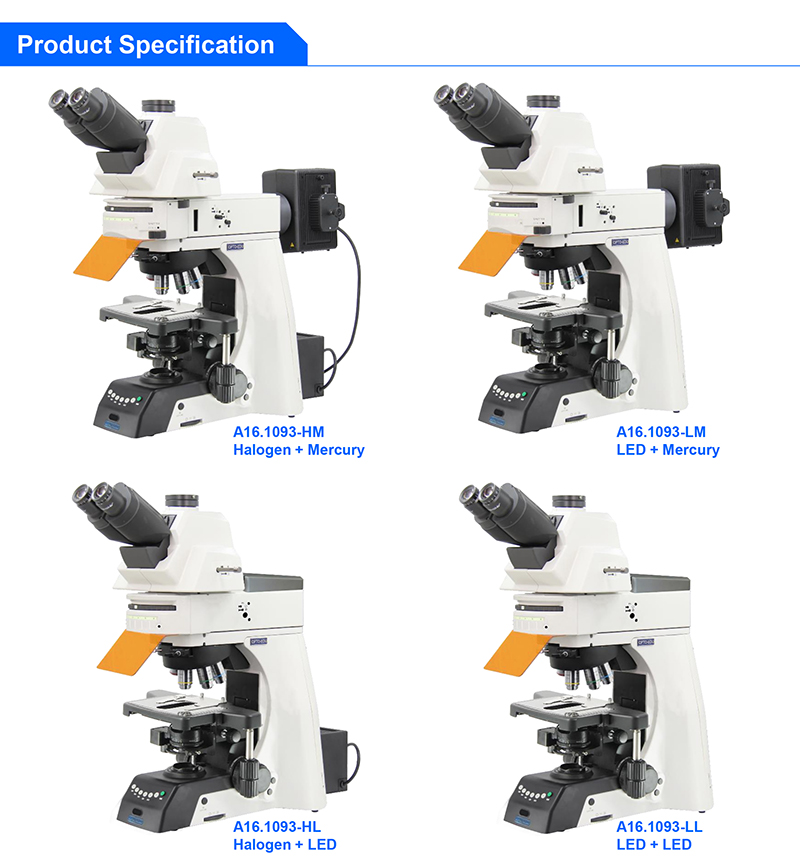

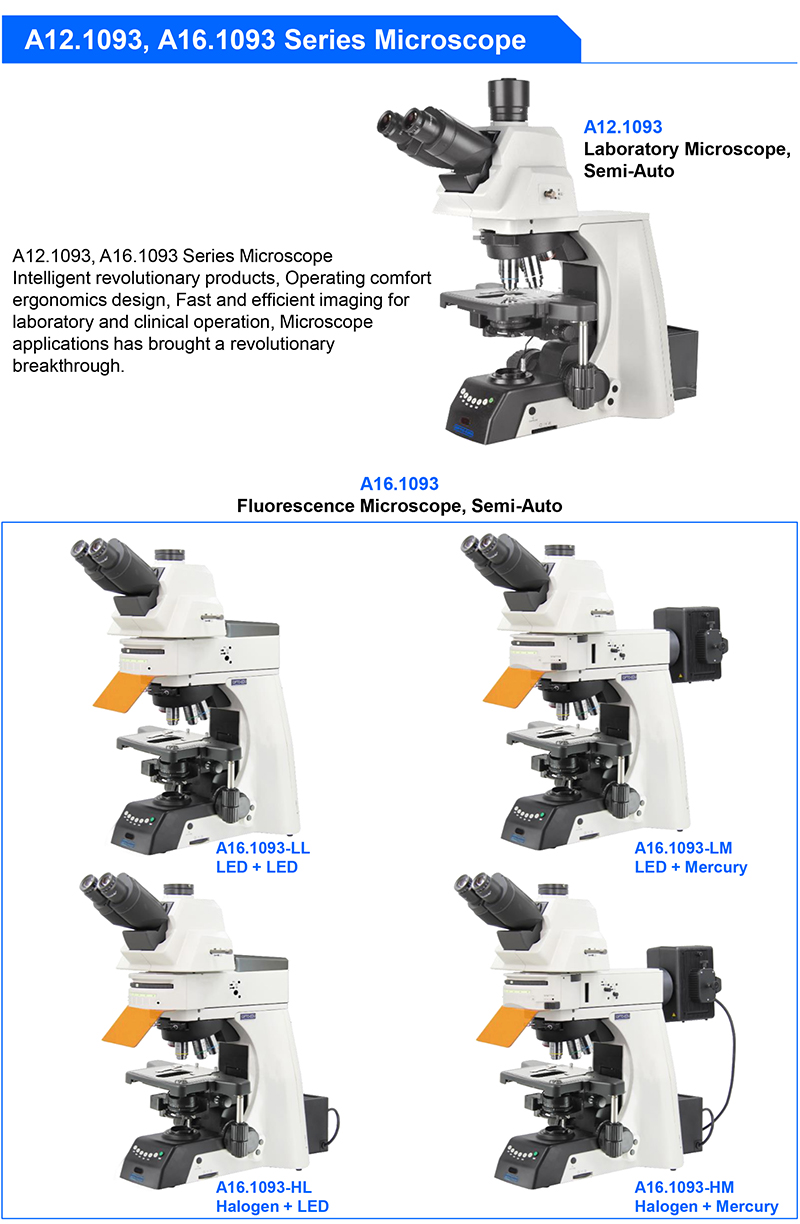

Upright Fluorescent Microscope, Semi-APO, Semi-Motorized, LED + LED

Upright Fluorescent Microscope, Semi-APO, Semi-Motorized, Halogen + Mercury

Upright Fluorescent Microscope, Semi-APO, Semi-Motorized, LED + Mercury

Upright Fluorescent Microscope, Semi-APO, Semi-Motorized, Halogen + LED

Model No.

A16.1093-LL

A16.1093-HM

A16.1093-LM

A16.1093-HL

Other Specification

Remote Control Pad, Shortcut Button To Motor Switch Objectives

Fluorescene

Turret Disc With 6 Positions

Protect Barrier

Power Supply Box

100W Mercury Lamp Housing

Filter ND6

Filter ND25

Fluorescent Filter B,G,UV,U

Power Supply Type

Power Cord Detachable
AC 100V-240V Wide Voltage

Reflect Light

Epi-Fluorescent Reflected Light 100W Mercury Lamp

Transmit Light

3W LED, With Lamp Box, ECO Function, Auto Adjust Brightness

12V100W Halogen, With Lamp Box, ECO Function, Auto Adjust Brightness

3W LED, With Lamp Box, ECO Function, Auto Adjust Brightness

12V100W Halogen, With Lamp Box, ECO Function, Auto Adjust Brightness

Light Source Type

LED
Fluorescent

Halogen
Fluorescent

LED
Fluorescent

Halogen
Fluorescent

Light Source Features

——

Halogen 100W
Kohler

——

Halogen 100W
Kohler

Condenser

Auto Swing-Out Condensor

Condenser N.A.

0.9/0.25

Condenser Type

Swing-Out

Condenser Features

Rack & Pinionↆ↑

Focusing Knob

Can Exchange Hand Wheel Between Left/Right

Focusing Scale

0.001mm

Focusing Range

35mm

Focusing Type

Coaxial Coarse & Fine

Focusing Features

Tension Adjustable
Safety Stop Lock Ring

Working Stage

With Sapphire Crystal Glass Insert

Working Stage Moving

78x32mm

Working Stage Size

190x152mm

Working Stage Type

2 Layers Mechanical

Working Stage Features

Double Slide Holder
Size ≥140x180mm
Rackless Safety Edge
Knob Height Adjustable

Objective

Infinity Plan Semi-APO Fluorescent Objectives N-PLFN 4x10x20x40x100x

Objective Type

Infinity Plan
Fluorescent
Semi-APO (Apochromatic)

Objective Features

APO

Nosepiece Holes

6 Holes

Nosepiece Features

Inward
With DIC Slot
With Polarzing Slot
Coded

Eyepiece

EW10x/22mm, 2pcs

Eyepiece Diameter

30.0mm

Eyepiece Features

Diopter Adjustable
Super WF ≥23mm

Head Light Path

E100:P0/E20:P80/E0:P100

Head Interpupillary

47~78mm

Head Rotation

Head Rotate 360°

Head Inclination

Tiltable

Head Type

Seidentopf Trinocular

Standard Magnification

40x-1000x

Optical System

Infinity Plan

Features

Infinity
APO
DIC
Coded Nosepiece
Motorized
ECO(Auto Power Off)

Upgrade Function

BF+DF+PL+PH+FL+DIC

Standard Function

BF+FL

New Product Year

2020

Advanced Cookie Settings

Essential Cookies

These cookies enable core functionality such as security, verification of identity and network management. These cookies can’t be disabled.

Enable Marketing Cookies

These cookies are used to track advertising performance, consent to the sending of advertising-related user data to Google, and consent for the website to serve personalized advertising to provide more relevant services.

Enable Functional Cookies

These cookies collect data to remember choices users make to improve and give a more personalised experience.

Enable Analytics Cookies

These cookies help us to understand how visitors interact with our website, discover errors and provide a better overall analytics.

A16.1093-LL

Upright Fluorescent Microscope, Semi-APO, Semi-Motorized, LED + LED

online service

Send Message

What's New

Hot Search

Contact Us

Service

INQUIRY LIST

COMPARE

Advanced Cookie Settings

Essential Cookies

Enable Marketing Cookies

Enable Functional Cookies

Enable Analytics Cookies
