A41.1924 Surgical Microscope: High resolution and high resolution optical system with strong stereo sense and deep depth of field. LED cold light lighting, brightness continuous adjustable, manual drum turn times. The machine is small, flexible and convenient to move. It is suitable for the microsurgical operations in the Department of Stomatology Dental and the Department of ENT. |
●America LED ●Japan Electronic Components ●Germany Lens ●Imported Connector ●90V~230V Wide Voltage ●Germany Spring ●20 Years Optical Design |
●Dental/Stomatology/ENT/Decorative Surgery ●100 thousand hours ultra long life LED light source ●The frame is small, beautiful, and flexible in movement ●Build in 4K CCD camera system ●180-300mm ultra large range zoom lens ●Military optical quality, high definition, high brightness, and ultra large depth of field |
Color Filter Built in yellow and green color, yellow green color, adjust the ordinary paddles through the built-in button, yellow spot can prevent the resin curing fast, green spot can more clearly see the blood vessels under the environment. |
LED Light Source Long life medical LED white light source, high color temperature, high color rendering index high brightness, high degree of reduction, long time use and no fatigue. Compared with traditional halogen lamp, it is more suitable for Department of Stomatology operation needs. LED energy consumption is low , the service life can be up to 100 thousand hours. |

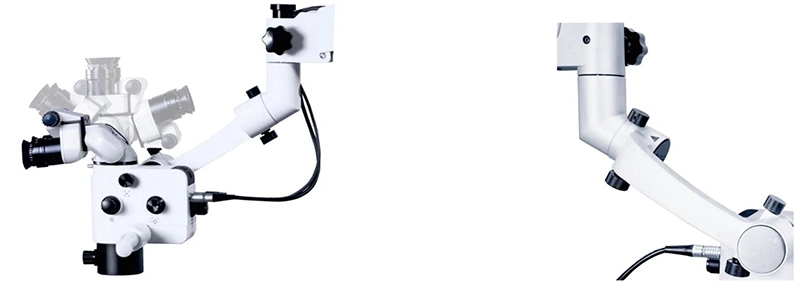

0~200°Binocular It allows the clinician to choose the best angle of posture to create a comfortable and favorable operating environment | Super 120 Degree Balancing Arm Assures a smooth, fluid and perfect balance during repositioning of the microscope. The head easy to stop at any position |

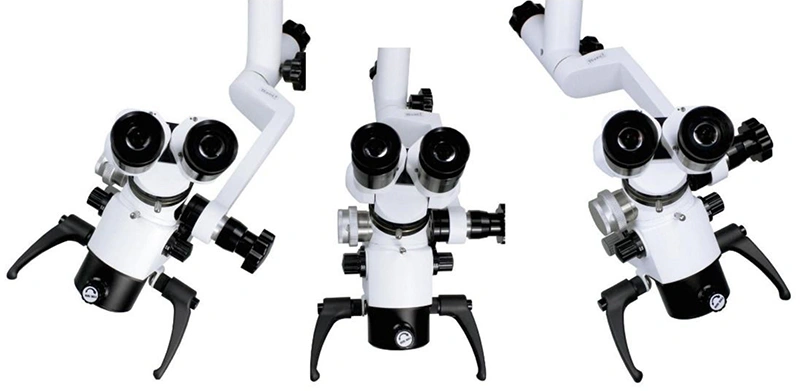

Obliquely Pendulum Binocular In the condition that the eyepiece is at the same level, the doctor's sitting posture is constant, and the main mirror can swing right and left to observe different positions. |
Pendulum Function |

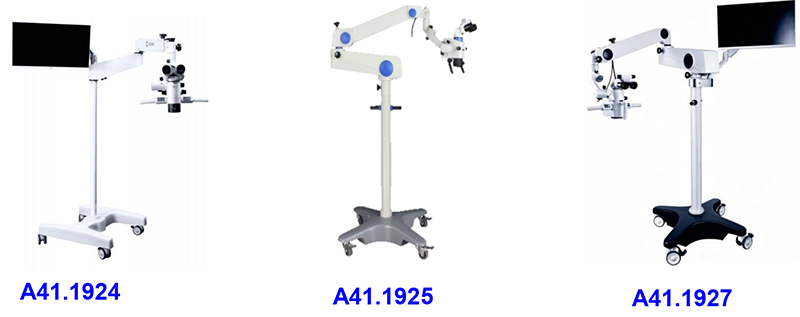

| A41.1924, A41.1925 ,A41.1927 Surgical Operation Microscope | |||

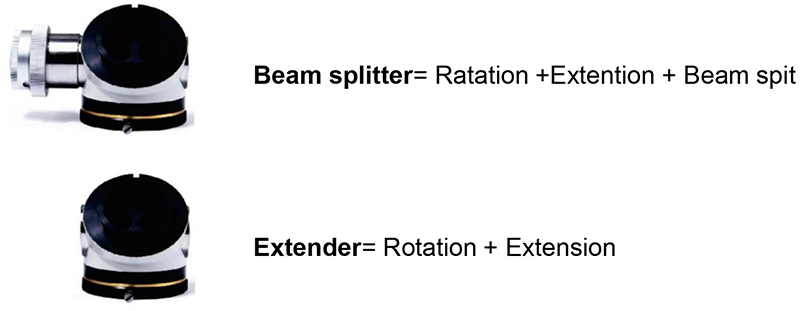

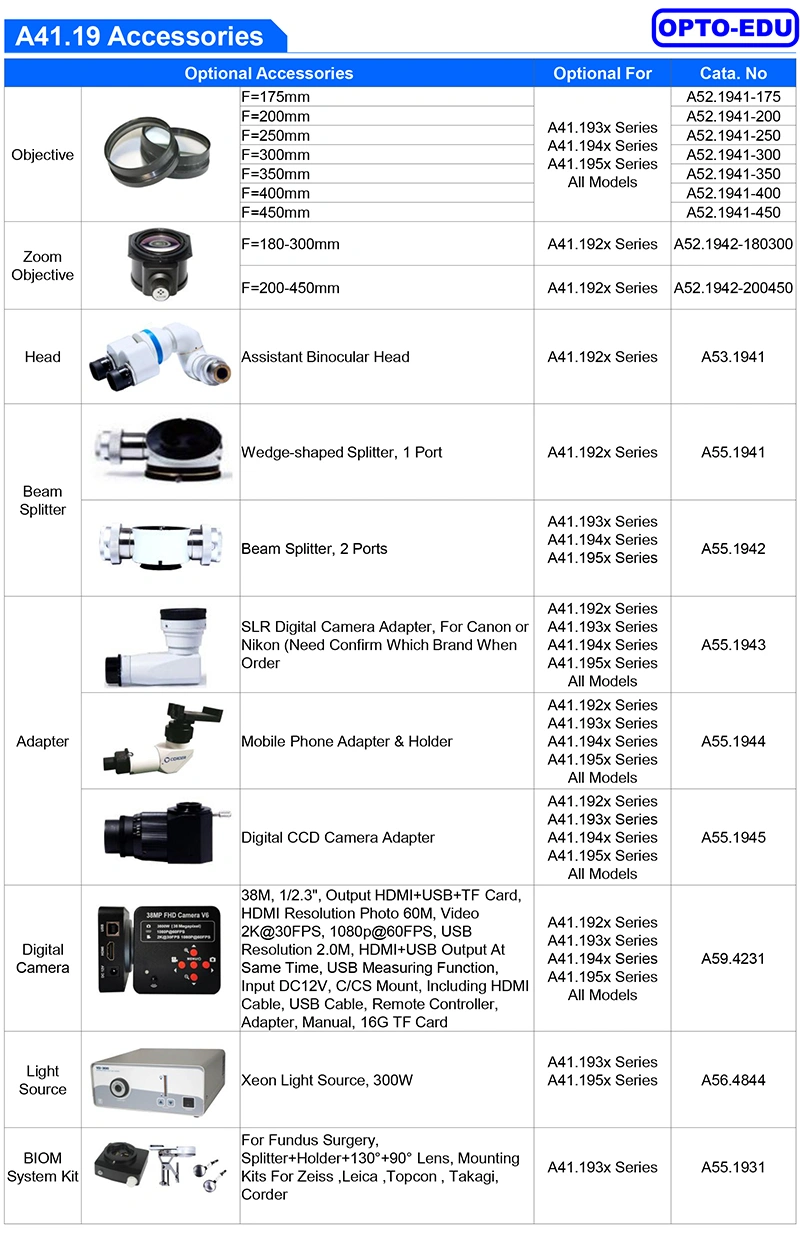

A41.1924 Operating Microscope, is Best Choice for ENT, Dental Operation. It has one head which can tilt 0~200° freely, using fiber-optic cable for coaxial illumination up to 60000 lux, manual 5 steps zoom body, total magnification 3.6x, 5.4x,9x, 14.4x, 22.5x, featured with objective F=big zoom180~300mm, optional objectives F=big zoom 200~450mm. it is widely used in hospital for Ear, Nose, Throat (ENT), and dental. A41.1925is upgraded version, with continuous zoom body 2.5x~21x, instead of 5 steps zoom. Using high resolution optical system, the microscope has three-dimensional sense of strong, large depth of field, LED cold light source and optical fiber coaxial illumination. A41.1927is1:6Motorized continuous zoom , magnification 2.5x~21x,build-in HDMI camera controlled by handle. Both models can upgrade with optional assistant head, beam splitter, SLR camera adapter, phone holder, CCD adapter for digital camera, for sharing real time image to LCD monitor, mobile phone or computer. Features: --One Binocular Head, Tiltable 0~200°, Interpupillary 55-75mm, Diopter +/-6D --Eyepiece 12.5x, 5 Steps Manual Zoom, Magnification 3.6x, 5.4x,9x, 14.4x, 22.5x, or Zoom 2.5x~21x --Objective F=180~300mm, View Field Dia.78.6~9mm, Head X/Y Swing +/-45° --LED Cold Light, Max Brightness 60000Lux, Light Spot Dia.80mm, With Green/Yellow Filters --Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 730mm | |||

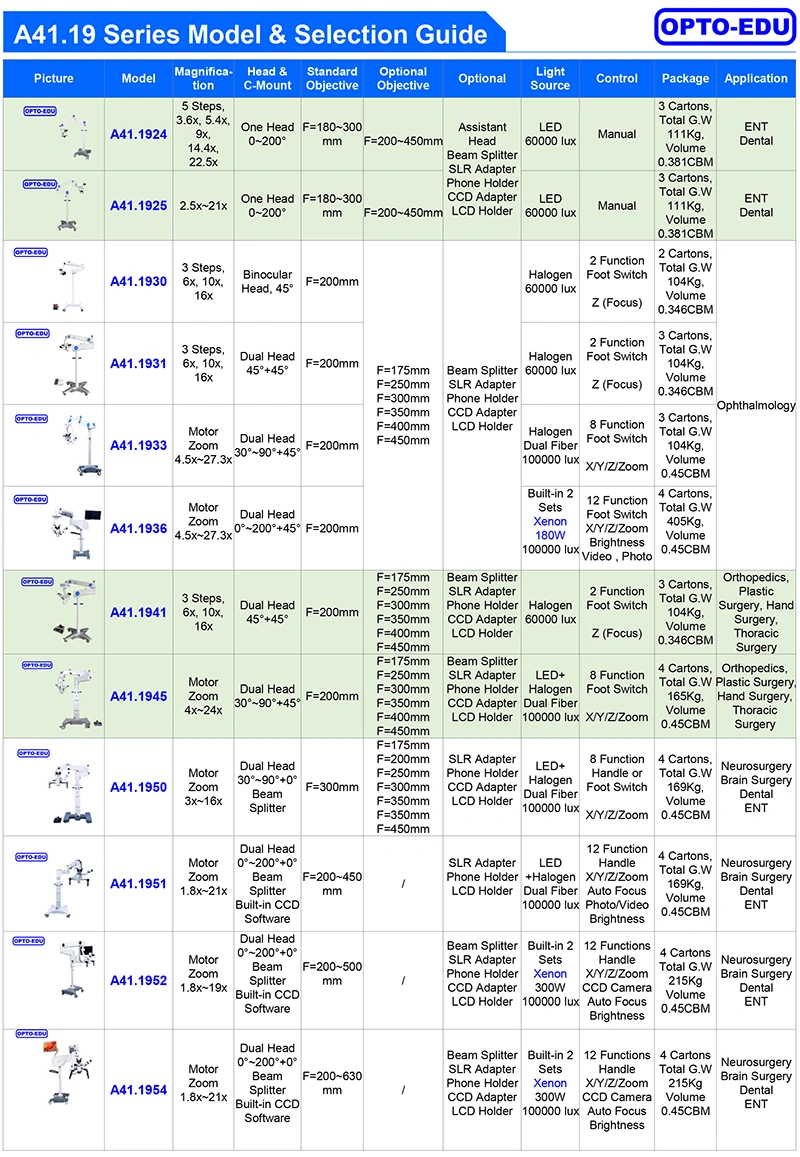

| A41.1924 | A41.1925 | A41.1927 | |
| Main Usage | Ear,Nose,Throat(ENT),Dental | ||
| Head | Binocular Head 0°~200° Angle Adjustable, Interpupillary Distance 55~75mm By Knob, Swing X-Y Direction +/-45° | ||
| Diopter | Both Left & Right Eyetube Diopter Adjustable ±6D | ||
| Eyepiece | WF12.5x | ||
| Zoom Body | 1:6 Manual Continuous Zoom, Parallel Light System | 1:6 Motorized Continuous Zoom | |
| Objective | F=180~300mm, Optional F= 200~450mm | F=200~500mm | |
| Magnification | 5 Steps 3.6x,5.4x,9x,14.4x,22.5x | 2.5x~21x Continuous Zoom | |
| View Field | Dia.55.6,37.1,22.2,13.9,8.9 mm | Dia.78.6~9mm | Dia.111~7.4mm |
| Focusing | Manual Focus | ||
| CCD | Built-in | None | Built-in |
| Stand | Four Wheels Moving Stand --Max Extended Length 1100mm --Max Rotatable Swing Angle of Arm 0~300° --Distance Between Objective And Ground Surface 730mm~1250mm | ||
| Illumination | Optical Fiber Coaxial LED Cold Light Illumination, Light Spot Dia.80mm, Intensity 60000 Lux, Built-in Small-spot, Blue & Yellow Filters. | ||
| Packing | 3 Cartons Total G.W 111Kg, Volume 0.381CBM Head: 595×460×230(mm)/11kg Body: 1200*545*250 (mm)/32kg Stand:785*785*250(mm)/68kg | ||
●Lookingfor missing root canal ●Removal of plasticizer from root canal ●Dredge calcified root canal and the passage of root canal steps ●Removal of broken instruments in root canal ●Repair perforation ●Micro apical surgery ●Microsurgical repair |
