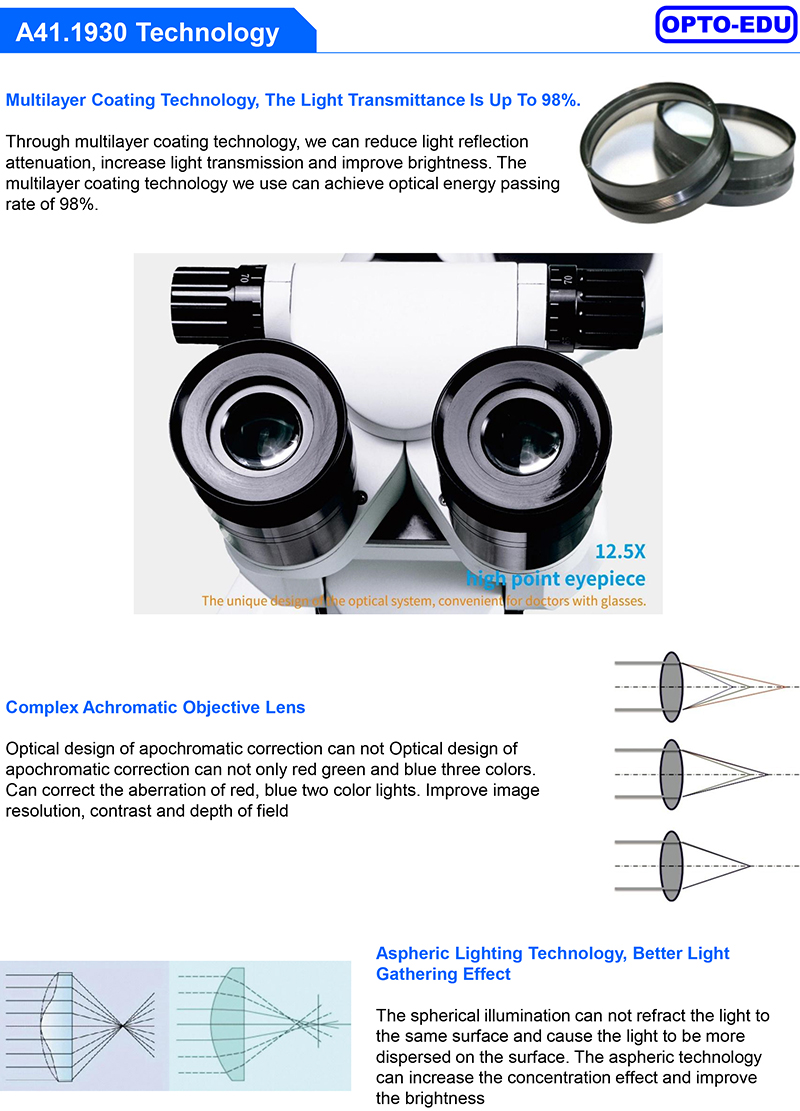

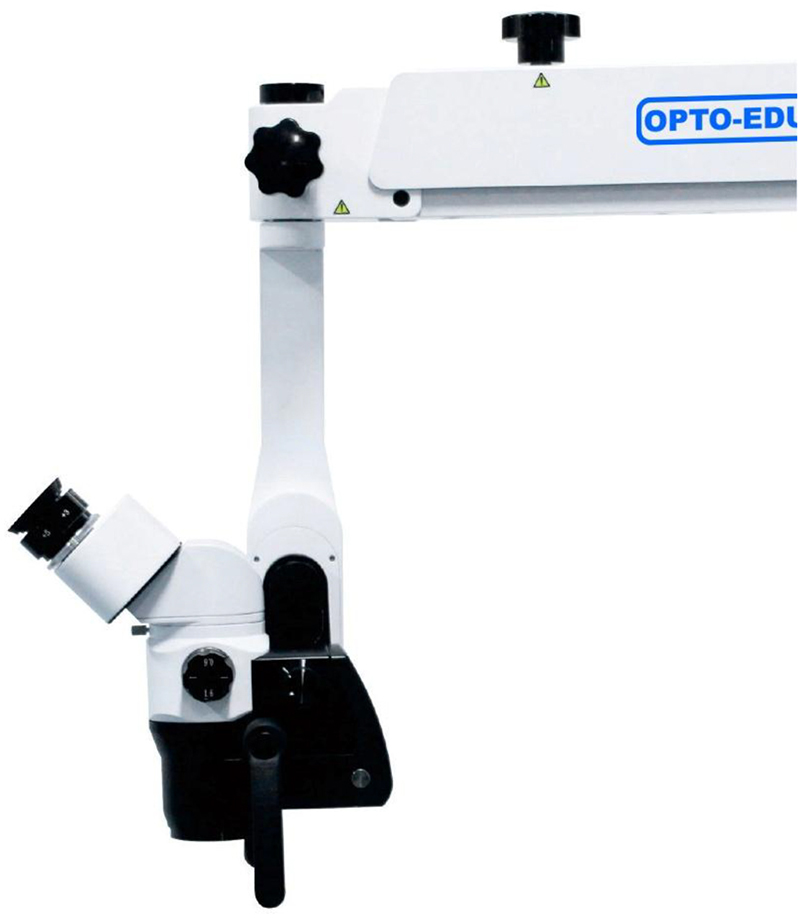

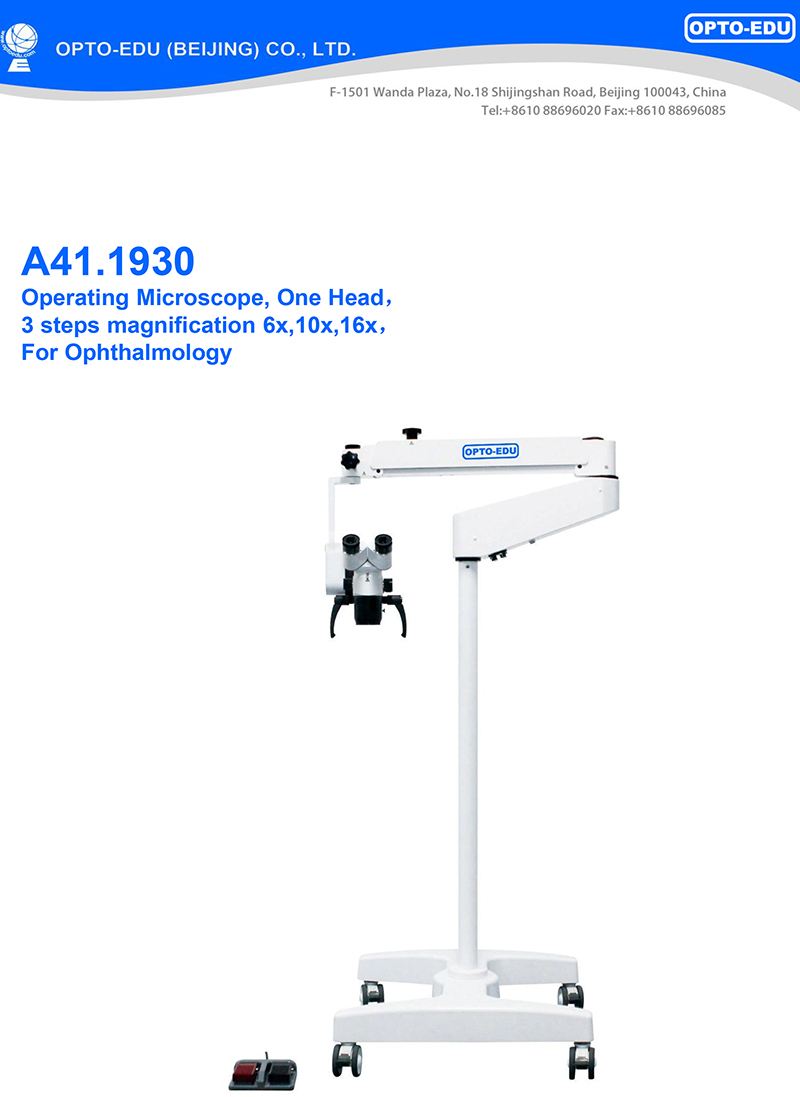

A41.1930 operation microscope: high resolution and high resolution optical system with strong stereo sense and deep depth of field. LED cold light lighting, brightness continuous adjustable, manual drum turn times. The machine is small, flexible and convenient to move. It is suitable for the ophthalmic microsurgery. |

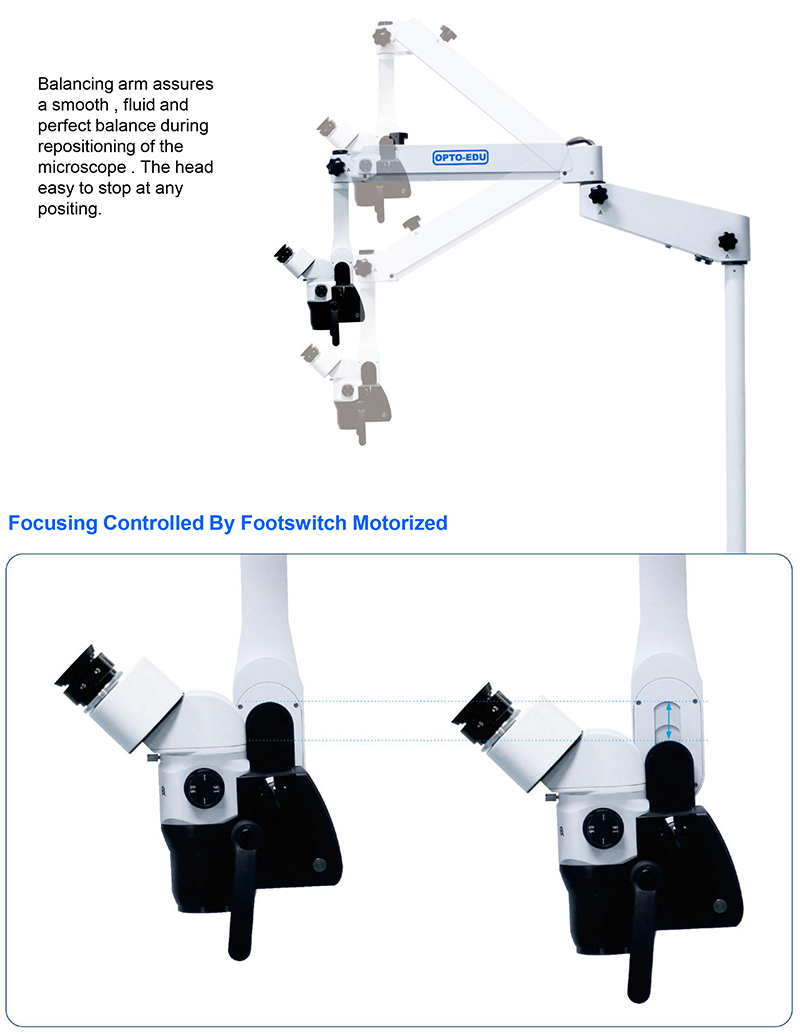

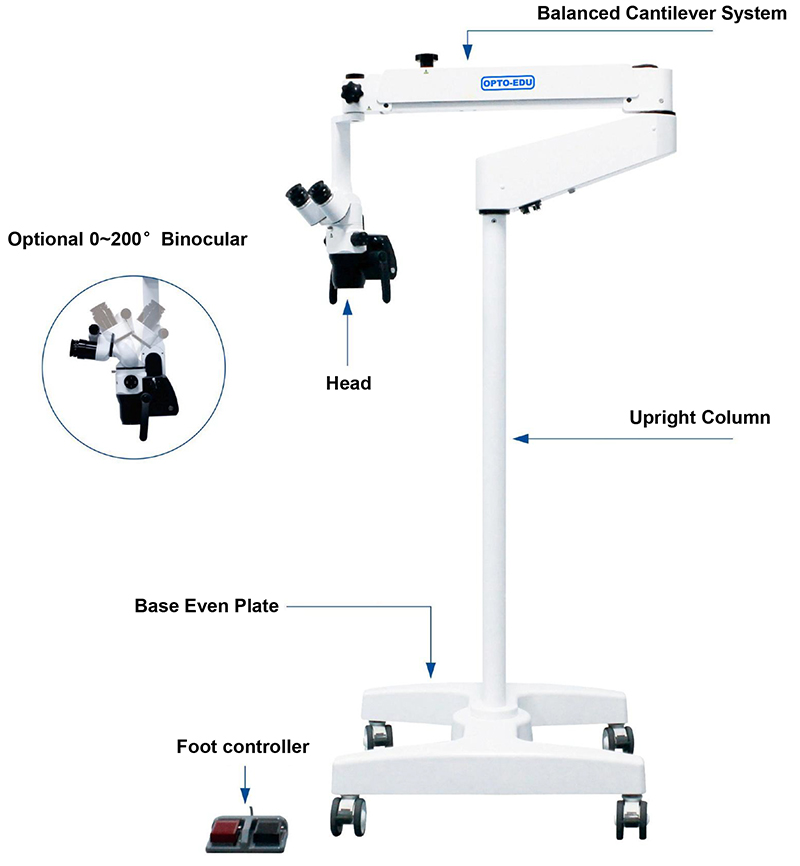

●Military optical quality, high definition, high brightness, and ultra large depth of field ●100 thousand hours ultra long life LED light source ●Build in macular protector/ small-spot/blue filter ●Using the German air spring cantilever balance system ●The frame is small, beautiful, and flexible in movement |  |
Build-in Red Reflection |

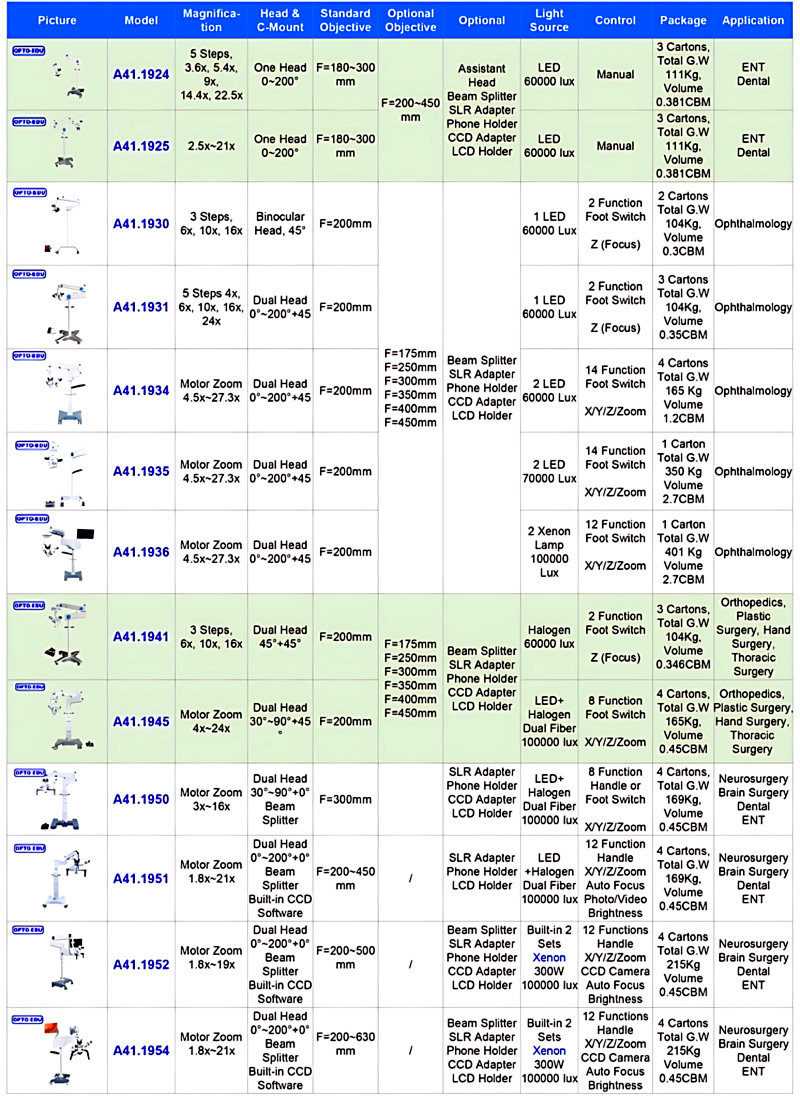

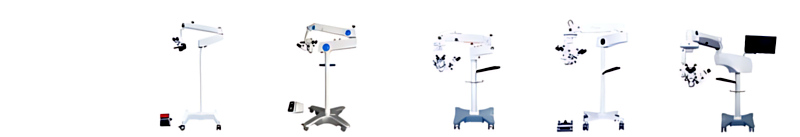

| A41.1930, A41.1931, A41.1934, A41.1935, A41.1936 Surgical Operation Microscope |

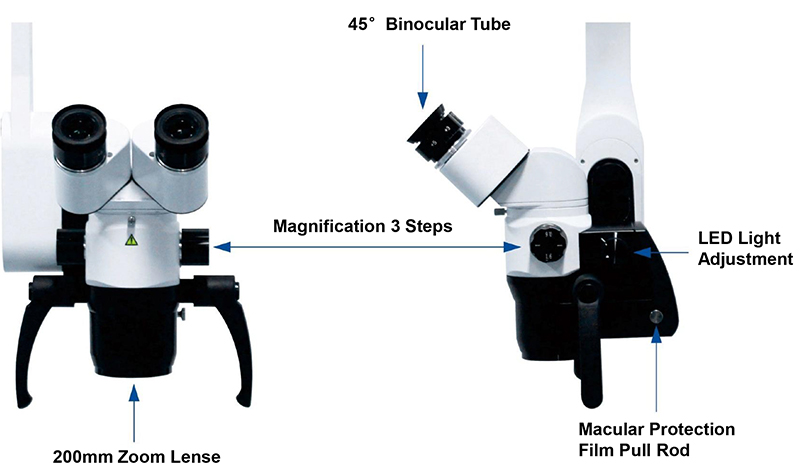

A41.1930Operating Microscope is a basic Operation Microscope with 3 steps magnification. |
A41.1931is a very practical version , with 6 functions foot switch to control motorized X/Y move, Z focus and 5 steps magnification. |
A41.1934comes fitted with a integrated camera and an individual LED light source to deliver well-lit imaging at all times. |
A41.1935is our flagship model, upgraded with three electromagnetic lock assemblies, continuously variable zoom main lens and a integrated camera, 4-inch screen, 3 sets of electromagnetic locks |
A41.1936 is the highest model in this series, with motorized zoom 4.5x~27.3x objective, dual Xenon light 100000 lux, 12 functions foot switch to control motorized X/Y move, Z focus & Zoom,4K camera integrated BIOM system, 4 sets of electromagnetic locks |

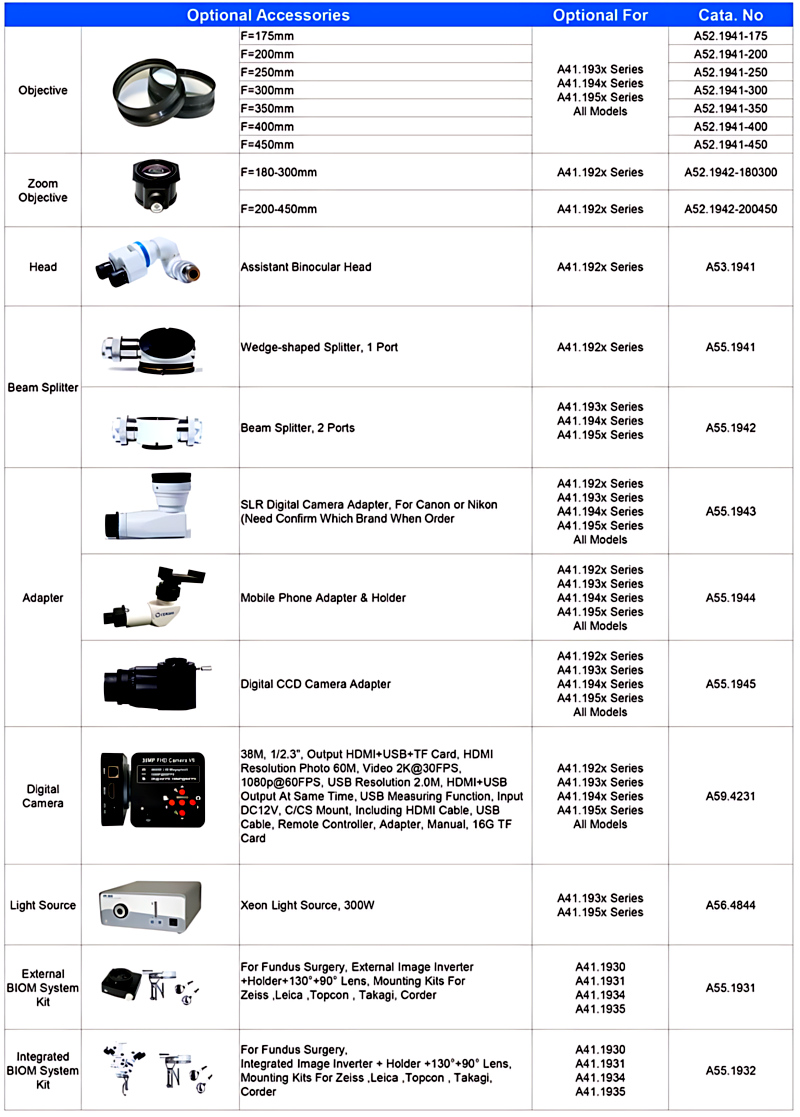

All 5 models can upgrade with optional beam splitter, SLR camera adapter, phone holder, CCD adapter for digital camera, for sharing real time image to LCD monitor, mobile phone or computer. |
Features: |
—Dual Head 45° Opposite, With Red Reflection & Macular Protector, For Ophthalmology |
—Eyepiece 12.5x, 3 Steps Manual Zoom 6x10x16x, 5 Steps Manual Zoom 4x 6x10x16x 24x, or Continuous Zoom 4.5x~27.3x |
—Objective F=200mm, 2nd Objective F=125mm, LED, Max Brightness 60000 Lux to 100000 Lux |
—2 Functions, 12 Functions, 14 Functions Foot Switch, Control X/Y Movie, Z Focus, Zoom |
—Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 800mm |
| A41.1930 | A41.1931 | A41.1934 | A41.1935 | A41.1936 |
Main Usage | —— | With Red Reflection & Macular Protector, For Ophthalmology | |||
Eyepiece | WF12.5x | ||||
Head | Single Head | Dual Heads For Two People Operation, Opposite In 45° | |||

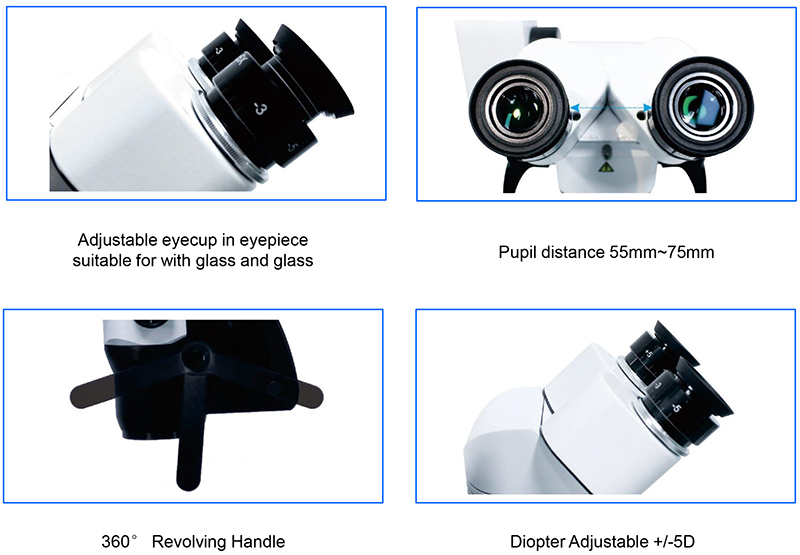

Interpupillary Distance 55~75mm, Eyetube Diopter Adjustable ±6D | |||||
Main Head | Inclined 45°,Optionl 0~200° | Inclined 0~200° | Inclined 0°~200° | Inclined 0°~200° | Inclined 0°~200° |
Magnification | 3 Steps 6x,10x,16x | 5 Steps 4x,6x,10x,16x,24x | 4.5x~27.3x Continuous Zoom | ||
View Field | Dia.41.77mm, 25.06mm, 15.66mm | Dia.50mm, 32mm, 20mm, 12mm, 8mm | Dia.44~7.7mm | Dia.45~7.5mm | Dia.49.4~8.2mm |
Zoom Body | —— | —— | 1:6 Motorized Continuous Zoom, Parallel Light System | ||
Assistant Head | —— | 180° Rotatable | |||
Magnification | —— | 3 Steps 6x, 10x, 16x | 5 Steps 4x,6x,10x,16x,24x | 5 Steps 4x,6x,10x,16x,24x | 5 Steps 4x,6x,10x,16x,24x |
View Field | —— | Dia.34mm, 20mm, 13mm | Dia.50mm, 32mm, 20mm, 12mm, 8mm | Dia.50mm, 32mm, 20mm, 12mm, 8mm | Dia.50mm, 32mm, 20mm, 12mm, 8mm |
Main Objective | F=200mm, Optional F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm | ||||
Assistant Obj. | F=200mm | ||||
Focus | Motorized Focus, Range +/15mm, Speed 33s/Full Distance | Motorized Focus, Range +/-25mm, Speed 33s/Full Distance | Motorized Focus, Range +/-30mm, Speed 33s/Full Distance | Motorized Focus, Range +/-30mm, Speed 33s/Full Distance | Motorized Focus, Range +/-40mm, Speed 33s/Full Distance |
EM Lock | —— | —— | —— | 3 Sets | 4 Sets |
Touchscreen | —— | —— | 4'' Touchscreen | 4'' Touchscreen | 7'' Touchscreen |
Control | 2 Functions Foot Switch | 2 Functions Foot Switch | 14 Functions Foot Switch | 14 Functions Foot Switch | 12 Functions Foot Switch |
Control Z Focus | Control Z Focus | Control X/Y Move, Z Focus, Zoom | Control X/Y Move, Z Focus, Zoom | Control X/Y/Z Move, Z Focus, Zoom | |
Stand | Four Wheels Moving Stand | ||||
Max Extended Length 1100mm | Max Extended Length 1100mm | Max Extended Length 1200mm | Max Extended Length 1508mm | Max Extended Length 1815mm | |
Max Rotatable Swing Angle of Arm 0~300° | |||||
Distance Between Objective And Ground Surface 800mm~1250mm | Distance Between Objective And Ground Surface 800mm~1250mm | Distance Between Objective And Ground Surface 800mm~1250mm | Distance Between Objective And Ground Surface 813mm~1573mm | Distance Between Objective And Ground Surface 690mm~1452mm | |
Illumination | 1 Coaxial LED | 1 Coaxial LED | 2 Coaxial LED | 2 Coaxial LED | 2 Coaxial 180W Xenon |
Light Spot Dia.70mm, Intensity 60000 Lux | Light Spot Dia.50mm, Intensity 60000 Lux | Light Spot Dia.50mm, Intensity 60000 Lux | Light Spot Dia.50mm, Intensity 70000 Lux | Light Spot Dia.50mm, Intensity 100000 Lux | |
Red Reflection | Non-adjustable | Adjustable ±2° | Adjustable ±2° | Adjustable ±2° | Adjustable ±2° |
Filter | Heat Absorber | Heat Absorber | Heat Absorber | Heat Absorber | Heat Absorber |
Macular Protection | Macular Protection | Macular Protection | Macular Protection | Macular Protection | |
Green Filter | Green Filter | Green Filter | Green Filter | Green Filter | |
| Blue Filter | Blue Filter | Blue Filter | Blue Filter | |
—— | —— | Yellow Filter | Yellow Filter | Yellow Filter | |
—— | —— | Gray Filter | Gray Filter | Gray Filter | |
Optional Cobalt Blue Filter | Optional Cobalt Blue Filter | Optional Cobalt Blue Filter | Optional Cobalt Blue Filter | Optional Cobalt Blue Filter | |
BIOM | Optional Integrated/External | Optional Integrated/External | Optional Integrated/External | Optional Integrated/External | Standard Integrated |
Packing | 2 Cartons Total G.W 104Kg, Volume 0.3CBM | 3 Cartons Total G.W 104Kg, Volume 0.35CBM | 4 Cartons Total G.W 165 Kg Volume 1.2CBM | 1 Carton Total G.W 350 Kg Volume 2.7CBM | 1 Carton Total G.W 401 Kg Volume 2.7CBM |
