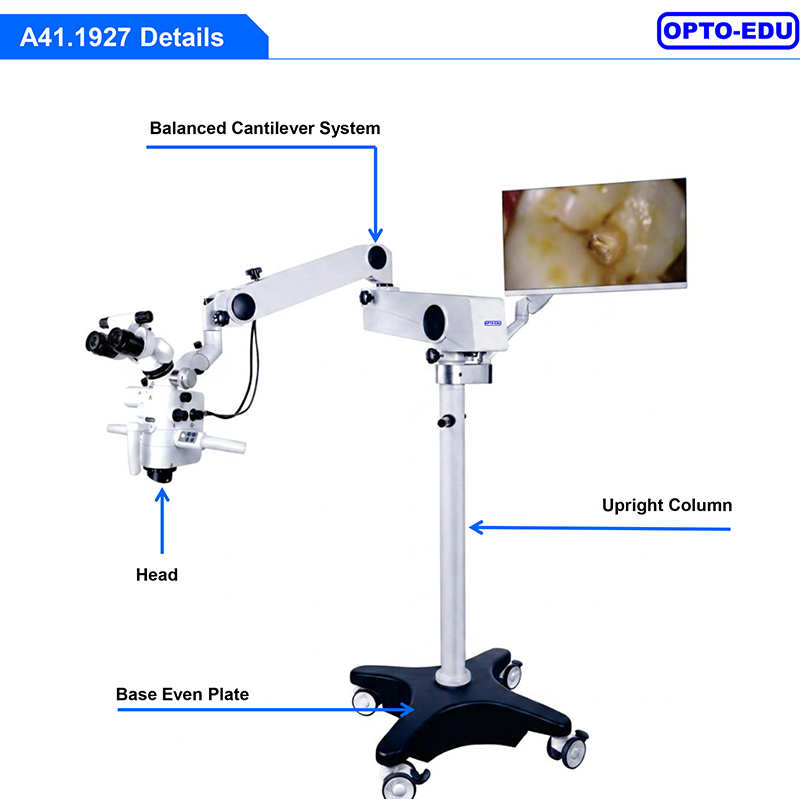

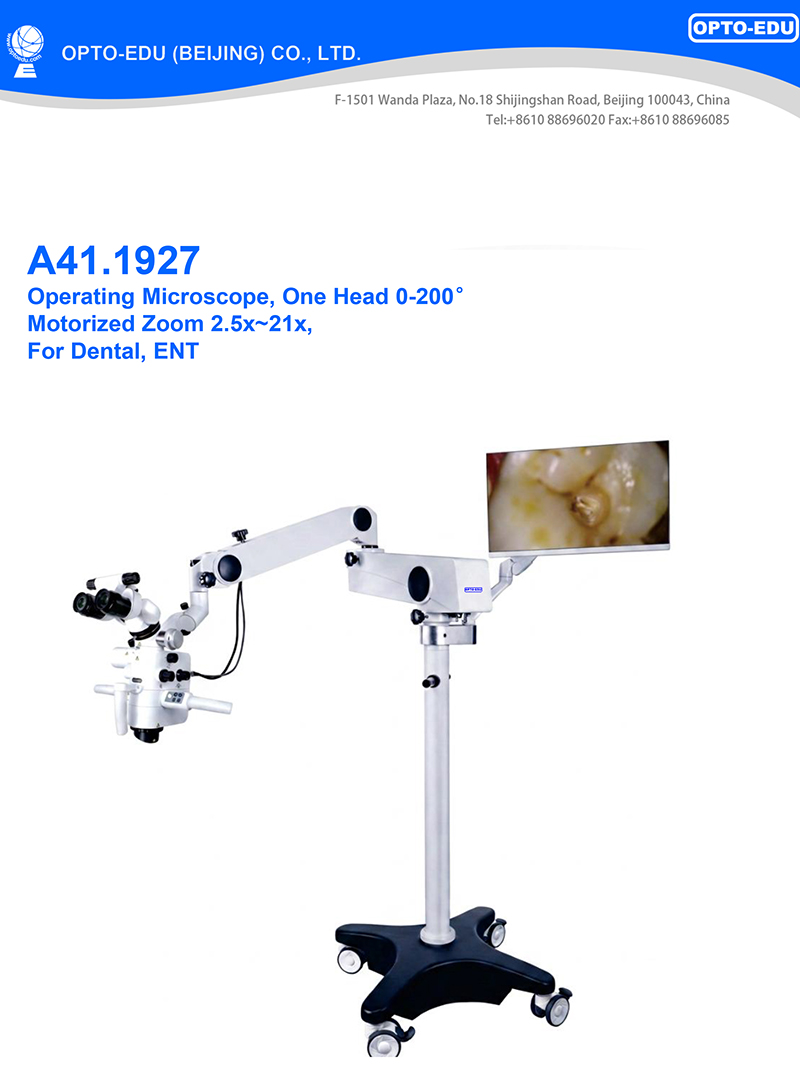

A41.1927 Operating Microscope, Single Head 0-200°, Motorized Continuous Zoom, For Dental, ENT ●Single Binocular Head, Tiltable 0~200°, Interpupillary 55-75mm, Diopter +/-6D ●Motorized Continuous Zoom 1:6, Magnification 2.5x~21x, Beam Splitter Optional ●Objective F=200~500mm, View Field Dia.111~7.4mm, Head Left-Right Pendulum +/-45° ●Coaxial LED Light, Brightness 60,000Lux, Light Spot Φ80mm, With Small Spot/Green/Yellow Filters ●Built-in 4K HDMI Camera, Controlled by Handle, With 27"4K Monitor & Holder |

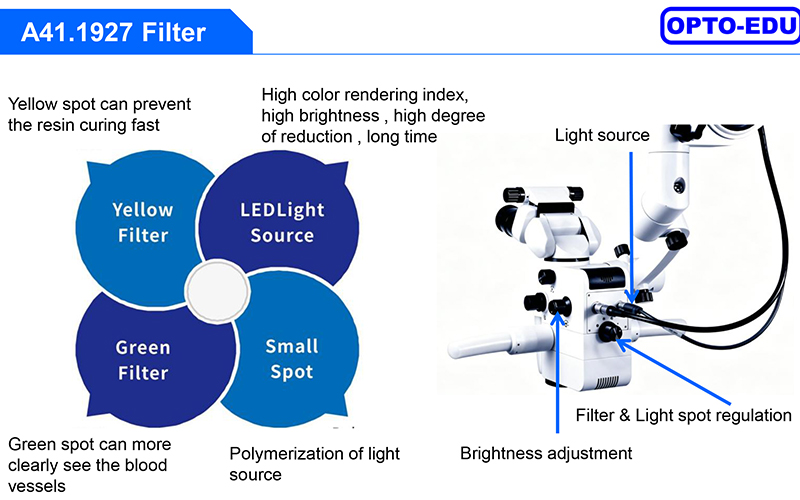

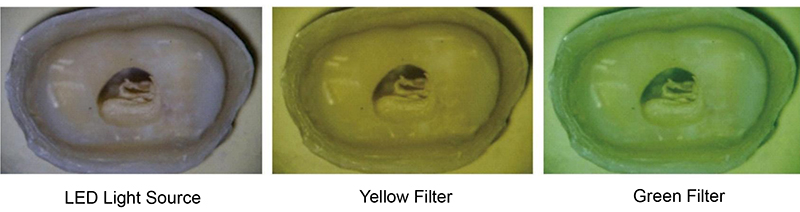

Color Filter Built in yellow and green color, yellow green color, adjust the ordinary paddles through the built-in button, yellow spot can prevent the resin curing fast, green spot can more clearly see the blood vessels under the environment. |
LED Light Source Long life medical LED white light source, high color temperature, high color rendering index high brightness, high degree of reduction, long time use and no fatigue. Compared with traditional halogen lamp, it is more suitable for Department of Stomatology operation needs. LED energy consumption is low , the service life can be up to 100 thousand hours. |

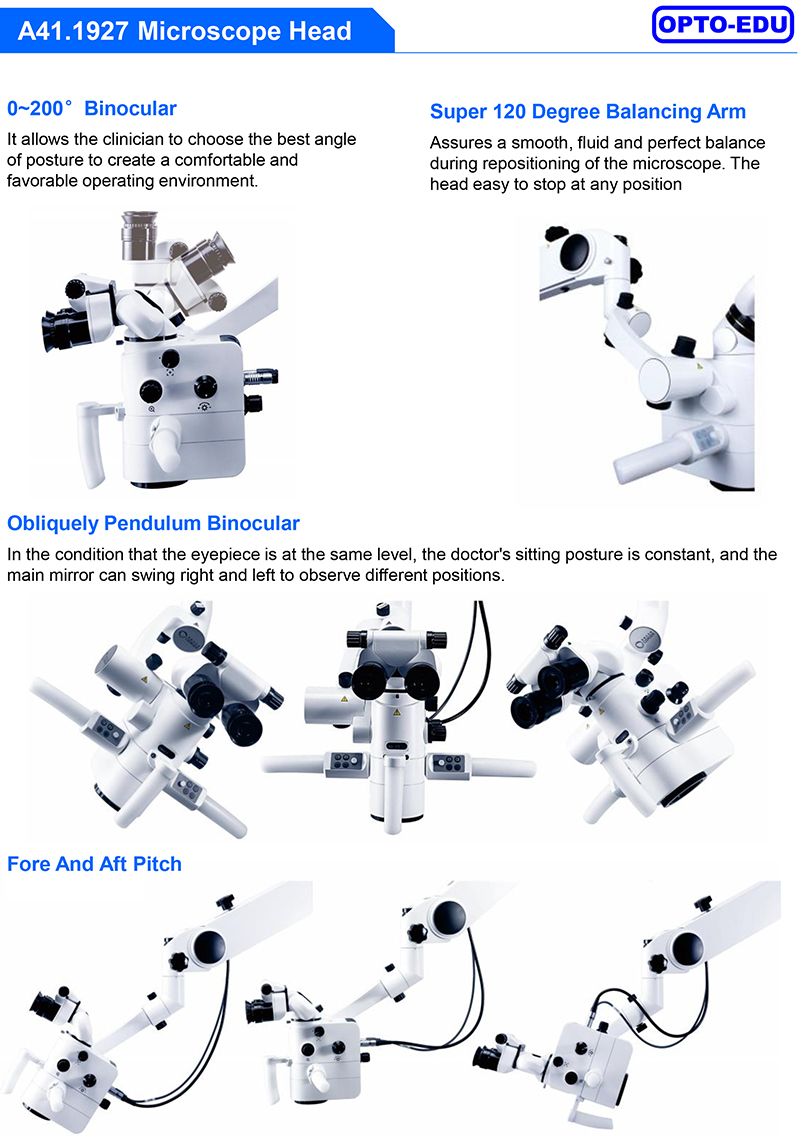

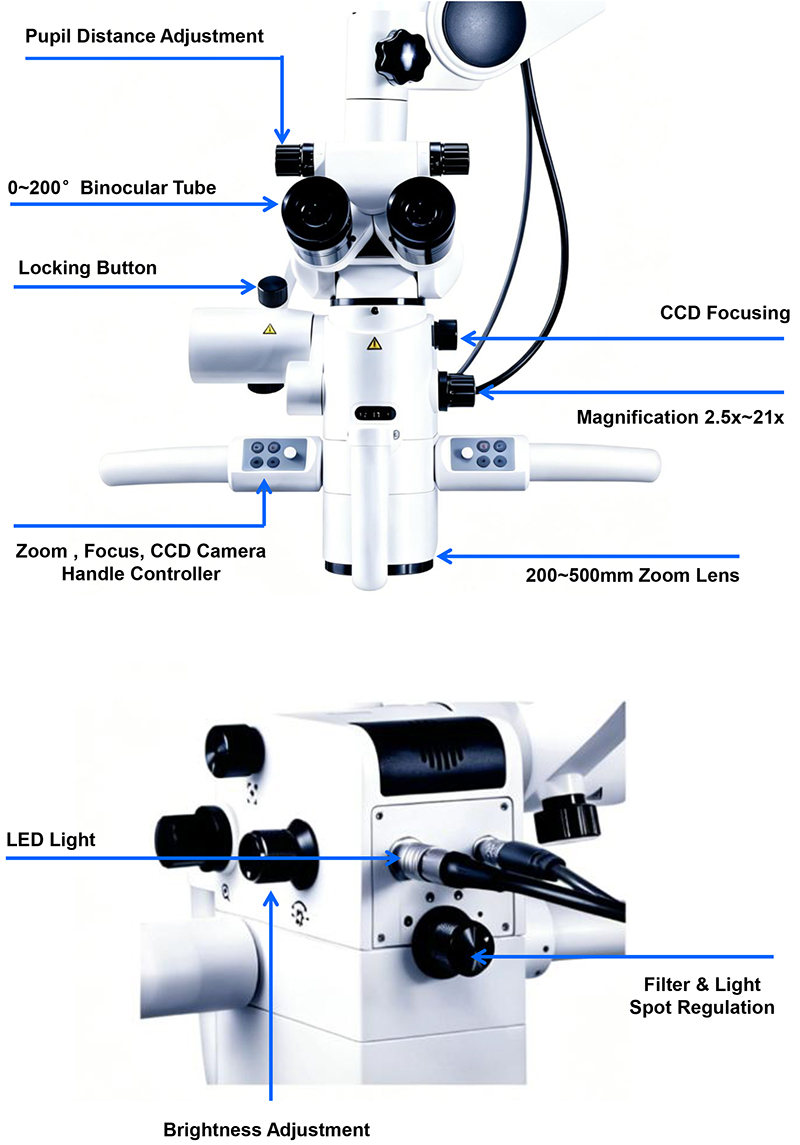

Obliquely Pendulum Binocular In the condition that the eyepiece is at the same level, the doctor's sitting posture is constant, and the main mirror can swing right and left to observe different positions. |

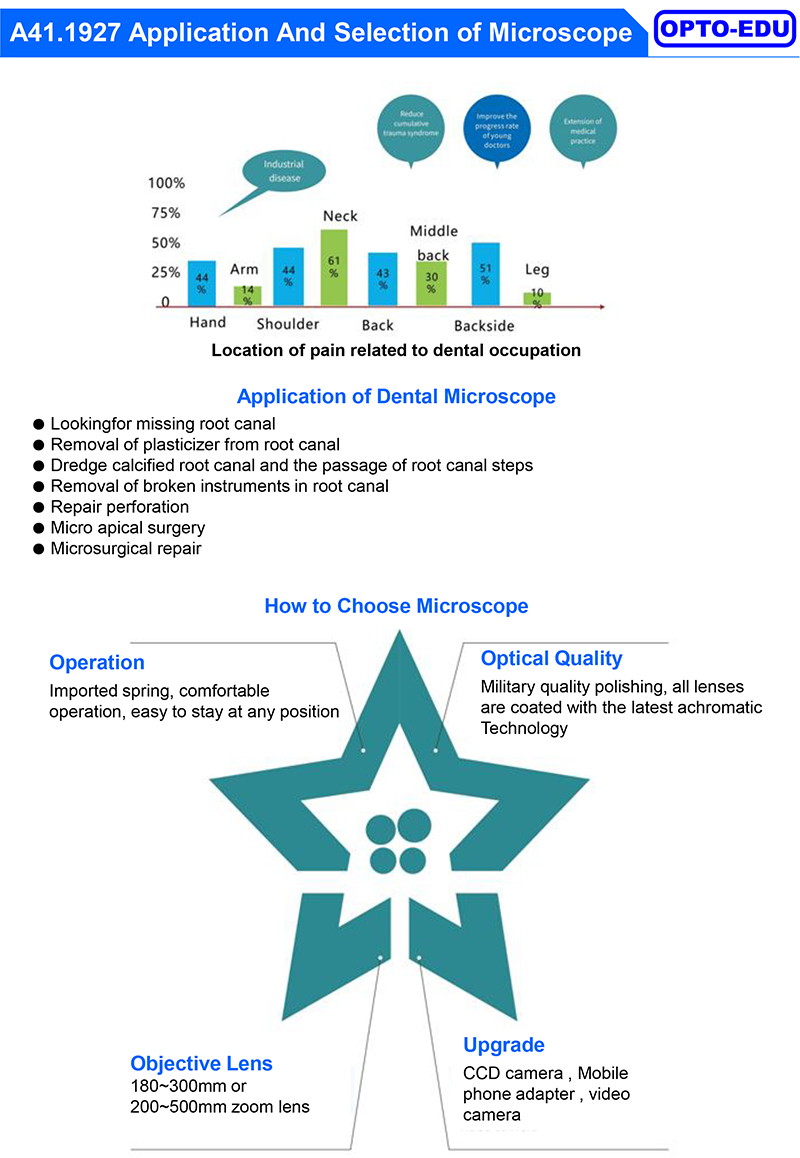

Application of Dental Microscope
●Lookingfor missing root canal ●Removal of plasticizer from root canal ●Dredge calcified root canal and the passage of root canal steps ●Removal of broken instruments in root canal ●Repair perforation ●Micro apical surgery ●Microsurgical repair |
CORDER Camera System Configure the wireless mouse operation, without the computer, free access to high definition images. The product interface is rich, HDMI and USB are synchronously output, high speed SD cards are photographed or recorded video. At the same time, it has the same screen image contrast, HDR (wide dynamic), image freezing, image inversion, digital amplification and other functions. It is widely used in video conferencing, telemedicine, micrograph, video projection and other fields. |

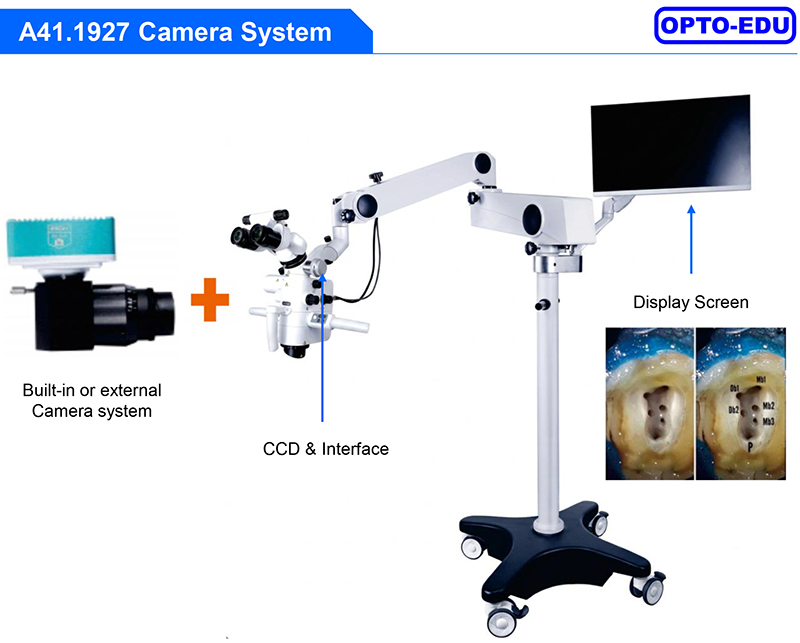

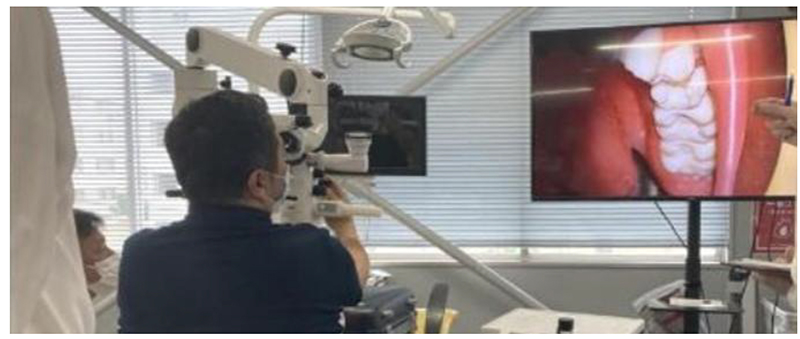

Built In 4K HDMI Camera Function The body has a built-in HDMI camera system and is equipped with wireless mouse operation. There is no need for a computer and you can freely access high-definition images. The product has rich interfaces, HDMI and USB synchronous output, and high-speed SD card takes photos or records videos. At the same time, it also has the same screen image contrast, HDR (wide dynamic), image freezing, image inversion, digital amplification and other functions. During the operation, the image can be output in real time through the connected display device, which is helpful to carry out clinical work, teaching and scientific research activities. |

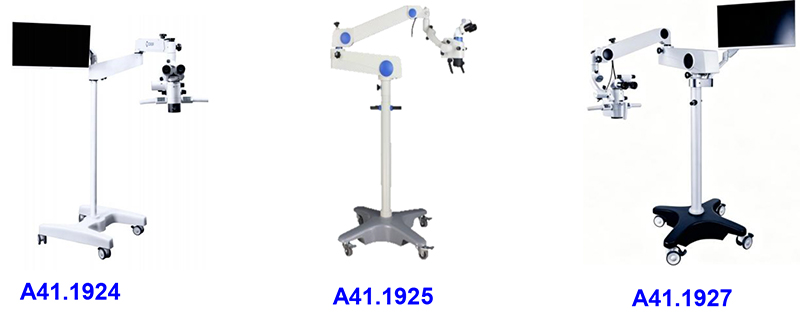

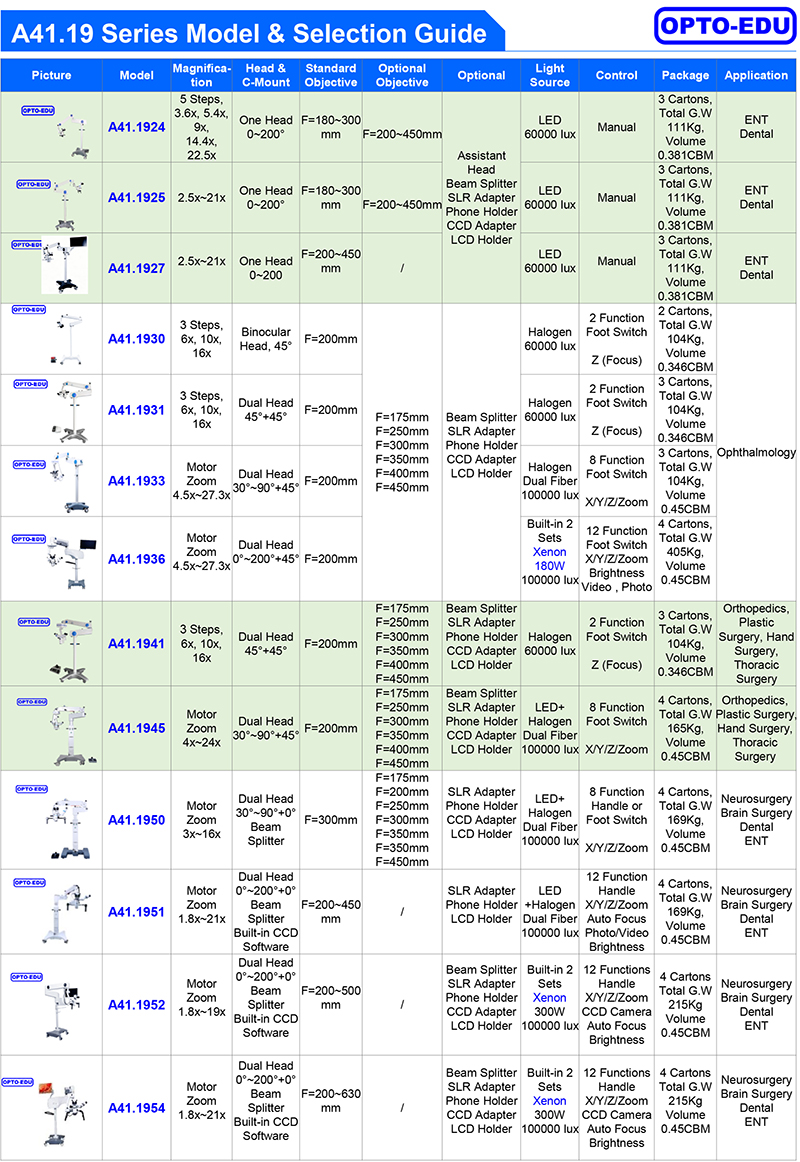

A41.1924, A41.1925,A41.1927 Surgical Operation Microscope | |||

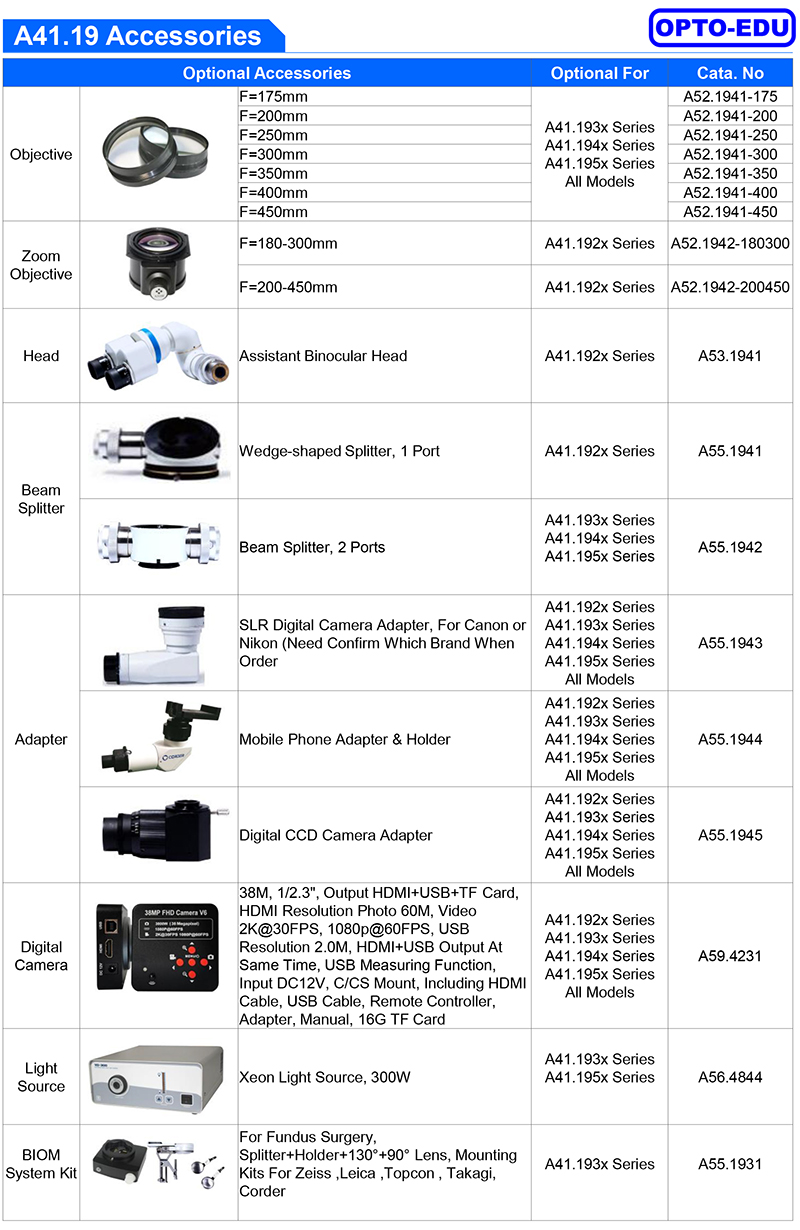

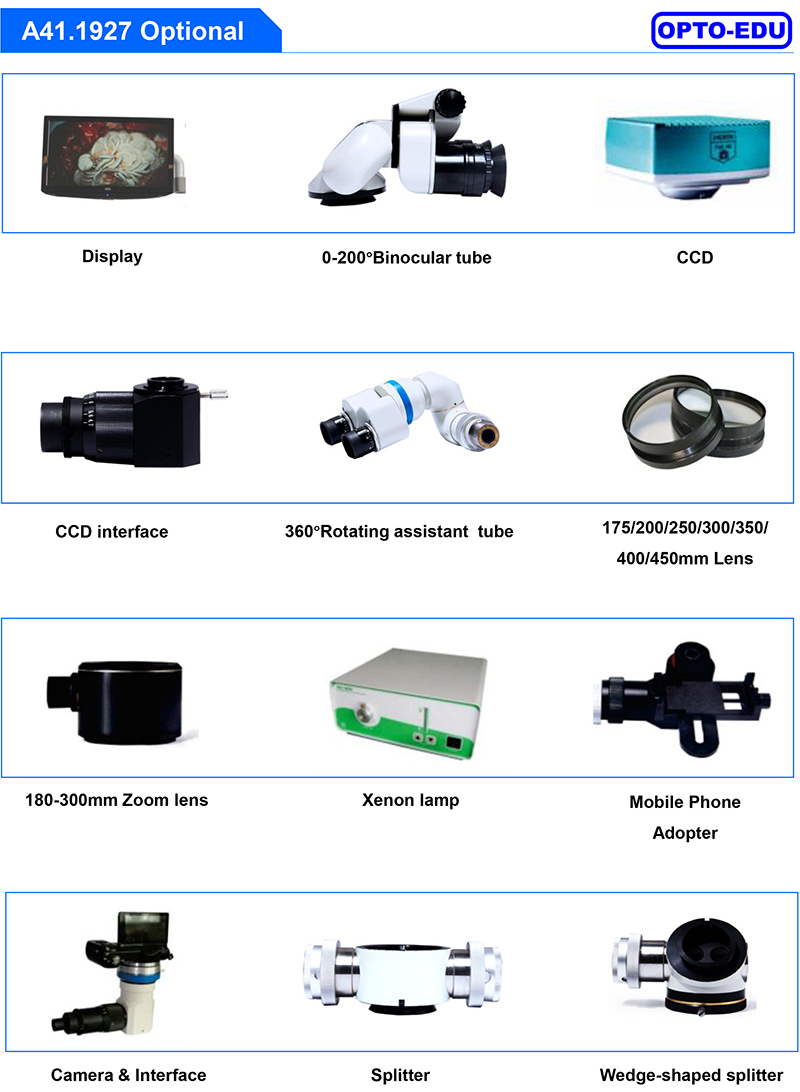

A41.1924Operating Microscope, is basic version for Ear, Nose, Throat (ENT) and Dental Operation. It has one binocular head which can tilt 0~200° freely and Manual 5-steps zoom, with magnification separately 3.6x, 5.4x,9x, 14.4x, and 22.5x. A41.1925is upgraded version, with 1:6 Manual continuous zoom,magnification 2.5x~21x. It also has build-in 4K HDMI camera and 27” 4K monitor. A41.1927is1:6Motorizedcontinuous zoom , magnification 2.5x~21x, as well as build-in 4K HDMI camera and 27” 4K monitor. All models can upgrade with optional assistant head, beam splitter, various adaptors, or external camera, for sharing real time image to LCD monitor, mobile phone or computer. | |||
A41.1924 | A41.1925 | A41.1927 | |
Main Usage | Ear, Nose, Throat (ENT), Dental | ||
Head | Single Binocular Head 0~200° Tiltable | ||
Magnification | Manual 5 Steps Zoom 3.6x,5.4x,9x,14.4x,22.5x | Manual Continuous Zoom 1:6 2.5x~21x | Motorized Continuous Zoom 1:6 2.5x~21x |
Field of View | Dia. 55.6 / 37.1 / 22.2 / 13.9 / 8.9mm | Dia.78.6~9mm | Dia.111~7.4mm |

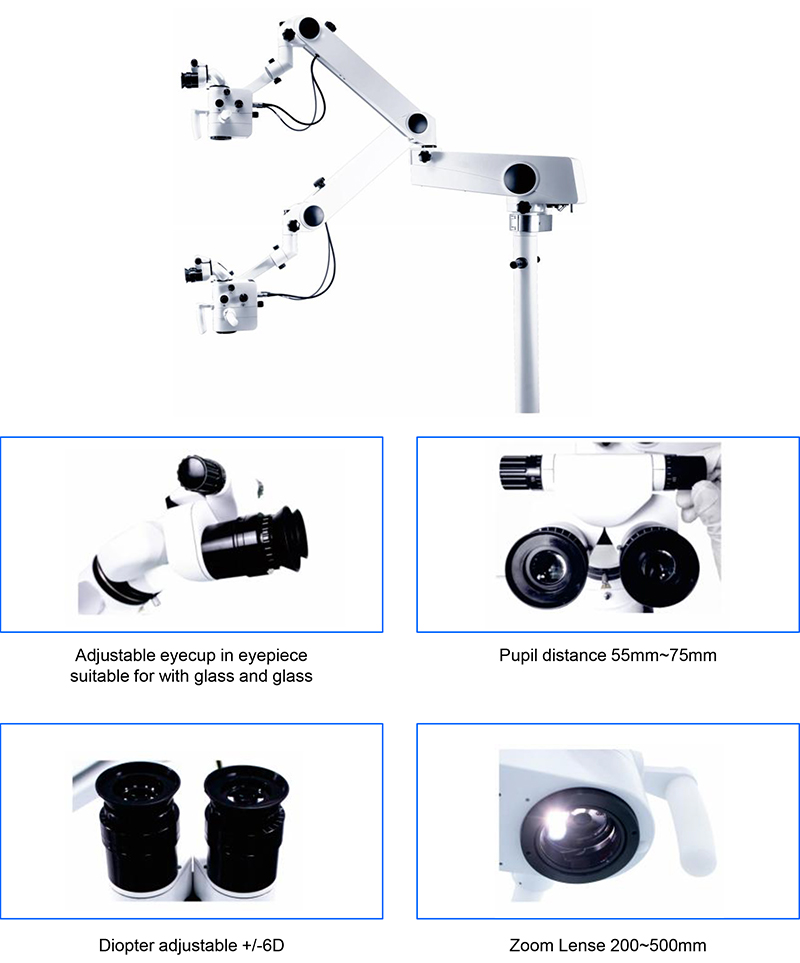

Eyepiece | WF12.5x, Pupil Distance 55-75mm, Both Eyepiece Tube Diopter Adjustable +/-6D | ||

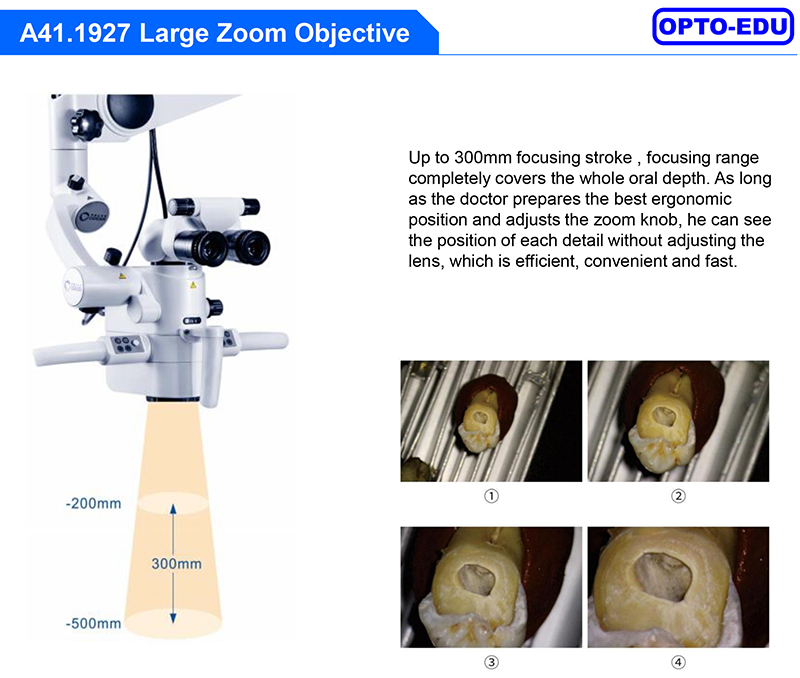

Objective | W.D.=180~300mm | W.D.=200~500mm | |
Head Movement | Head Left-right Pendulum Range +/-45° | ||
Illumination | Coaxial LED Light Illumination, Intensity 60000 Lux, Built-in Small-spot, Yellow, and Green Filters | ||
Light Spot | Dia. 70mm | Dia. 80mm | |
Stand | Four Wheels Moving Stand with Brakes --Max Length of Arm 1100mm | ||
Camera | Built-in 4K HDMI Camera | ||

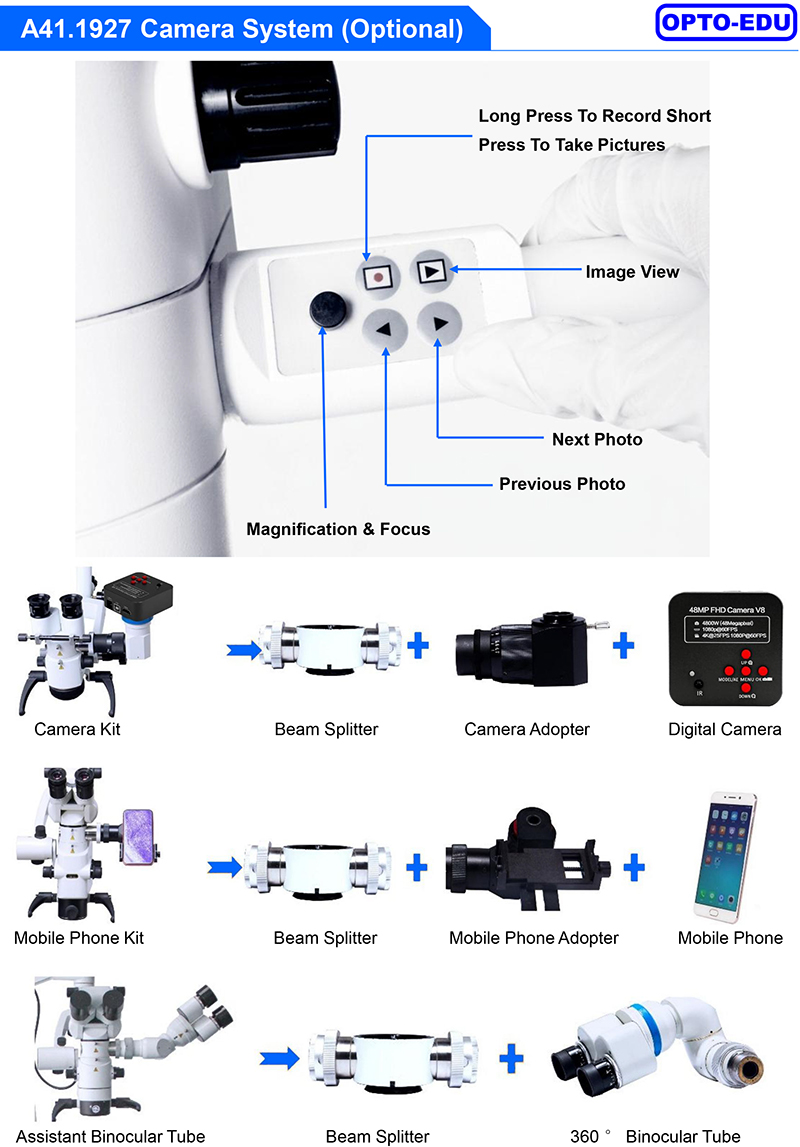

Control | Control Handle for Photo Capture, Videos Record, and Review | ||
Monitor | 24” Monitor with Holder | 27” 4K Monitor with Holder | |
Packing | 3 Cartons Total G.W 79Kg, Volume 0.355CBM Monitor:590*460*230(mm)/10kg Body: 750*680*550(mm)/61kg Stand: 1200*100*100(mm)/8kg | 3 Cartons Total G.W 111Kg, Volume 0.381CBM Head: 595×460×230(mm)/11kg Body: 1200*545*250 (mm)/32kg Stand:785*785*250(mm)/68kg | |
