WIFI Digital Biological Microscope Supplier, 5.0M, 12M, Win, iMac, iOS, Android

USB Digital Biological Microscope, 6.3M, Win

Binocular Head, Built-in WIFI Camera, 5MP/12MP

Software For Win, iMac, App For iOS, Android

Infinity Color Corrected Optical System

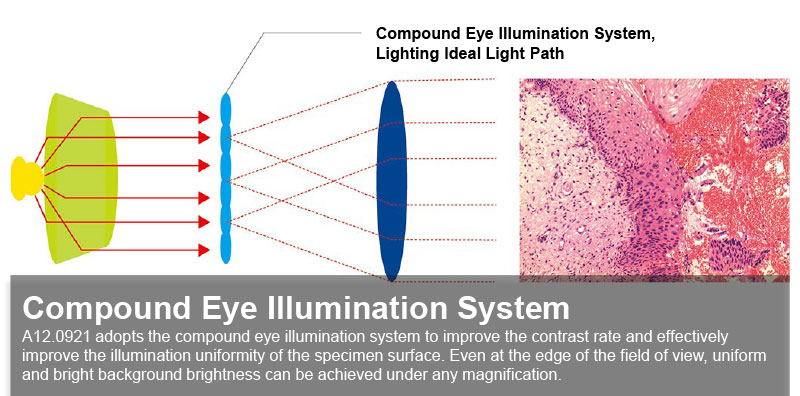

N.A.1.25 Compound Eye Illumination Condenser Group

150mmx140mm Mechanical Stage, Moving Range:76mm-50mm, Precision 0.1mm (Triangular Guide Rail)

Model	Magnification	N.A. (mm)	WD (mm)	Coverslip Thickness (mm)	Immersion Liquid	Spring
PLAN Infinity Plan Achromatic Objective Series	4x	0.1	11.9	/	/	/
	10x	0.25	12.1	/	/	/
	20x	0.4	1.56	0.17	/	/
	40x	0.65	0.36	0.17	/	Yes
	60x	0.85	0.3	0.17	/	Yes
	100x	1.25	0.21	0.17	Oil	Yes
PLAN-PH2 Infinity Plan Positive Phase Contrast Objective Series	10x	0.25	12.1	/	/	/
	20x	0.4	1.56	0.17	/	/
	40x	0.65	0.36	0.17	/	Yes
	100x	1.25	0.21	0.17	Oil	Yes

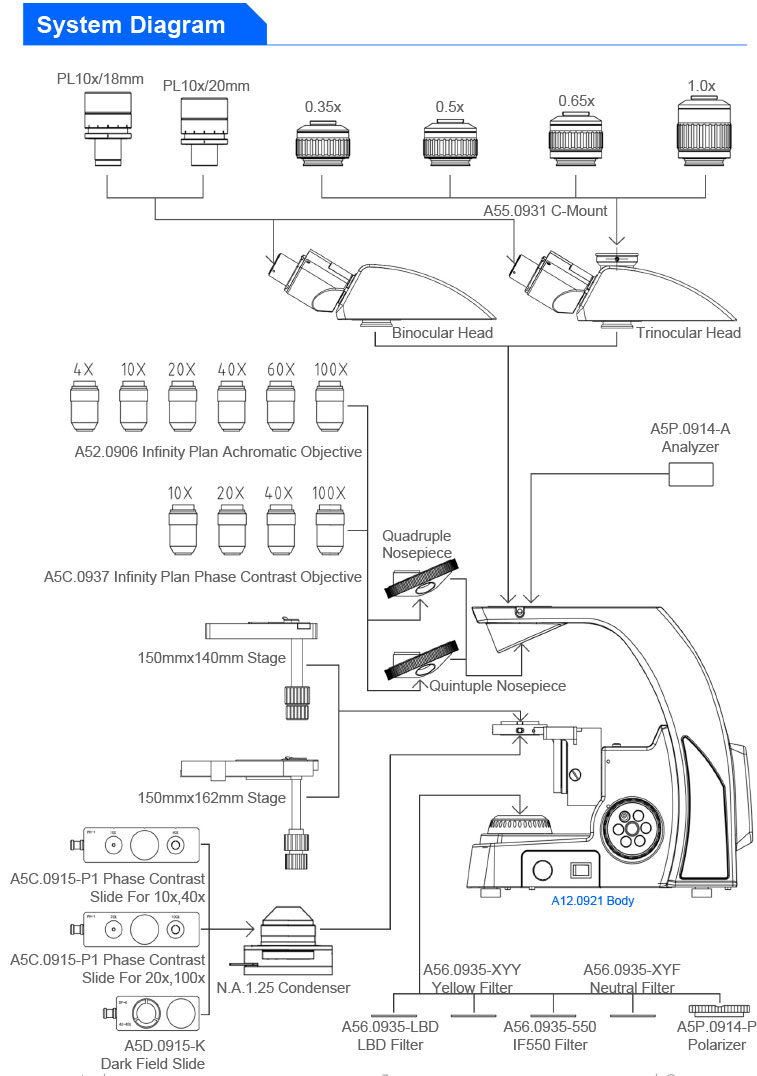

A12.0921&A31.0921		A12.0921		A31.0921		Cata. No.
A12.0921&A31.0921		-B	-T	-6M	-5M	Cata. No.
Eyepiece	High point Wide field plan eyepiece PL10X/18mm，diapter adjustable	○	○	○	○	A51.0904-1018T
	High point Wide field plan eyepiece PL10X/20mm，diapter adjustable	●●	●●	●●	●●	A51.0904-1020T
	Reticle attachable	○	○	○	○
Head	30°inclined,gemel binocular viewing head , diopter range:47~75mm	●		○		A53.0921-30B
	30°inclined,gemel trinocular viewing head , diopter range:47~75mm		●			A53.0921-30T
	Digital head, 30° inclined, built-in 6.3 mega pixels CMOS camera, WIFI output, interpupillary distance: 47-75mm, ±5 diopter adjustable.				●	A53.0921-5M
	Digital head, 30° inclined, built-in 6.3 mega pixels CMOS camera, USB3.0 output, interpupillary distance: 47-75mm, ±5 diopter adjustable	○	○	●	○	A53.0921-6.3M

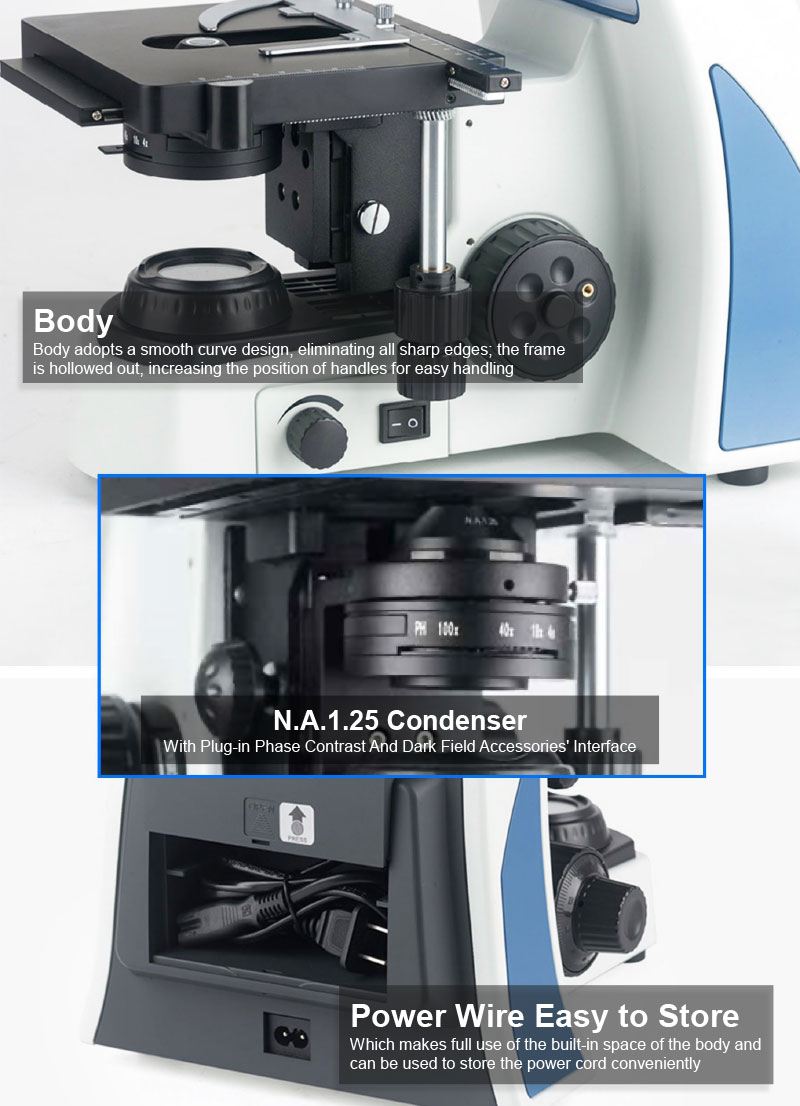

Body	Low position Coaxial coarse and fine adjustment , range 25mm, precision: 0.002mm, with coarse adjustment stop and tightness adjustment, with condenser bracket(Preset Center, center elevated),100V-240V_AC input , high power single 3W LED(cool/warm optional , cool light 4750K-5500K,warm light2850K-3250K,center preset),intensity adjustable, with back storage space	●	●	●
	Low position Coaxial coarse and fine adjustment , range 25mm, precision: 0.002mm, with coarse adjustment stop and tightness adjustment, with condenser bracket (Preset Center, center elevated),100V-240V_AC input , high power single 3W LED(cool/warm optional , cool light 4750K-5500K,warm light2850K-3250K,center preset),intensity adjustable, with back storage space				●
	(with power 12V for digital head)				●

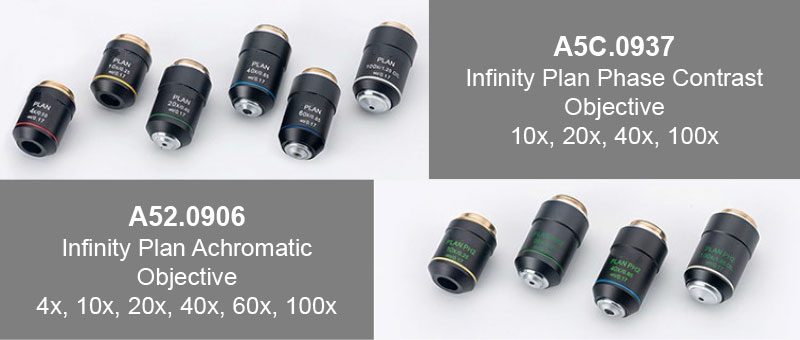

Objective (PL)	plan Achromatic objective 4X/0.10,WD=15mm	●	●	●	●	A52.0906-4
	plan Achromatic objective 10X/0.25,WD=10.8mm	●	●	●	●	A52.0906-10
	plan Achromatic objective 20X/0.40,WD=1.5mm	○	○	○	○	A52.0906-20
	plan Achromatic objective 40X/0.65,WD=0.8mm	●	●	●	●	A52.0906-40
	plan Achromatic objective 60X/0.85,WD=0.30mm	○	○	○	○	A52.0906-60
	plan Achromatic objective 100X/1.25,WD=0.21mm	●	●	●	●	A52.0906-100
Objective (PH)	Plan positive phase contrast objective 10X/0.25,WD=12.1mm	○	○	○	○	A5C.0937-10
	Plan positive phase contrast objective 20X/0.40,WD=1.56mm	○	○	○	○	A5C.0937-20
	Plan positive phase contrast objective 40X/0.65,WD=0.36mm	○	○	○	○	A5C.0937-40
	Plan positive phase contrast objective 100X/1.25,WD=0.18mm	○	○	○	○	A5C.0937-100
Nosepiece	Quadruple nosepiece	●	●	●	●	A54.0930-BS4
Nosepiece	Quintuple nosepiece	○	○	○	○	A54.0930-BS5
Working Stage	150mmX140mm double layer mechanical stage , double section ( slide glass)clamp, moving range:76mm-50mm, precision 0.1mm(Triangular guide rail)	●	●	●	●	A54.0941-06
Working Stage	150mmX162mm double layer stage, moving range:76mm-50mm, precision 0.1mm( x-axis single track transmission)	○	○	○	○	A54.0941-15
Filter	LBD filter（φ45）	○	○	○	○	A56.0935-45LBD
	Yellow filter（φ45）	○	○	○	○	A56.0935-XYY
	Green filter（φ45）	○	○	○	○	A56.0935-45IF
	Neutral filter （φ45）	○	○	○	○	A56.0935-XYF
Polarizer accessories	polarizer	○	○	○	○	A5P.0914-P
Polarizer accessories	analyzer	○	○	○	○	A5P.0914-A
Dark field	Dark-field device , for 4X-40X Koehler illumination objective	○	○	○	○	A5D.0915-K
Phase contrast	tele center scope（Φ23.2）	○	○	○	○	A5C.0910-232
	phase contrast device, for 10X, 40X objective(infinity)	○	○	○	○	A5C.0915-IP1
	phase contrast device, for 20X, 100X objective(infinity)	○	○	○	○	A5C.0915-IP2
C-Mount	0.35X adjustable focusing C-mount	○	○	○	○	A55.0931-35
	0.5X adjustable focusing C-mount	○	○	○	○	A55.0931-05
	0.65X adjustable focusing C-mount	○	○	○	○	A55.0931-65
	1X adjustable focusing C-mount	○	○	○	○	A55.0931-10
	Adaptor for eyepiece camera	○	○	○	○	A55.0902
Condenser	N.A.1.25condenser,fly eyes illumination system , phase contrast slot, dark field connector, adjustable field aperture, collecting mirror preset center.	●	●	●	●	A56.0933-E21
Other accessories	High precision micrometer,precision:0.01mm	○	○	○	○	A58.0903-1
Other accessories	Normal precision micrometer,precision:0.01mm	○	○	○	○	A58.0903-2
Remark: ● Means Standard Outfit,○ Means Optional Accessory

Pictures Hide Same Show Difference
Model No.	A31.0921-6.3M	A31.0921-5M
Other Specification	WIFI Support 6 Device	WIFI Support 6 Device
System Support	Android iOS iMac Win10, 64 Bits Win7, 64 Bits	Android iOS iMac Win10, 64 Bits Win7, 64 Bits
Camera Output	4G WIFI	4G WIFI
Camera Pixel	5.0MP	5.0MP
Transmit Light	3W LED	3W LED
Light Source Type	LED	LED
Condenser N.A.	1.25	1.25
Condenser Type	Abbe	Abbe
Condenser Features	Iris Diaphragm Rack & Pinionↆ↑	Iris Diaphragm Rack & Pinionↆ↑
Focusing Scale	0.002mm	0.002mm
Focusing Range	25mm	25mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Working Stage	Precision 0.1mm	Precision 0.1mm
Working Stage Moving	50mm-76mm	50mm-76mm
Working Stage Size	150x140mm	150x140mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm
Objective	4x10x40x(S)100x(O,S)	4x10x40x(S)100x(O,S)
Objective Type	Plan	Plan
Nosepiece Holes	4 Holes	4 Holes
Nosepiece Features	Inward	Inward
Eyepiece	PL10x/18mm, 2 pcs	PL10x/18mm, 2 pcs
Eyepiece Diameter	23.2mm	23.2mm
Eyepiece Features	Plan	Plan
Head Interpupillary	47~75mm	47~75mm
Head Rotation	Head Rotate 360°	Head Rotate 360°
Head Inclination	30°	30°
Head Type	Seidentopf Binocular	Seidentopf Binocular
Standard Magnification	40x-1000x	40x-1000x
Optical System	Plan	Plan
Standard Function	BF	BF
New Product Year	2020	2020

Pictures

Hide Same

Show Difference

USB Digital Biological Microscope, 6.3M, Win

WIFI Digital Biological Microscope, 5.0M, Win, iMac, iOS, Android

Model No.

A31.0921-6.3M

A31.0921-5M

Other Specification

WIFI Support 6 Device

System Support

Android
iOS
iMac
Win10, 64 Bits
Win7, 64 Bits

Camera Output

4G WIFI

Camera Pixel

5.0MP

Transmit Light

3W LED

Light Source Type

LED

Condenser N.A.

1.25

Condenser Type

Abbe

Condenser Features

Iris Diaphragm
Rack & Pinionↆ↑

Focusing Scale

0.002mm

Focusing Range

25mm

Focusing Type

Coaxial Coarse & Fine

Working Stage

Precision 0.1mm

Working Stage Moving

50mm-76mm

Working Stage Size

150x140mm

Working Stage Type

2 Layers Mechanical

Working Stage Features

Double Slide Holder
Size ≥140x140mm

Objective

4x10x40x(S)100x(O,S)

Objective Type

Plan

Nosepiece Holes

4 Holes

Nosepiece Features

Inward

Eyepiece

PL10x/18mm, 2 pcs

Eyepiece Diameter

23.2mm

Eyepiece Features

Plan

Head Interpupillary

47~75mm

Head Rotation

Head Rotate 360°

Head Inclination

30°

Head Type

Seidentopf Binocular

Standard Magnification

40x-1000x

Optical System

Plan

Standard Function

New Product Year

2020
