The Key To Micro World!
Laboratory Biological Microscope, Trinocular, Achromatic
Laboratory Biological Microscope, Trinocular, Achromatic
Laboratory Biological Microscope, Trinocular, Achromatic
Laboratory Biological Microscope, Trinocular, Achromatic
Laboratory Biological Microscope, Trinocular, Achromatic
Laboratory Biological Microscope, Trinocular, Achromatic
Laboratory Biological Microscope, Trinocular, Achromatic

A12.1502-AT

Like Favorites

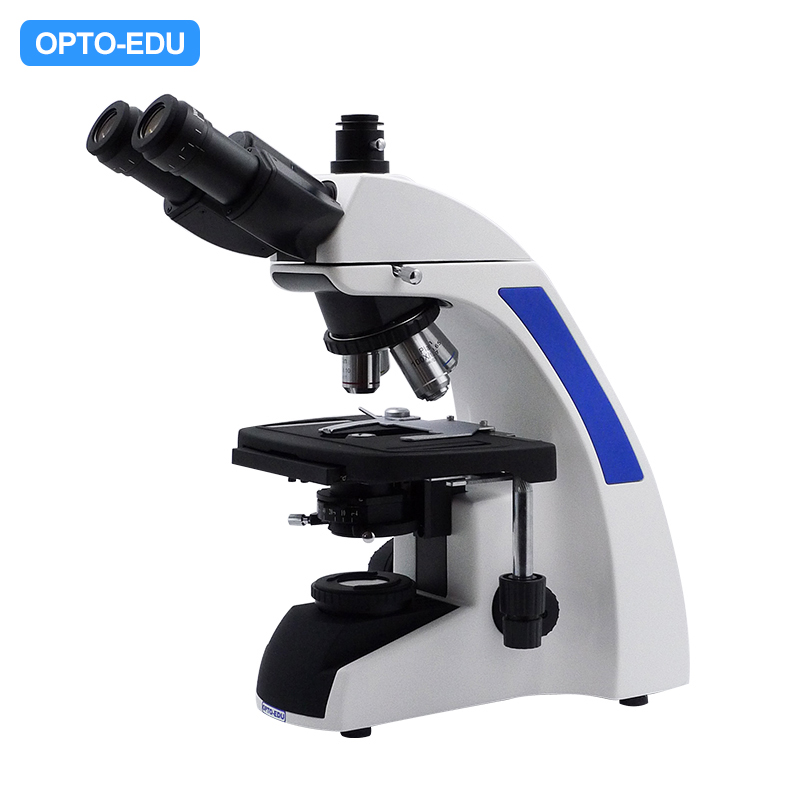

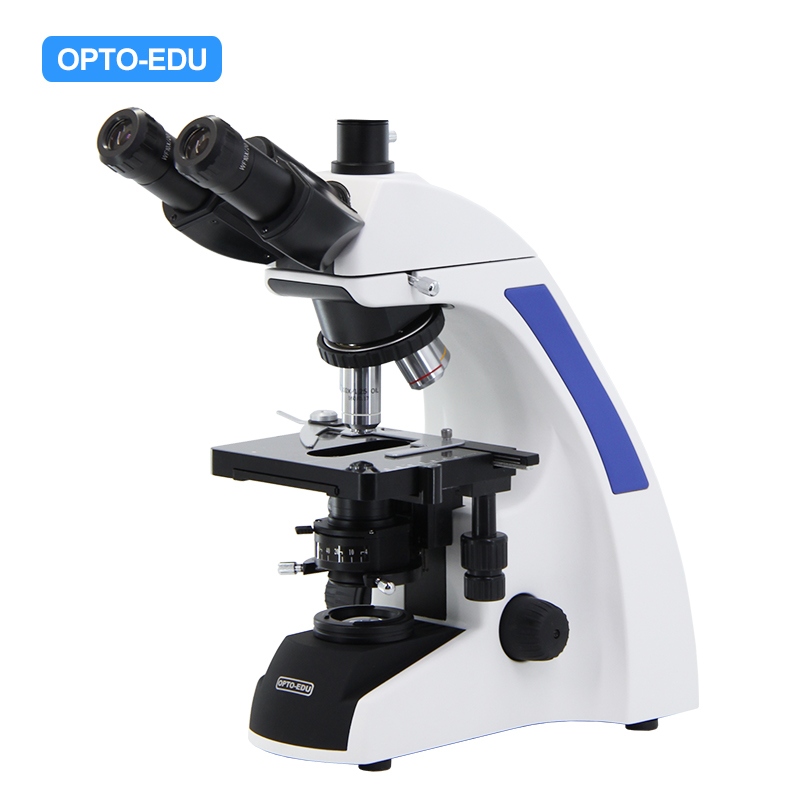

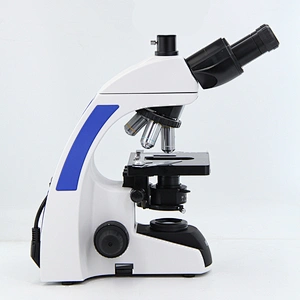

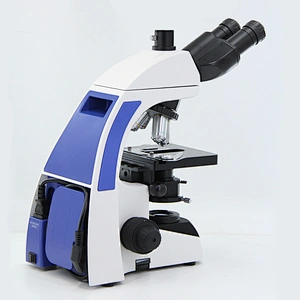

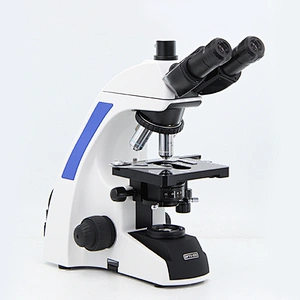

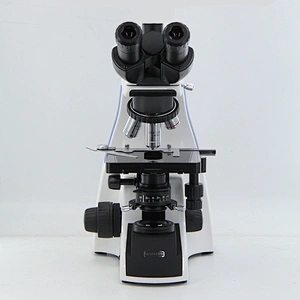

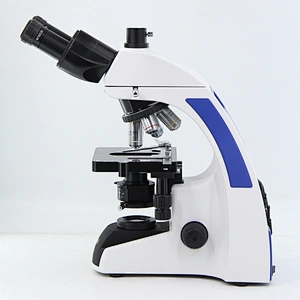

Laboratory Biological Microscope, Trinocular, Achromatic


  • Research Level Laboratory Microscope WIth Infinity High Contrast Optical System
  • Wide Field Eyepiece WF10x/22mm Tube Dia.30mm

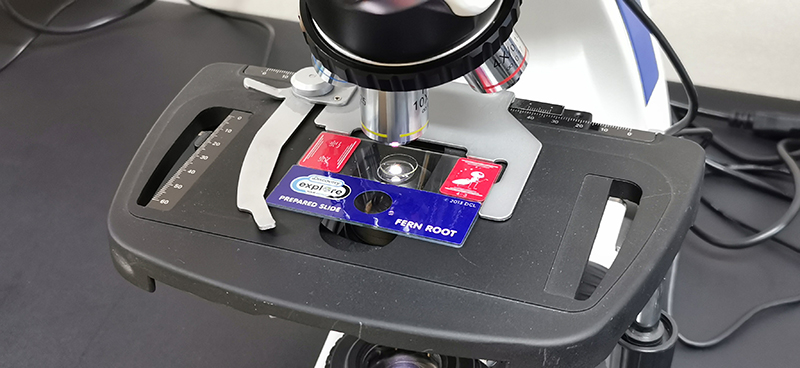

  • Large Size Mechanical Working Stage 216x150mm Moving 75x55mm
  • Safety Rackless Round Edge Working Stage With Double Slide Holder

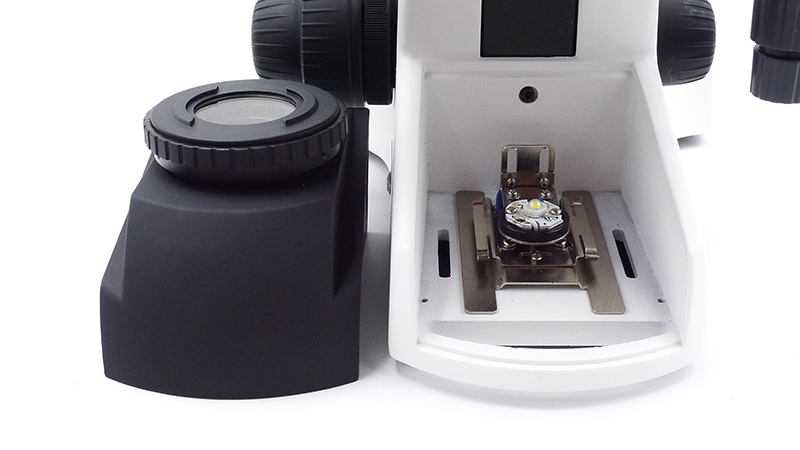

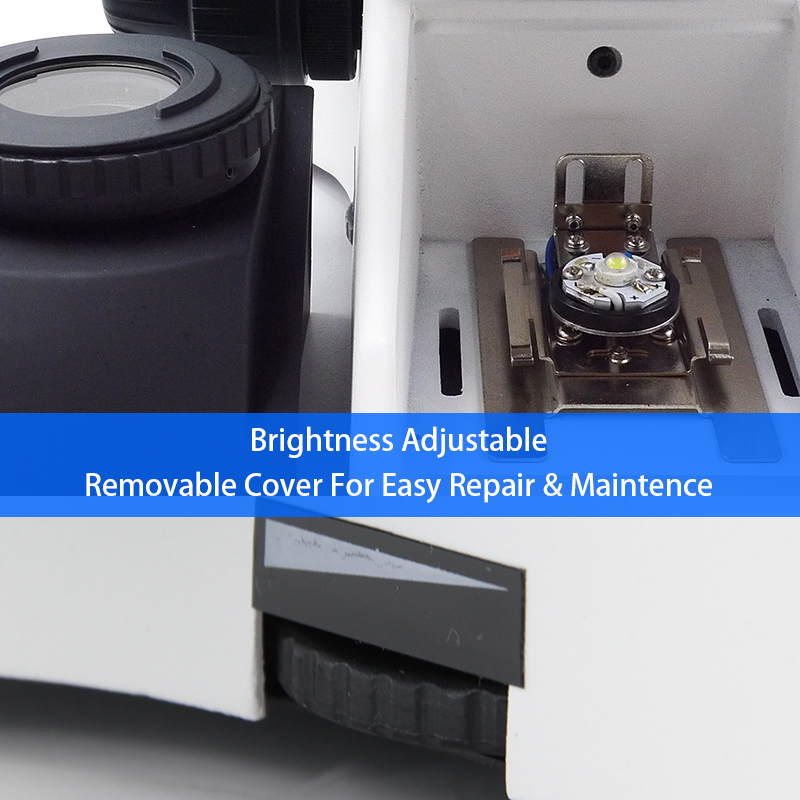

  • 3W LED Kohler Illumination With Removable Light House For Easy Maintainence
  • Supply Ability:1000 piece / Month
  • Country of Origin:China Port
Quantity:





A12.1502 Laboratory Biological MicroscopeBTABAT
Optical SystemInfinity Optical Systemoo
Achromatic Optical System  oo

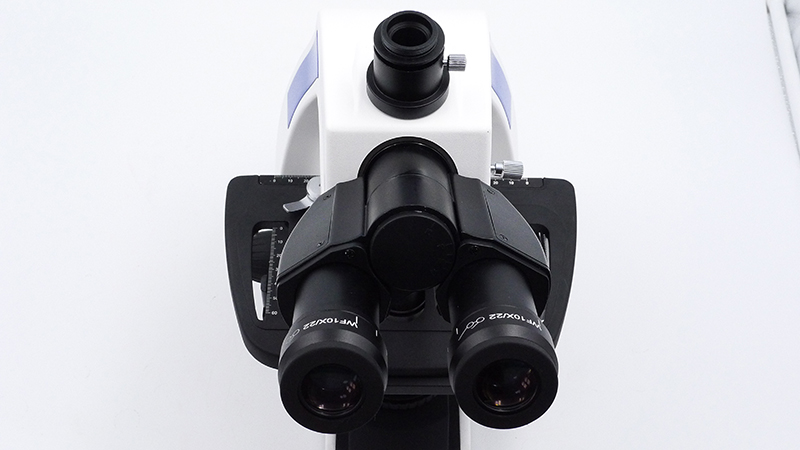

HeadBinocular, Inclined at 30º, Interpapillary 48-75mm, 360° Rotatableo o
Trinocular, Inclined at 30º, Interpapillary 48-75mm, 360° Rotatable o o

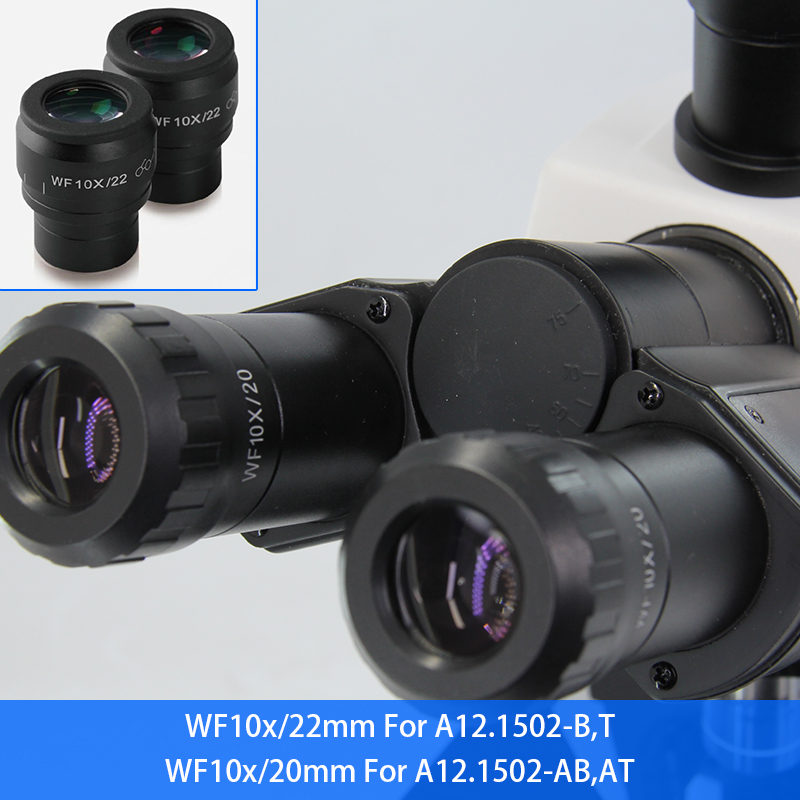

EyepieceWF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustment -/+5oo
WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustment -/+5  oo

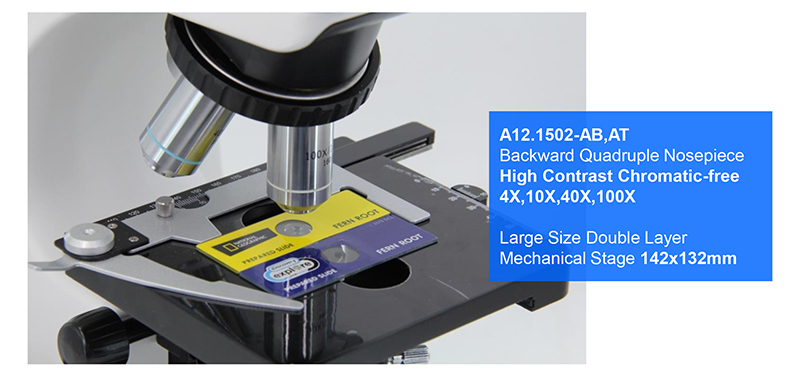

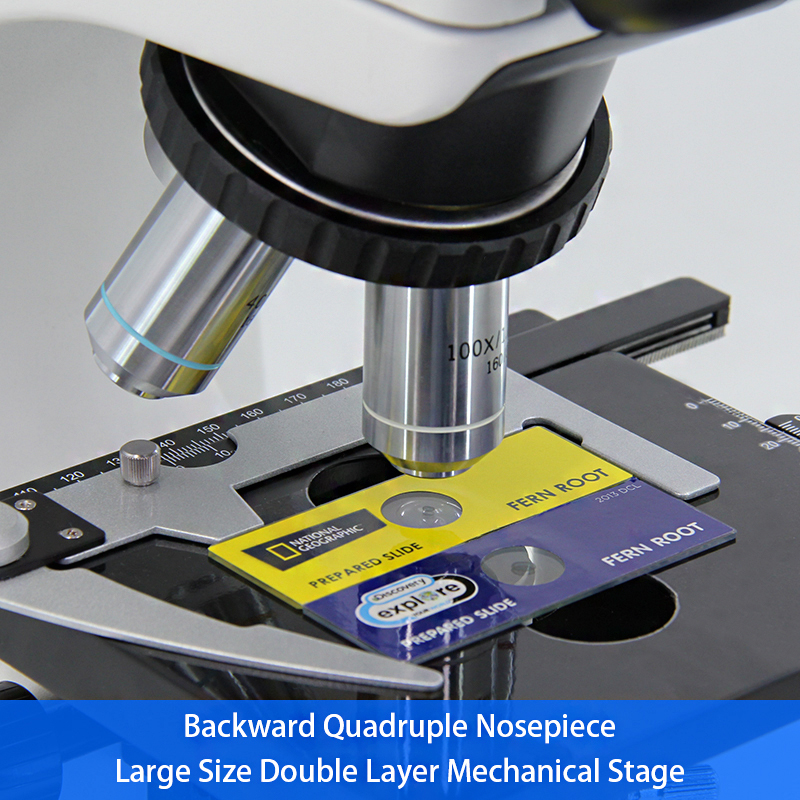

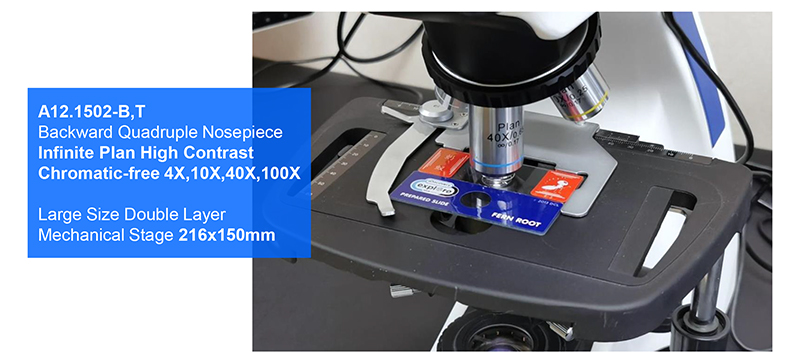

NosepieceBackward Quadruple Nosepieceoooo
ObjectiveInfinite Plan High Contrast Chromatic-free 4X,10X,40X,100Xoo
High Contrast Chromatic-free 4X,10X,40X,100X  oo

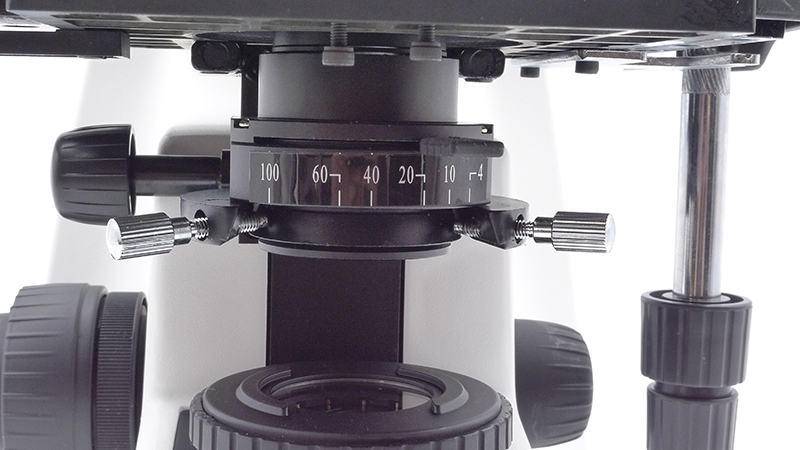

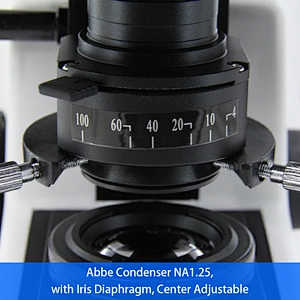

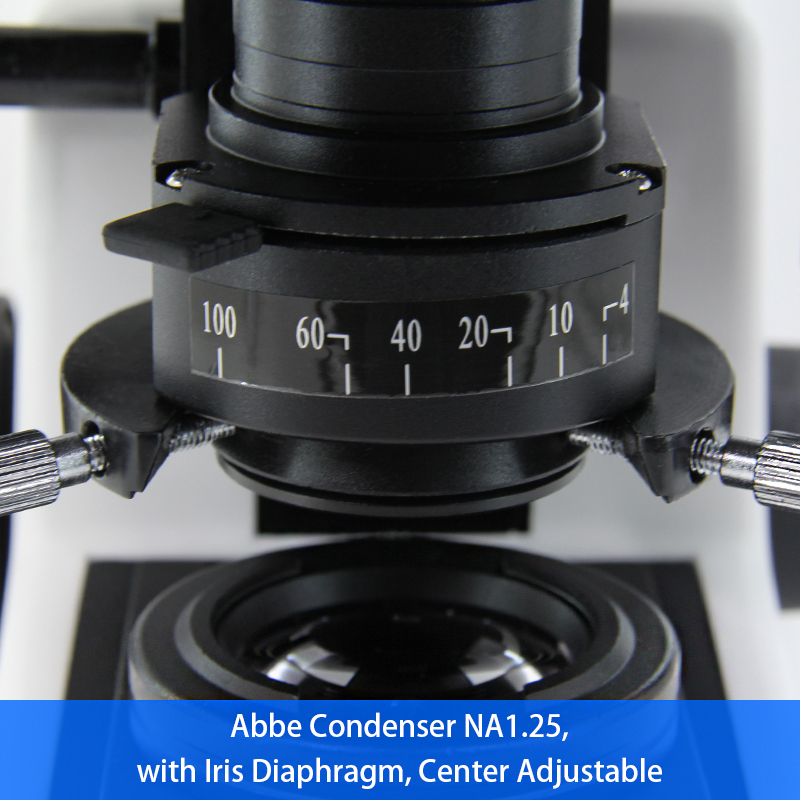

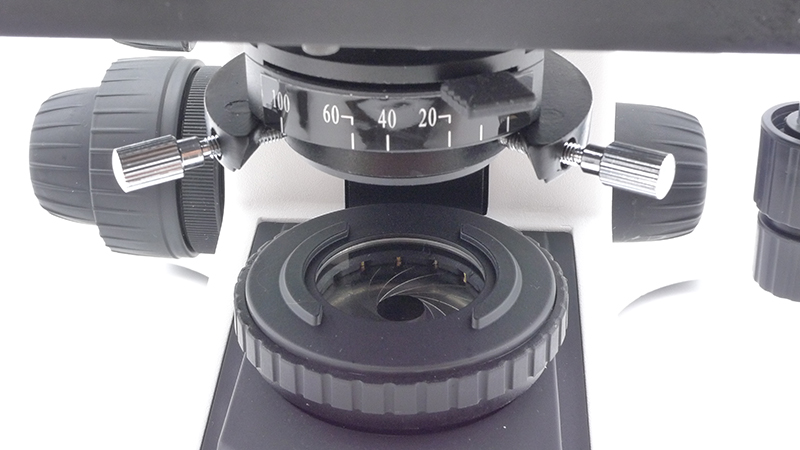

CondenserAbbe Condenser NA1.25, with Iris Diaphragm, Center Adjustableoooo

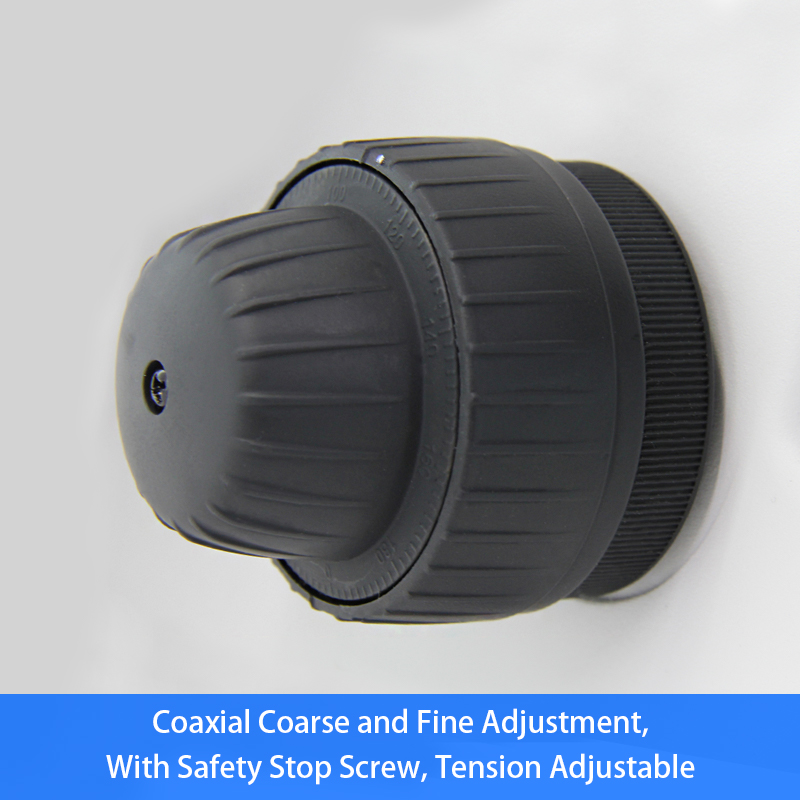

FocusingCoaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 24mm, With Safety Stop Screw, Tension Adjustableoooo

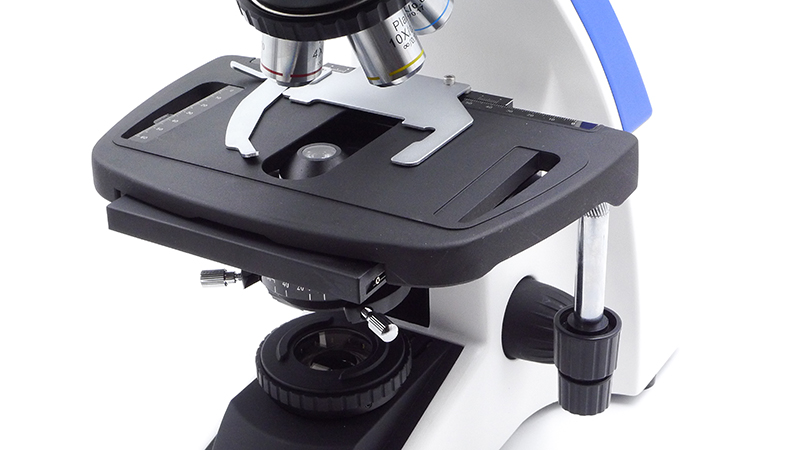

Working StageLarge Size Double Layer Mechanical Stage 216x150mm, Graphite Surface, Moving Range 75mmx55mm, Reckless Safety Round Edgeoo
Large Size Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75mmx50mm  oo

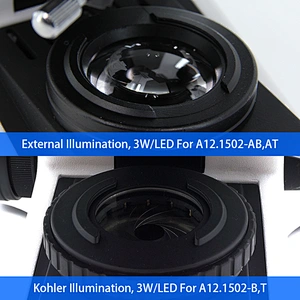

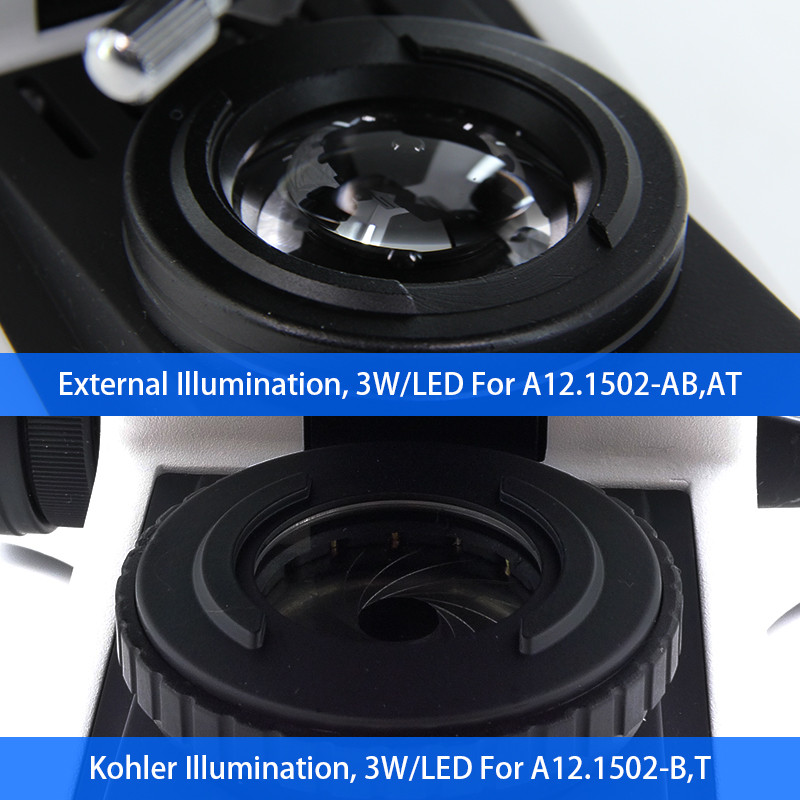

Light SourceKohler Illumination, 3W/LED, Brightness Adjustable, With Blue Filteroo
External Illumination, 3W/LED, Brightness Adjustable, With Blue Filter  oo

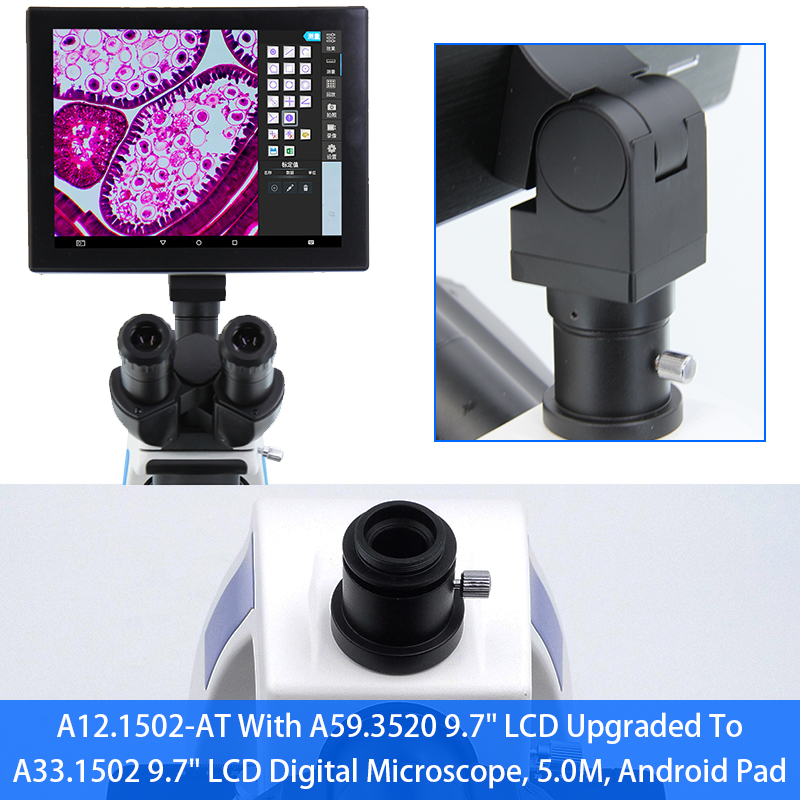

AdapterC-Mount 1.0x o o

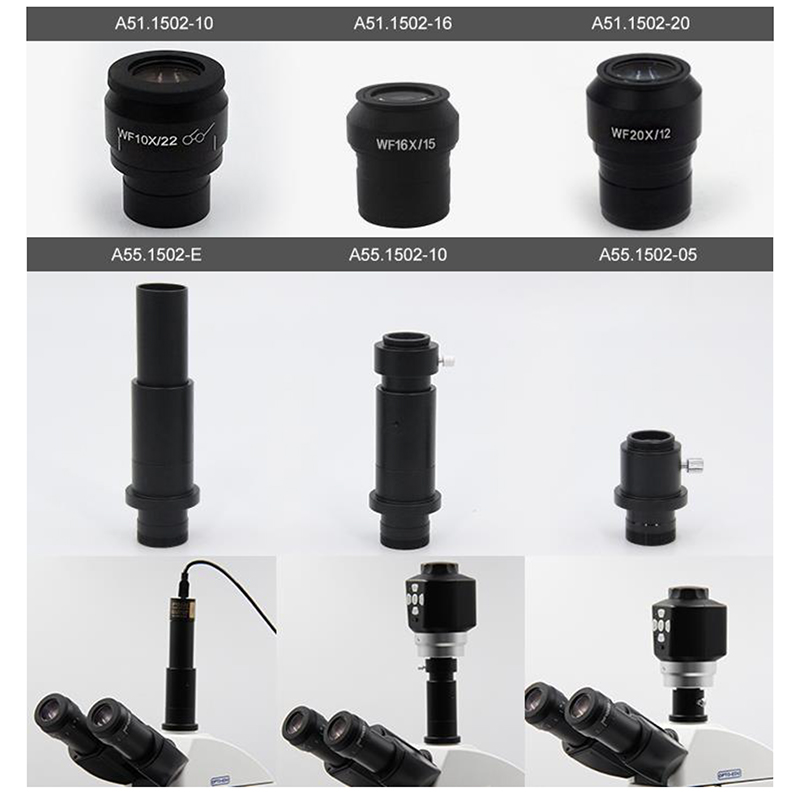

A12.1502 Laboratory Biological Microscope Optional Accessories
EyepieceWF16X/F.N.15mmA51.1502-16
WF20X/F.N.12mmA51.1502-20
NosepieceBackward Quintuple NosepieceA54.1502-5

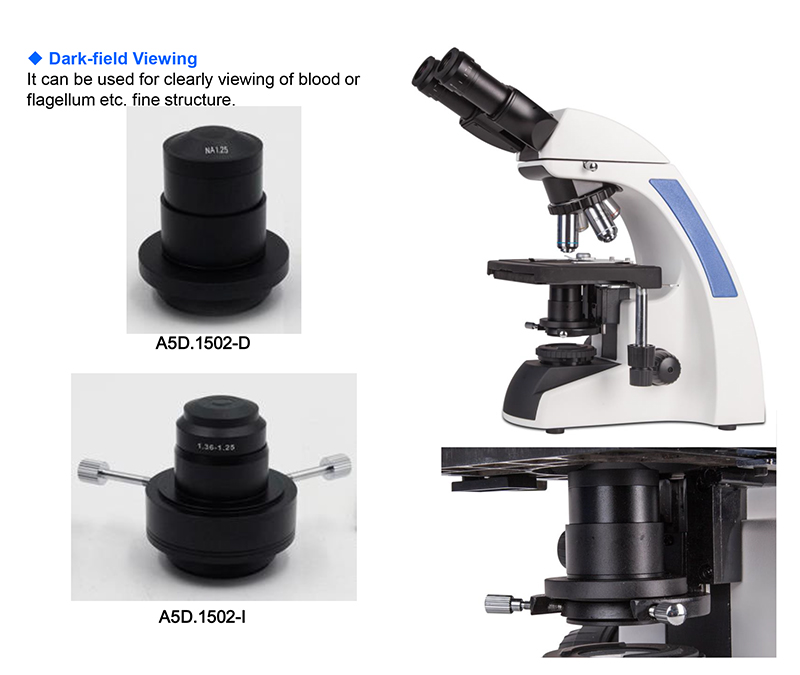

Dark FieldDark Field Condenser, Dry, N.A.1.25A5D.1502-D
Dark Field Condenser, Immersion, N.A.1.25~1.36A5D.1502-I

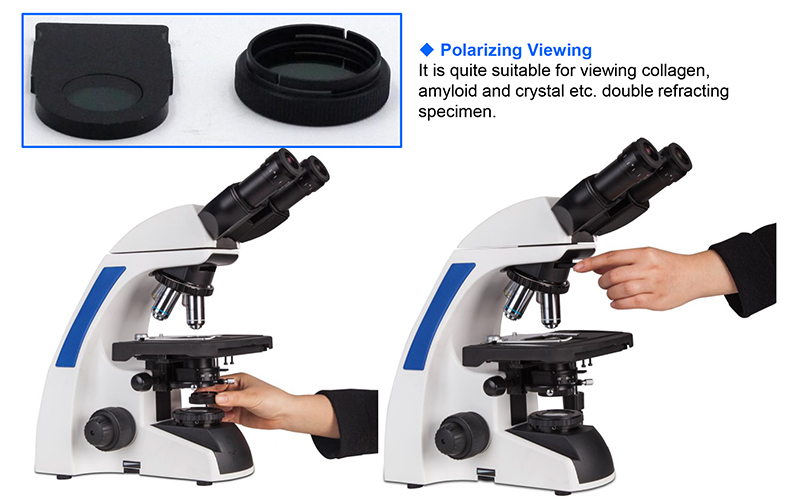

PolarizingPolarizer & AnalyzerA5P.1501
AdapterEyepiece Tube AdapterA55.1502-E
C-Mount 0.5xA55.1502-05

Pictures

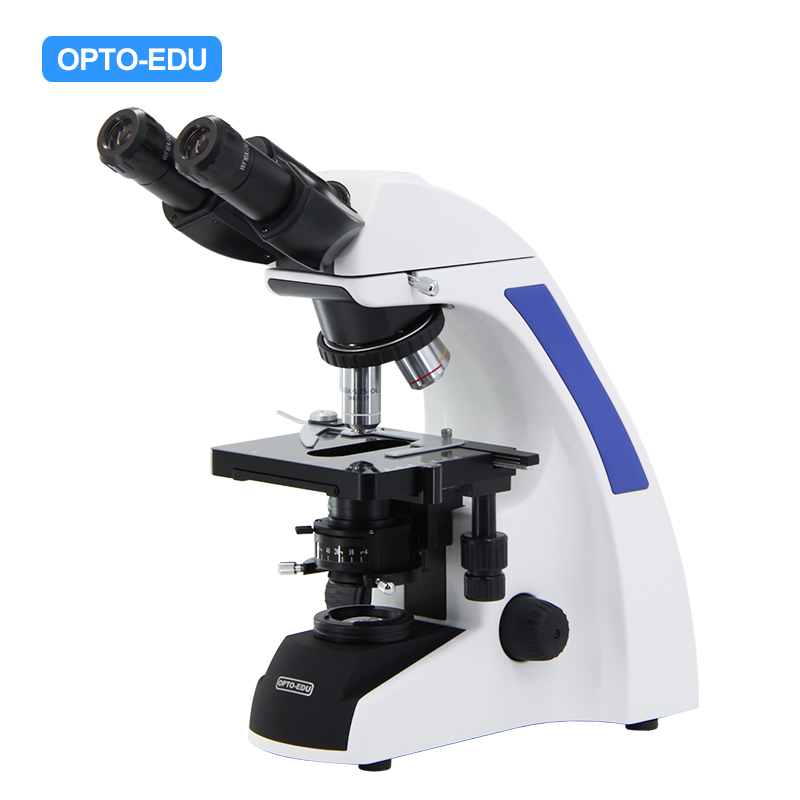

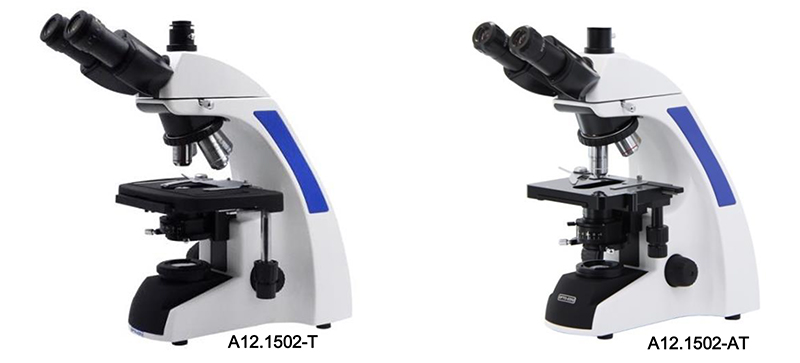

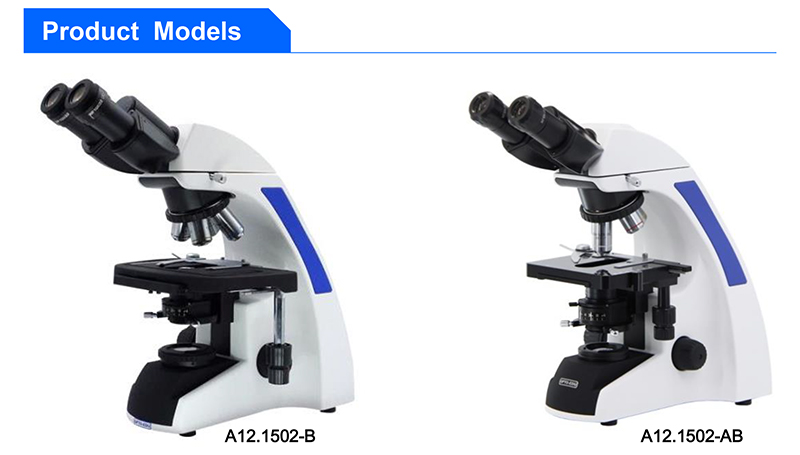

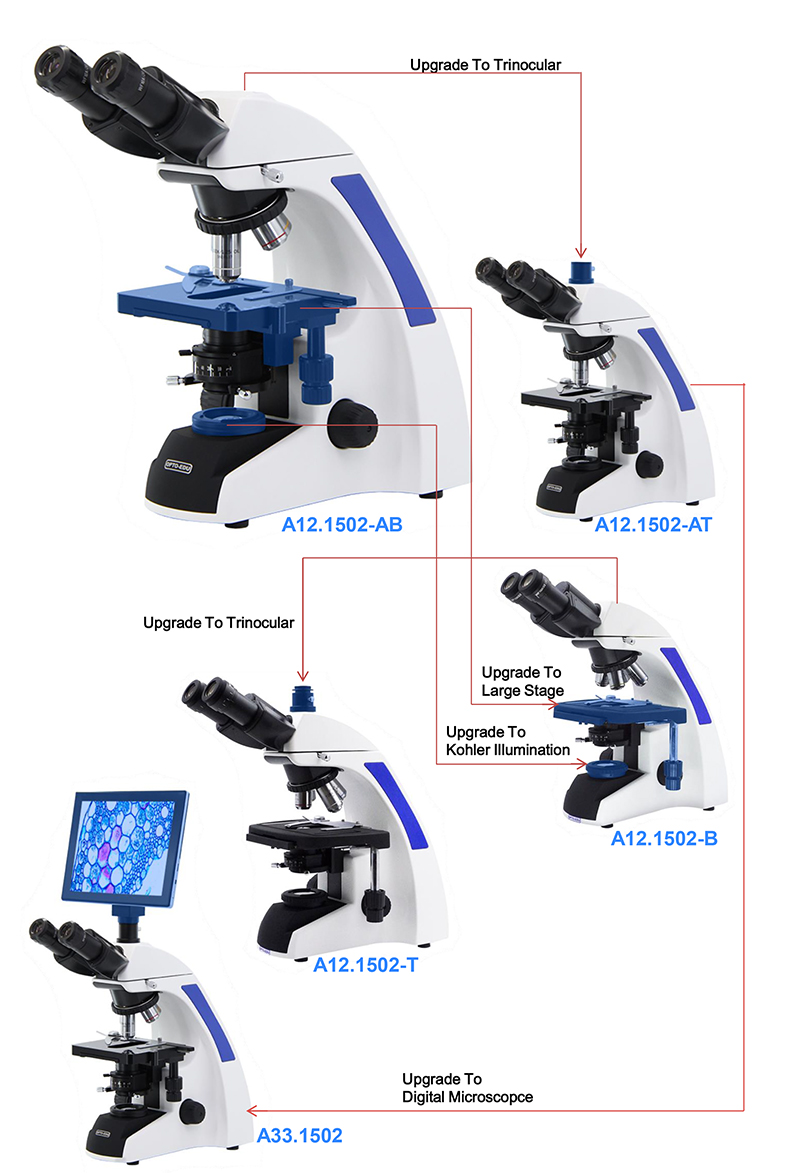

Model No. A12.1502-AT A12.1502-T A12.1502-B A12.1502-AB
Download
https://websitebucket.oss-accelerate.aliyuncs.com/2469193113797632/2020/11/rGSKNb7XaG.pdf https://websitebucket.oss-accelerate.aliyuncs.com/2469193113797632/2020/11/jX2QDm7sPF.pdf https://websitebucket.oss-accelerate.aliyuncs.com/2469193113797632/2020/11/tJYpZdCRRt.pdf https://websitebucket.oss-accelerate.aliyuncs.com/2469193113797632/2020/11/TxMQZaMcnd.pdf
Applications

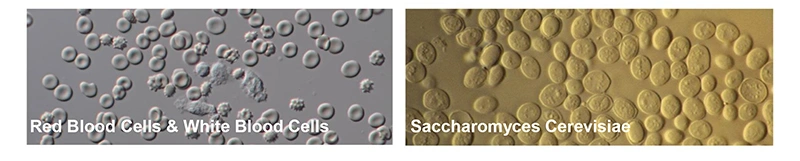

Blood Analysis
Laboratory
Student School
Teaching/Training
Blood Analysis
Laboratory
Student School
Teaching/Training
Blood Analysis
Laboratory
Student School
Teaching/Training
Blood Analysis
Laboratory
Student School
Teaching/Training
Function
BF BF BF BF
Features
—— Infinity Infinity ——
New Product Year
2015 2015 2015 2015
Optical System
Achromatic Infinity Plan Infinity Plan Achromatic
Standard Magnification
40x-1000x 40x-1000x 40x-1000x 40x-1000x
Optional Magnification
40x-2000x 40x-2000x 40x-2000x 40x-2000x
Head Type
Trinocular Trinocular Binocular Binocular
Head Inclination
30° 30° 30° 30°
Head Rotation
Head Rotate 360° Head Rotate 360° Head Rotate 360° Head Rotate 360°
Head Interpupillary
48~75mm 48~75mm 48~75mm 48~75mm
Eyepiece Features
Wide Field
Plan
High Eyepoint
Diopter Adjustable
Wide Field
Plan
High Eyepoint
Diopter Adjustable
Wide Field
Plan
High Eyepoint
Diopter Adjustable
Wide Field
Plan
High Eyepoint
Diopter Adjustable
Eyepiece Diameter
30.0mm 30.0mm 30.0mm 30.0mm
Eyepiece
WF10x/20mm, 2 pcs WF10x/22mm, 2 pcs WF10x/22mm, 2 pcs WF10x/20mm, 2 pcs
Nosepiece Holes
4 Holes 4 Holes 4 Holes 4 Holes
Nosepiece Features
Backward Backward Backward Backward
Objective Type
Achromatic Infinity Plan Infinity Plan Achromatic
Objective
High Contrast Chromatic-free 4X,10X,40X,100X Infinite Plan High Contrast Chromatic-free 4X,10X,40X,100X Infinite Plan High Contrast Chromatic-free 4X,10X,40X,100X High Contrast Chromatic-free 4X,10X,40X,100X
Working Stage Type
Double Layer Mechanical Double Layer Mechanical Double Layer Mechanical Double Layer Mechanical
Working Stage Feature
Double Slide Holder Double Slide Holder
Safety Rackless Round Edge
Large Size >140x140mm
Double Slide Holder
Safety Rackless Round Edge
Large Size >140x140mm
Double Slide Holder
Working Stage Size
142x132mm 216x150mm 216x150mm 142x132mm
Working Stage Moving
75x50mm 75x55mm 75x55mm 75x50mm
Working Stage Spec.
Graphite Surface Graphite Surface Graphite Surface Graphite Surface
Focusing Features
Safety Stop Screw
Tension Adjustable
Safety Stop Screw
Tension Adjustable
Safety Stop Screw
Tension Adjustable
Safety Stop Screw
Tension Adjustable

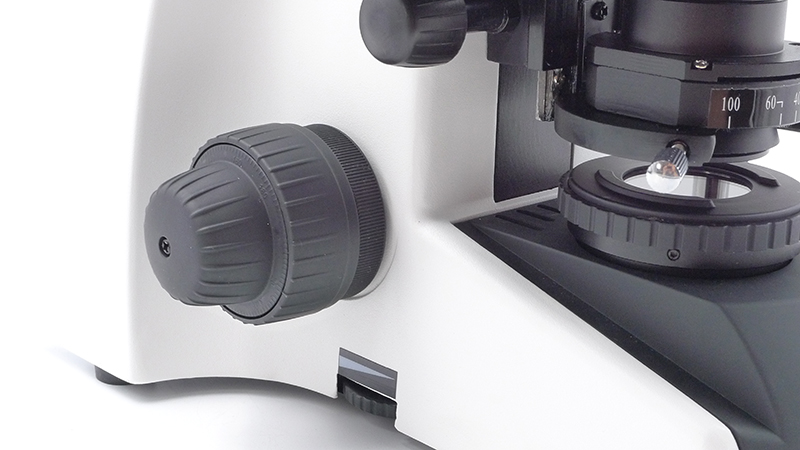

Focusing Type
Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine Coaxial Coarse & Fine
Focusing Range
24mm 24mm 24mm 24mm
Focusing Scale
0.002mm 0.002mm 0.002mm 0.002mm
Focusing Knob
Coarse Stroke 37.7mm/Rotation Coarse Stroke 37.7mm/Rotation Coarse Stroke 37.7mm/Rotation Coarse Stroke 37.7mm/Rotation
Condenser Type
Abbe + Iris Diaphragm Abbe + Iris Diaphragm Abbe + Iris Diaphragm Abbe + Iris Diaphragm
Condenser N.A.
1.25 1.25 1.25 1.25
Condenser Features
Rack & Pinion Up/Down
Center Adjustable
Rack & Pinion Up/Down
Center Adjustable
Rack & Pinion Up/Down
Center Adjustable
Rack & Pinion Up/Down
Center Adjustable
Light Source Feature
Brightness Adjustable Brightness Adjustable
Kohler Illumination
Brightness Adjustable
Kohler Illumination
Brightness Adjustable
Light Source Type
LED LED LED LED
Transmit Light
3W LED 3W LED 3W LED 3W LED

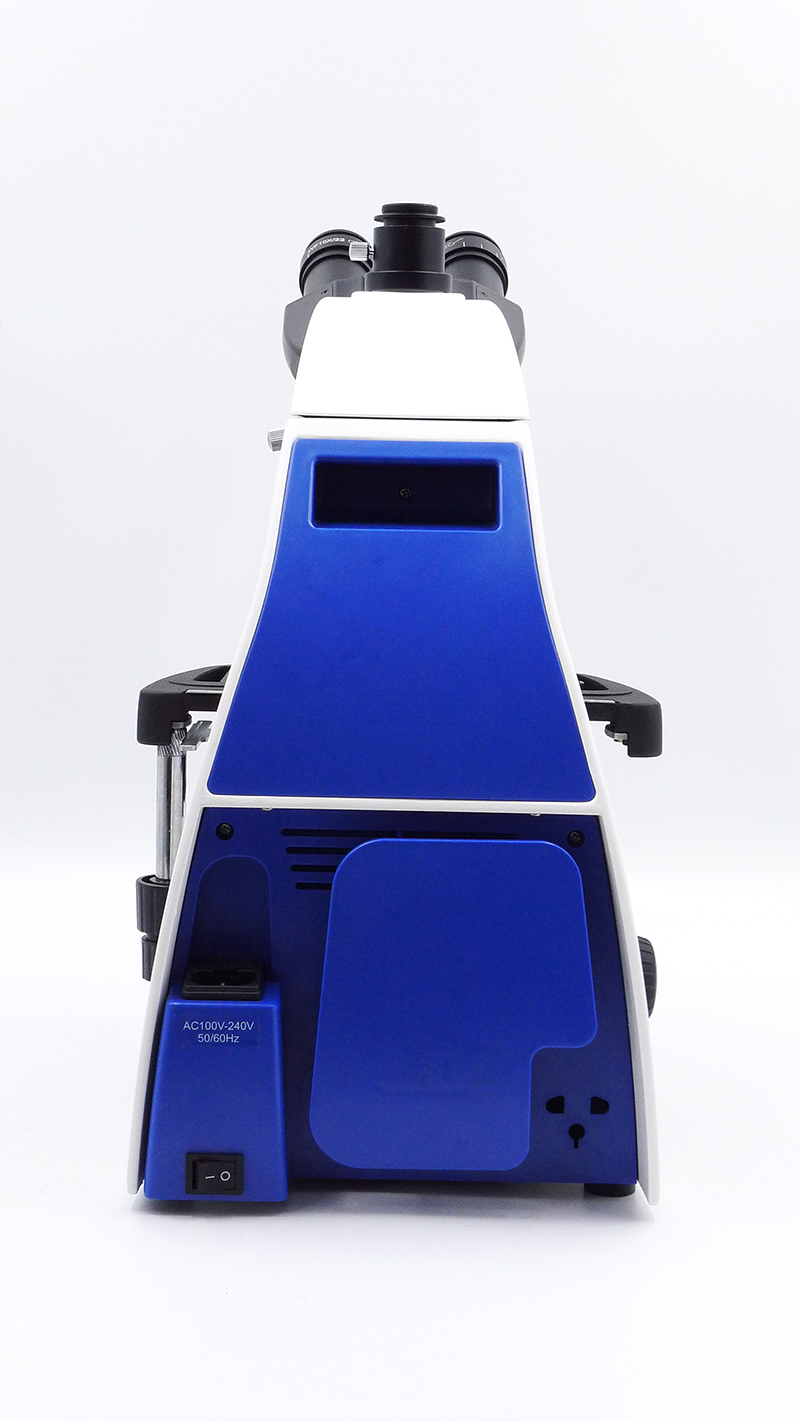

Power Supply Type

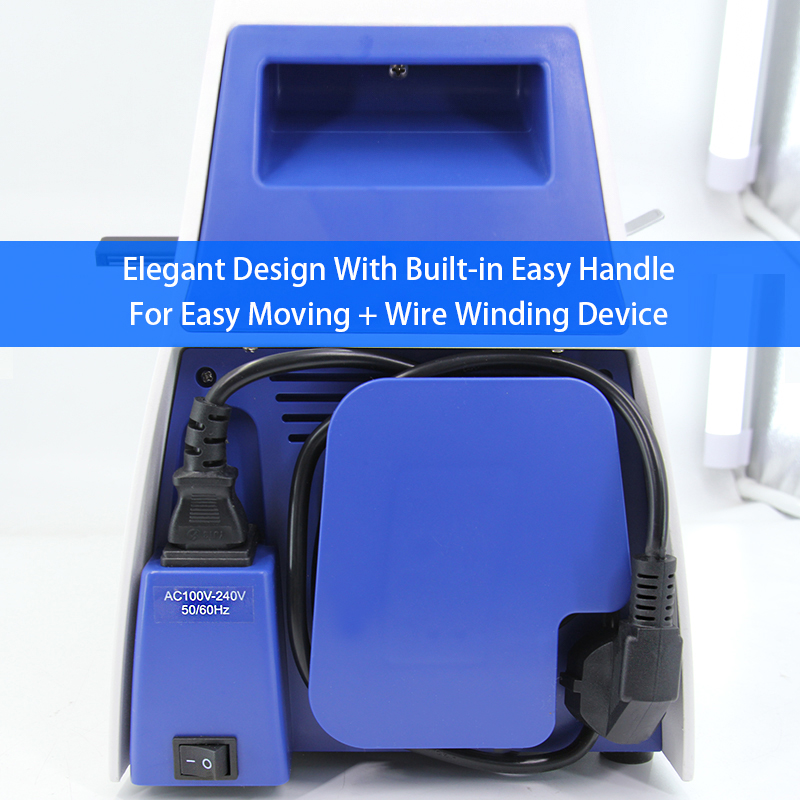

AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable
AC 100V-240V Wide Voltage
Power Cord Detachable

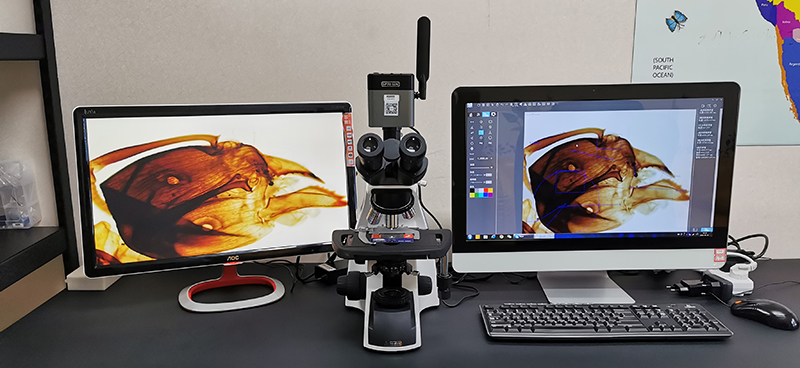

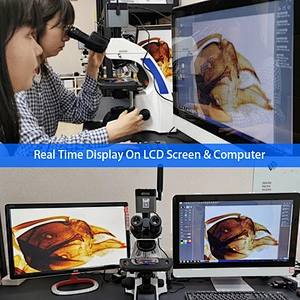

Video Adapter
Digital Eyepice 23.2mm
C-Mount 1.0x
Digital Eyepice 23.2mm
C-Mount 1.0x
—— ——
Function Upgradeable
Dark Field
Polarizing
Dark Field
Polarizing
Dark Field
Polarizing
Dark Field
Polarizing
