Laboratory Microscope, Binocular, Achromatic HC, Working Stage 143*132mm

A12.1502-AB

Like Favorites

Laboratory Microscope, Binocular, Achromatic HC, Working Stage 143*132mm

Research Level Laboratory Microscope WIth Infinity High Contrast Optical System
Large View Field Eyepiece WF10x/22mm Tube Dia.30mm
Large Size Mechanical Working Stage 216x150mm Moving 75x55mm
Safety Rackless Round Edge Working Stage With Double Slide Holder

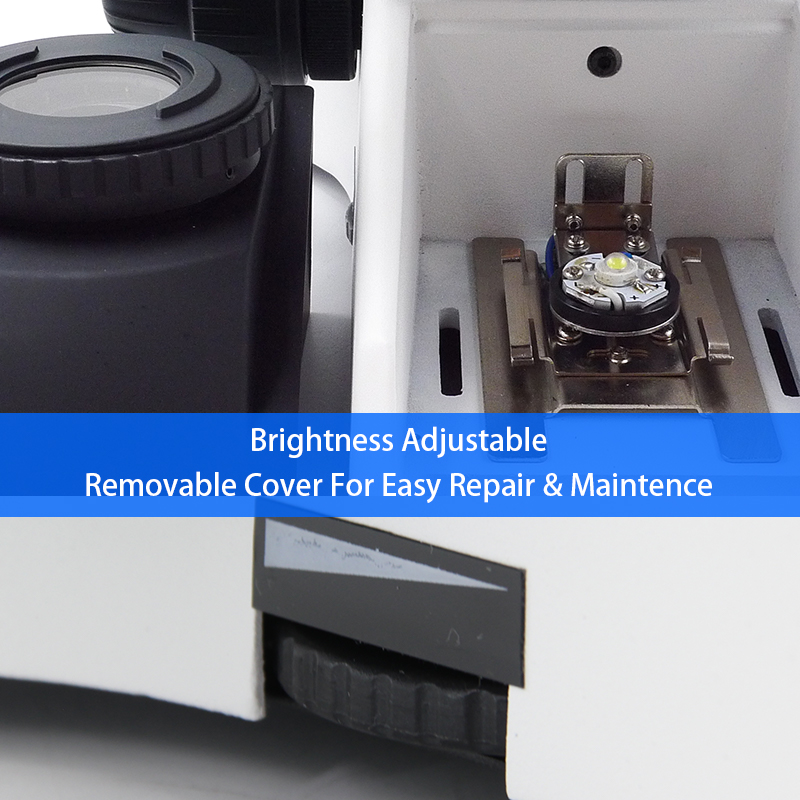

3W LED Kohler Illumination With Removable Light House For Easy Maintainence

Specification:

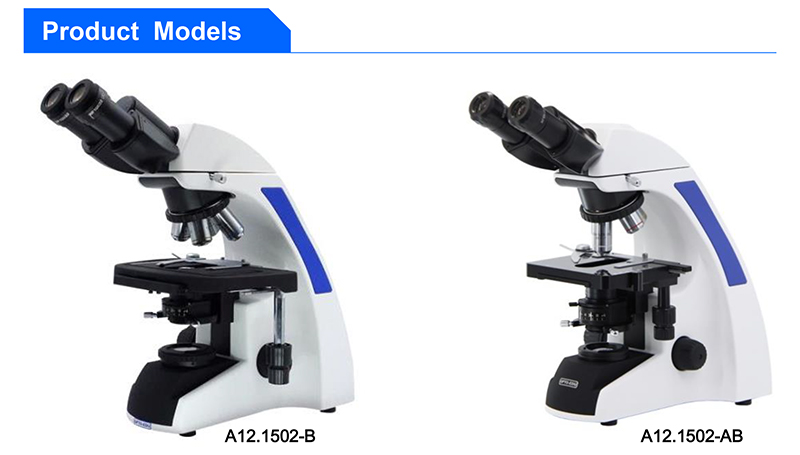

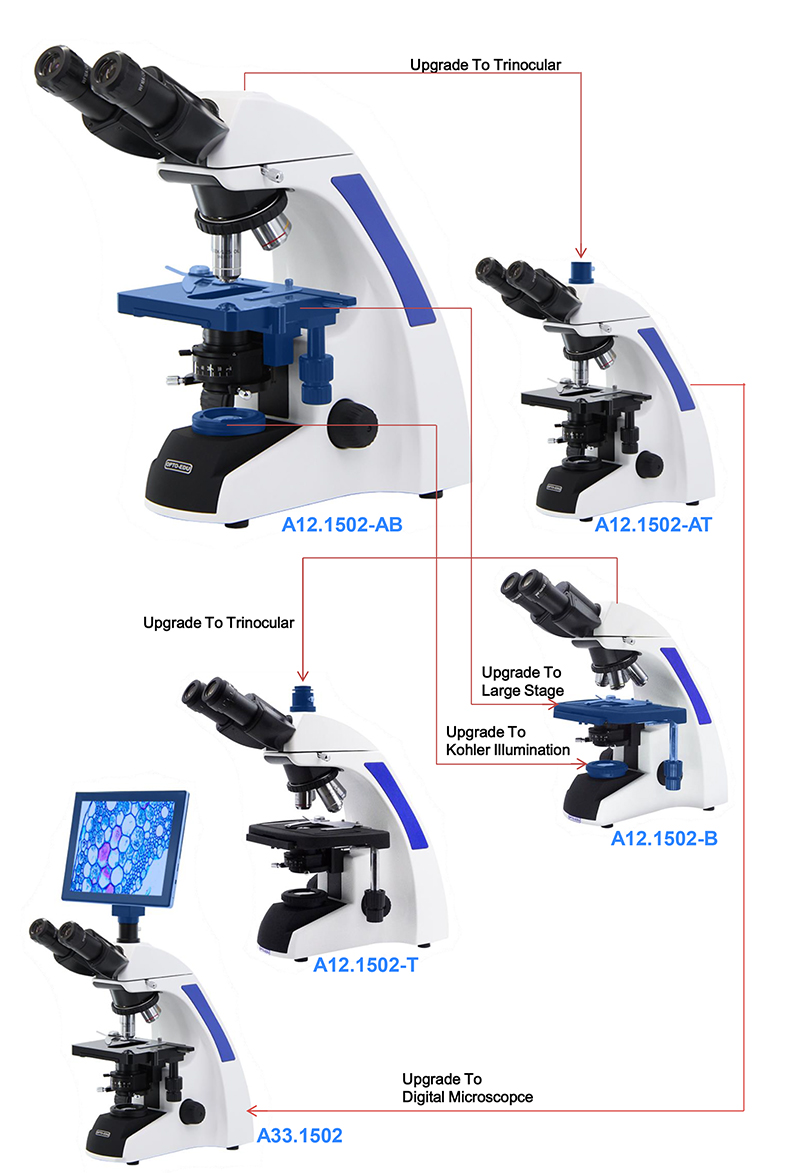

A12.1502-AB

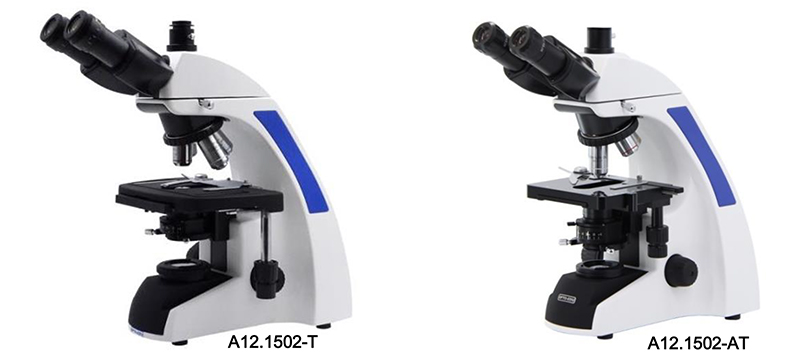

Laboratory Microscope, Trinocular, Achromatic HC, Working Stage 143*132mm

A12.1502-AT

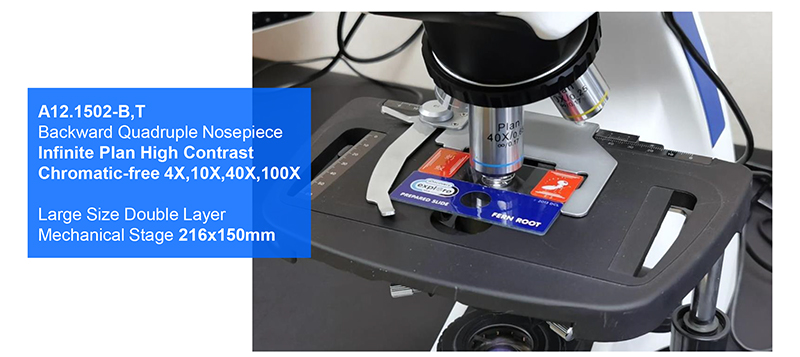

Laboratory Microscope, Binocular, Infinity Plan HC, Working Stage 216x150mm

A12.1502-B

Laboratory Microscope, Trinocular, Infinity Plan HC, Working Stage 216x150mm

A12.1502-T

Head & Eyepiece

Inclined30º, Interpupillary 48-75mm, 360° Rotatable

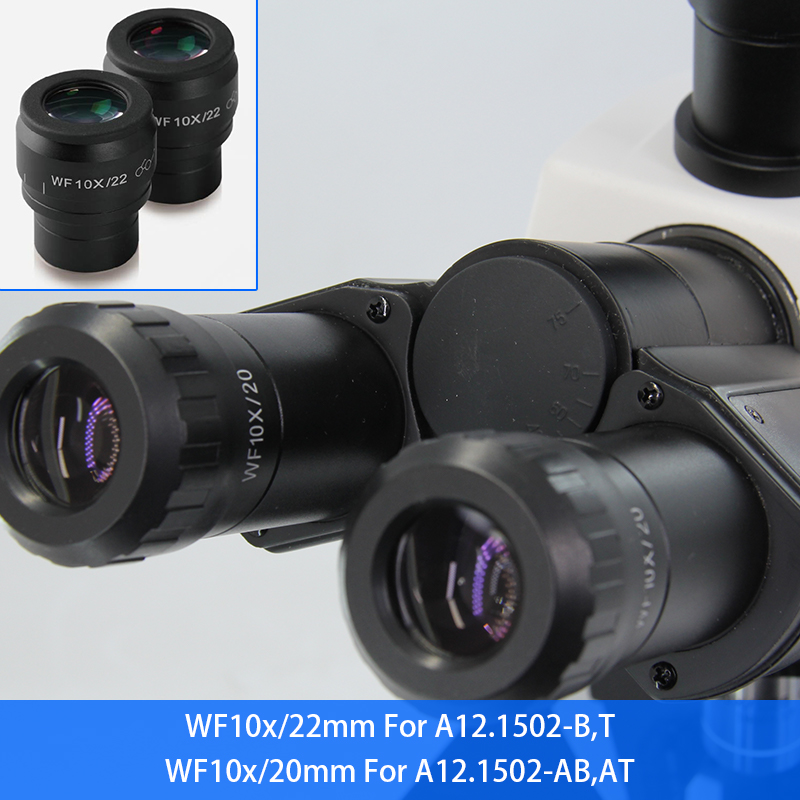

WF10x/22mm For A12.1502-B,T; WF10x/20mm ForA12.1502-AB,AT

Condenser

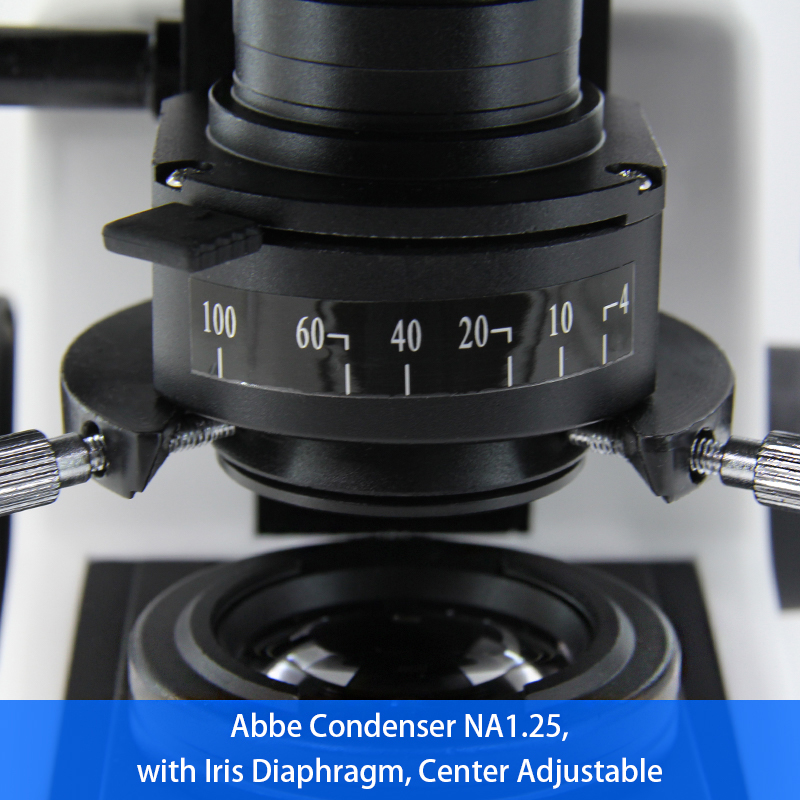

Abbe Condenser NA1.25, with Iris Diaphragm, Center Adjustable

A12.1502 Laboratory Biological Microscope		B	T	AB	AT
Optical System	Infinity Optical System	o	o
Optical System	Achromatic Optical System			o	o
Head	Binocular, Inclined at 30º, Interpupillary 48-75mm, 360° Rotatable	o		o
Head	Trinocular, Inclined at 30º, Interpupillary 48-75mm, 360° Rotatable		o		o
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustment -/+5	o	o
Eyepiece	WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustment -/+5			o	o

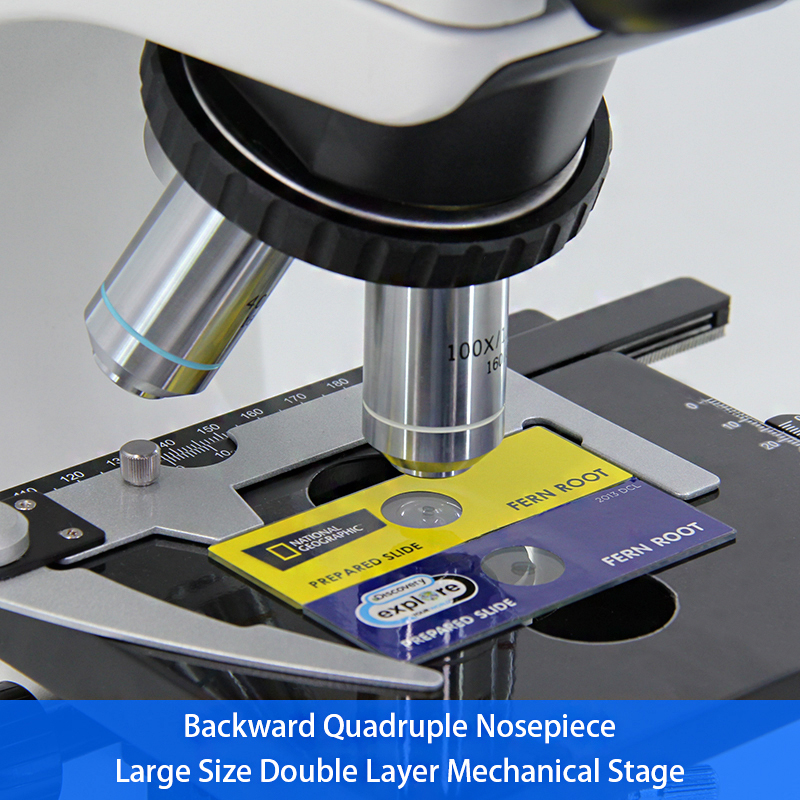

Nosepiece	Backward Quadruple Nosepiece	o	o	o	o
Objective	Infinite Plan High Contrast Chromatic-free 4X,10X,40X,100X	o	o
Objective	High Contrast Chromatic-free 4X,10X,40X,100X			o	o
Condenser	Abbe Condenser NA1.25, with Iris Diaphragm, Center Adjustable	o	o	o	o

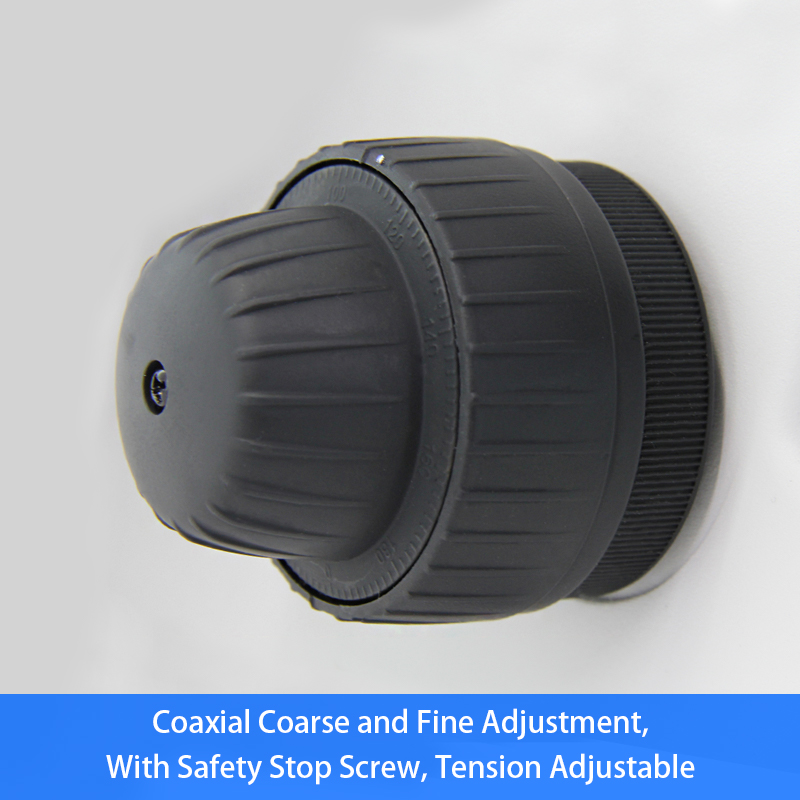

Focusing	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 24mm, With Safety Stop Screw, Tension Adjustable	o	o	o	o

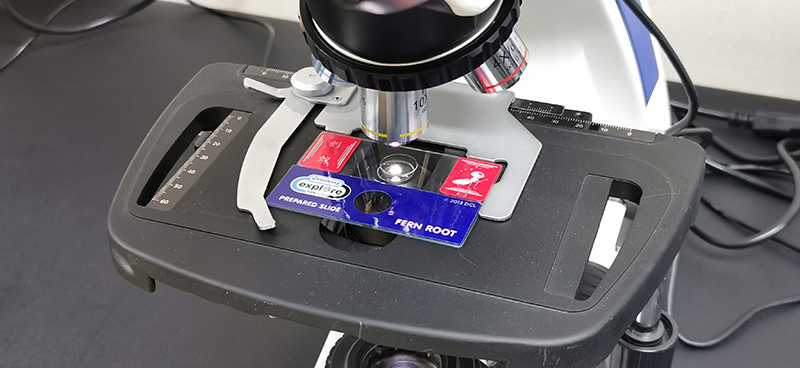

Working Stage	Large Size Double Layer Mechanical Stage 216x150mm, Graphite Surface, Moving Range 75mmx55mm, Reckless Safety Round Edge	o	o

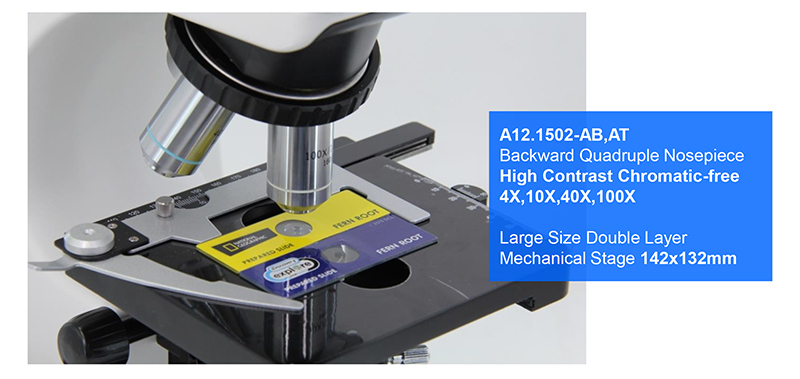

Working Stage	Large Size Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75mmx50mm			o	o

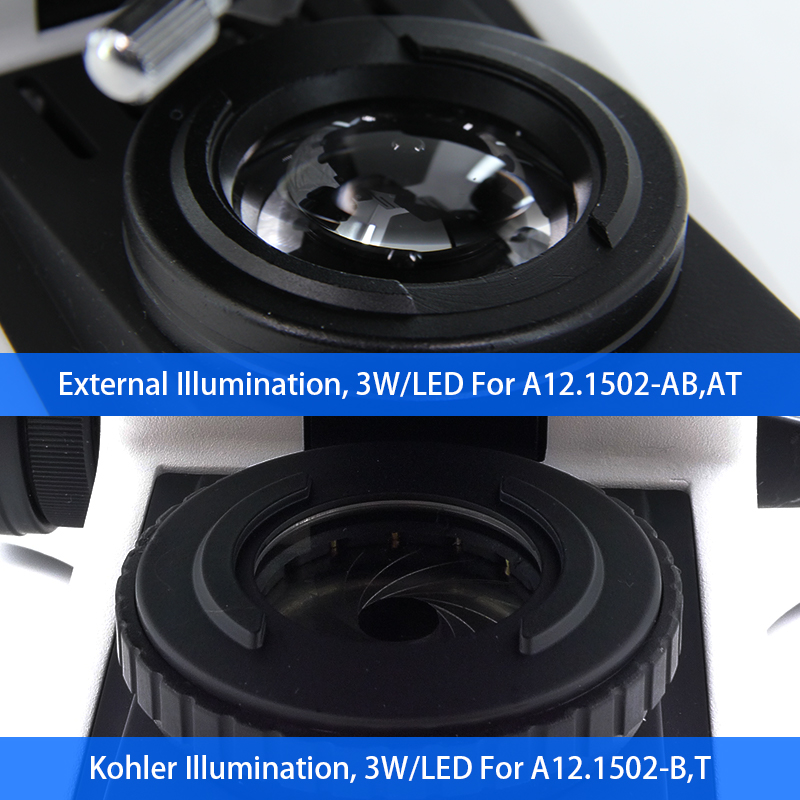

Light Source	Kohler Illumination, 3W/LED, Brightness Adjustable, With Blue Filter	o	o
Light Source	External Illumination, 3W/LED, Brightness Adjustable, With Blue Filter			o	o
Adapter	C-Mount 0.5x		o		o

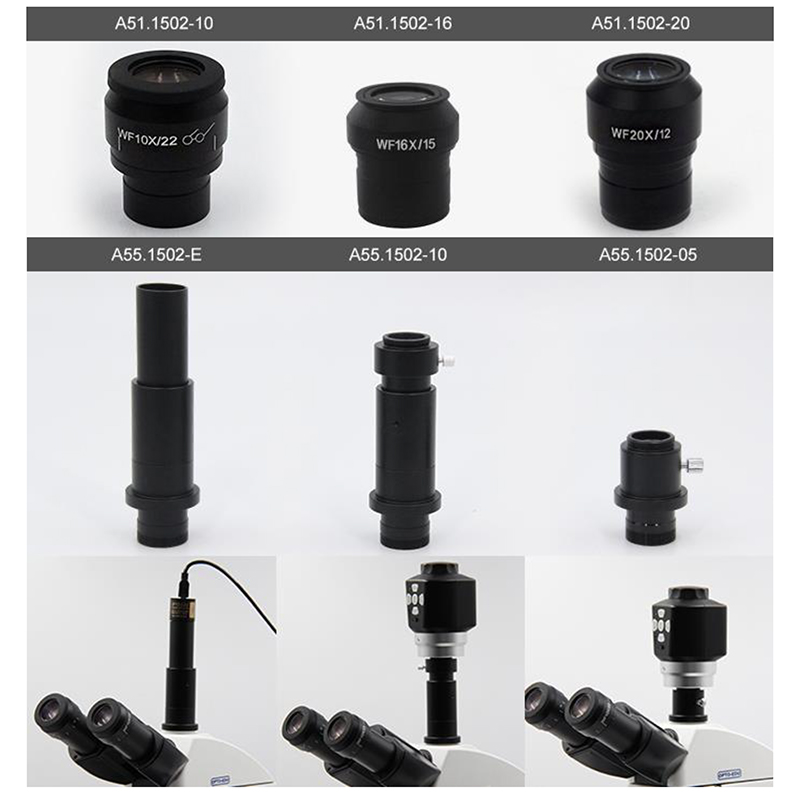

A12.1502 Laboratory Biological Microscope Optional Accessories
Eyepiece	WF16X/F.N.15mm	A51.1502-16
	WF20X/F.N.12mm	A51.1502-20
Nosepiece	Backward Quintuple Nosepiece	A54.1502-5

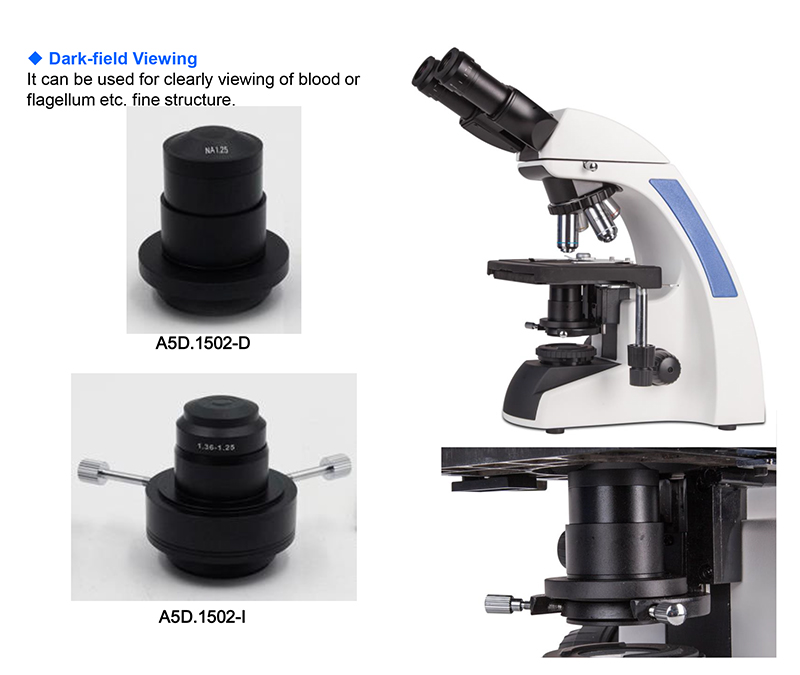

Dark Field	Dark Field Condenser, Dry, N.A.1.25	A5D.1502-D
	Dark Field Condenser, Immersion, N.A.1.25~1.36	A5D.1502-I

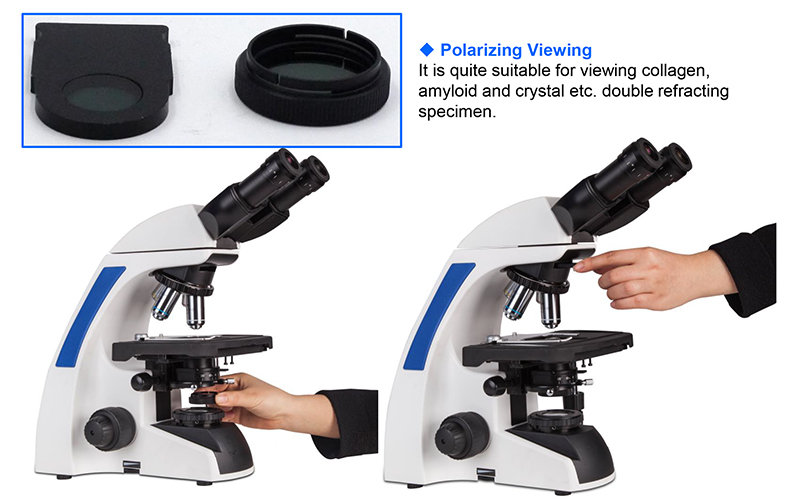

Polarizing	Polarizer & Analyzer	A5P.1501

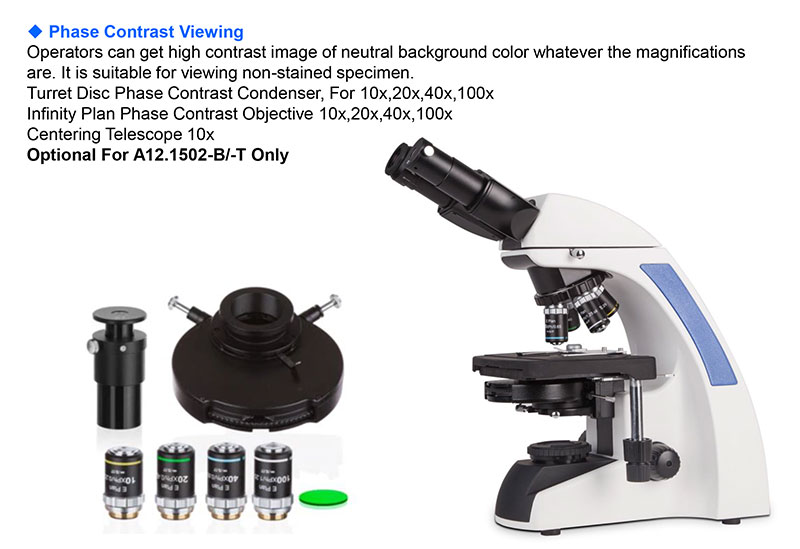

Phase Contrast	Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x Infinity Plan Phase Contrast Objective 10x,20x,40x,100x Centering Telescope 10x Optional For B, T Only	A5C.1501

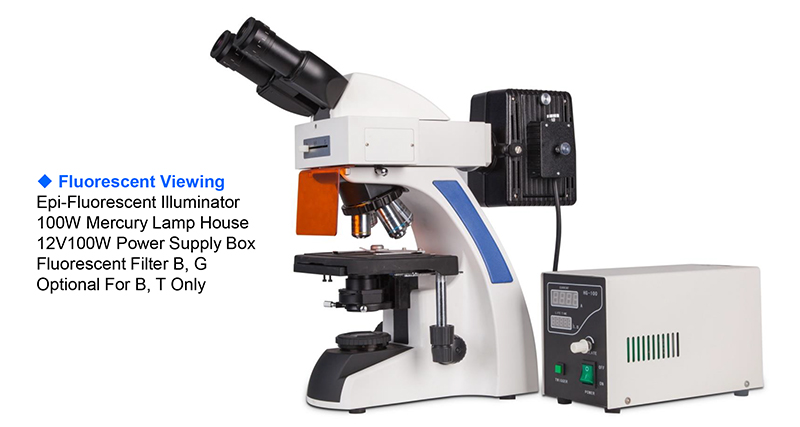

Fluorescent	Epi-Fluorescent Illuminator 100W Mercury Lamp House 12V100W Power Supply Box Fluorescent Filter B, G Optional For B, T Only	A5F.1501
Adapter	Eyepiece Tube Adapter	A55.1502-E
	C-Mount 1.0x	A55.1502-10

Pictures Hide Same Show Difference
Model No.	A12.1502-AB	A12.1502-B	A12.1502-T	A12.1502-AT

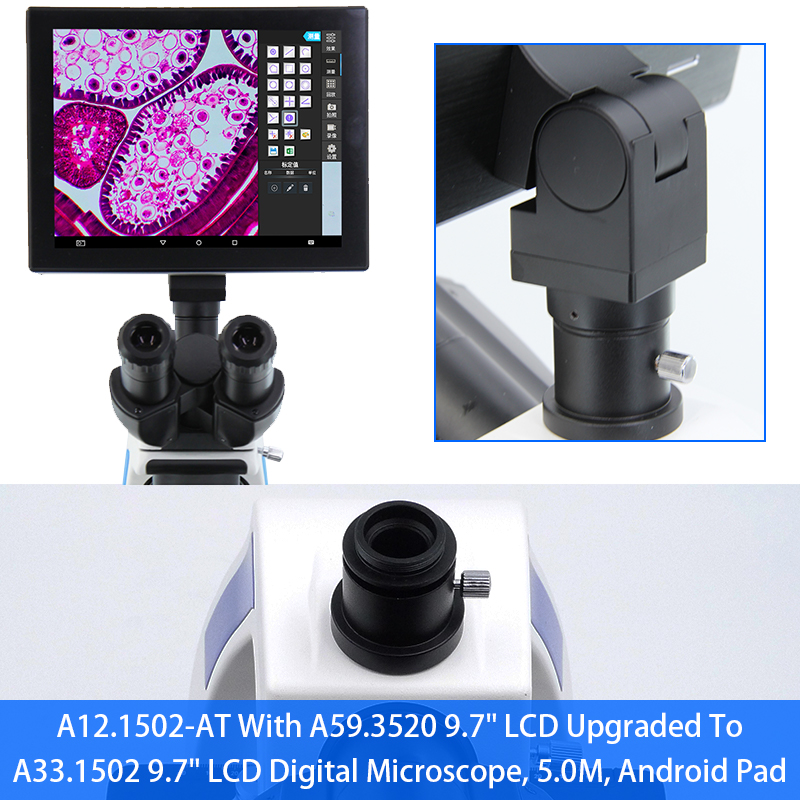

Video Adapter	C-Mount 0.3x	C-Mount 0.3x	——	C-Mount 0.5x Digital Eyepice 23.2mm
Transmit Light	3W LED	3W LED	3W LED	3W LED
Light Source Type	LED	LED	LED	LED
Condenser N.A.	1.25	1.25	1.25	1.25
Condenser Type	Abbe	Abbe	Abbe	Abbe
Condenser Features	Center Adjustable Rack & Pinionↆ↑	Center Adjustable Rack & Pinionↆ↑	Center Adjustable Rack & Pinionↆ↑	Center Adjustable Rack & Pinionↆ↑
Focusing Knob	Coarse Stroke 37.7mm/Rotation	Coarse Stroke 37.7mm/Rotation	Coarse Stroke 37.7mm/Rotation	Coarse Stroke 37.7mm/Rotation
Focusing Scale	0.002mm	0.002mm	0.002mm	0.002mm
Focusing Range	24mm	24mm	24mm	24mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw
Working Stage	Graphite Surface	Graphite Surface	Graphite Surface	Graphite Surface
Working Stage Moving	75x50mm	75x55mm	75x55mm	75x50mm
Working Stage Size	142x132mm	216x150mm	216x150mm	142x132mm
Working Stage Features	Double Slide Holder	Double Slide Holder Size ≥140x140mm Rackless Safety Edge	Double Slide Holder Size ≥140x140mm Rackless Safety Edge	Double Slide Holder
Objective	High Contrast Chromatic-free 4x,10x,40x,100x	Infinity Plan High Contrast Chromatic-free 4x,10x,40x,100x	Infinity Plan High Contrast Chromatic-free 4x,10x,40x,100x	High Contrast Chromatic-free 4x,10x,40x,100x
Objective Type	Achromatic	Infinity Plan	Infinity Plan	Achromatic
Nosepiece Holes	4 Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	Inward	Inward	Inward	Inward
Eyepiece	WF10x/20mm, 2 pcs	WF10x/22mm, 2 pcs	WF10x/22mm, 2 pcs	WF10x/20mm, 2 pcs
Eyepiece Diameter	30.0mm	30.0mm	30.0mm	30.0mm
Eyepiece Features	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable	Diopter Adjustable
Head Interpupillary	48~75mm	48~75mm	48~75mm	48~75mm
Head Rotation	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°	Head Rotate 360°
Head Type	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Trinocular
Standard Magnification	——	——	——	40x-1000x
Optical System	Achromatic	Infinity Plan	Infinity Plan	Achromatic
New Product Year	2015	2015	2015	2015
Light Source Features	——	Kohler	Kohler	——
Features	——	Infinity	Infinity	——
Head Light Path	——	——	E50:P50	——

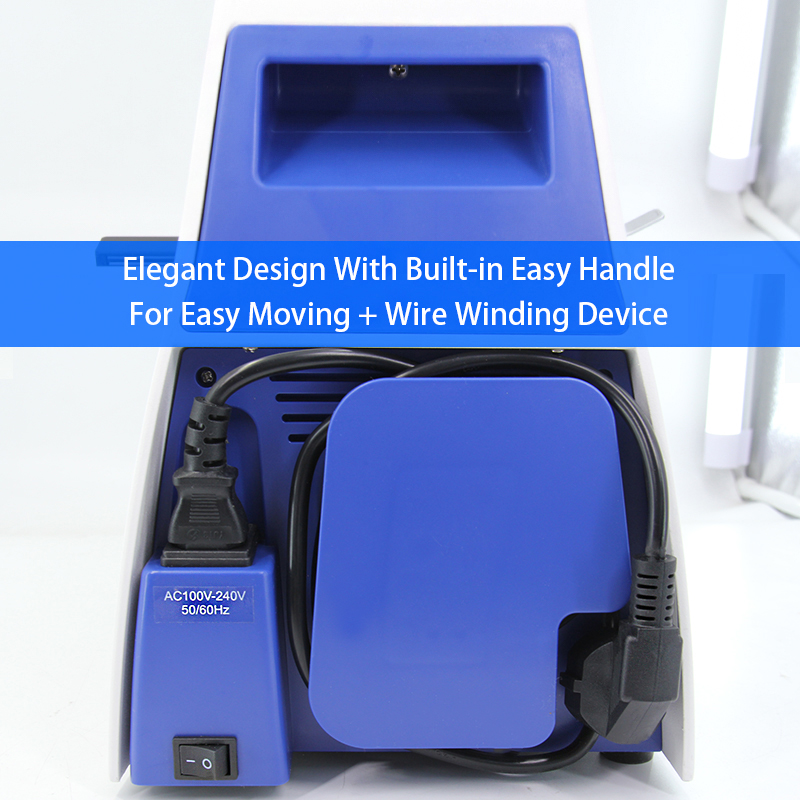

Power Supply Type	——	——	——	AC 110V-240V
Working Stage Type	——	——	——	2 Layers Mechanical
Head Inclination	——	——	——	30°
Upgrade Function	——	——	——	BF+PH+DF+PL+FL
Standard Function	——	——	——	BF

A12.1502 Catalogue.pdf

A12.1502 Instruction Manual.pdf
