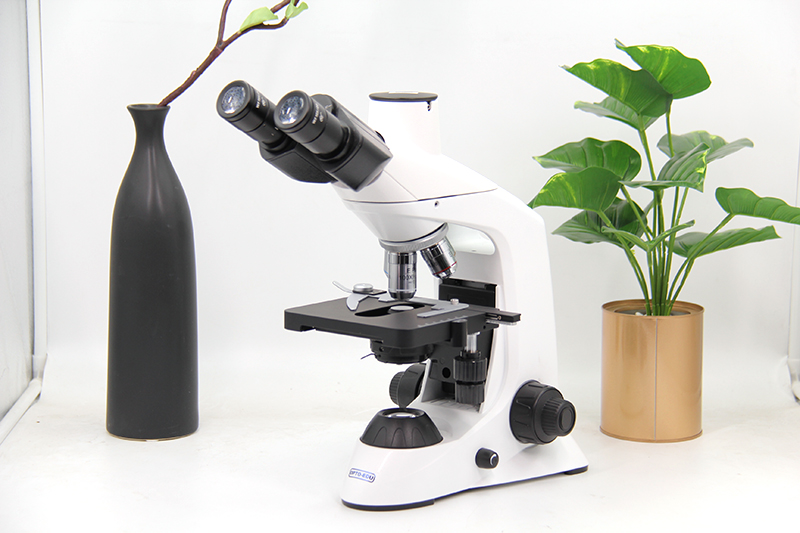

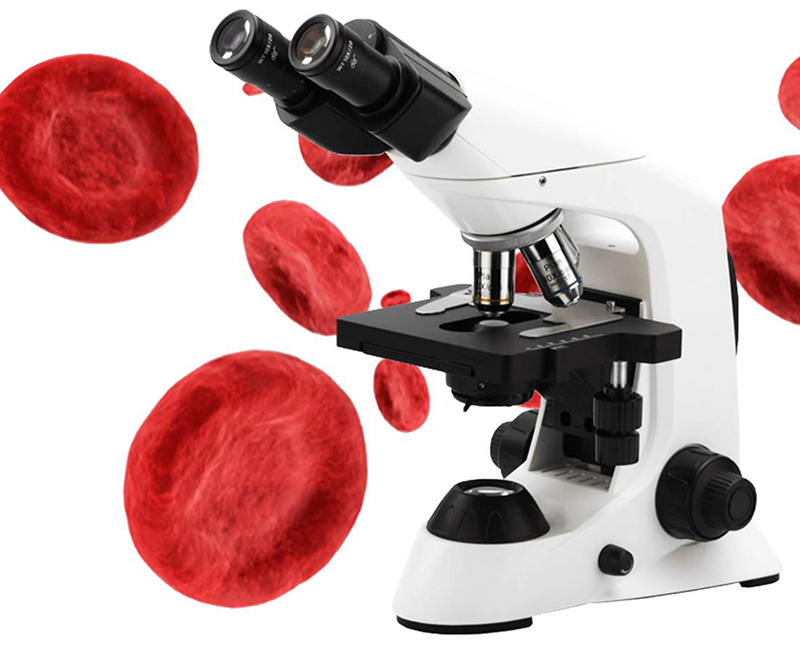

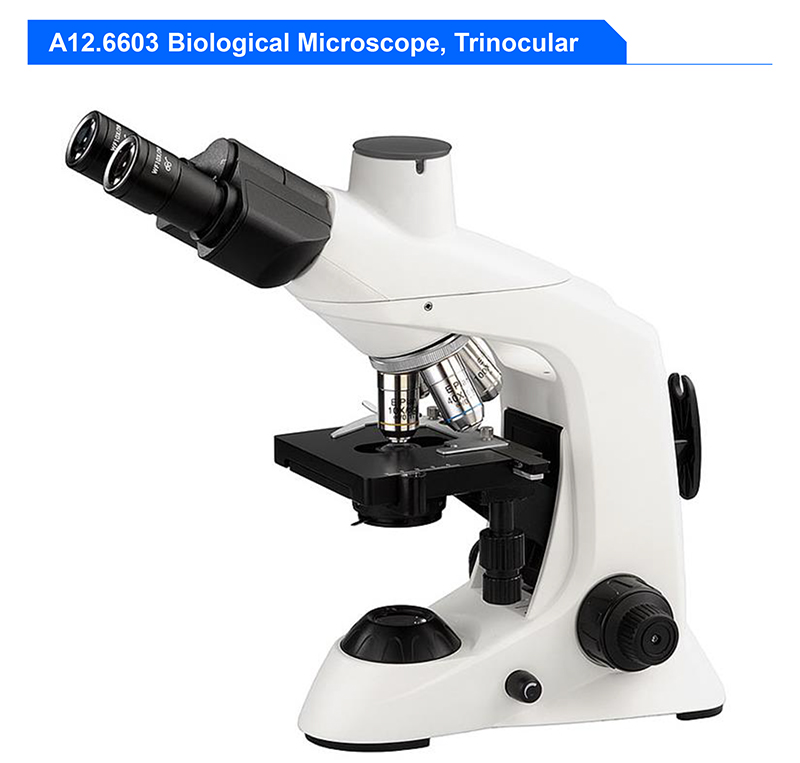

Laboratory Biological Microscope, Trinocular, Infinity Plan


  • Best Model Of Infinity Plan Level Microscope! China Industrial Best Design Award-Red Star Winner!

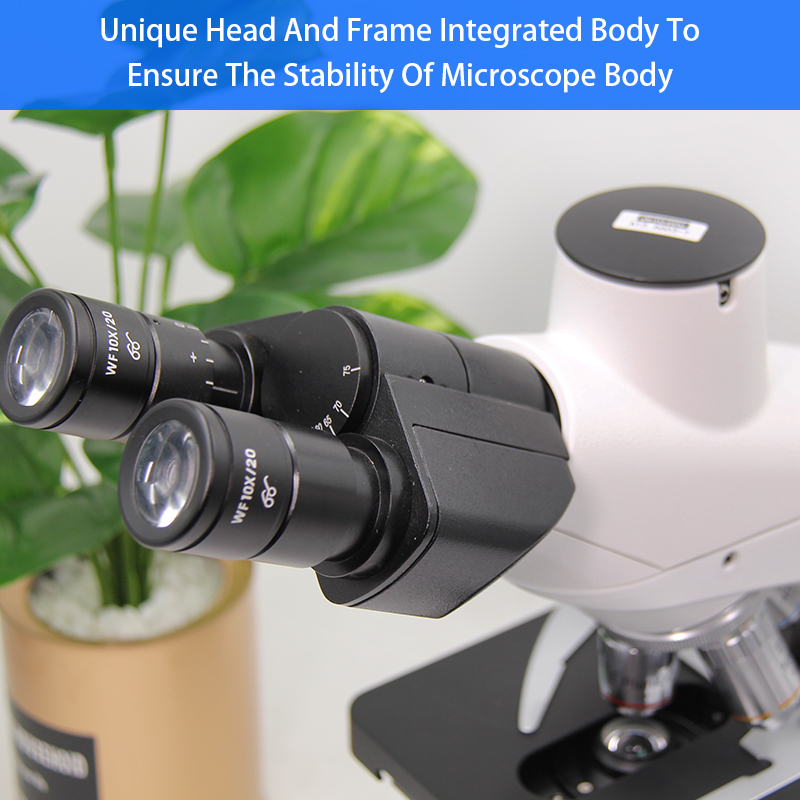

  • Moden Design Drop Shaped Intergrated Viewing Head, Eyepiece Tube Can Rotate Butterfly Freely To Fit Different Working Height

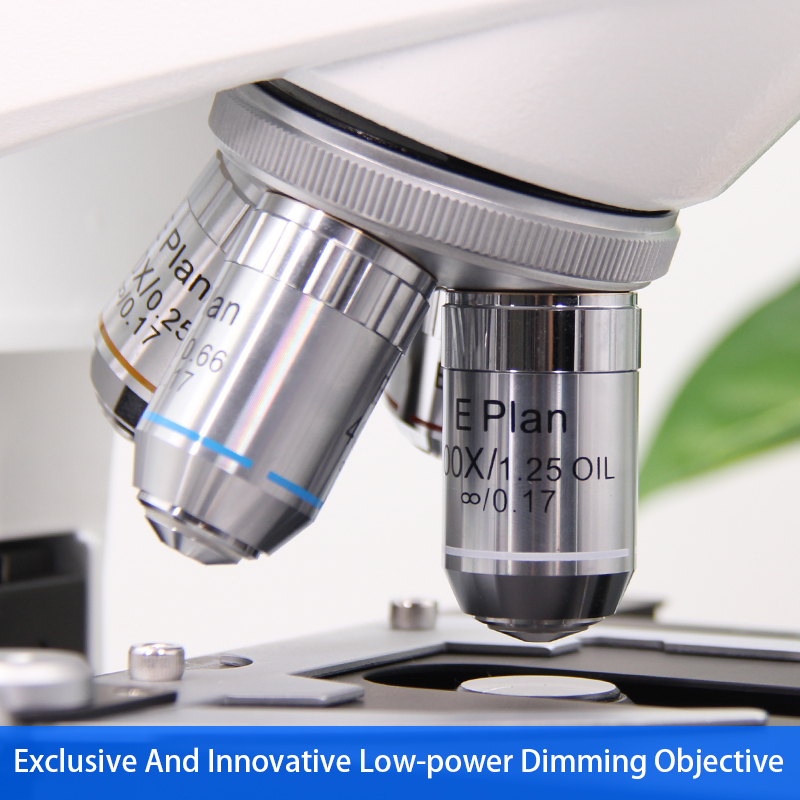

  • Unique Designed Dimming Objective 4x/10x, No Need To Lower Brightness When Use
  • Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil

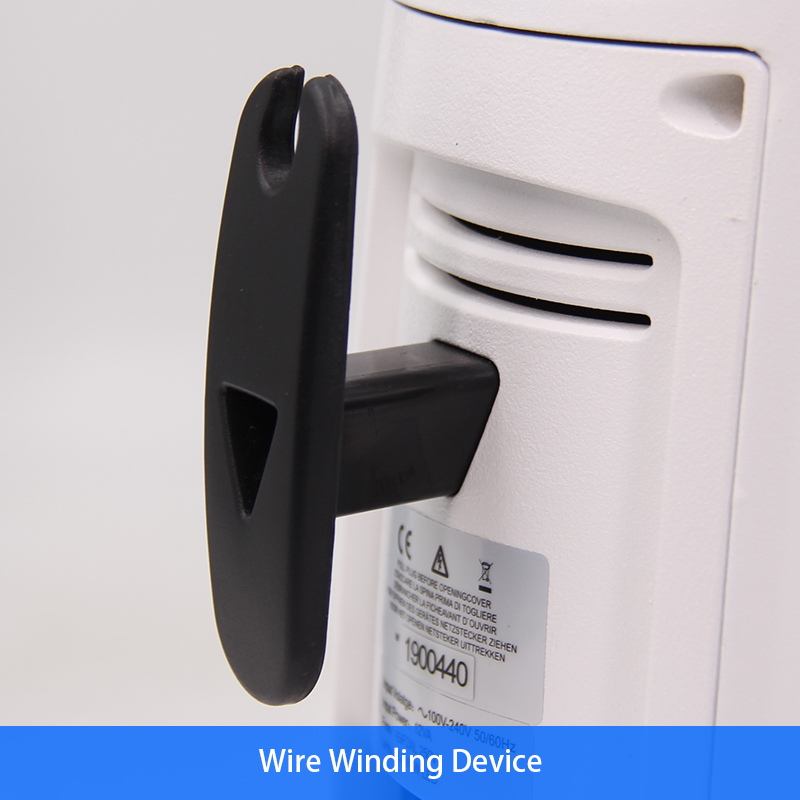

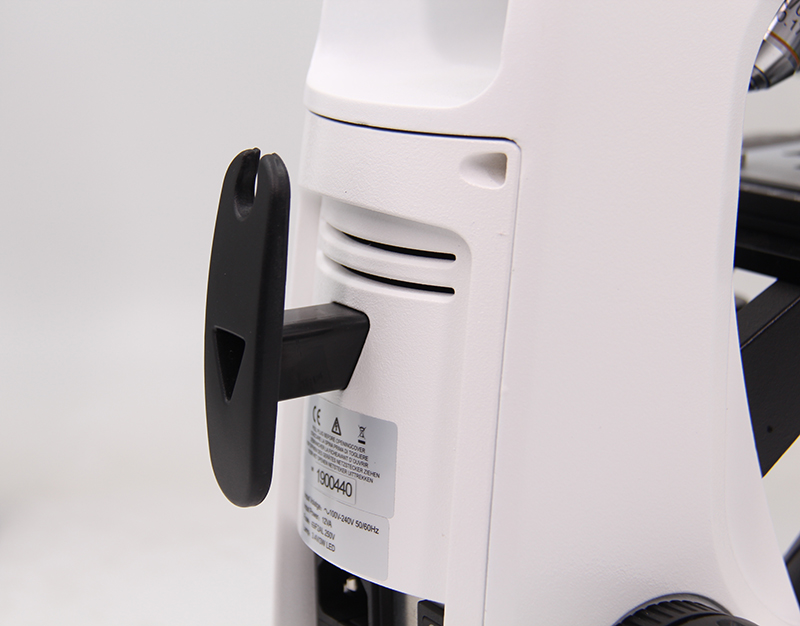

  • Elegant Design With Built-in Easy Handle For Easy Moving + Wire Winding Device
  • Supply Ability:1000 piece / Month
  • Country of Origin:China Port
Quantity:
Pictures
Model No. A12.6603-T2 A12.6603-T A12.6603-T3 A12.6603-T4
Features
Infinity Infinity —— ——
New Product Year
2012 2012 2012 2012
Optical System
Infinity Plan Infinity Semi-Plan Achromatic Plan
Standard Magnification
40x-1000x 40x-1000x 40x-1000x 40x-1000x
Optional Magnification
40x-1600x 40x-1600x 40x-1600x 40x-1600x

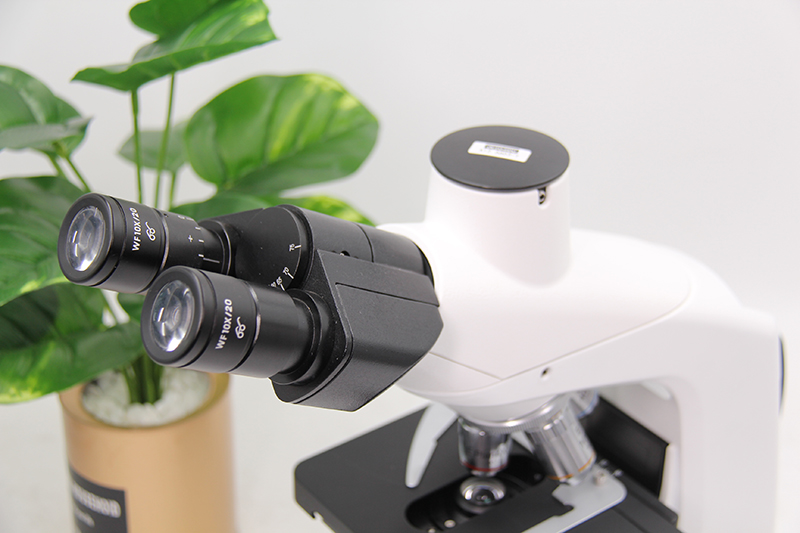

Head Type
Seidentopf Trinocular Seidentopf Trinocular Seidentopf Trinocular Seidentopf Trinocular
Head Inclination
30°+90° 30°+90° 30°+90° 30°+90°
Head Rotation
Eyetube Rotate 360° Eyetube Rotate 360° Eyetube Rotate 360° Eyetube Rotate 360°
Head Diopter
Left Tube Adjustable Left Tube Adjustable Left Tube Adjustable Left Tube Adjustable
Head Light Path
Switch E100:P0/E20:P80/E0:P100 Switch E100:P0/E20:P80/E0:P100 Switch E100:P0/E20:P80/E0:P100 Switch E100:P0/E20:P80/E0:P100
Eyepiece Features
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Wide Field
High Eyepoint
Eyepiece Diameter
23.2mm 23.2mm 23.2mm 23.2mm
Working Distance
格式:1.0,或1.0~2.0 格式:1.0,或1.0~2.0 格式:1.0,或1.0~2.0 格式:1.0,或1.0~2.0
Eyepiece
WF10x/20mm, 2 pcs WF10x/20mm, 2 pcs WF10x/18mm, 2 pcs WF10x/18mm, 2 pcs
Nosepiece Holes
4 Holes 4 Holes 4 Holes 4 Holes
Nosepiece Features
Center Adjustable Center Adjustable Center Adjustable Center Adjustable
Objective Type
Infinity Plan Infinity E-Plan Achromatic Plan
Objective Features
100x Dry 100x Dry 100x Dry 100x Dry

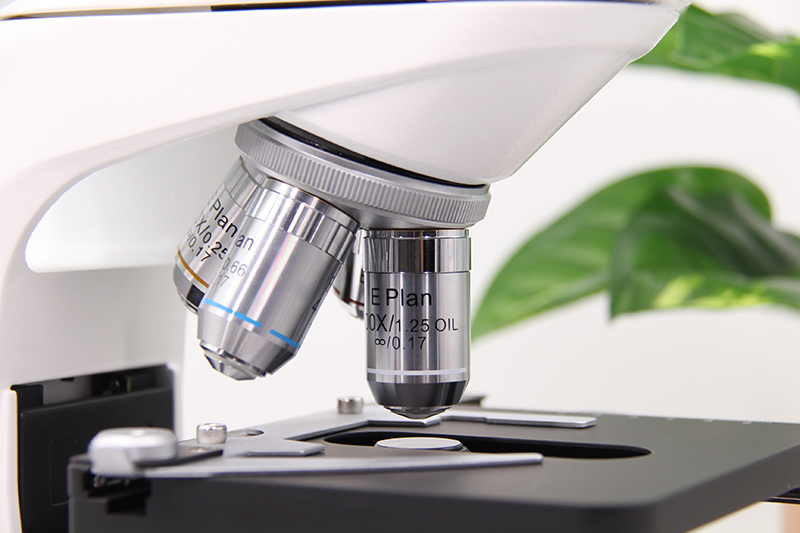

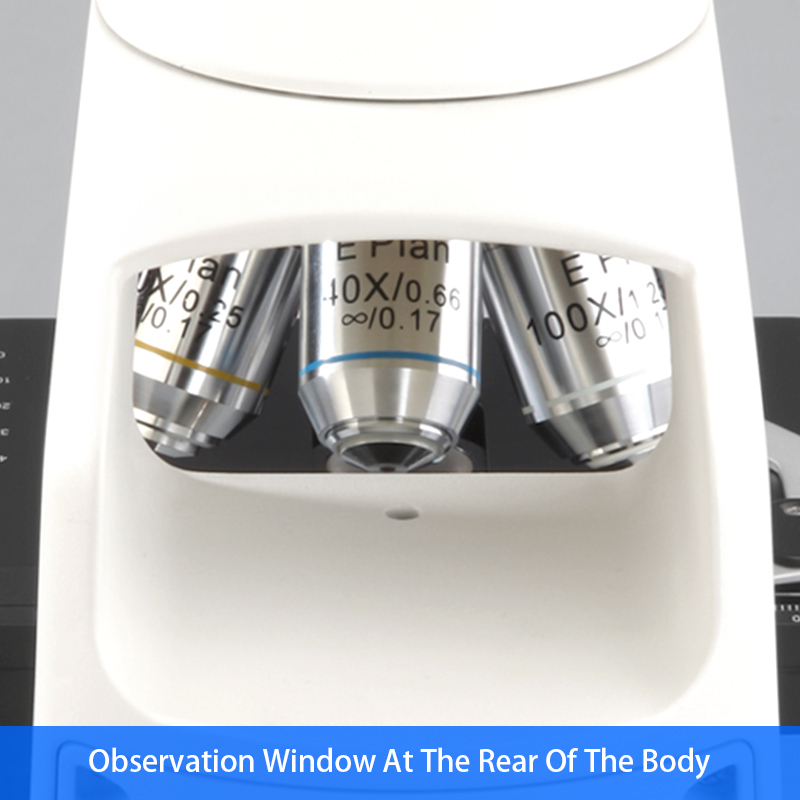

Objective
A52.2606 Infinity Plan Achromatic Objective

4X/0.10 W.D.=12.1mm

10X/0.25 W.D.=4.64mm

40X/0.66(S) W.D.=0.65mm

100X/1.25(S,Oil) W.D.=0.12mm
A52.2605 Infinity E-Plan Achromatic Objective

4x,/0.10 W.D.=12.1mm

10x,/0.25 W.D.=4.14mm

40x,/0.65 (S) W.D.=0.58mm

100x,/1.25 (S,Oil) W.D.=0.19mm
A52.2601 Achromatic Objective

4x/0.10,W.D.=18.6mm

10x/.0.25,W.D.=6.5mm

40x/0.65,W.D.=0.47mm

100x/1.25,W.D.=0.07mm
A52.2603 Plan Achromatic Objective

4x/0.10,W.D.=14.5mm

10x/.0.25,W.D.=5.65mm

40x/0.65,W.D.=0.85mm

100x/1.25,W.D.=0.07mm

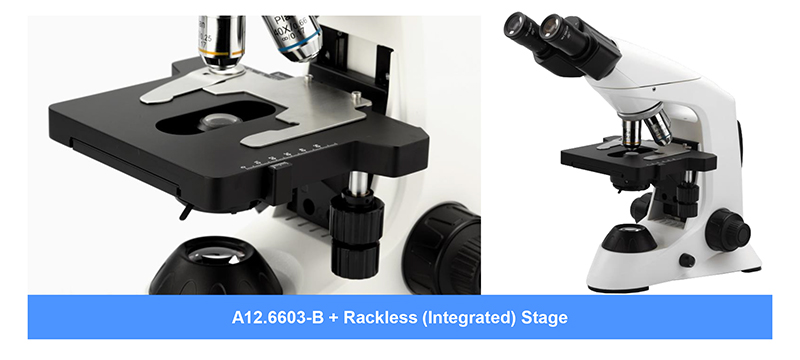

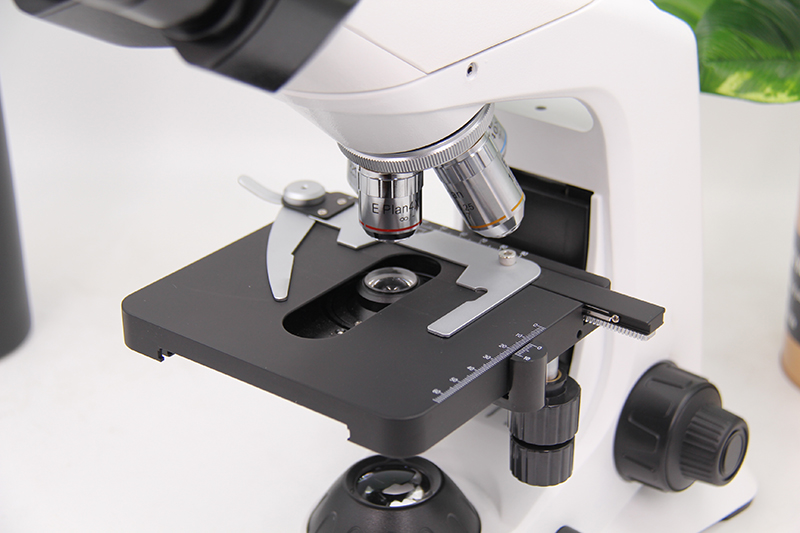

Working Stage Type
Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical Double Layers Mechanical
Working Stage Feature
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm
Double Slide Holder
Large Size >140x140mm

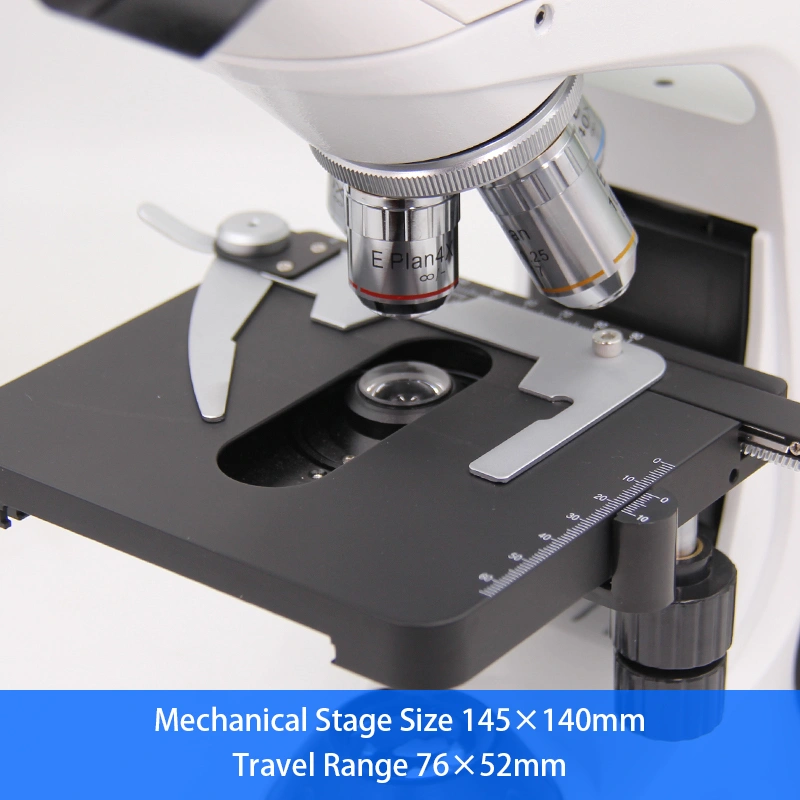

Working Stage Size
145x140mm 145x140mm 145x140mm 145x140mm
Working Stage Moving
76x52mm 76x52mm 76x52mm 76x52mm
Working Stage Spec.
Scale 0.1mm Scale 0.1mm Scale 0.1mm Scale 0.1mm
Focusing Features
Safety Stop Screw
Tension Adjustable
Safety Stop Screw
Tension Adjustable
Safety Stop Screw
Tension Adjustable
Safety Stop Screw
Tension Adjustable
Focusing Range
25mm 25mm 25mm 25mm
Focusing Scale
0.002mm 0.002mm 0.002mm 0.002mm

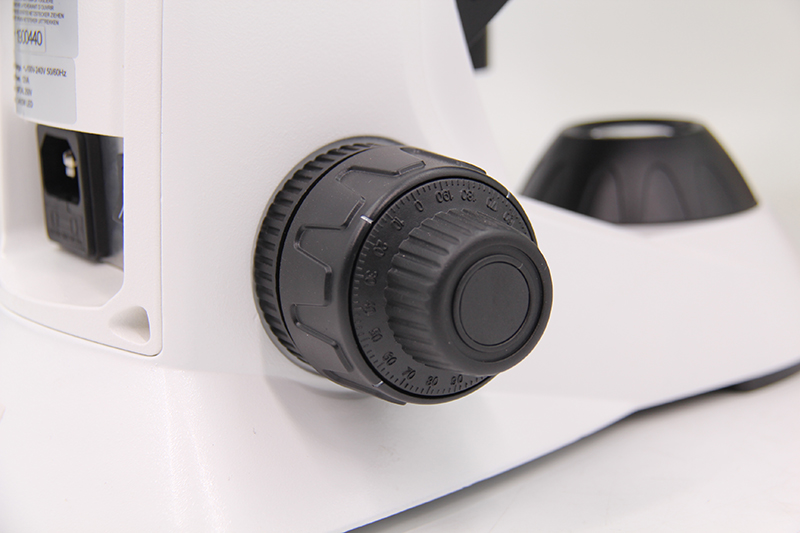

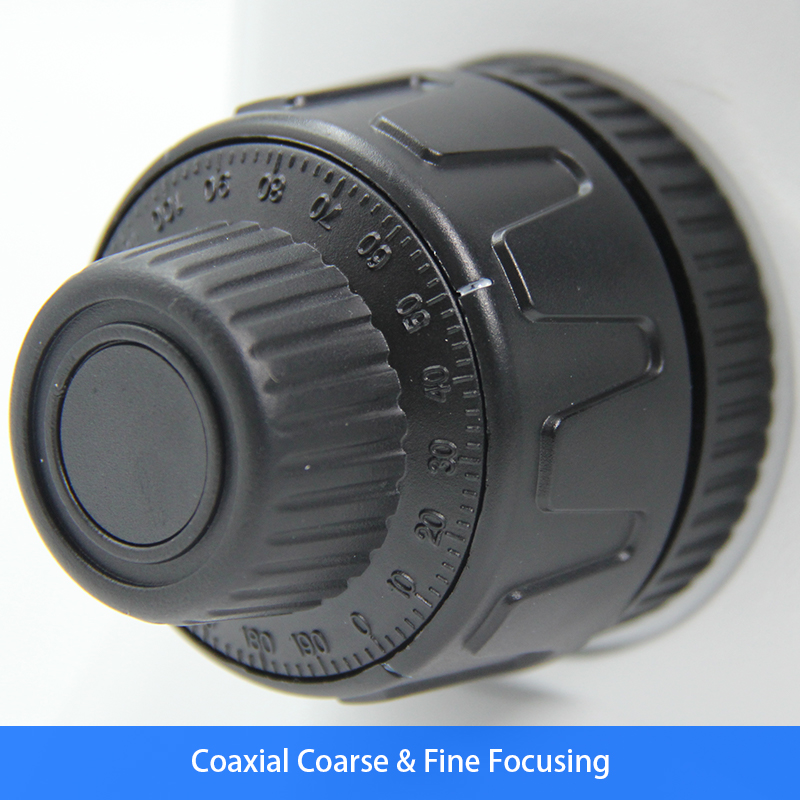

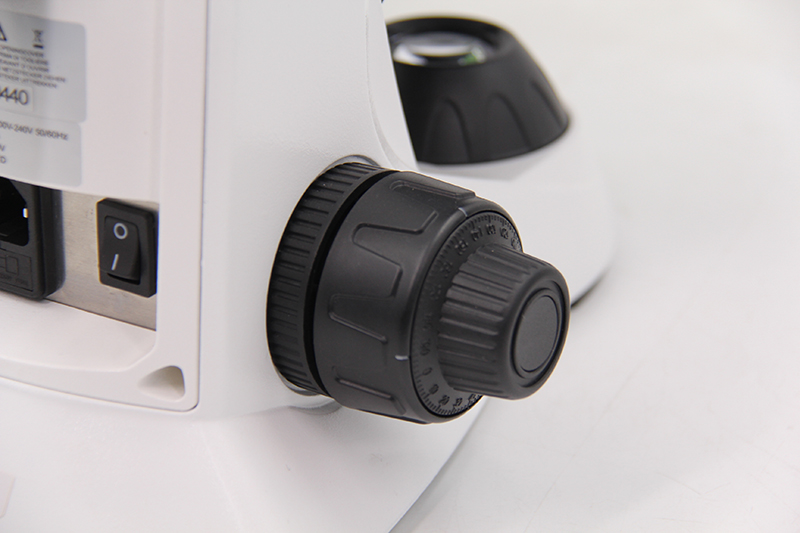

Focusing Knob
Low Position Coaxial Corarse & Fine Focusing System For Long Time Comfortable Operation Low Position Coaxial Corarse & Fine Focusing System For Long Time Comfortable Operation Low Position Coaxial Corarse & Fine Focusing System For Long Time Comfortable Operation Low Position Coaxial Corarse & Fine Focusing System For Long Time Comfortable Operation

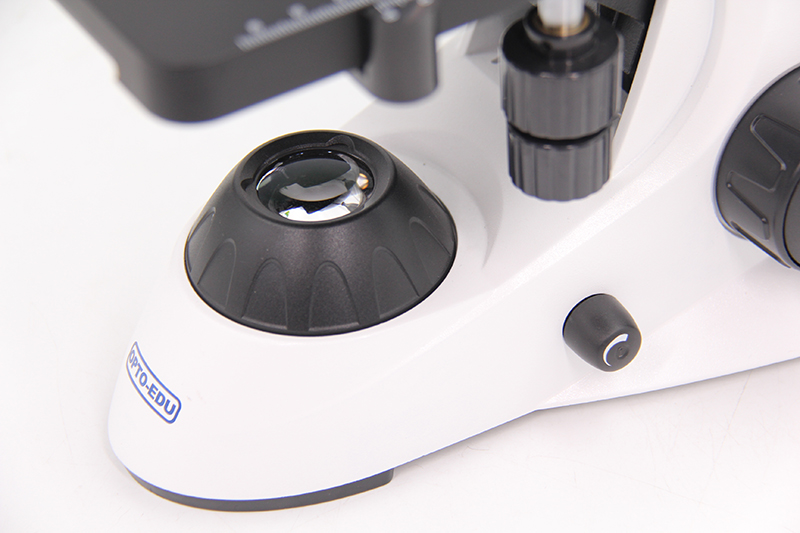

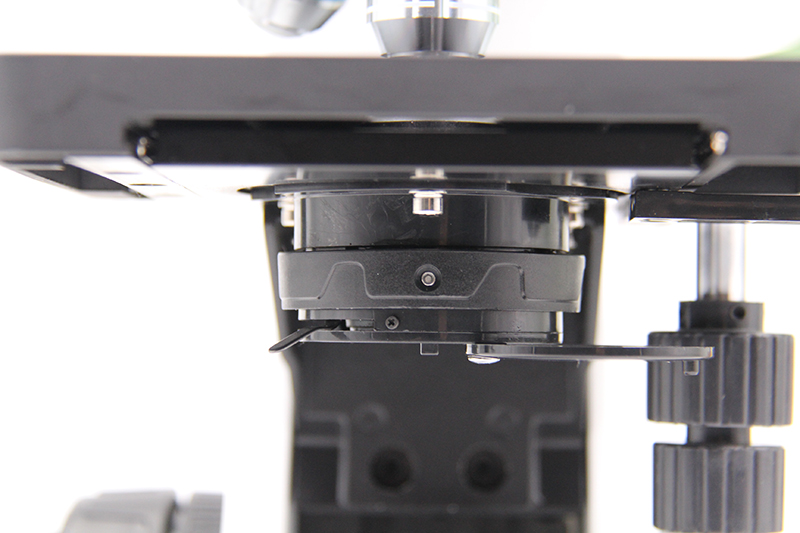

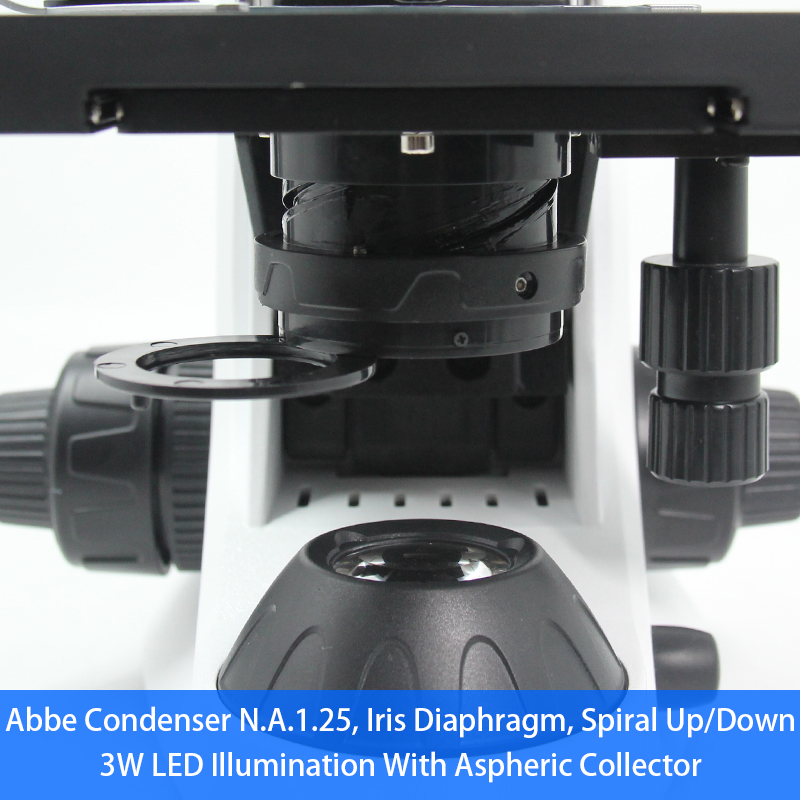

Condenser Type
Abbe + Iris Diaphragm Abbe + Iris Diaphragm Abbe + Iris Diaphragm Abbe + Iris Diaphragm
Condenser N.A.
1.20 1.20 1.20 1.20
Condenser Features
Sprial Up/Down
With Filter Holder
Sprial Up/Down
With Filter Holder
Sprial Up/Down
With Filter Holder
Sprial Up/Down
With Filter Holder

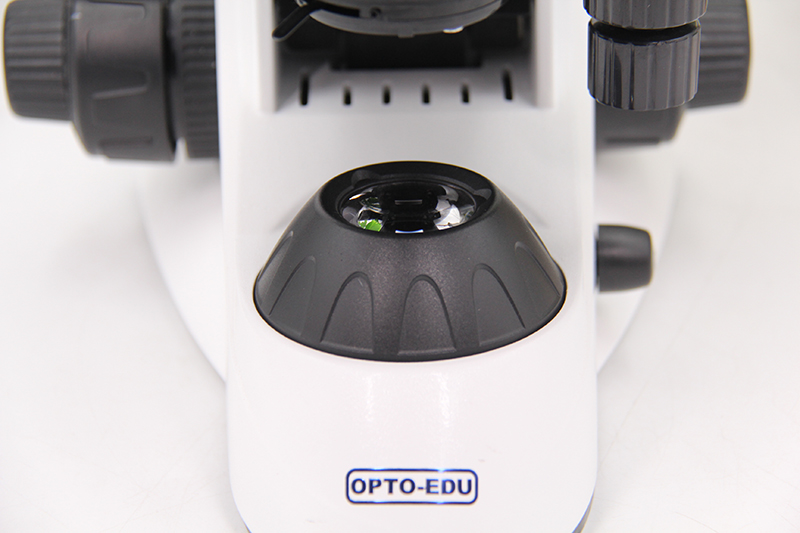

Light Source Feature
Brightness Adjustable
Aspheric Collector
Brightness Adjustable
Aspheric Collector
Brightness Adjustable
Aspheric Collector
Brightness Adjustable
Aspheric Collector
Light Source Type
LED LED LED LED
Transmit Light
3W LED Light With Aspheric Collector 3W LED Light With Aspheric Collector 3W LED Light With Aspheric Collector 3W LED Light With Aspheric Collector

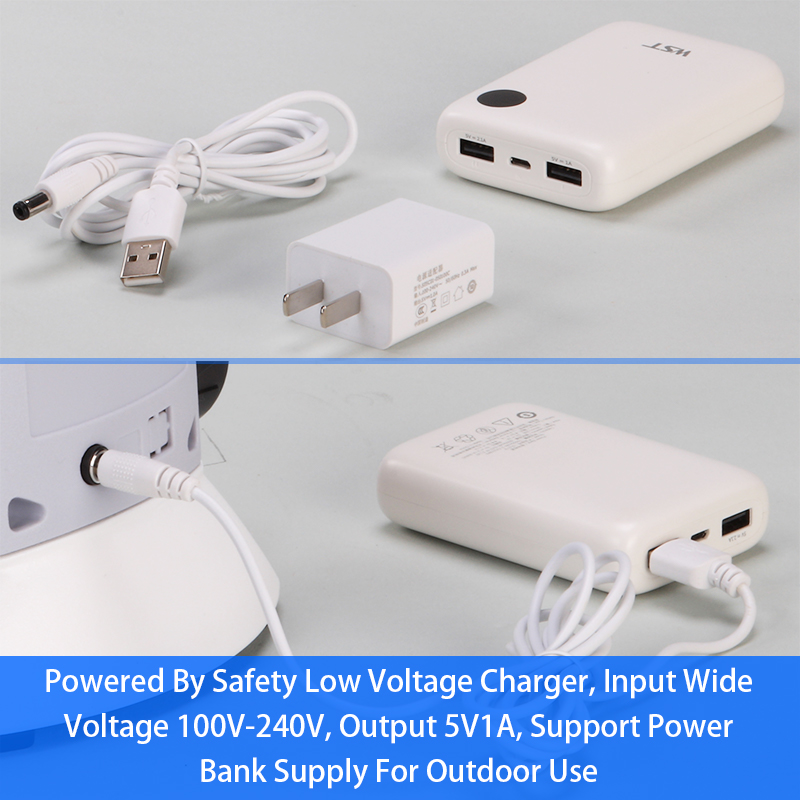

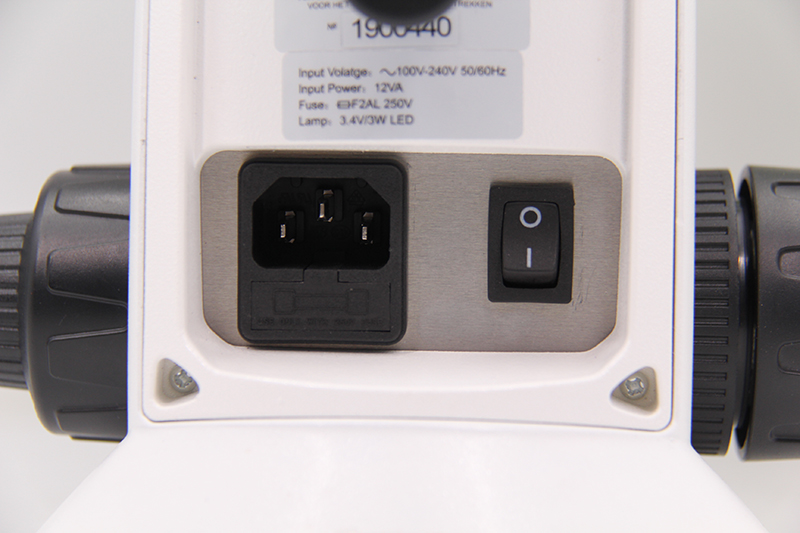

Power Supply Type
AC 100V-240V Wide Voltage AC 100V-240V Wide Voltage AC 100V-240V Wide Voltage AC 100V-240V Wide Voltage

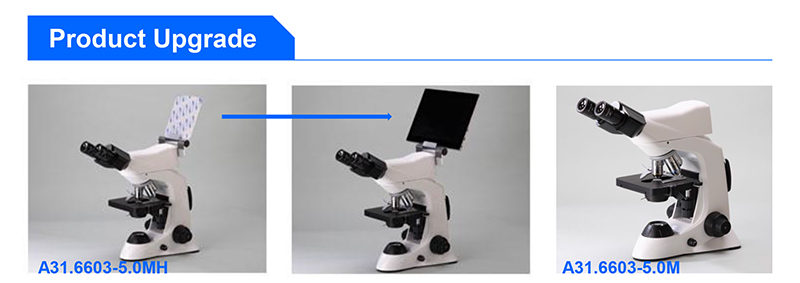

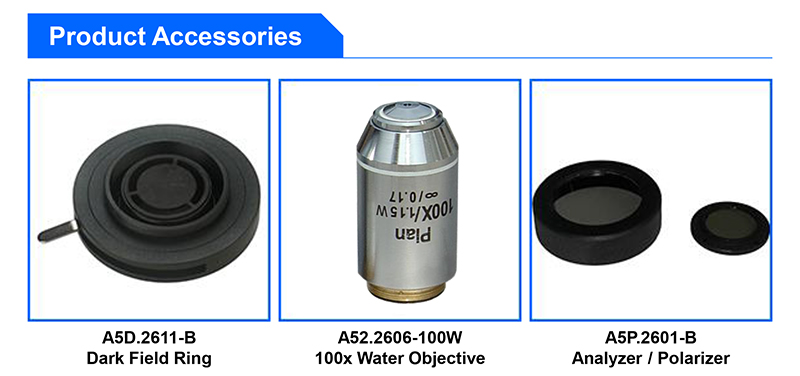

Function Upgradeable
Dark Field
Polarizing
Dark Field
Polarizing
Dark Field
Polarizing
Dark Field
Polarizing
