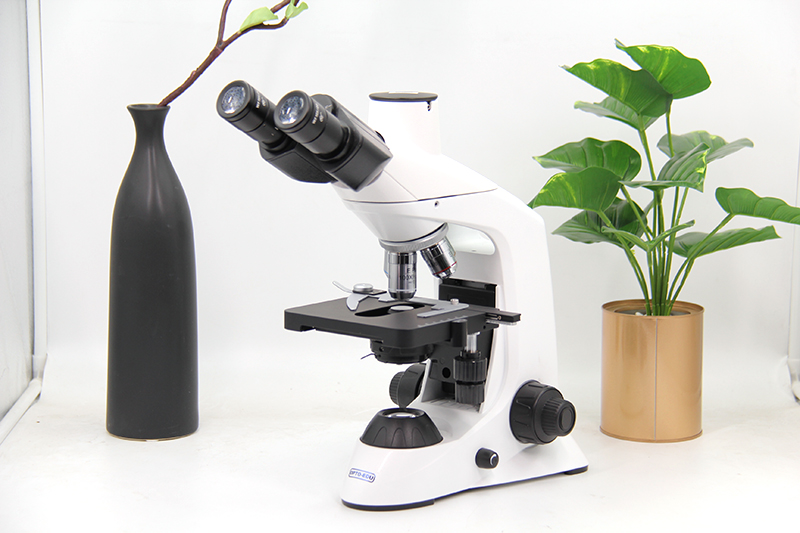

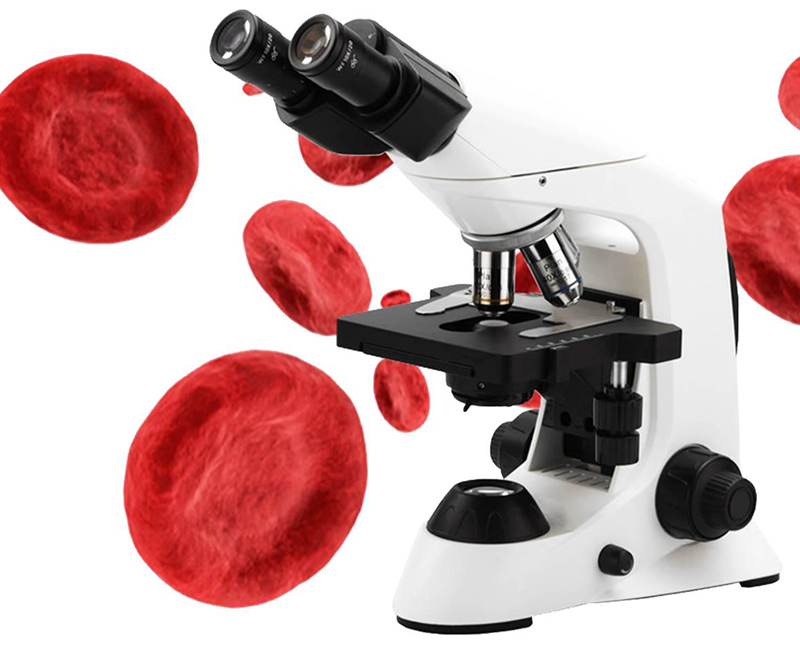

Biological Microscope, Trinocular, Achromatic

A12.6603-T3

Like Favorites

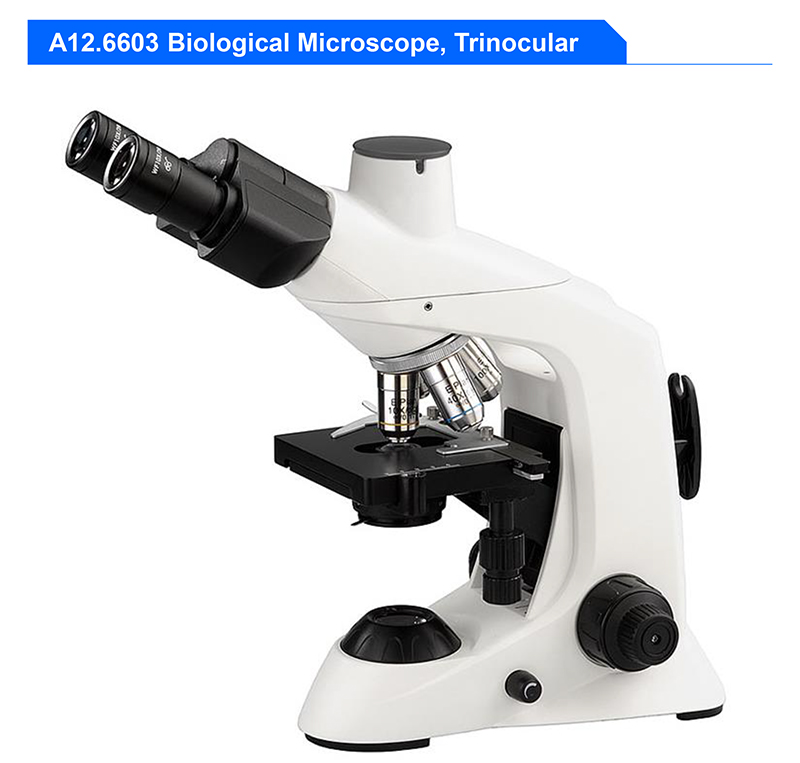

Biological Microscope, Trinocular, Achromatic

Best Model Of Infinity Plan Level Microscope! China Industrial Best Design Award-Red Star Winner!
Moden Design Drop Shaped Intergrated Viewing Head, Eyepiece Tube Can Rotate Butterfly Freely To Fit Different Working Height
Unique Designed Dimming Objective 4x/10x, No Need To Lower Brightness When Use
Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
Elegant Design With Built-in Easy Handle For Easy Moving + Wire Winding Device

Specification:

A12.6603-T3

A12.6603-B4

A12.6603-T4

Biological Microscope, Binocular, Infinity E-Plan

A12.6603-B

Biological Microscope, Trinocular, Infinity E-Plan

A12.6603-T

Biological Microscope, Binocular, Infinity Plan

A12.6603-B2

Biological Microscope, Trinocular, Infinity Plan

A12.6603-T2

Biological Microscope, Binocular, Achromatic

A12.6603-B3

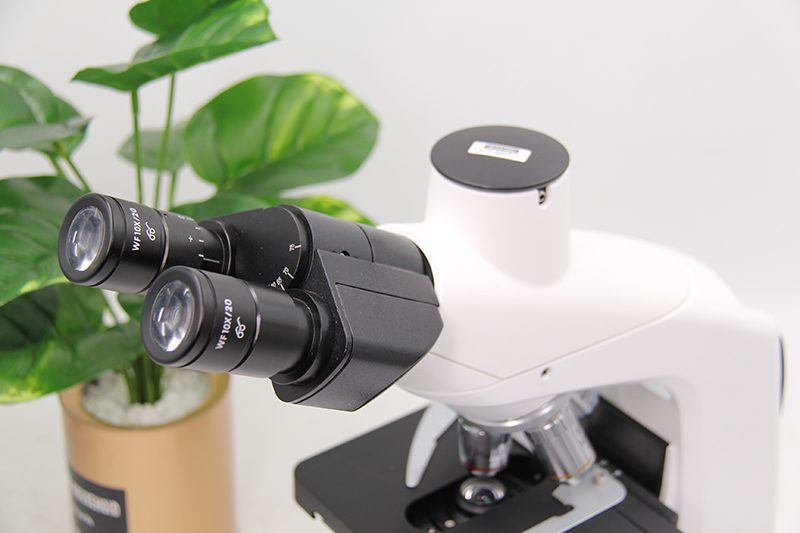

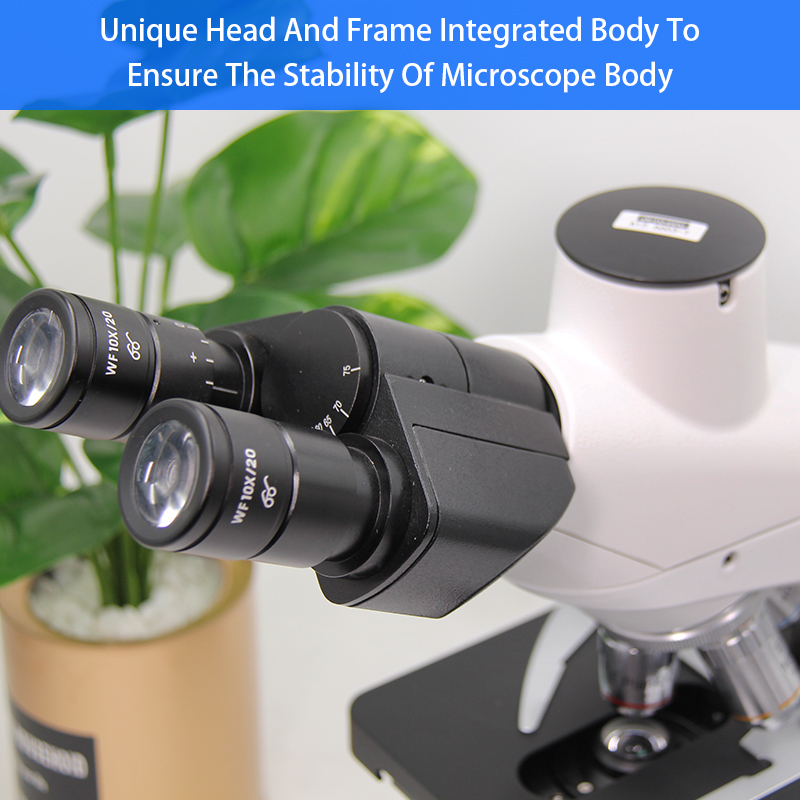

Unique Head And Frame Integrated Body & Integrated Design Of The Eyepiece Lens Barrel
Butterfly Type (Butterfly) Binocular Design, The Lens Barrel Can Be Rotated 360°, High Eyepoint Eyepiece,

Which Is Convenient For People With Different Sitting Height; The Integrated Design Of The Eyepiece Lens Barrel,

Avoids The Loss And Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope

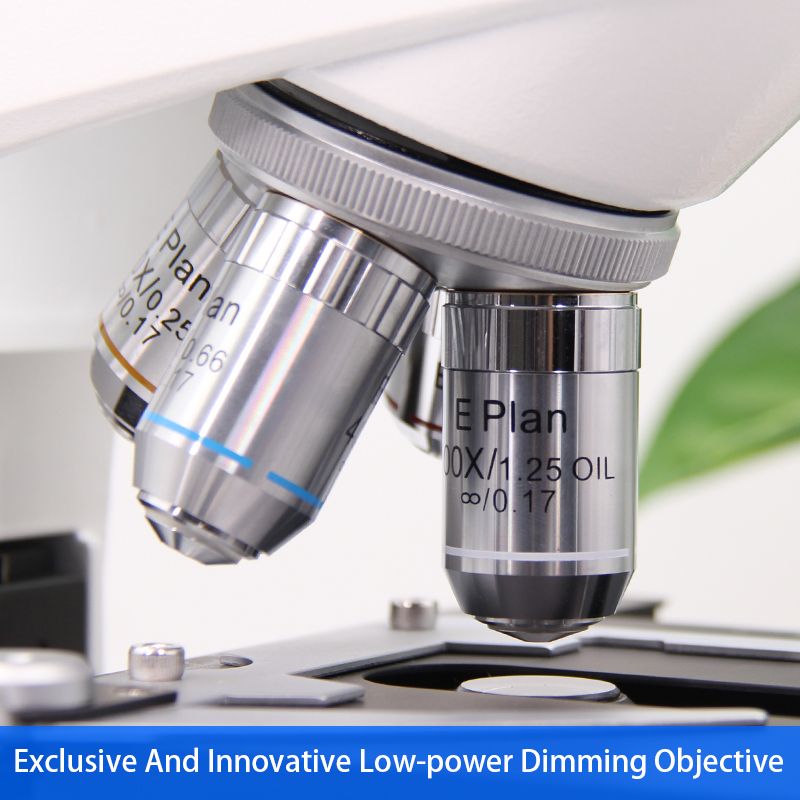

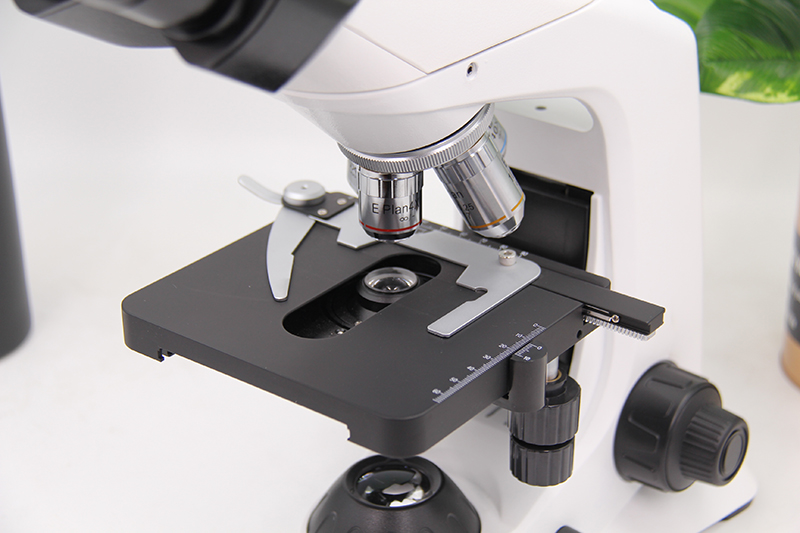

Exclusive And Innovative Low-power Dimming Objective & Mechanical Stage
No Need To Adjust The Brightness Between High And Low Power Objectives

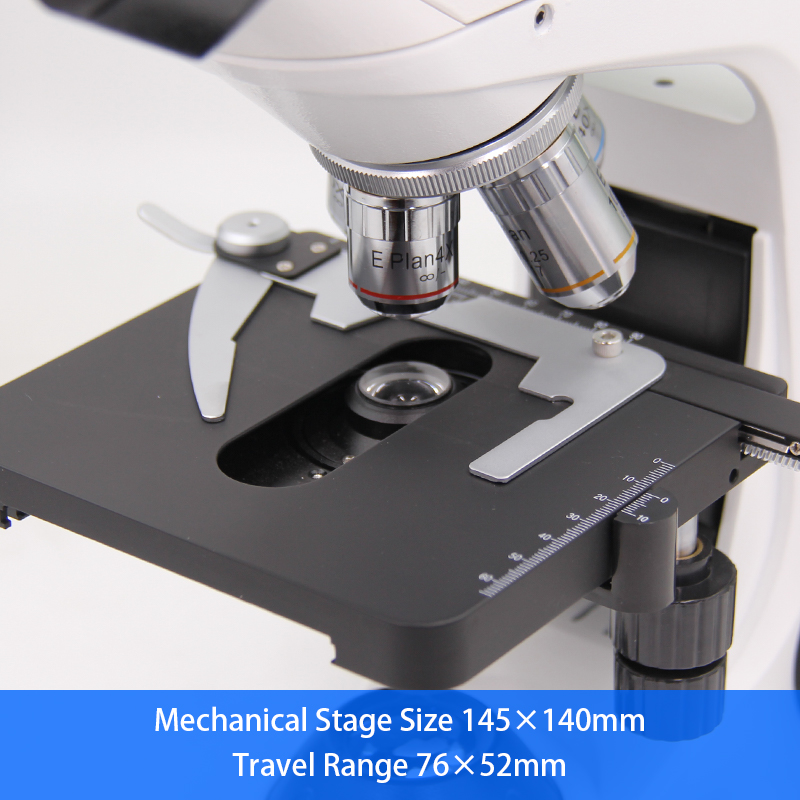

Mechanical Stage Size 145×140mm, Travel Range 76×52mm

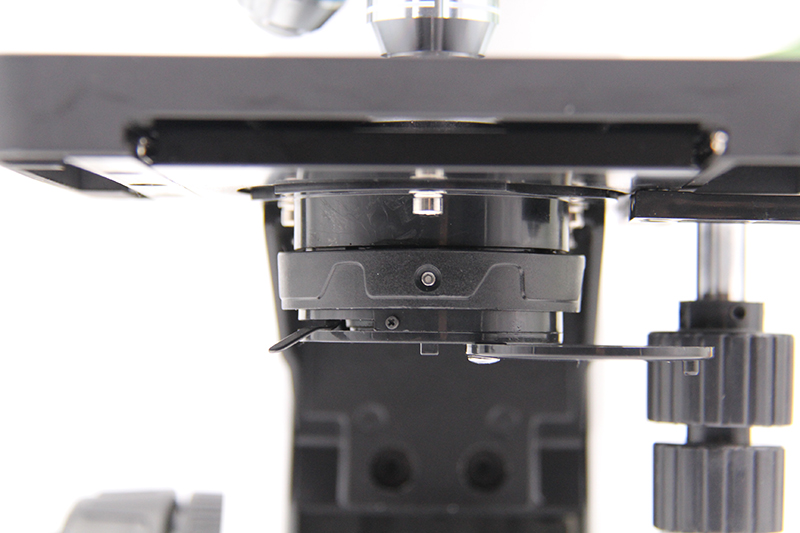

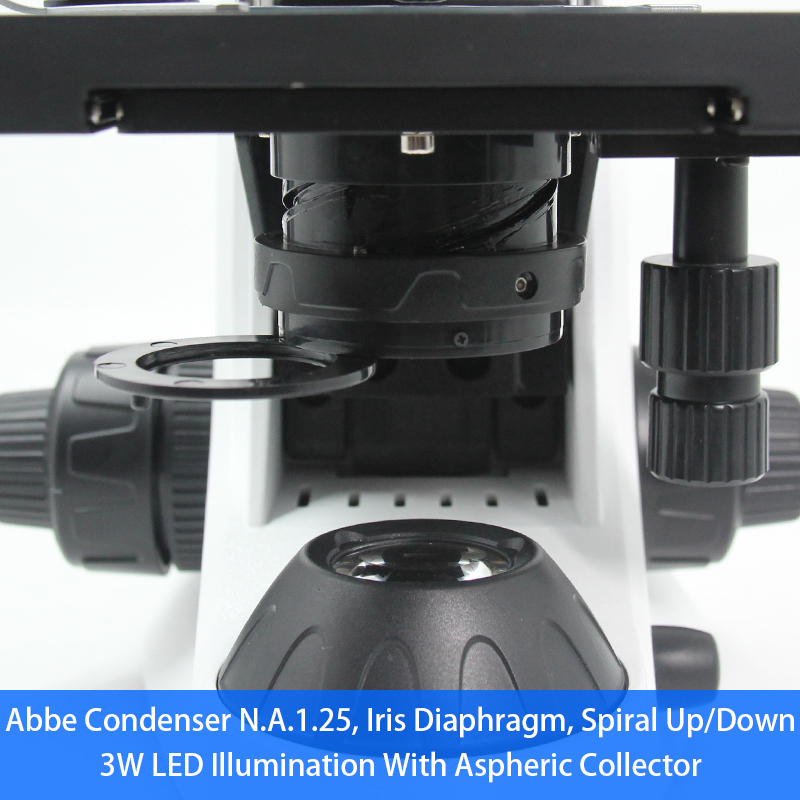

Condenser & Light Source
Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder

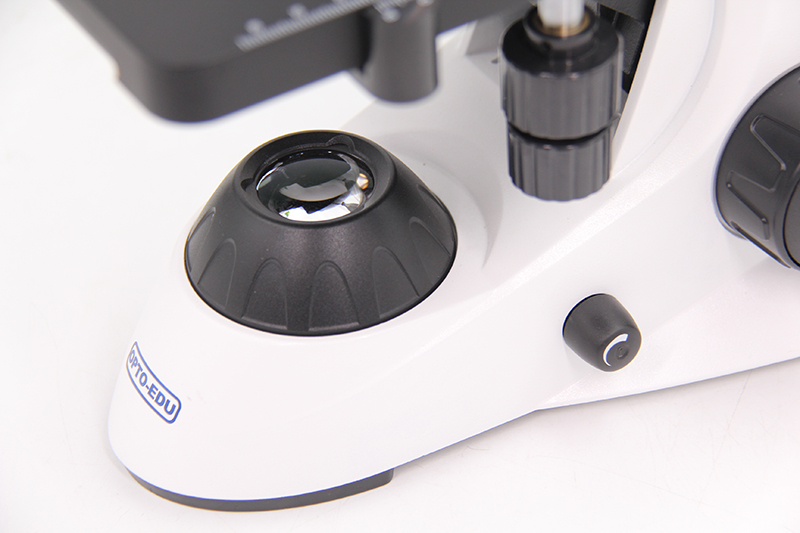

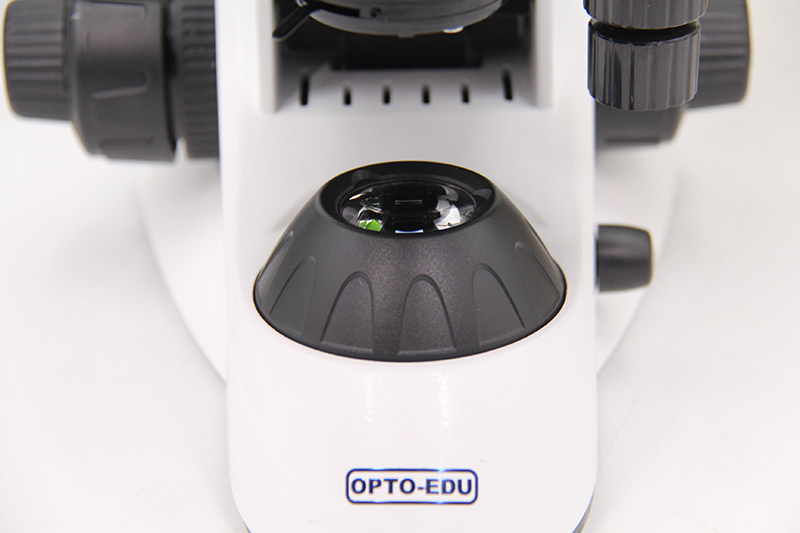

3W LED Illumination With Aspheric Collector

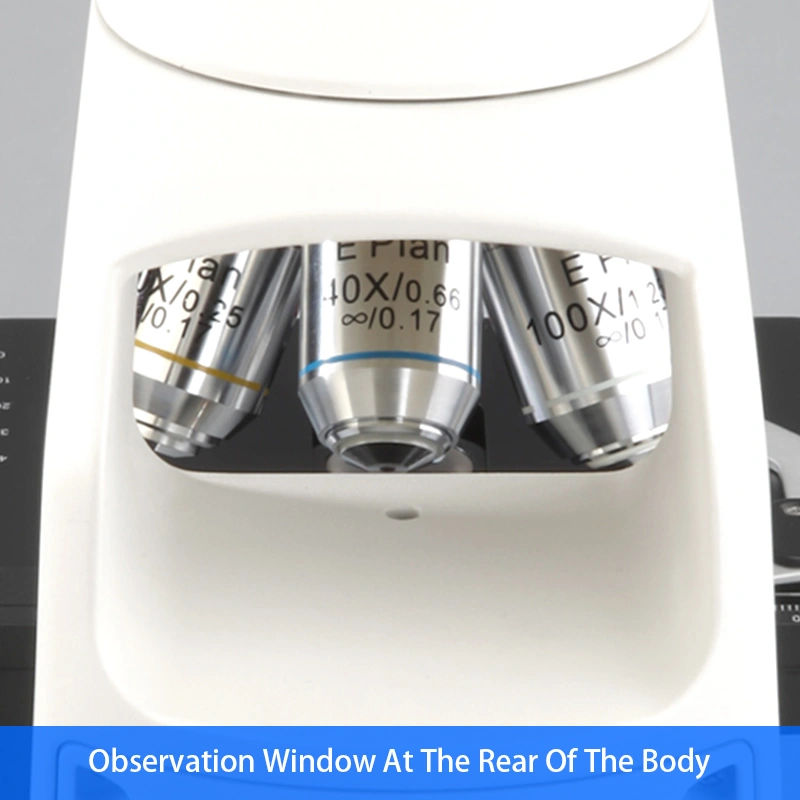

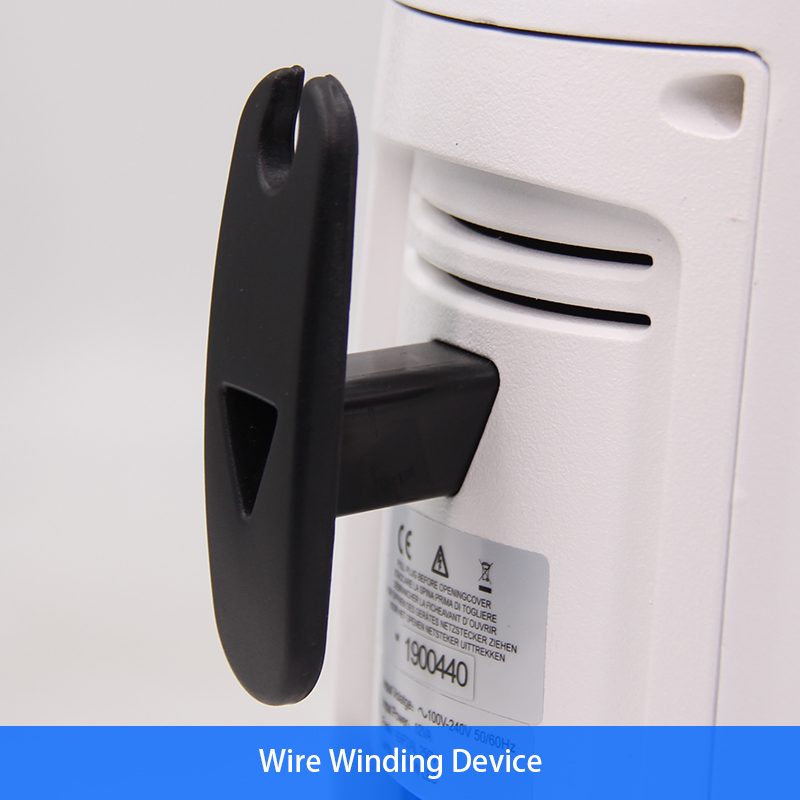

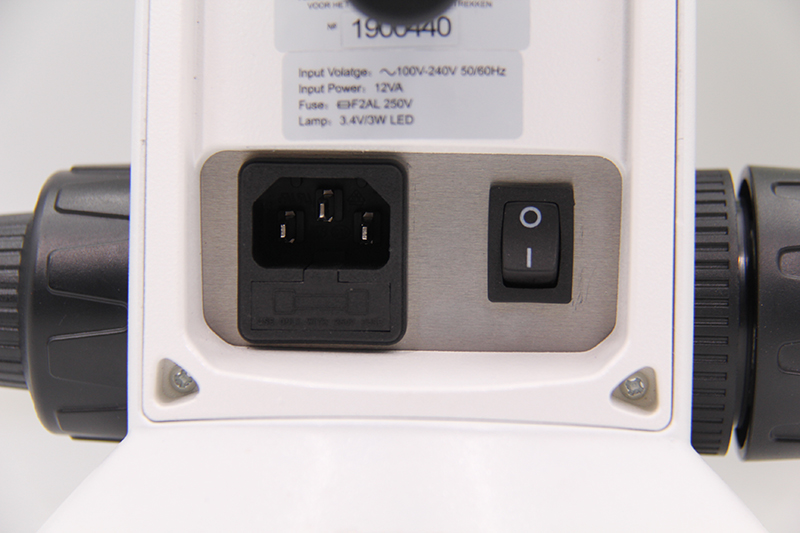

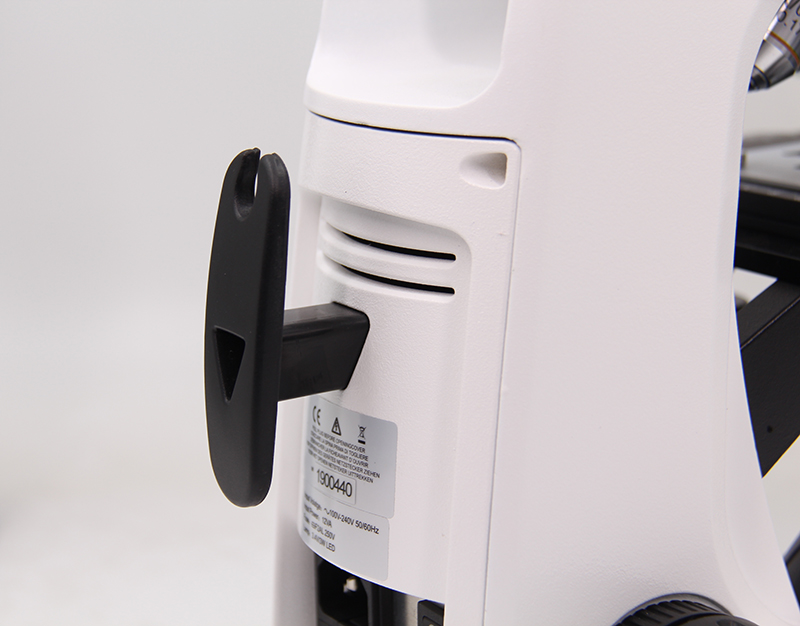

Wire Winding Device & Observation Window At The Rear Of The Body
For Easy Handling And Storage; You Can See The Change Of Objective Magnification Even From The Back

Items	A12.6603 Biological Microscope	B	T	B2	T2	B3	T3	B4	T4	Cata. No.
Head	Seidentopf Binocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm	●		●		●		●		A53.2602-B
	Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 48-75mm, Light Split Fixed P20:E80	○	●	○	●	○	●	○	●	A53.2602-T

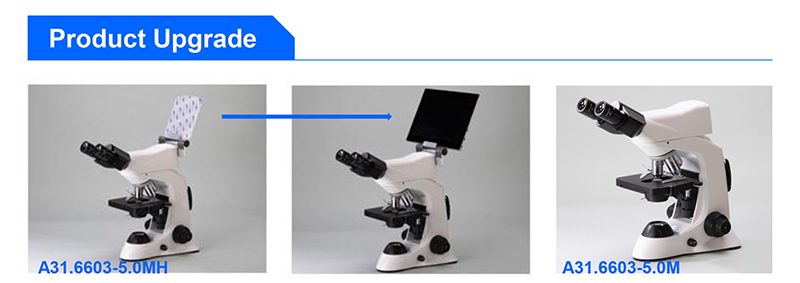

	Digital Head, 5.0M 1/2"CMOS USB2.0 Digital Camera Built-in, Light Split Fixed P20/E80	○	○	○	○	○	○	○	○	A53.2602-5.0M
	Digital Head, 5.0M 1/2"CMOS USB2.0 Digital Camera Built-in, Light Split Fixed P20/E80, With Holder For Pad	○	○	○	○	○	○	○	○	A53.2602-5.0MH
Eyepiece	WF10x/18mm					●	●	●	●	A51.2602-1018
	WF10X/20mm (High Eyepoint)	●	●	●	●					A51.2602-1020
	WF16x/13mm	○	○	○	○	○	○	○	○	A51.2602-1613
	WF10x/18mm With Pointer	○	○	○	○	○	○	○	○	A51.2604-1018
	WF10x/18mm With Micrometer 0.1mm*180 Div	○	○	○	○	○	○	○	○	A51.2605-1018
	WF10x/18mm With Micrometer 0.1mm*180 Div, Diopter Adjustable	○	○	○	○	○	○	○	○	A51.2605-1018D

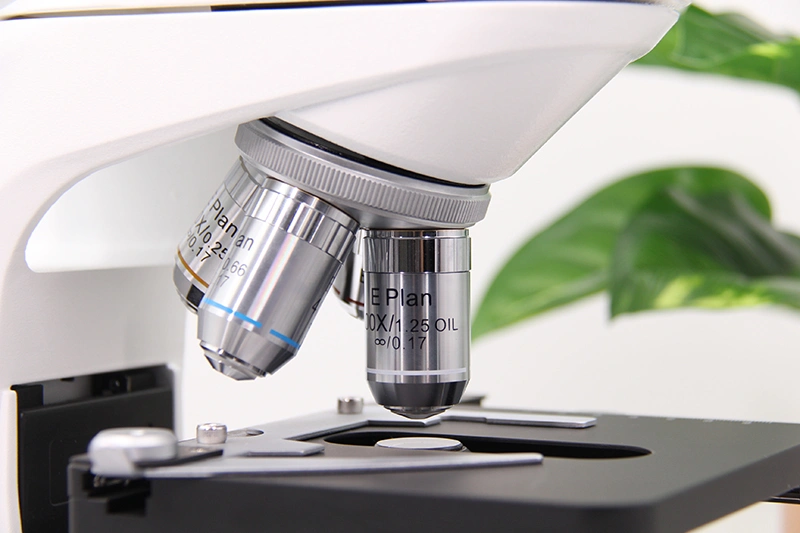

Nosepiece	Quadruple, Backward	●	●	●	●	●	●	●	●	A54.2610-N03
Infinity Eplan Objective	EPLAN 4x/0.10,W.D.=12.1mm	●	●	○	○					A52.2605-4
	EPLAN 10x/0.25,W.D.=4.14mm	●	●	○	○					A52.2605-10
	EPLAN 40x/0.65(S),W.D.=0.58mm	●	●	○	○					A52.2605-40
	EPLAN 100x/1.25(S, Oil),W.D.=0.19mm	●	●	○	○					A52.2605-100
Infinity Plan Objective	PLAN 2.5x/0.07,W.D.=8.47mm	○	○	○	○					A52.2606-2.5
	PLAN 4x/0.10.W.D.=12.1mm	○	○	●	●					A52.2606-4
	PLAN 10x/0.25.W.D.=4.64mm	○	○	●	●					A52.2606-10
	PLAN 20x/0.40(S).W.D.=2.41mm	○	○	○	○					A52.2606-20
	PLAN 40x/0.66(S).W.D.=0.65mm	○	○	●	●					A52.2606-40
	PLAN 60x/0.80(S).W.D.=0.33mm	○	○	○	○					A52.2606-60
	PLAN 100x/1.25(S,Oil).W.D.=0.12mm	○	○	●	●					A52.2606-100
	PLAN 100x/1.15(S,Water).W.D.=0.19mm	○	○	○	○					A52.2606-100W
Achromatic Objective	4x/0.1, W.D.=18.6mm					●	●	○	○	A52.2601-4
	10x/0.25, W.D.=6.5mm					●	●	○	○	A52.2601-10
	20x/0.40, W.D.=1.75mm					○	○	○	○	A52.2601-20
	40x/0.6(S), W.D.=0.47mm					●	●	○	○	A52.2601-40
	60x/0.80(S), W.D.=0.10mm					○	○	○	○	A52.2601-60
	100x/1.25(S,O), W.D.=0.07mm					●	●	○	○	A52.2601-100
Plan Objective	4x/0.1, W.D.=14.5mm					○	○	●	●	A52.2603-4
	10x/0.25, W.D.=5.65mm					○	○	●	●	A52.2603-10
	20x/0.40, W.D.=5.65mm					○	○	○	○	A52.2603-20
	40x/0.6(S), W.D.=0.85mm					○	○	●	●	A52.2603-40
	100x/1.25(S,O), W.D.=0.07mm					○	○	●	●	A52.2603-100
Working Stage	Mechanical Stage Size 145×140mm, Travel Range 76×52mm, Scale 0.1mm, Double Slide Holder	●	●	●	●	●	●	●	●	A54.2601-S04

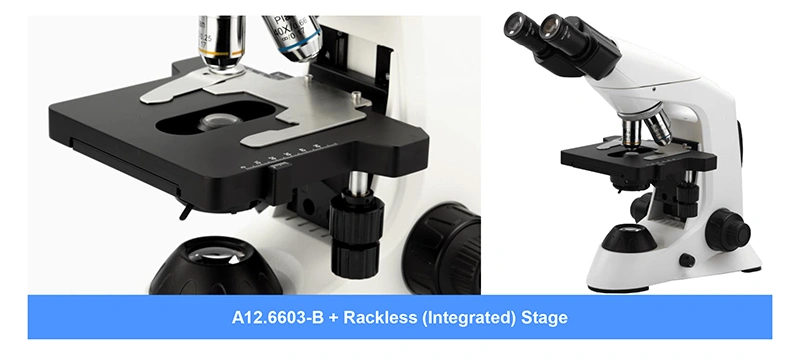

Working Stage	Rackless (Integrated) Stage, Size 140×135mm, Travel Range 75x35mm, Double Slide Holder	○	○	○	○	○	○	○	○	A54.2601-S12
Condenser	Abbe Condenser N.A.1.25, Iris Diaphragm, Spiral Up/Down, With Filter Holder	●	●	●	●	●	●	●	●	A56.2614-09

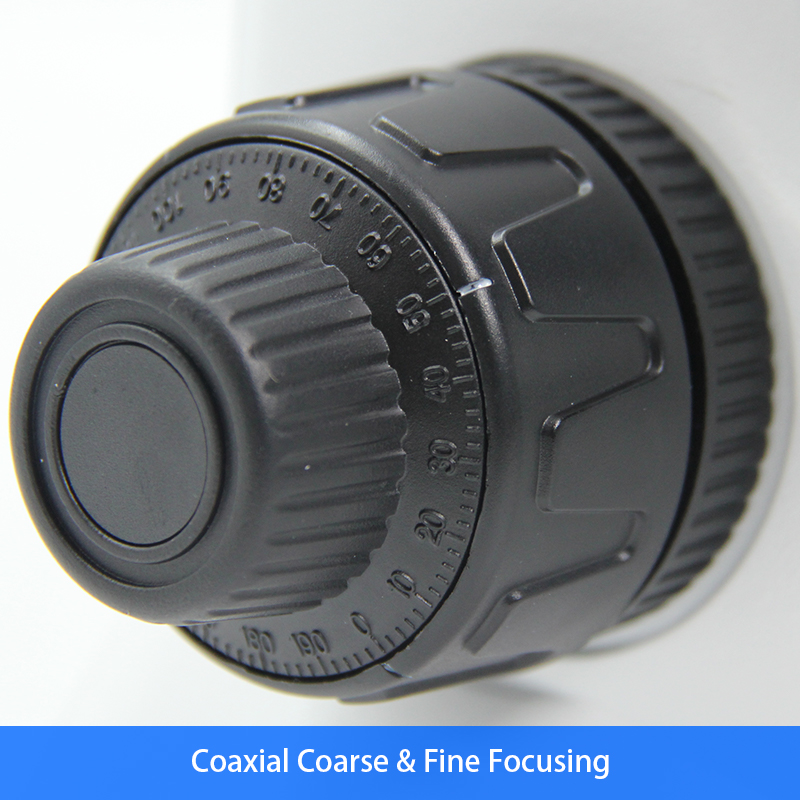

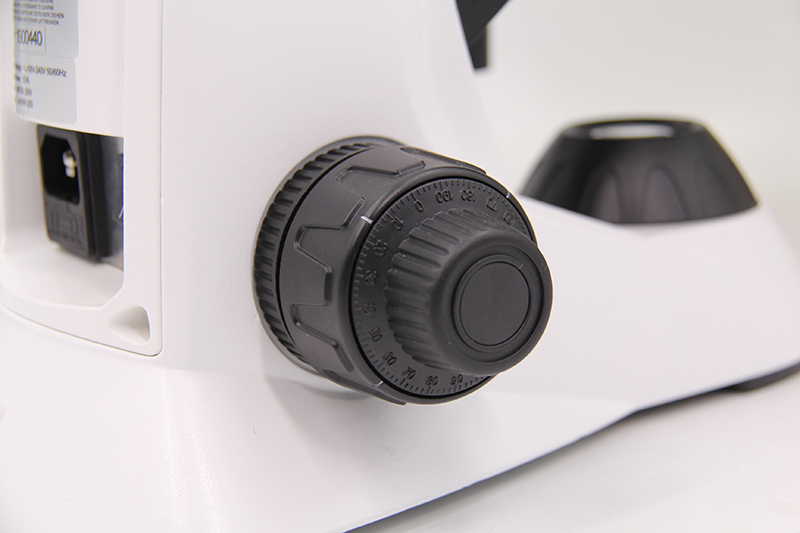

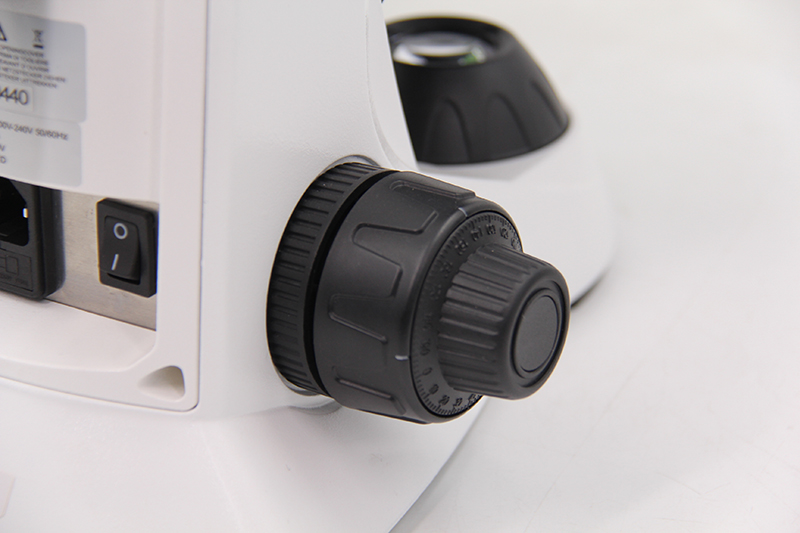

Focusing	Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 25mm, Fine Focusing Scale 2µm/Division	●	●	●	●	●	●	●	●

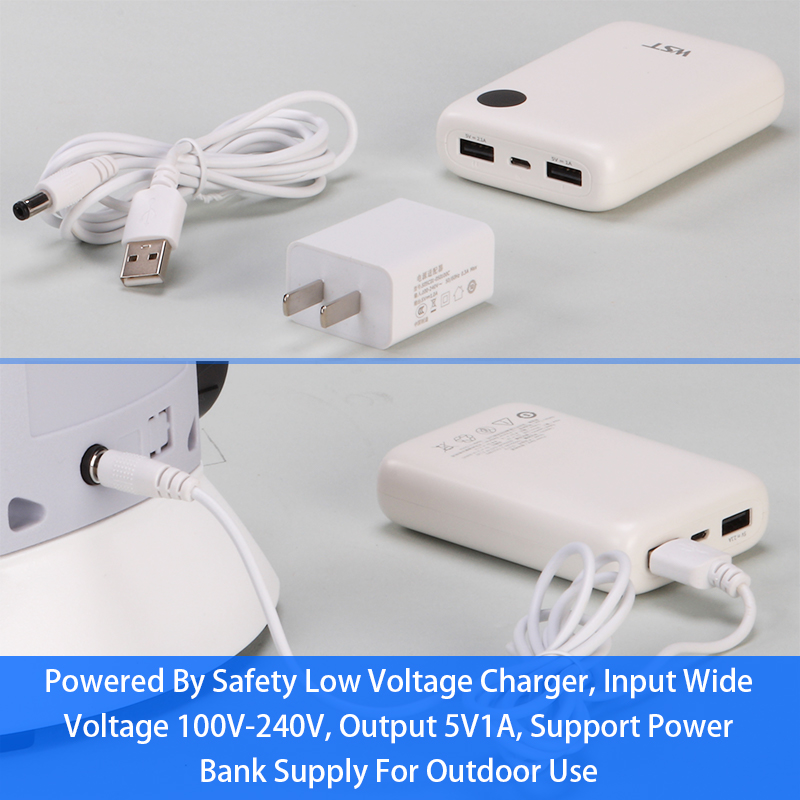

Light Source	3W LED Illumination With Aspheric Collector Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use	●	●	●	●	●	●	●	●	A56.2650-3WLED
Adapter	1.0x C-Mount Focus Adjustable		○		○		○		○	A55.2601-10
	0.5x C-Mount Focus Adjustable		○		○		○		○	A55.2601-05
	0.75x C-Mount Focus Adjustable		○		○		○		○	A55.2601-75
	Digital Eyepiece Adapter, Dia.23.2mm/25mm		○		○		○		○	A55.2610

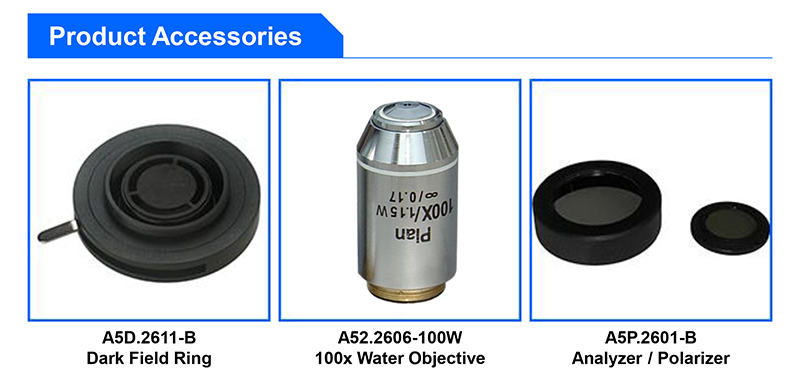

Dark Field	Dark Field Ring, For 4x~40x Objective	○	○	○	○	○	○	○	○	A5D.2611-B
Polarizing	Analyzer + Polarizer Set	○	○	○	○	○	○	○	○	A5P.2601-B3
Attachment	Wire Winding Device	●	●	●	●	●	●	●	●	A50.2602
Package	Carton Size 345×260×455mm, 1 Unit/Ctn
Weight	Gross Weight 7.0kgs, Net Weigth 5.5kgs
Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories.

More Pictures

Pictures Hide Same Show Difference
Model No.	A12.6603-T3	A12.6603-B	A12.6603-T	A12.6603-B2	A12.6603-T2	A12.6603-B3	A12.6603-B4	A12.6603-T4
Power Supply Type	DC USB Adapter	DC USB Adapter	DC USB Adapter	DC USB Adapter	DC USB Adapter	DC USB Adapter	DC USB Adapter	DC USB Adapter
Transmit Light	3W LED With Aspheric Collector	3W LED With Aspheric Collector	3W LED With Aspheric Collector	3W LED With Aspheric Collector	3W LED With Aspheric Collector	3W LED With Aspheric Collector	3W LED With Aspheric Collector	3W LED With Aspheric Collector
Light Source Type	LED	LED	LED	LED	LED	LED	LED	LED
Light Source Features	Aspheric Collector	Aspheric Collector	Aspheric Collector	Aspheric Collector	Aspheric Collector	Aspheric Collector	Aspheric Collector	Aspheric Collector
Condenser N.A.	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Condenser Type	Abbe	Abbe	Abbe	Abbe	Abbe	Abbe	Abbe	Abbe
Condenser Features	Filter Holder Sprial ↆ↑	Filter Holder Iris Diaphragm Sprial ↆ↑	Filter Holder Sprial ↆ↑	Filter Holder Sprial ↆ↑	Filter Holder Sprial ↆ↑	Filter Holder Sprial ↆ↑	Filter Holder Sprial ↆ↑	Filter Holder Sprial ↆ↑
Focusing Scale	0.002mm	0.002mm	0.002mm	0.002mm	0.002mm	0.002mm	0.002mm	0.002mm
Focusing Range	25mm	25mm	25mm	25mm	25mm	25mm	25mm	25mm
Focusing Type	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine	Coaxial Coarse & Fine
Focusing Features	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw	Tension Adjustable Safety Stop Screw
Working Stage	Scale 0.1mm	Scale 0.1mm	Scale 0.1mm	Scale 0.1mm	Scale 0.1mm	Scale 0.1mm	Scale 0.1mm	Scale 0.1mm
Working Stage Moving	76x52mm	76x52mm	76x52mm	76x52mm	76x52mm	76x52mm	76x52mm	76x52mm
Working Stage Size	145x140mm	145x140mm	145x140mm	145x140mm	145x140mm	145x140mm	145x140mm	145x140mm
Working Stage Type	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical	2 Layers Mechanical
Working Stage Features	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm	Double Slide Holder Size ≥140x140mm
Objective	A52.2601 Achromatic Objective 4x,10x,40x,100x	A52.2605 Infinity E-Plan Achromatic Objective 4x,10x,40x,100x	A52.2605 Infinity E-Plan Achromatic Objective 4x,10x,40x,100x	A52.2606 Infinity Plan Achromatic Objective 4x,10x,40x,100x	A52.2606 Infinity Plan Achromatic Objective 4x,10x,40x,100x	A52.2601 Achromatic Objective 4x,10x,40x,100x	A52.2603 Plan Achromatic Objective 4x,10x,40x,100x	A52.2603 Plan Achromatic Objective 4x,10x,40x,100x
Objective Type	Achromatic	Infinity E-Plan	Infinity E-Plan	Infinity Plan	Infinity Plan	Achromatic	Plan	Plan
Nosepiece Holes	4 Holes	4 Holes	4 Holes	4 Holes	4 Holes	4 Holes	4 Holes	4 Holes
Nosepiece Features	Inward	Inward	Inward	Inward	Inward	Inward	Inward	Inward
Eyepiece	WF10x/18mm, 2 pcs	WF10x/20mm, 2 pcs	WF10x/20mm, 2 pcs	WF10x/20mm, 2 pcs	WF10x/20mm, 2 pcs	WF10x/18mm, 2 pcs	WF10x/20mm, 2 pcs	WF10x/20mm, 2 pcs
Eyepiece Diameter	23.2mm	23.2mm	23.2mm	23.2mm	23.2mm	23.2mm	23.2mm	23.2mm
Head Light Path	E80:P20	——	E80:P20	——	E80:P20	——	——	E80:P20
Head Diopter	Left Adjustable	Left Adjustable	Left Adjustable	Left Adjustable	Left Adjustable	Left Adjustable	Left Adjustable	Left Adjustable
Head Interpupillary	48~75mm	48~75mm	48~75mm	48~75mm	48~75mm	48~75mm	48~75mm	48~75mm
Head Rotation	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°	Eyetube Rotate 360°
Head Inclination	30°	30°	30°	30°	30°	30°	30°	30°
Head Type	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Trinocular	Seidentopf Binocular	Seidentopf Binocular	Seidentopf Trinocular
Standard Magnification	40x-1000x	40x-1000x	40x-1000x	40x-1000x	40x-1000x	40x-1000x	40x-1000x	40x-1000x
Optical System	Achromatic	Infinity Semi-Plan	Infinity Semi-Plan	Infinity Plan	Infinity Plan	Achromatic	Plan	Plan
Upgrade Function	BF+DF+PL	BF+DF+PL	BF+DF+PL	BF+DF+PL	BF+DF+PL	BF+DF+PL	BF+DF+PL	BF+DF+PL
Standard Function	BF	BF	BF	BF	BF	BF	BF	BF
New Product Year	2014	2014	2014	2014	2014	2014	2014	2014
Features	——	Infinity	Infinity	Infinity	Infinity	——	——	——

A12.6603 Catalogue.pdf

A12.6603 Instruction Manual.pdf
