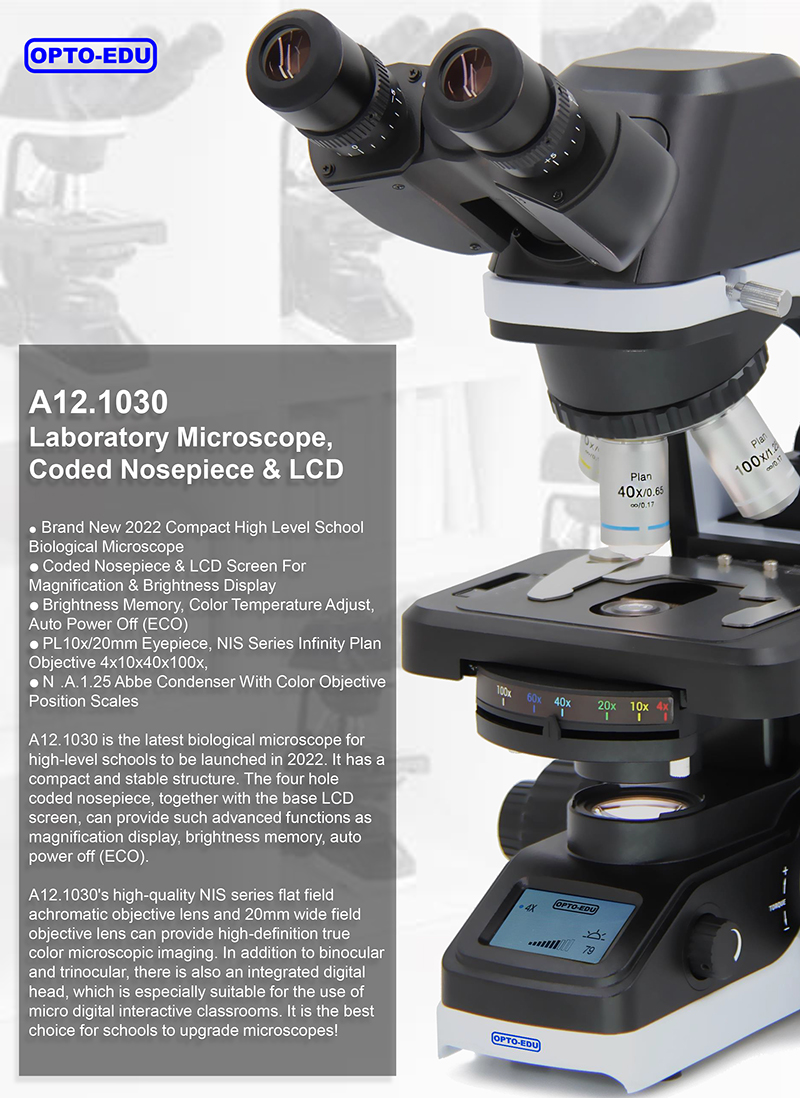

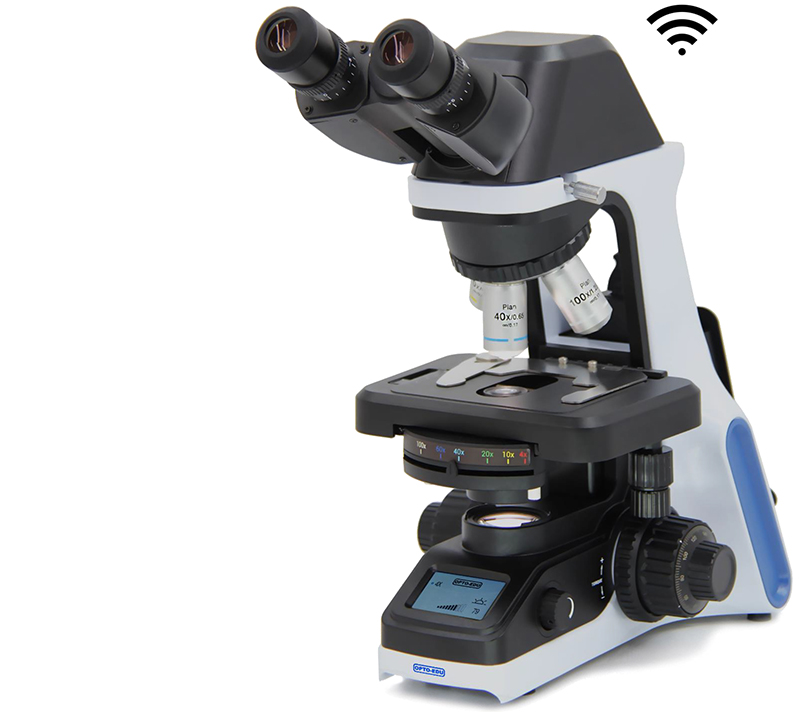

Digital Laboratory Microscope, Coded Nosepiece & LCD, 8.0M

Brand New 2022 Compact High Level School Digital Biological Microscope

Coded Nosepiece & LCD Screen For Magnification & Brightness Display

Brightness Memory, Color Temperature Adjust, Auto Power Off (ECO)

PL10x/20mm Eyepiece, NIS Series Infinity Plan Objective 4x10x40x100x

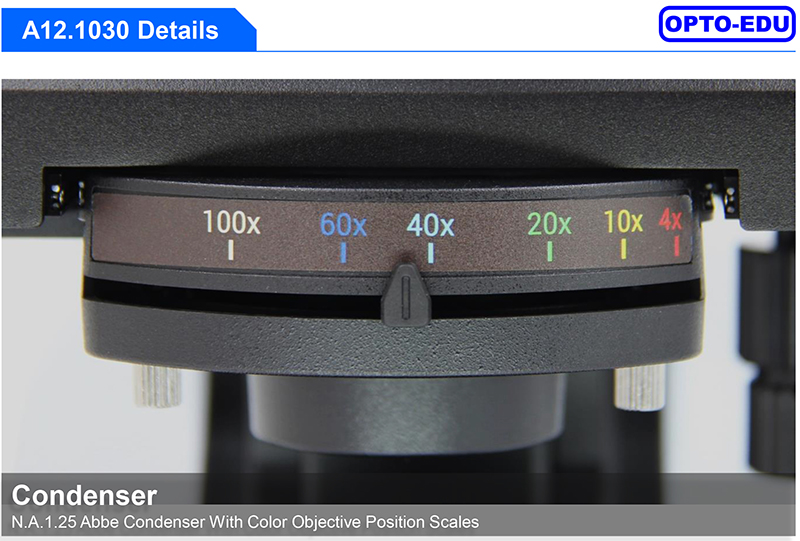

N.A.1.25 Abbe Condenser With Color Objective Position Scales

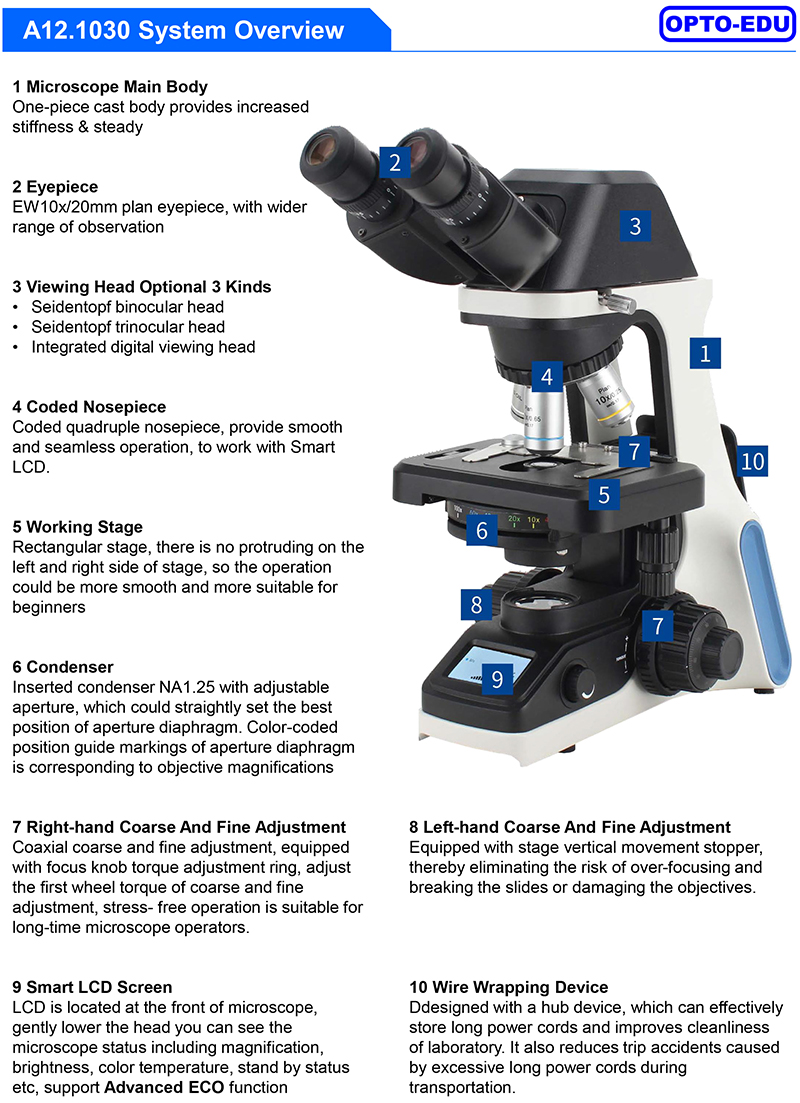

A12.1030-B/T Laboratory Microscope, A31.1030 Digital Laboratory Microscope		Model No.	A12.1030-B	A12.1030-T	A31.1030
Head	Seidentopf Binocular, Diopter Adjustable (Double), Head Inclined 30°, Head Interpupillary: 48~75mm, Dia.23.2mm	A53.1030-B	●	●	/
	Seidentopf Trinocular, Diopter Adjustable (Double), Head Inclined 30°, Head Interpupillary: 48~75mm, Dia.23.2mm, Light Split Switch E100:P0/E0:P100, Photography Attachment Not Included	A53.1030-T	○	●	/
	Seidentopf Binocular, Diopter Adjustable (Double), USB2.0, Digital Head, Head Inclined 30°, Head Interpupillary: 48~75mm, Dia.23.2mm, 8 Billion Pixel	A53.1030-8.0M	○	○	/
	SeidentopfDigitalBinocular, Diopter Adjustable (Double), Head Inclined 30°, Head Interpupillary: 48~75mm, Dia.23.2mm, 8 Million Pixel WIFI Chip, HDMI, Network Port, Mini USB Output Interface, Support Wi-Fi Output, Work For Interactive Teaching Use	A53.1030-8.0W	/	/	●

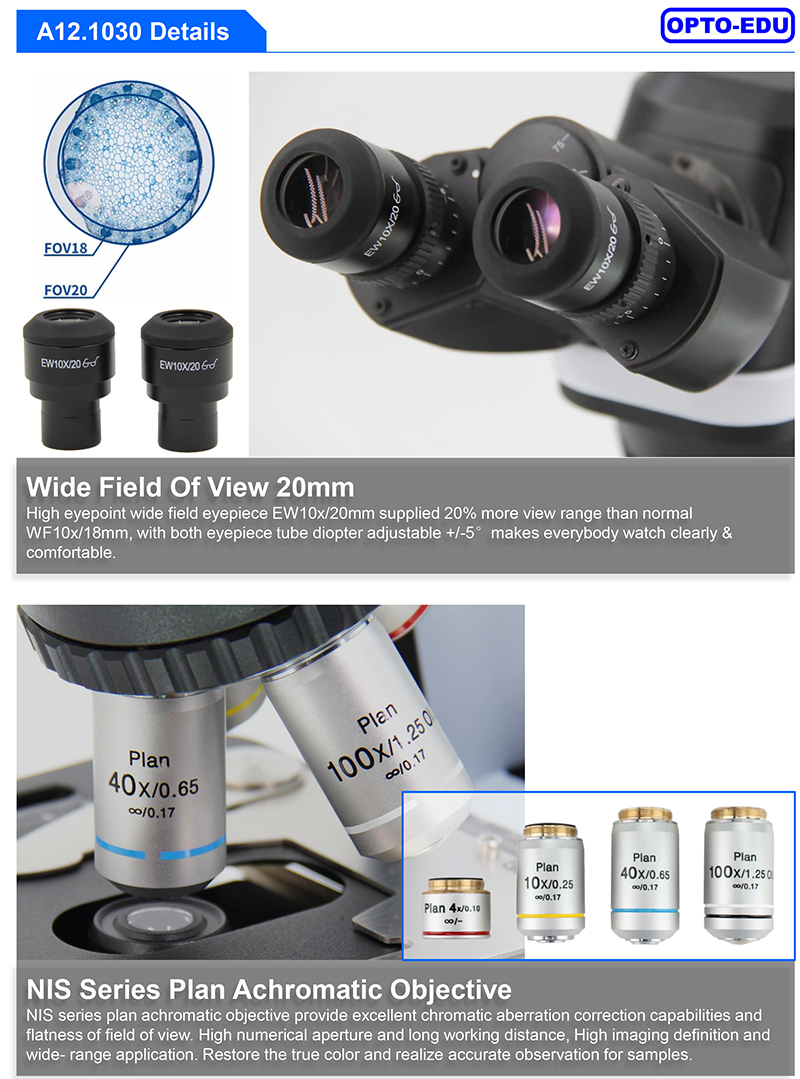

Eyepiece	WF10x/20mm, Wide Field Eyepiece, Dia.23.2mm	A51.1002-1020	●	●	●
	WF10x/20mm, Diopter Adjustable, Dia.23.2mm	A51.1005-1020	○	○	○
	WF10x/20 with 0.1mm Micrometer, Recital Eyepiece, Dia.23.2mm	A51.1007-10	○	○	○
	WF10x/18mm, Pointer Eyepiece, Dia.23.2mm	A51.1010-10	○	○	○
Nosepiece	4 Coded Holes Nosepiece		●	●	●
Nosepiece	5 Coded Holes Nosepiece		○	○	○
Objective	Infinity Plan Achromatic Objective Tube180mm，Confocal 45mm，WJA/5"×1/36"	A52.1007
	4x, NA=0.1 WD=28 Cover Glass-	A52.1007-4	●	●	●
	10x, NA=0.25 WD=7.4 Cover Glass 0.17	A52.1007-10	●	●	●
	20x, NA=0.4 WD=6.2 Cover Glass 0.17	A52.1007-20	○	○	○
	40x, NA=0.65 WD=0.7 Cover Glass 0.17	A52.1007-40	●	●	●
	60x, NA=0.8 WD=- Cover Glass 0.17	A52.1007-60	○	○	○
	100x, NA=1.25 WD=0.14 Cover Glass 0.17	A52.1007-100	●	●	●

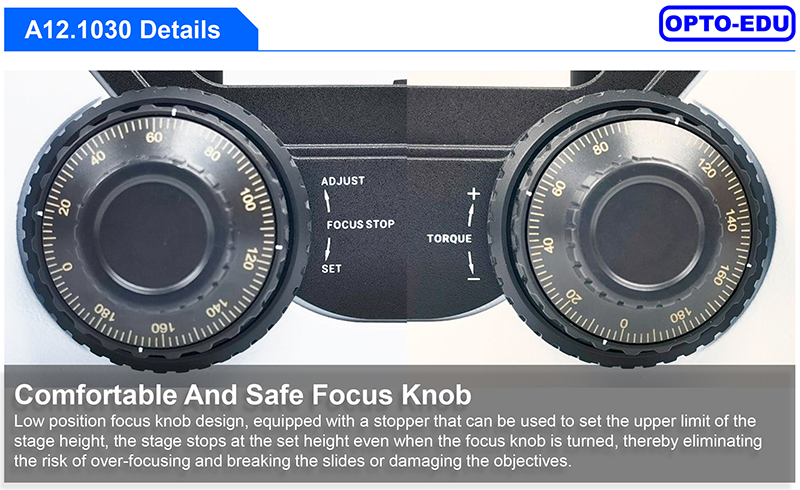

Focusing	Coaxial Coarse & Fine Adjustment, Tension Adjustable, Upper Limit Ring, Coarse Stroke 37.7mm Per Rotation, Fine Division 0.002mm, Fine Stroke 0.2mm Per Rotation, Coarse Focusing Range 25mm		●	●	●
Condenser	Abbe NA.1.25 Condenser		●	●	●
Light Source	Built-in 3W LED Illumination、 Brightness Color Temperature Adjustable		●	●	●

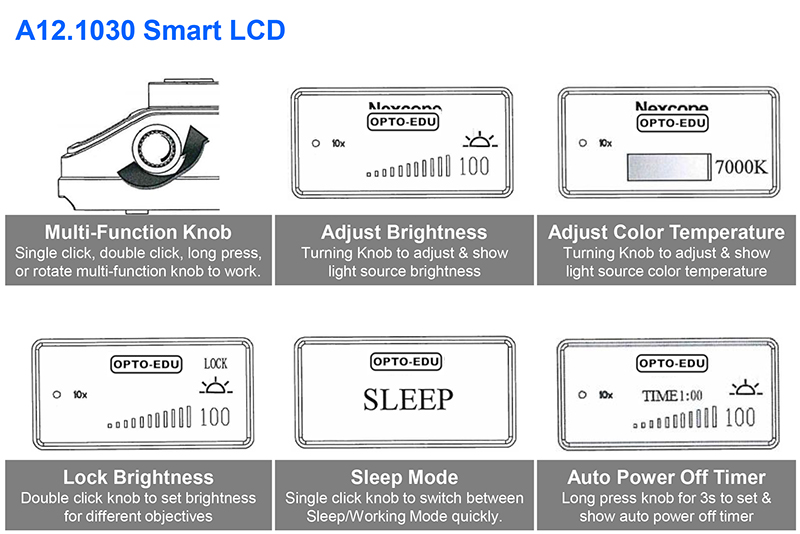

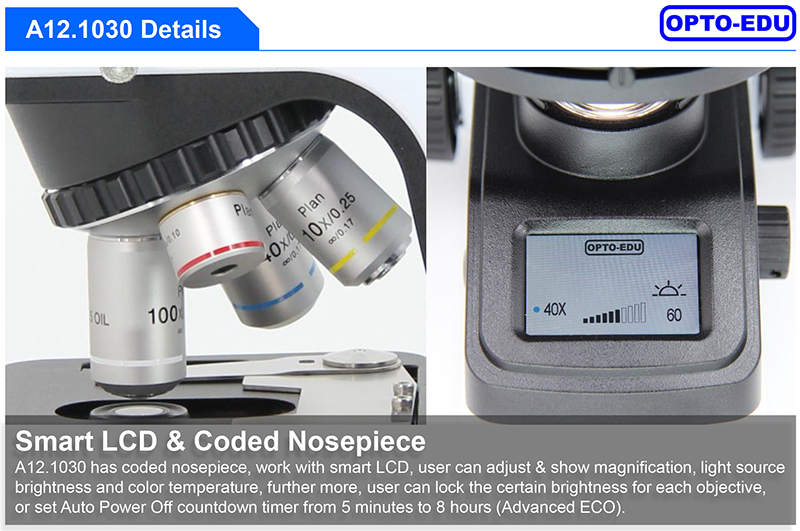

Smart LCD Screen	LCD Screen In Front Of Base, Working With Coded Nosepiece, Supply Advanced Function:
	•Real Time Objective's Magnification & Brightness Display		●	●	●
	•Color Temperature、 Brightness Memory
	•Color Temperature Self-Adjust
	Power Module, Photo And Exposure Buttons, WIFI Indicator Light		/	/	●
ECO	Auto Power Off Countdown Timer From 5 Minutes to 8 Hours (Advanced ECO).		●	●	●
Video Adapter	Photo Adapter，0.55x C-mount	A55.1030-55	○	○	/
Video Adapter	Photo Adapter，1.0x C-mount	A55.1030-10	○	○	/
Other Attachment	A 1.5 Meters Long Mini USB Data Cable, With His USB End		/	/	○
	A 2 Meters Long HDMI Cable		/	/	○
	A 1.5 Meters Long USB 2.0 Data Cable, Flat Port + Flat Port, Only Equipped With A12.1030		○	○	/

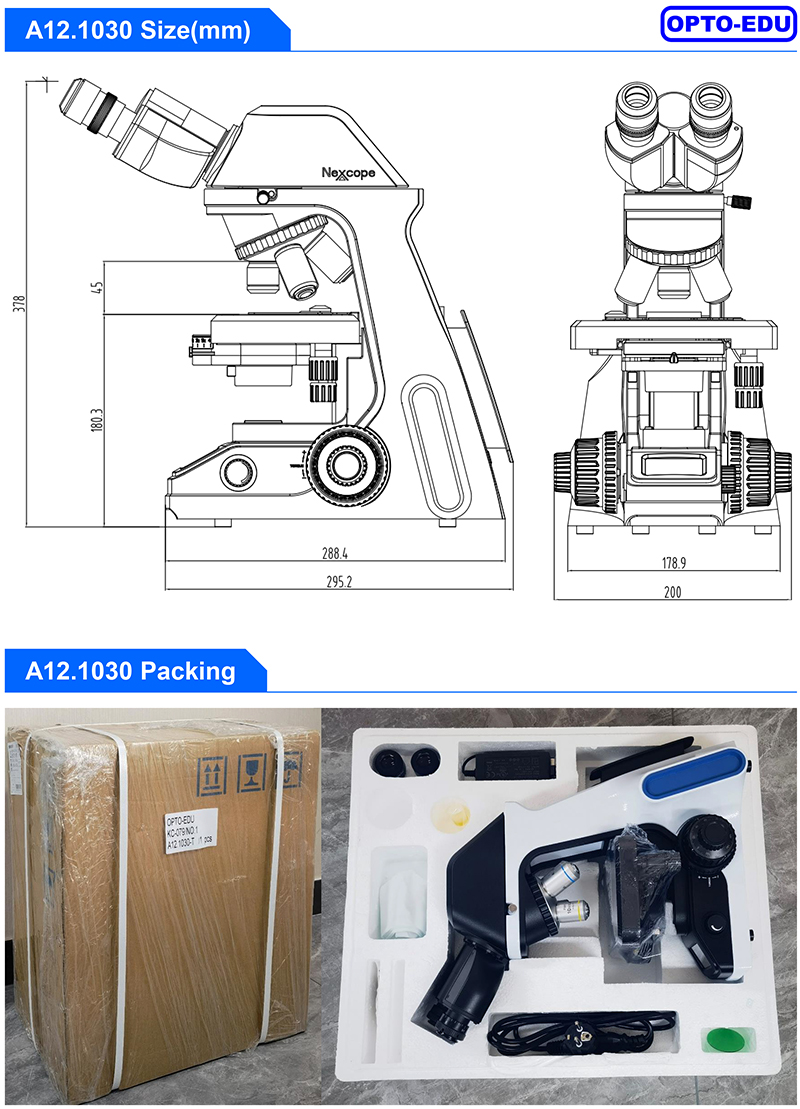

Size	220(W)x290(D)x472(H), mm		●	●	●
Packing	470320590mm, G.W.12.1Kg, N.W.8Kg		●	●	●
Note:"●"In Table ls Standard Outfits"○"In Table ls Optional Outfits

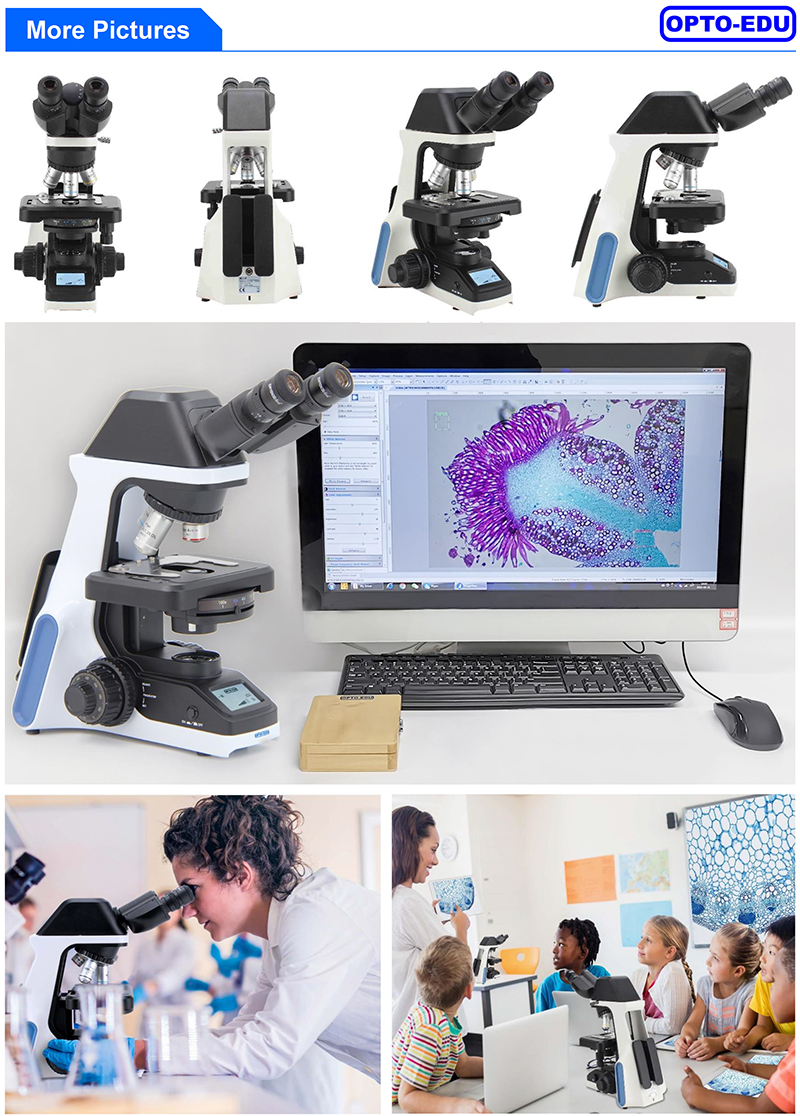

Pictures

Digital Laboratory Microscope, Coded Nosepiece & LCD, 8.0M

Model No.

A31.1030

System Support

iMac
Win11
Win10

Camera Output

USB

Camera Pixel

8.0MP

Power Supply Type

AC 110V-240V

Transmit Light

3W LED Illumination

Light Source Type

LED

Light Source Features

Light Indicator
Color Temp. Set
ECO

Condenser

Inserted Abbe Condenser N.A. 1.25

Condenser N.A.

1.25

Condenser Type

Abbe

Condenser Features

Center Adjustable
Iris Diaphragm
Rack & Pinionↆ↑

Focusing Scale

0.002mm

Focusing Range

25mm

Focusing Type

Coaxial Coarse & Fine

Focusing Features

Tension Adjustable
Safety Stop Lock Ring

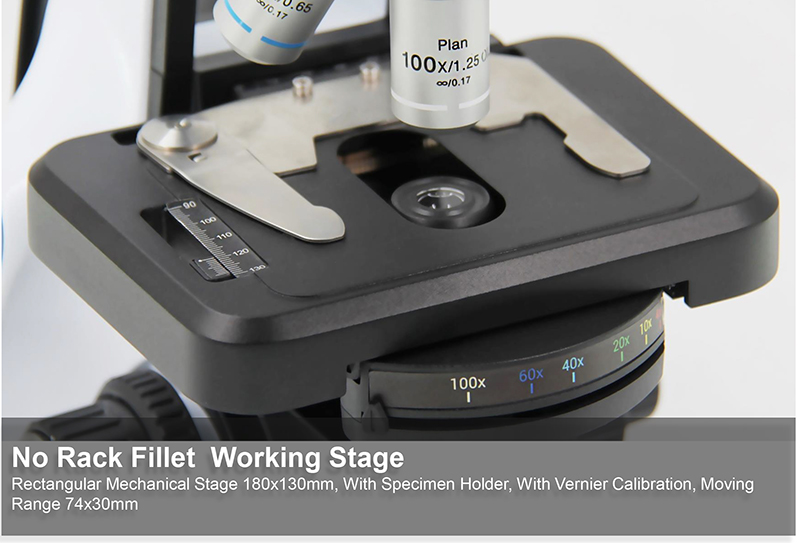

Working Stage Moving

74x30mm

Working Stage Size

180x130mm

Working Stage Type

2 Layers Mechanical

Working Stage Features

Double Slide Holder
Size ≥140x180mm

Objective

Infinity Plan NIS45 4x10x40x100x

Objective Type

Infinity Plan

Objective Features

100x Water

Nosepiece Holes

4 Holes

Nosepiece Features

Inward
Coded

Eyepiece

EW10x/20mm, 2pcs

Eyepiece Diameter

23.2mm

Head Light Path

Fixed E50:P50

Head Diopter

Both Tube Adjustable

Head Interpupillary

47~78mm

Head Rotation

Head Rotate 360°

Head Inclination

30°

Head Type

Seidentopf Binocular

Standard Magnification

40x-1000x

Optical System

Infinity Plan

Features

Infinity
Coded Nosepiece
ECO(Auto Power Off)

Standard Function

New Product Year

2022
