Digital Microscope
Digital Microscope

A31.1401

Like Favorites

Digital Microscope


Quantity:


Specification

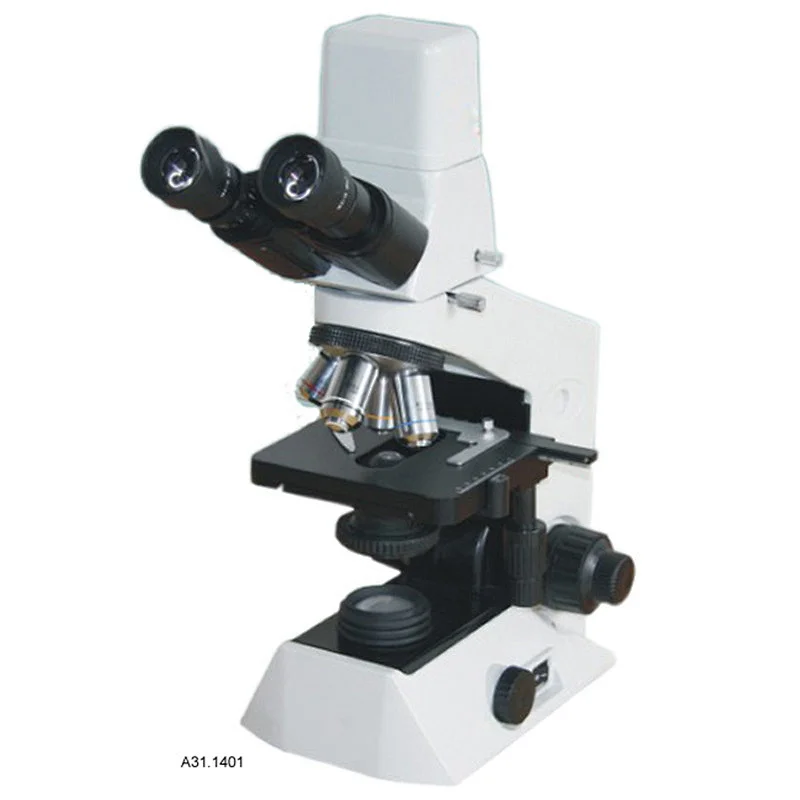

A31.1401 Digital Biological Microscope
Head
Compensation Binocular head , inclined at 30°, rotated at 360, Interpupillary distance:55~75mm
Eyepiece
WF10X/Ф18mm with cover 1pair anti mould
Objective
Achromatic 4X/0.1
Achromatic 10X/0.25
Achromatic 40X(S)/ 0.65
Achromatic 100X(SO)1.25
Pixels
Sensor Resolution :3.1 Mega Pixel Maximum ; resolution :8 Mega Pixels
Stage
Double lays mechanical stage size :140X140mm/moving range:75X50mm
Condenser
Abbe 1.25 condener with iris diaphragm and blue and green filters
Focusing
Coaxial coarse and fine adjustment ,focusing range 15mm,focusing interval 0.001mm
Digtial camera system:
3.0M pixels CMOS digital camera with high-resolution, 2048×1536 digital camera system,USB 2.0 output ,support Windows XP /Vista
Light Source
Input AC220V/110V ,6V/20W hal ogen lamp ,brightness adjustable,build-in Kohler illumination
