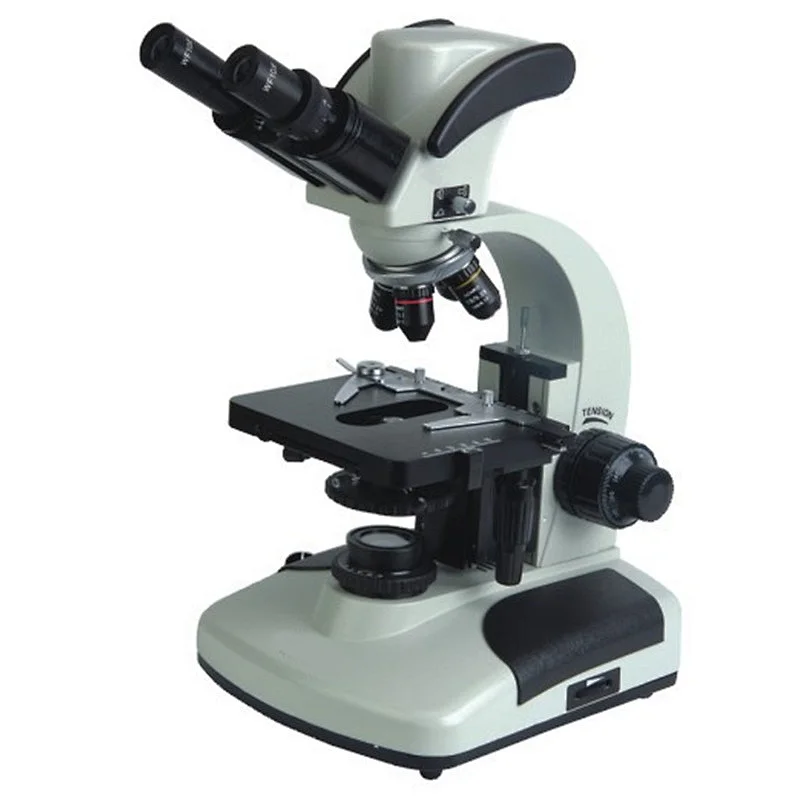

A31.1305 Digital Microscope | |
Head | Compensation free binocular head |
Eyepiece | WF10X, WF16X |
Resolution | 1280(H)*1024(V)(1.30MP),1/2Chip, USB 2.0 with micro-image process software |
Objective | 4X, 10X, 40X(S),100(S,Oil) |
Nosepiece | Backward Quadruple nosepiece |
Stage | Double layers mechanical stage140*155mm/70*50mm |
Focusing | Coarse and fine focusing knob. Range: 30mm, precision:0.002mm |
Condenser | ABBE N.A.1.25 With Φ2-Φ30 Iris Diaphragm and Φ32 filter |
Light Source | Halogen Lamp 6V/20W and Kohlar Illumination System |
