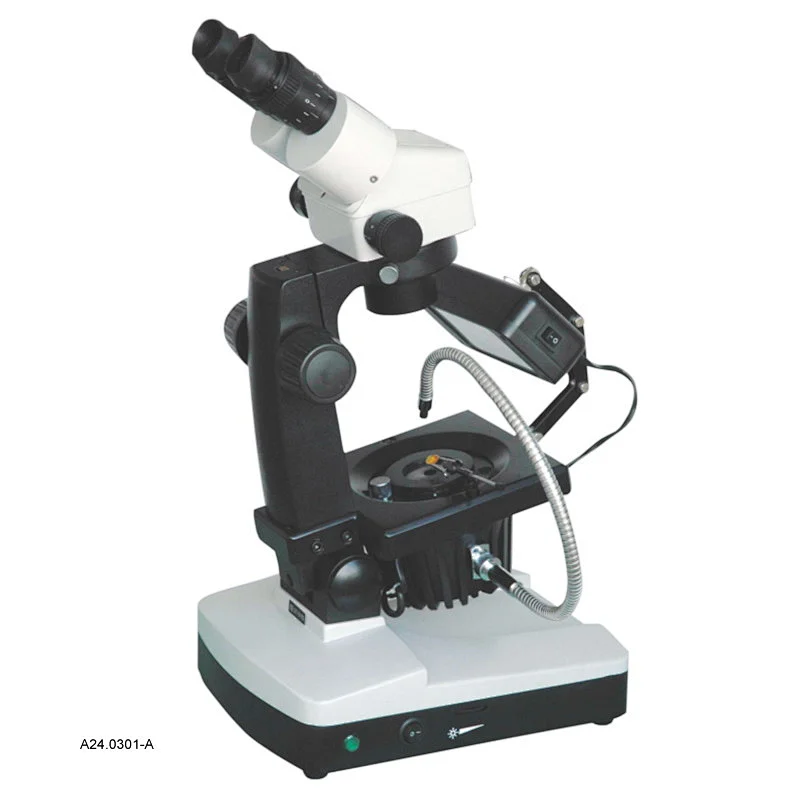

Specification | A24.0301 | A | B |
Head | Binocular head,interpupillary distance 55-75mm | ● | |
Trinocular head,interpupillary distance 55-75mm | ● | ||
Total Magnification | 7x-45x | ||
Eyepiece | Super WF10x/23mm eyepiece | ||
Objectives | Zoom objective 0.7x-4.5x | ||
Body | Body can be inclined 45° for comfortable operating | ||
Gem clamp | Alligapor clamp, steel clamp, plat clamp included | ||
Condenser | Auxiliary lens optional : 0.75x (W.D.105mm), 1.5x(W.D.47mm), 2x(33mm) | ||
Focus | Focusing range 125mm, working distance 95mm | ||
Illumination | Bright/Dark field illuminator, with iris adjustable 2-41mm, 8W 6000K fluorescent lamp |
