Norsk språkHow to Select OPTO-EDU Comparison Microscope?
|

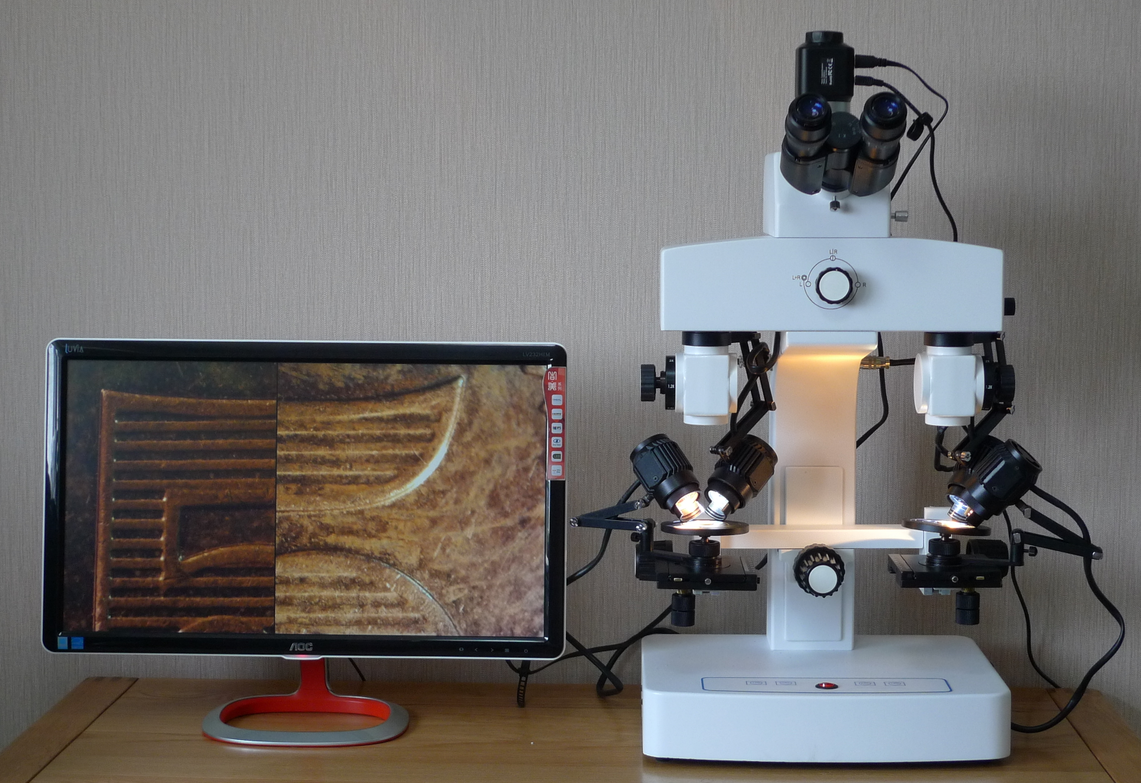

What is a Comparison Microscope? Comparison Microscope, also known as Forensic Microscope, is a microscope system combined by dual microscopes, to see 2 objects at same time. It is an important instrument mainly used in forensic labs, security printing works, banks, industry quality control dept., for comparison investigation of bullets & cartridges case, tool marks, currency, coins, banknotes, documents, stamps, seals, fingerprint, fiber, and more small evidence. |
|

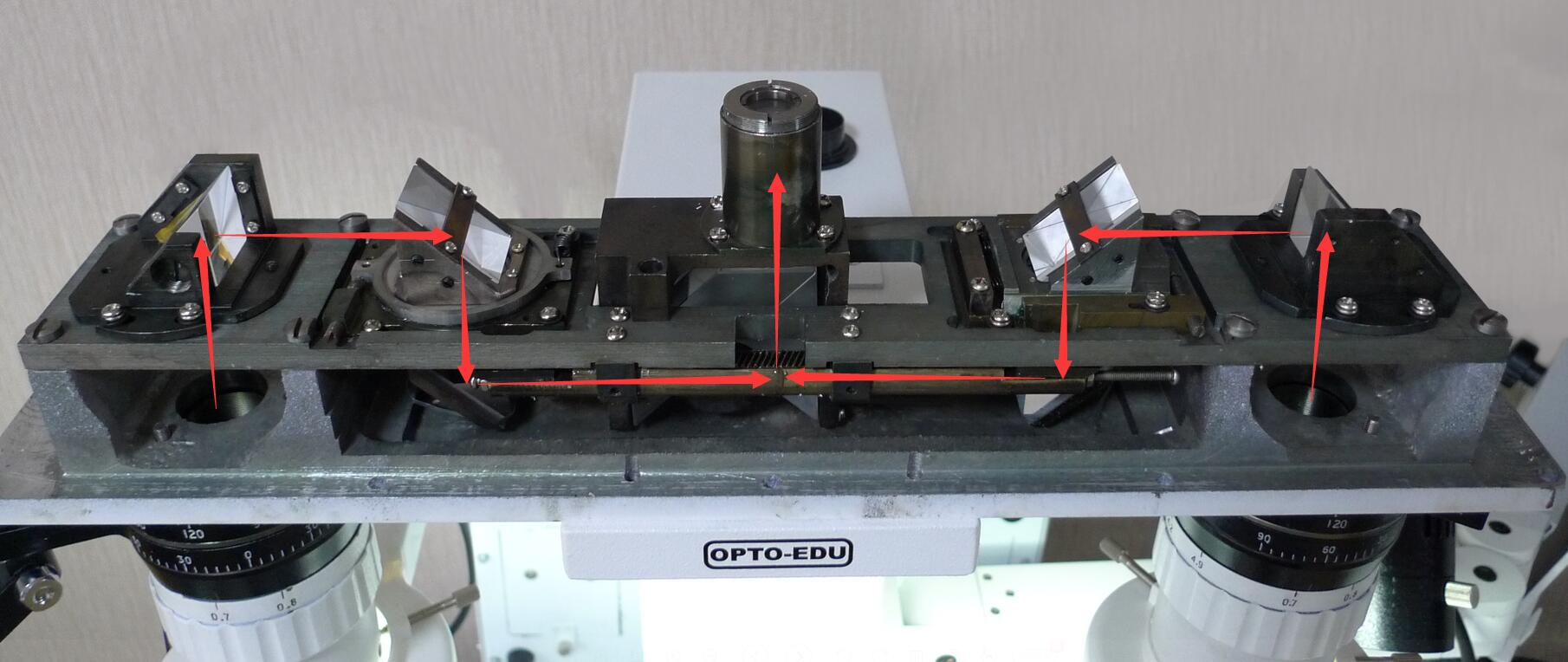

In the comparison microscope, the most important part is optical bridge. As shown in the picture below, it can bring two separate optical light paths into one view field, combining two images into one view field, enabling users to view both objects at the same real time, under same magnification, similar illumination conditions. |
|

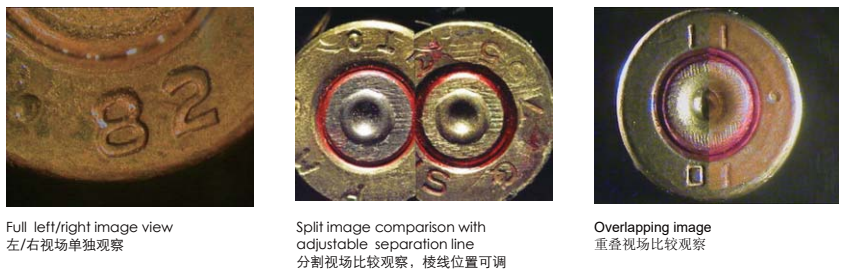

Through the two separate optical systems of the instrument, you can view the individual full left or full right object, or compare the two objects in split-image and overlapping image, in the same view field, to find out the micro difference between them. |
|

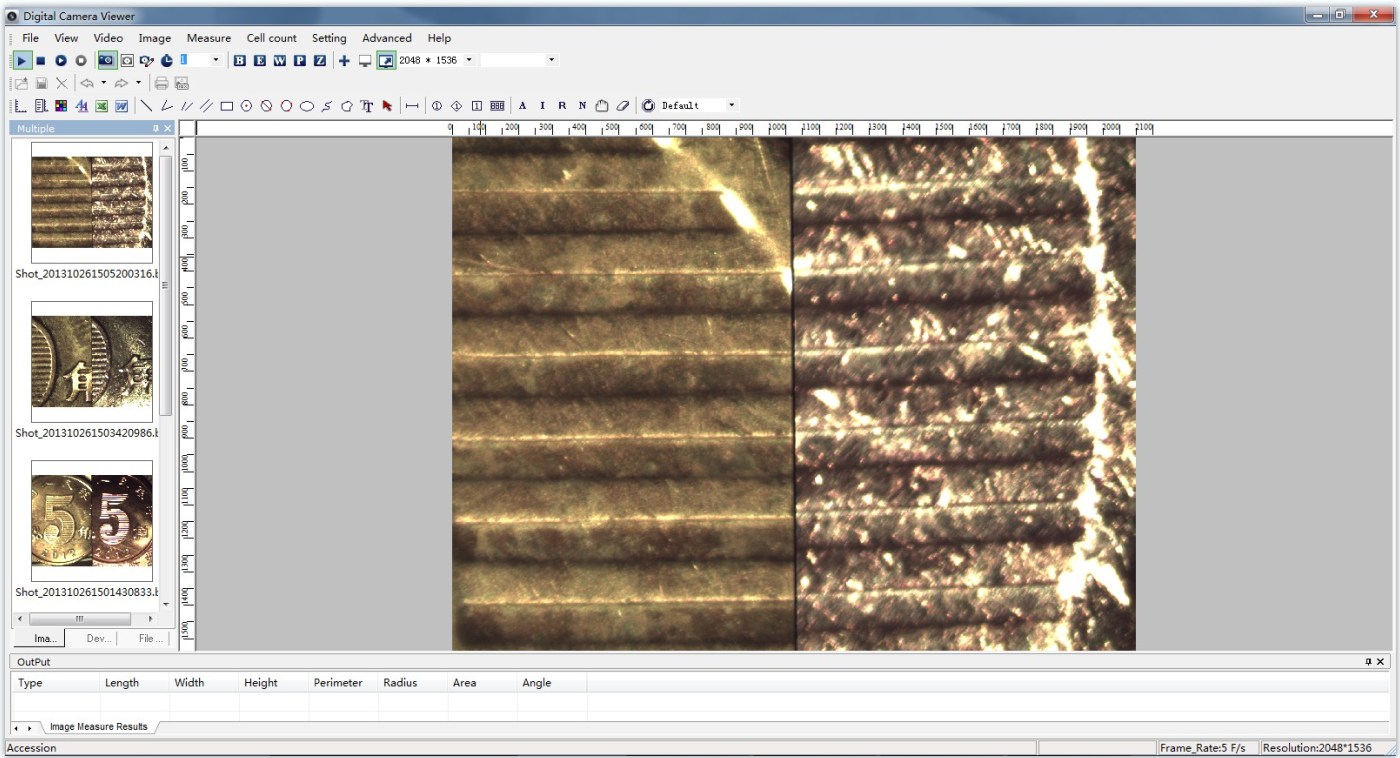

Modern technologies have made many improvements to the basic comparison microscope. We also supply professional comparison image analysis software, and digital cameras, LCD screens, which can show real time images to all people for teaching or demostration. With digital cameras and professional crime image analysis software, it can provide multiple functions for comparing images on a computer. |
|
Comparison microscope is important in law enforcement, in the fields of criminal forensics and ballistics analysis. It allows bullets and bullet fragments as well as other forensic evidence to be compared with each other, which can be used to prove guilt or to exonerate a suspect in some crimes. The instrument is mainly used in forensic labs, security printing works, banks, industry quality control dept, for comparison investigation of bullets & cartridges case, tool marks, currency, coins, banknotes, documents, stamps, seals, fingerprint, fiber, and more small evidence. |
|
Opto-Edu's Comparison Microscope As the most professional comparison microscope manufacture in China, we provide different levels models for our client’s choices. In Opto-Edu, we specify the comparison microscope as A18 series. Basic Entry Level Comparison Microscope The following models are suitable to be used for forensic science education & school, to give an idea and training to the students about what a forensic comparison microscope is and learn how to use it. It is a simple turret stereo microscope system, but includes full comparison system function, with steady quality at a very competitive price. |
|
A18.1825 Comparison Microscope, Step Zoom, 3.2~192x |
|
|
|
A18.1825-LCD Comparison Microscope, Step Zoom, 3.2~192x |
|
Middle Level Comparison Microscope The following models are suitable to be used for forensic science labs, the optical magnification up to more than 200x, with 2 sets of 6 holes nosepiece, and with advanced long working distance infinity plan achromatic objectives. It can provide better image quality, and all kinds of light sources. |
|
A18.1828 Comparison Microscope, 2~240x |
|
|
|
A18.1828-LCD LCD Digital Comparison Microscope, 2~240x |
|
A18.1831 Digital Comparison Microscope, 3.2~288x |
|
|

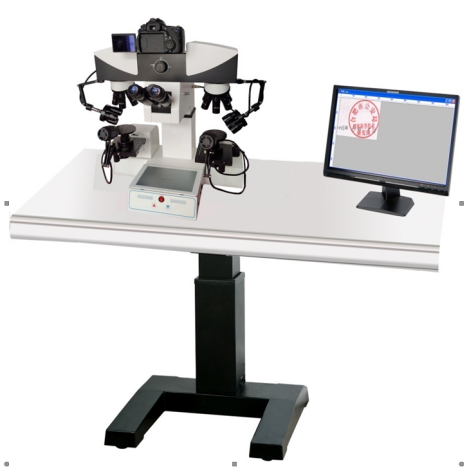

High Level Motorized Comparison Microscope: Motorized digital microscope comparison, is suitable to be used for forensic science laboratory research work, for compare all kinds of bullets, cartridge cases, cutting objects, paper documents and etc. It can be fully controlled by manual or computer software. Built-in high resolution digital color camera can output real time image and video to computer, under professional crime image analysis software, it will be ideal tools for forensic scientist’s research work. With full comparison system function, and with steady quality at very competitive price. |
|
A18.1829 Motorized Digital Forensic Comparison Microscope |
|
|
|
A18.1830 Motorized Digital Forensic Comparison Microscope, with Motorized Working Table |
|
The Latest Model: Motorized Touch Screen Comparison Microscope |
|
Document Examination Analyzer Questioned Document Examination Analyzer is an ideal tool to inspect, observe and compare many kinds of objects, evidences including: |
|
A18.1816-A Questioned Document Examination System |
|
|
|
A18.1818 Questioned Document Examination System |
|
Relative Forensic Products In addition to comparison microscope, we can also provide a variety of relative forensic products. |
|
A18.1839 Desktop Fingerprint Comparator |
|
|
|
A18.1843 Multispectral Observation Camera |
|
For any further questions or inquires about comparison forensic microscope,you are welcome to contact us at [email protected]. We will be happy to assist in selecting the Best Suit model! |
|
