Phase Contrast Microscope
Phase Contrast Microscope


Like Favorites

Phase Contrast Microscope

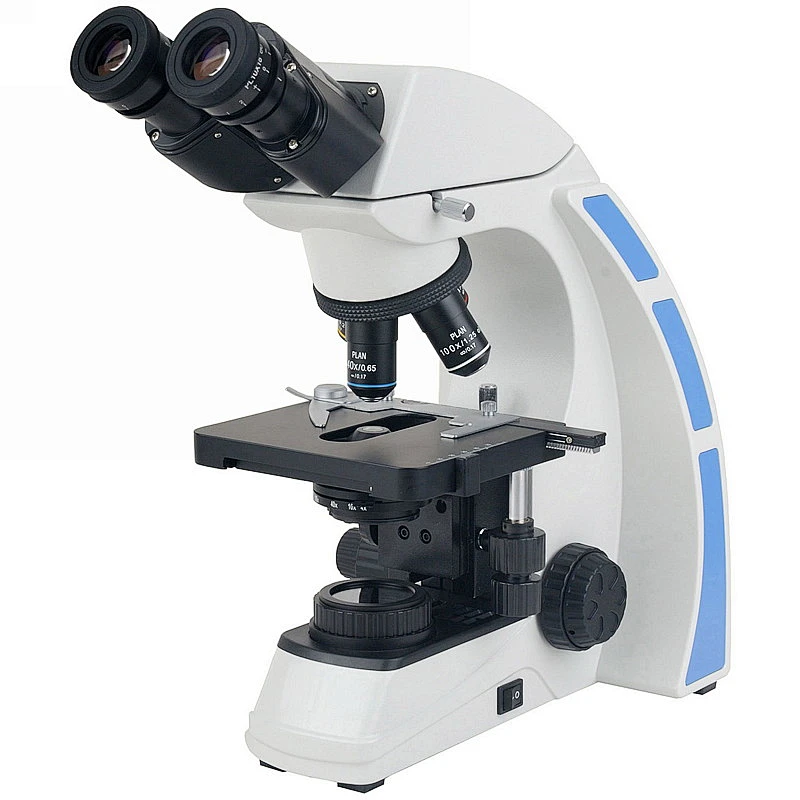

A19.0907 Phase Contrast Microscope
HeadBinocular, 30° Inclined, Interpupillary Distance 54-75mm
PL10x/18mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree
Phase Contrast Set

Infinity Plan Phase Contrast Objective 10X/0.25

Infinity Plan Phase Contrast Objective 20X/0.50
Infinity Plan Phase Contrast Objective 40X/0.65
Infinity Plan Phase Contrast Objective 100X/1.25
Centering telescope
Phase Contrast Slide, for 10x, 40x Infinity Objective
Phase Contrast Slide, for 20x,100x Infinity Objective
NosepieceBackward Quadruple
FocusingLow Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm
Working Stage Double Layer Mechanical Stage 140*132mm, Moving Range 76*50mm, Precision 0.1mm
CondenserKohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed
Light Source3W LED, Intensity Adjustable, Center Fixed
Power90~240V Wide Range Power Supply
