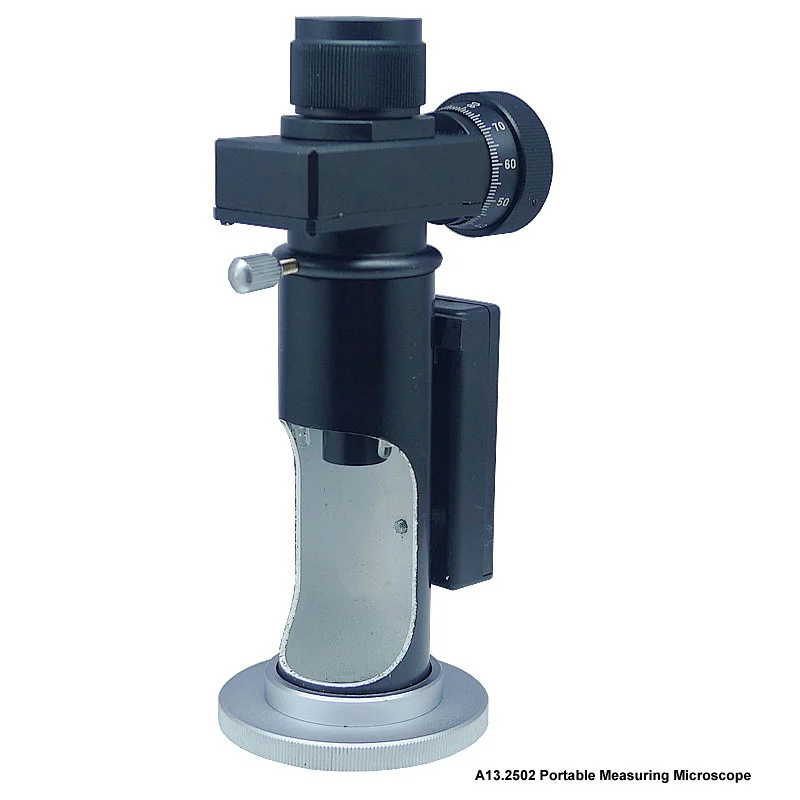

Portable Measuring Microscope
Portable Measuring Microscope
Portable Measuring Microscope

A13.2502

Like Favorites

Portable Measuring Microscope


Quantity:


A13.2502A13.2502-B
Total Magnification20x20x
Wide Field Eyepiece

WF20x

WF10x
Objective1x2x
Measuring KnobDivision 0.01mmDivision 0.005mm
Eyepiece Micrometer--Fixed Micrometer With Main Scale In Eyepiece : 0~8mm
--Moving Micrometer With Corss & Double Lines, Moved By Measuring Knob
Measuring Range4mm
Measuring Precision+/- 0.01mm
FunctionMeasuring Diameter Of Power Particle
Measuring Hardness Test Spot Diameter
Measuring Thickness Of Coating Layer
Measuring All Kinds Of Lenght On Surface...
Theory

AsStructure Picture shown, there are 2 micrometers in the microscope:
--Fixed Micrometer With Main Scale In Eyepiece : 0~8mm
--Moving Micrometer With Corss & Double Lines, Moved By Measuring Knob

The Fixed Micrometer has a main scale 0~8mm length, which is used to fix the measurement position. When you turn the Measuring Knob, it will move the Moving Micrometer and show its moving distance on the knob by 0.01mm division. Keep record of its moving distance, it will be the length you need to measure.

Operation Manual

Measuring Diameter Of Power Particle(See Picture)
1. Put the microscope on the surface of objects, turn on the LED light.
2, Adjust eyepiece (2) to see both micrometer clearly in view field.
3. Adjust focusing ring (7) to see objects clearly in view field.
4. Fix the focusing by screw (9).
5. Turn Measuring Knob to move the micrometer, until the cross center locate on left side of the particle. Read out the main scale as 5 and measuring knob scale as 0.36 (a). (Left Picture)
6. Turn Measuring Knob to move the micrometer, locate the cross center on right side of the particle. Read out the main scale as 4 and measuring knob scale as 0.51 (b). (Right Picture)
7. Moving distance (Y) is the difference between (a) and (b) divided by objective magnification (X) : Y=(b-a)/X.
8. Measured Diameter = Moving Distance = (5.36mm-4.51mm)/1X=0.85mm
