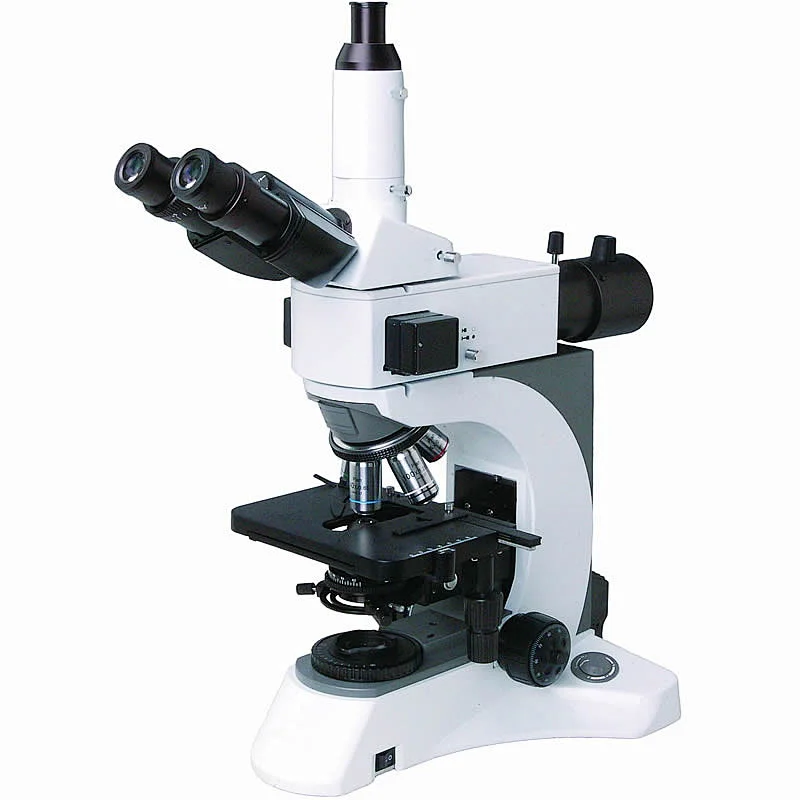

A16.1029 LED Fluorescence Microscope | |||
|---|---|---|---|
Optical System | Infinity Optical System | ||
Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | ||
Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | ||
Nosepiece | Backward Quintuple Nosepiece | ||
| Objective | Infinity Plan Achromatic Objective 4x,10x,40x,100x | ||
| Working Stage | Double Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm | ||
| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm | ||
| Condenser | Swing Condenser N.A.0.95/0.25 | ||
| Illumination | External Kohler Illumination, Asperical Collector, Halogen Lamp 6V30W, Brightness Adjustable | ||
| LED FluorescentSystem | LED Reflected Flourescent System --3W LED Fluorescent Light 465~475nm --Fluorescent Free Oil --Blue Excitation Filter, BP460~490, DM505, BA515 | ||
A16.1029 LED Fluorescence Microscope Optional Accessories | |||
| Objective | Infinity Plan Achromatic Objective 20x | A52.1006-20 | |
| FluorescentSystem | Infinity Plan Fluorescent Objective | 4x/0.13/0.17, W.D.16.3 | A5F.1031-4 |
| 10x/0.3/0.17, W.D.12.4 | A5F.1031-10 | ||
| 20x/0.5/0.17,W.D.1.5 | A5F.1031-20 | ||
| 40x/0.75/0.17,W.D.0.35 | A5F.1031-40 | ||
| 100x/1.3/0.17,W.D.0.13 | A5F.1031-100 | ||
| --3W LED Fluorescent Light 525-530m --Green Excitation Filter, BP510~550, DM570, BA590 | A5F.1004-G | ||
| Adapter | Photo Adapter | A55.1001 | |
| C-Mount 1.0x | A55.1002-10 | ||
| C-Mount 0.5x | A55.1002-05 | ||
