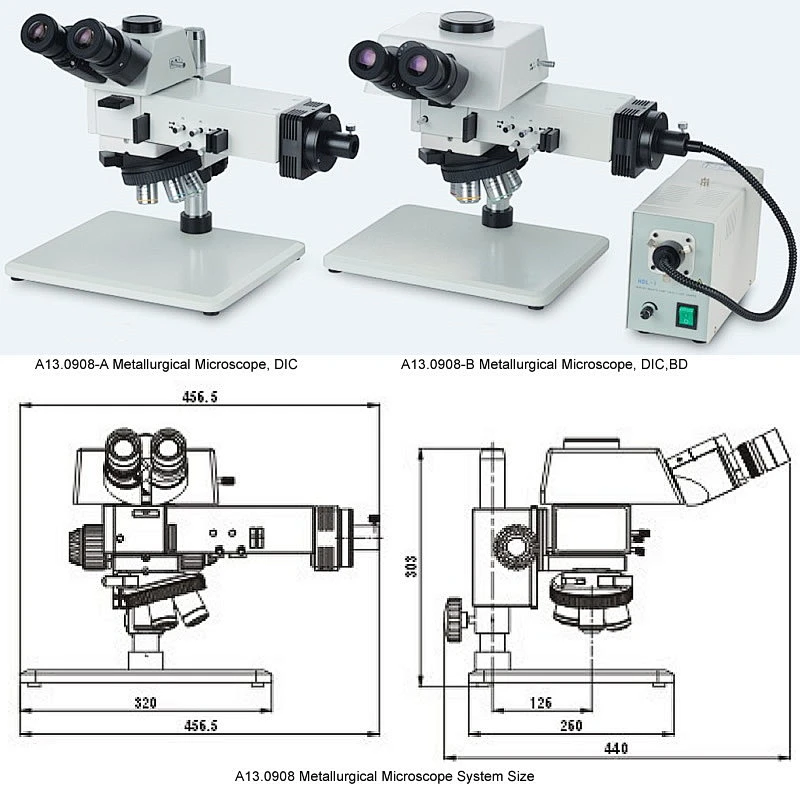

A13.0908 BD, DIC Metallurgical Microscope | A | B | ||
|---|---|---|---|---|
| Optical System | Bright Field/Oblique illumination, Polarizig, DIC | o | ||
| Bright Field/Dark Field, Polarizig, DIC | o | |||
Head | 30°Inclinded Trinocular Postive Head, Spiltting Ratio 100:0 or 50:50, Diopter Adjustable +/-5, Interpupillary Distance 54~75mm | o | ||
| 25° Inclinded Trinocular Postive Head, Spiltting Ratio 100:0 or 0:100, Diopter Adjustable +/-5, Interpupillary Distance 54~75mm | o | |||
Eyepiece | High Eyepoint Plan PL10x/22mm | |||
| Objective | ●Long Working Distance Infinity Plan Metallurgical DICAchromaticObjectives LMPL5X/0.15 WD10.8MM --LMPL10X/0.3 WD10MM --LMPL20X/0.45 WD4MM ●Long Working Distance Infinity Plan Metallurgical Achromatic Objectives --LMPL50X/0.55 WD7.8MM | o | ||
| ●Long Working Distance Infinity Plan Metallurgical BDDICAchromaticObjectives --LMPL5X/0.15 WD10.8MM --LMPL10X/0.3 WD10MM --LMPL20X/0.45 WD4MM ●Long Working Distance Infinity Plan Metallurgical BD Achromatic Objectives --LMPL50X/0.55 WD7.8MM | o | |||
| Nosepiece | Intilted, Quintuple Bright Field, With DIC Slot | o | ||
| Intilted, Quintuple Bright/Dark Field, With DIC Slot | o | |||
| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focus Range 32mm, Fine Focusing Precision 0.002mm,With Tension Adjustable Device to Prevent Gliding | |||
| Base | B5 Big Flat Base, Size 320*260*16mm, Post Height 280mm, DIameter 32mm | |||
Illumination | 20W LED Lamp, Intensity Continuously Adjustable, Soft Single Optical Fiber 550mm (1000mm/1500mm Optional) | |||
| Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With Switch of Oblique Illumination | o | |||
| Reflect Illumination, With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter SLot and Polarizing Slot, With Switch Device Between Bright and Dark Field | o | |||
| Polarizing | Fixed Polarizer Flashboard, Dia.30mm | |||
| 360° Rotatable Analyser Flashboard | ||||
| Power | 90-240V Wide Voltage, One Way Power Output | o | ||
| 90-240V Wide Voltage, Double Way Power Output | o | |||
A13.0908 BD, DIC Metallurgical Microscope Optional Accessories | ||||
| Eyepiece | High Eyepoint Plan PL15x/16mmPL15x16 | A51.0903-1516 | ||
| High Eyepoint Plan PL10x/22mm, with Cross PL10x22r, | A51.0905-1022R | |||
| High Eyepoint Plan PL10x/22mm, Diopter Adjustable, PL10x22T | A51.0904-1022T | |||
| High Eyepoint Plan PL10x/23mm, Diopter Adjustable, PL10x23T | A51.0904-1023T | |||
| Light | Soft Single Optical Fiber 1000mm | A56.0944-1000 | ||
| Soft Single Optical Fiber 1500mm | A56.0944-1500 | |||
| DIC | DIC Attachment Set | A5M.0948 | ||
| Objective | Long Working Distance Infinity Plan Metallurgical Achromatic LMPL100X/0.8 WD2.1MM | A5M.0938-100 | ||
| Long Working Distance Infinity Plan Metallurgical BDAchromatic LMPL100X/0.8 WD2.1MM | A5M.0940-100 | |||
| Filter | Interface Filter For Reflect illumination | Blue,<480nm | A5M.0949-B | |
| Green, 520~570nm | A5M.0949-G | |||
| Red, 630~750nm | A5M.0949-R | |||
| Netural, for White Balance | A5M.0949-LBD | |||
| Adapter | 0.5x C-Mount, for 1/2"CCD, Focus Adjustable | A55.0928-50 | ||
| 1.0x C-Mount, Focus Adjustable | A55.0928-10 | |||
| Digital Camera Adapter with Photo Eyepiece | A55.0910 | |||
