A12.0203-A1 | A12.0203-A2 | A12.0203-B1 | A12.0203-B2 | |
|---|---|---|---|---|
Head | Binocular | Trinocular | Binocular | Trinocular |
Head, 30° Inclined, Interpupillary Distance 55~75mm, Both Eyepiece Tube Diopter Adjustable +/-5°, 100% Light Pass To Photo Tube | ||||
Eyepiece | WF10x/20mm Wide Field Eyepiece | |||

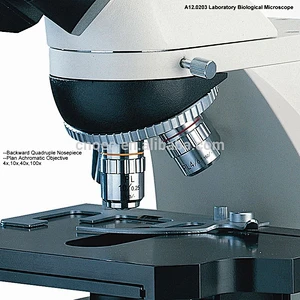

| Nosepiece | Backward Quadruple Nosepiece, Ball Bearing Inner Locating | Backward Quintuple Nosepiece, Ball Bearing Inner Locating | ||
| Objective | Plan Achromatic Objective: PL4x/0.10, W.D.21mm PL10x/0.25, W.D. 5.0mm PL40x/0.65, W.D. 0.66mm (S) PL100x/1.25, W.D.0.36mm (S,O) . | Plan Achromatic Objective: PL4x/0.10, W.D.21mm PL10x/0.25, W.D. 5.0mm PL20x/0.40, W.D.8.8mm PL40x/0.65, W.D. 0.66mm (S) PL100x/1.25, W.D.0.36mm (S,O) | ||
| Working Stage | Double Layer Mechanical Stage 210*140mm, Moving Range 75*50mm | |||

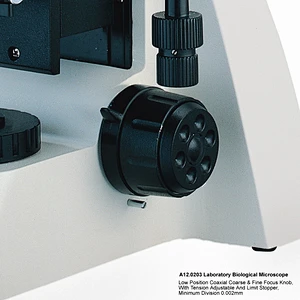

| Focusing | Low Position Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.002mm | |||

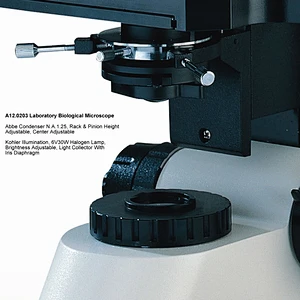

| Condenser | Abbe Condenser N.A.1.25, Rack & Pinion Height Adjustable, Center Adjustable | |||
| Filter | Blue Filter, Frosted Filter | |||
| Light Source | Kohler Illumination, 6V30W Halogen Lamp, Brightness Adjustable, Light Collector With Iris Diaphragm | |||

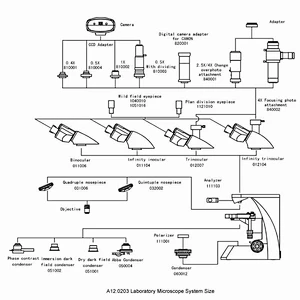

A12.0203 Laboratory Biological Microscope Optional Accessories | ||
|---|---|---|
| Eyepiece | WF16x/11mm Wide Field Eyepiece | A51.0203-1A |
| Retical Eyepiece, WF10x/20mm, Micrometer Div 0.1mm | A51.0205-G10A | |
| Objective | Plan Achromatic Objective PL60x/0.85, W.D.0.25mm | A52.0203-60 |
| Filter | Green Filter | A56.0209-02 |
| Yellow Filter | A56.0209-03 | |
| Infinity Optical System | Binocular Head, 30° Inclined, For Infinity | A53.0207-4 |
| Trinocular Head, 30° Inclined, For Infinity | A53.0208-4 | |
| Infinity Plan Achromatic 4x/0.10 | A52.0206-4 | |
| Infinity Plan Achromatic 10x/0.25 | A52.0206-10 | |
| Infinity Plan Achromatic 20x/0.40 | A52.0206-20 | |
| Infinity Plan Achromatic 40x/0.60 | A52.0206-40 | |
| Infinity Plan Achromatic 100x/1.25 | A52.0206-100 | |

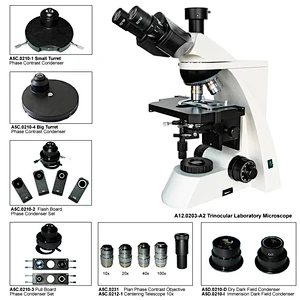

| Phase Contrast | Centering Telescope | A5C.0212-2 |
| Plan Phase Contrast Objective 10x/0.25 PHP | A5C.0231-P10 | |
| Plan Phase Contrast Objective 20x/0.40 PHP, Spring | A5C.0231-P20 | |
| Plan Phase Contrast Objective 40x/0.65 PHP, Spring | A5C.0231-P40 | |
| Plan Phase Contrast Objective 100x/1.25 PHP, Spring, Oil | A5C.0231-P100 | |
| Infinity Plan Phase Contrast Objective 10x/0.25 PHP | A5C.0234-P10 | |
| Infinity Plan Phase Contrast Objective 20x/0.40 PHP, Spring | A5C.0234-P20 | |
| Infinity Plan Phase Contrast Objective 40x/0.65 PHP, Spring | A5C.0234-P40 | |
| Infinity Plan Phase Contrast Objective 100x/1.25 PHP, Spring, Oil | A5C.0234-P100 | |
| Small Turret Phase Contrast Condenser | A5C.0210-1 | |
| BigTurret Phase Contrast Condenser | A5C.0210-4 | |
| Flashboard Phase Contrast Condenser With Slides *4 | A5C.0210-2 | |
Pullboard Phase Contrast Condenser With Sildes * 2 | A5C.0210-3 | |
| Polarizing | Simple Polarizing Set Polarizer, 360° Rotatable, Used On Base Light Collector Analyizer Glass, Put Between Head And Body | A5P.0201-1 |
| Dark Field | Dark Field Condenser, Dry | A5D.0210-D |
| Dark Field Condenser, Immersion | A5D.0210-I | |
| Adapter | CCD Adapter 0.4x | A55.0202-01 |
| CCD Adapter 0.5x | A55.0202-04 | |
| CCD Adapter 1.0x | A55.0202-02 | |
| CCD Adapter 0.5x With Dividing 0.1mm/Divv | A55.0202-03 | |
| Digital SLR Camera Adapter for Canon EF Series | A55.0204-02 | |
