How To Select Laboratory Upright & Inverted Microscope?

What is Laboratory Microscope?


Laboratory Microscope is a kind of precision optical instrument used to observe biological sections, biological cells, bacteria and living tissue culture, fluid precipitation, but also to observe other transparent or translucent objects and powder, fine particles and other objects. Biological microscope is used for the observation of microorganisms, cells, bacteria, tissue culture, suspension, sediment and so on in medical and health units, universities and research institutes. It can continuously observe the process of reproduction and division of cells and bacteria in culture medium. It is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Laboratory Microscope, different with A11 series student microscope, is a higher-level compound microscope, designed for laboratory research, hospital daily checking, institute & college study. Usually, laboratory microscopes are designed with bigger main body, higher level optical system like infinity plan, high contrast, etc. In Opto-Edu supply range, we specify the upright laboratory microscope as A12 series. Most of them are upgradeable with full range function attachment, except for regular Bright Field, you can also get views of Dark Field, Phase Contrast, Polarizing, Fluorescent, Metallurgical or DIC.

Furthermore, you can also select more professional special function models to get better image quality. We specify these special models as below series:
A13 Metallurgical Microscope                    A14 Inverted Biological Microscope
A15 Polarizing Microscope                        A16 Fluorescent Microscope
A17 Multi-View Teaching Microscope        A18 Comparison Microscope
A19 Phase Contrast Microscope               A10 Dark Field Microscope

In addition to observing general biological slides, other special or unique applications, such as observing the flagella of bacteria, the outline of objects such as spirochaetes in human body fluids or the movement of objects, require the use of Dark Field microscope; Fluorescent microscope is required to observe fluorescently labeled samples. Observation of parasites in blood night, rapid identification of bacteria, coccus, mold spores, etc. without staining or coloring, need to use Phase Contrast microscope, and so on. All these microscopes can be found in Opto-Edu's supply range. Whatever your application is, with our extensive range of microscopes and accessories, we can help you configure the right microscope. If you are not sure what kind of microscope you need, please feel free to contact our professional sales team at [email protected], we will assist you all the time!



Entry Level Laboratory Microscope


The entry-level laboratory microscope is easy to operate, opening the door of scientific experiments for beginners, fully meeting the requirements of teaching and experiments, and allowing users to re-understand the world from a micro perspective. It usually comes with infinity plan optical system.

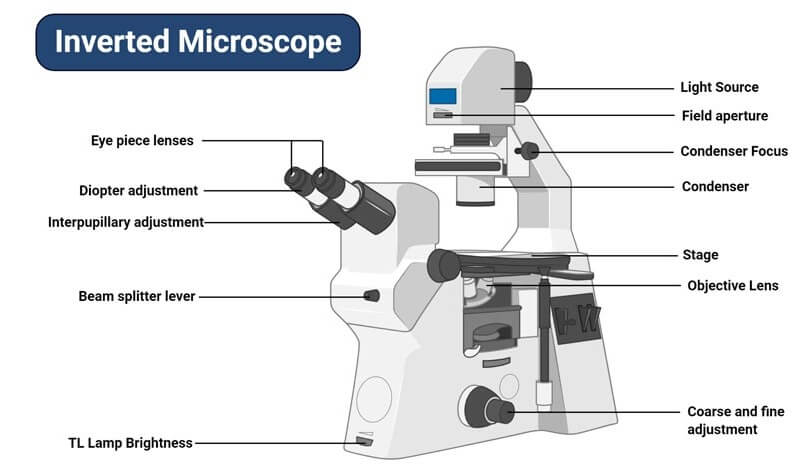

The stage of an inverted microscope is usually fixed, and focus is adjusted by moving the objective lens along a vertical axis to bring it closer to or further from the specimen. The focus mechanism typically has a dual concentric knob for coarse and fine focusing adjustment. These microscopes usually have phase contrast accessories in standard outfits. They can also be fitted with accessories like digital cameras, fluorescent illumination, confocal scanning and many other applications

Hot Sale Inverted Microscope Models

A14.2603 Inverted Microscope

● Seidentopf Trinocular Head, Light Split Switch E100:P0 / E20:P80

● LWD Infinity Plan Semi-APO Fluorescent Objectives Bright Field & Phase Contrast Observation Supported

● LWD Condenser N.A.0.3 Working Distance 72mm, Up To 195mm Without Condenser

● Standard Halogen 6V30W Koehler Illumination, 5W LED Optional For Choice

● Fluorescence Attachment Can Be Added To Upgrade It As A16.2614 Fluorescent Microscope

A14.2603 model customized for a professional and comfortable working environment Infinite distance color correction optical system, with the international advanced level of the new generation of products, A14.2603 for cell tissue observation and culture, the ideal partner for life science research

A14.2605 Inverted Microscope

● Dual Photo & Video Channel Support Eyepiece / Digital Camera / SLR Camera View At Same Time

● ECO Automatic Power Off Upon User Leaving 10 Minutes & Power On Upon User Back

● Semi-APO LWD Infinity Plan Objectives Bright Field & Phase Contrast Observation Supported

● 4 Holes Disc Phase Contrast Condenser + Halogen 12V50W Koehler Illumination

● Fluorescence Attachment Can Be Added Upgrade To A16.2614 Fluorescent Microscope

A14.0205 Inverted Biological Phase Contrast Microscope, DIC, PMC

● Inverted Biological Phase Contrast Microscope, Upgradeable To DIC, PMC

● WF10x/22 Eyepiece, Bright Field LWD Infinity Plan 10x20x40x,

● Large Working Stage 224x205mm, Moving Stage 112x77mm

● LWD Condenser W.D.70mm With Phase Contrast Slide

● LWD Infinity Plan Phase Contrast Objective, Hoffman Objective, DIC Objective

A14.0205 uses a streamlined design concept, compact and stable high rigid body, fully reflects the microoperation vibration prevention requirements. The ultra-long working distance light concentrating system can observe the culture cells without contamination in the high petri dish or cylindric flask. The lighting system fully considers heat dissipation and safety, and the ergonomic design concept, so that the operation is more convenient, comfortable and safe, and the space is wider.
A14.0205 can be used for microscopic observation of cell tissue, transparent liquid tissue, also can be used for dynamic microscopic observation of culture tissue in the petri dish, can be applied to scientific research institutes, colleges and universities, medical health, inspection and quarantine, agriculture and dairy industry and other departments.

A14.0912 Inverted Biological Microscope, BF+PH, ECO

● Professional Inverted Microscope Infinity Color Corrected Optical System With BF+PH View

● Infinity LWD Plan Achromatic Objective 4x/10x/40x & Phase Contrast 20x

● Phase Contrast Slide 4x10x+20x40x + Centering Telescope

● Transmit 5W LED Light Source With LWD Condenser N.A.0.3, W.D.72mm

● Intelligent Front Panel With Light Indicator, ECO Auto On/Off Function Switch

A14.0912 microscope is specially designed for the culture and observation of cell tissues, with high contrast and resolution, highlighting the outline and internal structure of cells. And can realize bright field, fluorescence, phase contrast observation, to meet the needs of laboratory daily work and basic research. Set bright field, phase contrast, fluorescence and other observation methods in one equipped with intimate accessories, is an excellent choice for your laboratory observation.
Equipped with professional LED reflective fluorescent lighting system, A14.0912 observation is more accurate and stable. Professional fluorescent objective lens and accessories can be selected to observe the phenomenon of spontaneous fluorescence in vivo, fluorescence transfection of biological cells protein transfer and other fluorescence phenomena.

A14.1065 Inverted Biological Phase Contrast Microscope, Info LCD

● Brand New Design 2019 High Level Inverted Laboratory Microscope

● Super Long Working Distance Upto 187mm Condenser

● Coded 5 Holes Nospiece With LCD Screen And Auto Brightness Adjust Function

● Phase Contrast, Hoffman Contrast, Emboss Contrast (DIC) Optional

● Upgradeable To Fluorescent Research Microscope A16.1064

A14.1065 microscope control mechanism is reasonable in layout and easy to operate. It makes reasonable improvements on the basis of scientific research microscope. more suitable for laboratory observation of cells. The body is compact and stable, and the operation buttons are well arranged, the cells can be observed, sampled and processed in the super clean bench freely.
A14.1065 frequently used control mechanisms are close to the user and in low-hand position. this kind of design makes operation more quickly and conveniently, and reduce the fatigue caused by the long observation. On the other hand, it reduces the airflow and dust caused by large amplitude operation, and it is very effective at reducing the probability of sample pollution. It is a strong guarantee for the accuracy and repeatability of the experimental results.

A14.1097 Inverted Biological Microscope, Semi-Auto, Semi-APO, BF+PH, LCD Touch Screen

● Research Level Inverted Biological Microscope For BF/PH/DIC

● Trinocular Head With Built-in Bertrand Lens SW10x/22mm Eyepiece

● Infintiy Plan Sem-APO Phase Contrast Objective 10x20x40x

● LCD Touch Screen + Coded Sextuple Nosepiece With DIC Slot

● Transmit 12V100W Halogen Flexible Illuminator Can Retrovert From Optical Path

A14.1097 is the high level inverted microscope, newly designed in 2021, with humanized design to make the microscope operation comfortable and easy. You can carry out the microscope operation in the most natural state. The powerful detail design allows for a wide range of trials and can be adapted to all standard sections and cell culture vessels, supporting a variety of research applications.
With a gentle push, the transmission lighting column can be tipped backwards. This design ensures that users have a large working space and can easily change samples. High performance three-layer loading platform flexible operation, feel comfortable, accurate positioning.
4.3“ LCD Information Touch Screen (A14.1097)
In Front of Main Body, For Easy Watch & Control in The Dark Working Condition.
--Show Objectives In Use In Nosepiece
--Show Cubes In Use In Multi Function Turret
--Brightness Memorize & Restore Function
--Touch To Adjust Brightness
--Touch To Set The System

Most important, A14.1097 can upgrade to A16.1098 motorized fluorescent inverted microscope, which is the newest and highest level inverted microscope in our range. If you are interested, please contact us for more details!

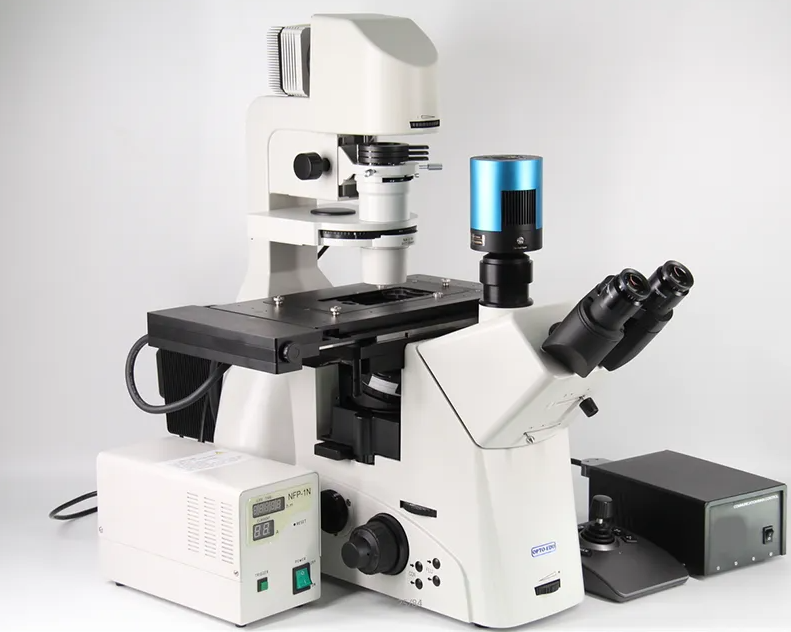

A16.1098 Full Motorized Inverted Fluorescent Microscope, Semi-APO, BF/PH/PL/FL/DIC

● Research Level Full Motorized Inverted Fluorescent Microscope For BF/PH/FL/DIC

● Motorized Sextuple Nosepiece With DIC Slot, Infintiy Plan Sem-APO PH10x20x40x

● Motorized X/Y/Z Auto Triple Layer Working Stage Moving Range 130x85mm, With 3 Holder

● Motorized LWD Condensor N.A.0.55 W.D.26mm, With 6 Holes Phase Contrast Disc

● Motorized 6 Position Fluorescent Disc, With 3 Filters

For any further questions or inquires about laboratory microscope, you are welcome to contact us at [email protected]. We will be happy to assist in selecting the Best Suit model!
Written By Cherry, 2022-12
