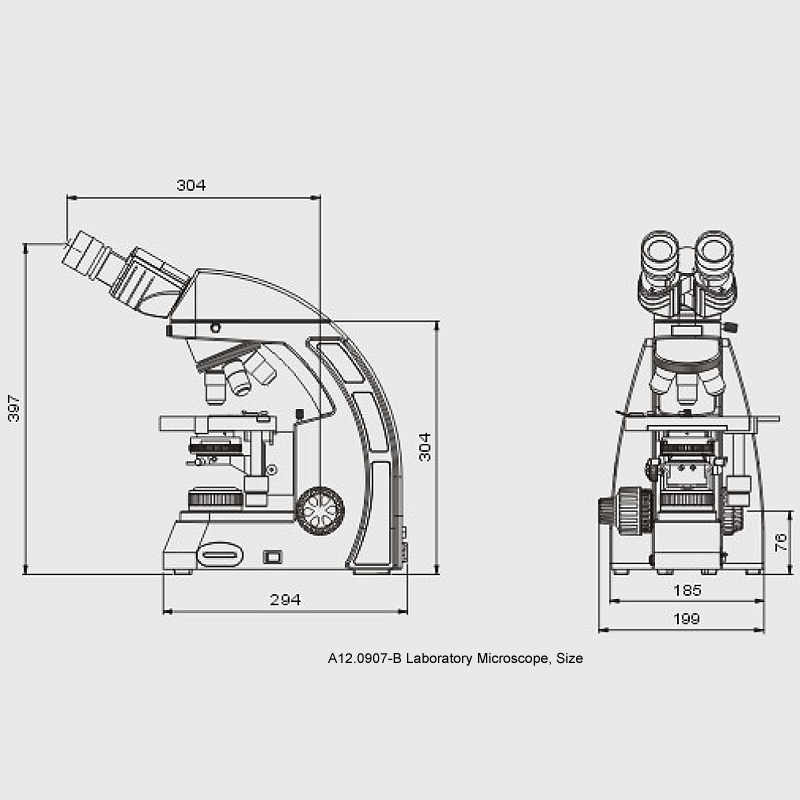

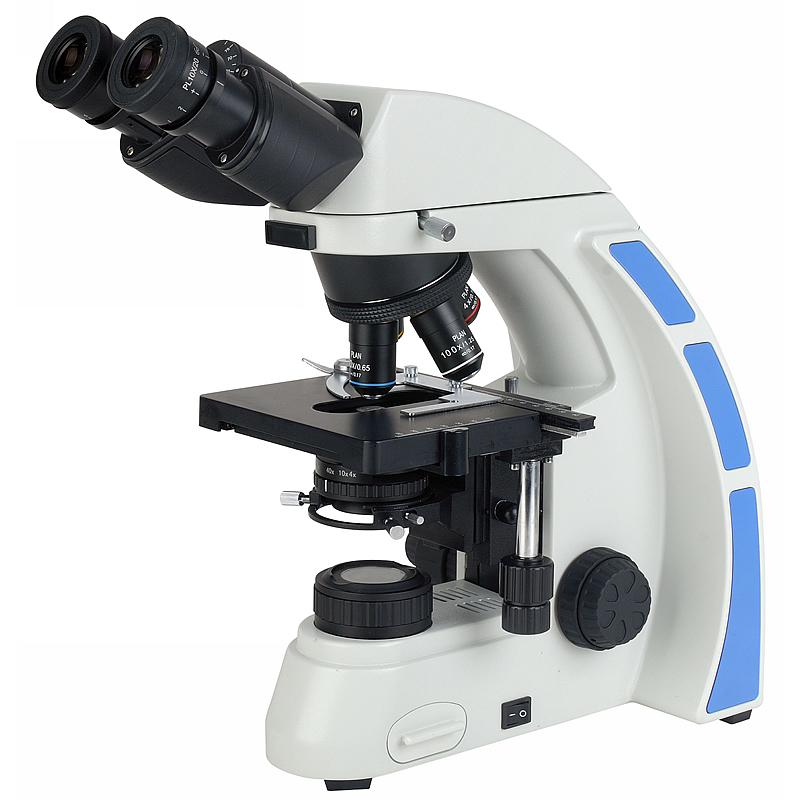

A12.0907-B Laboratory Microscope | |||
|---|---|---|---|
| Head | Binocular, 30° Inclined, Interpupillary Distance 50-75mm | ||
Eyepiece | PL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree | ||

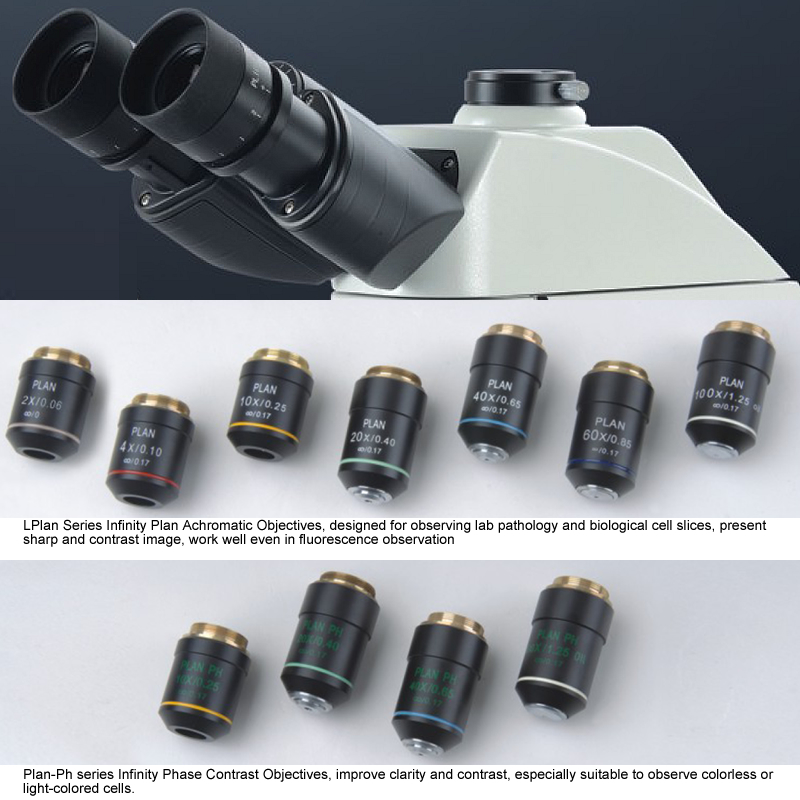

Objective | Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 | ||
| Nosepiece | Backward Quadruple | ||
| Focusing | Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm | ||

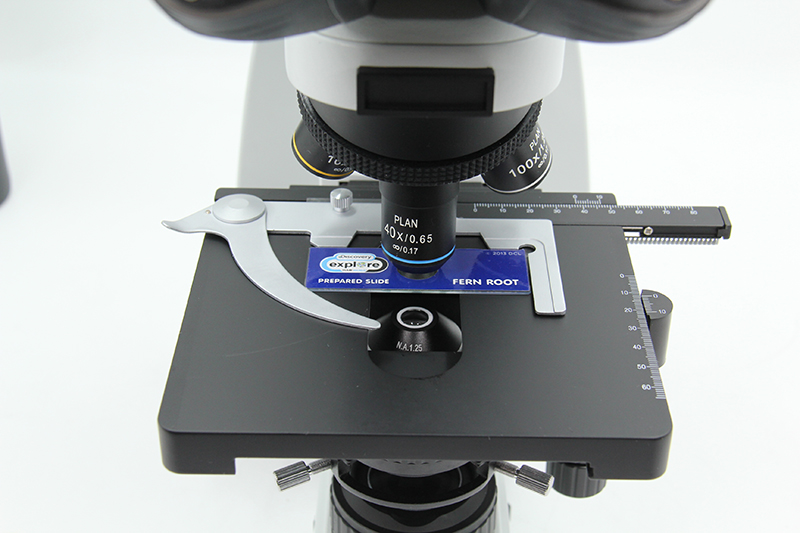

| Working Stage | Double Layer Mechanical Stage 150*140mm, Moving Range 76*50mm, Precision 0.1mm | ||

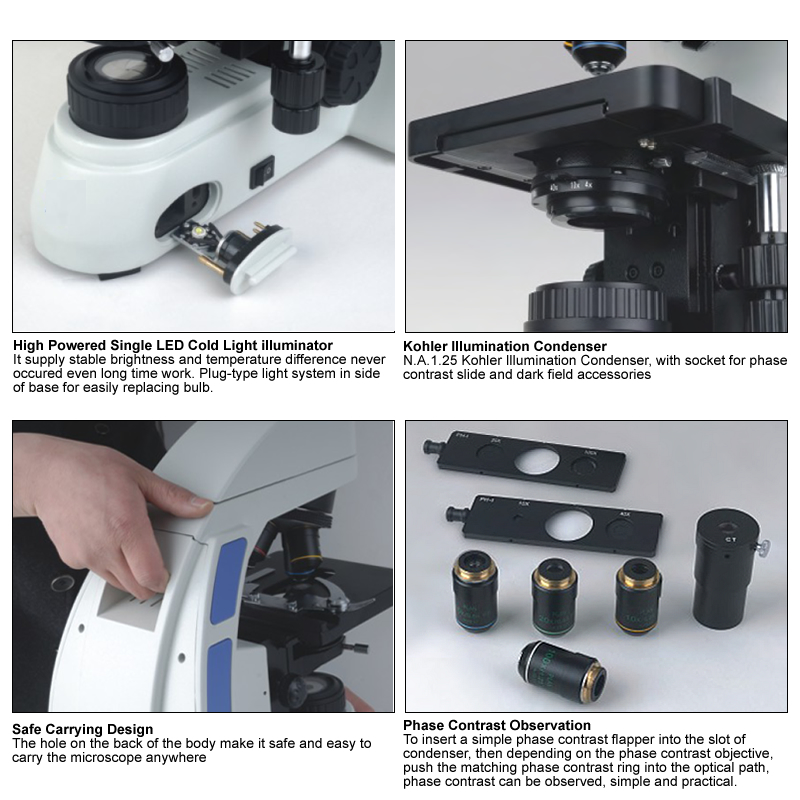

| Condenser | Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed | ||
| Light Source | 3W LED, Intensity Adjustable, Center Fixed | ||

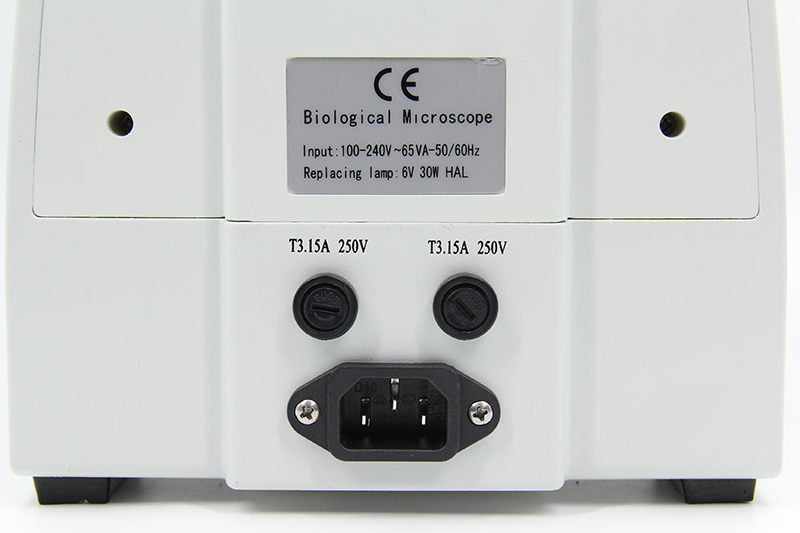

| Power | 90~240V Wide Range Power Supply | ||
A12.0907-B Laboratory Microscope Optional Accessories | |||
| Head | Trinocular, 30° Inclined, Interpupillary Distance 50-75mm | A53.0907-T30R | |
| Eyepiece | PL10x/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree | A51.0904-1022T | |
| Objective | Infinity Plan Achromatic 20x/0.50 | A52.0906-20 | |
| Nosepiece | Backward Quintuple | A54.0930-BS5 | |
| Filter | Blue, Dia.45 | A56.0935-XYB | |
| Yellow,Dia.45 | A56.0935-XYY | ||
| Green, Dia.45 | A56.0935-XYG | ||
| Netural, Dia.45 | A56.0935-XYF | ||
| Adapter | C-Mount 1.0x, Focus Adjustable | A55.0925-1 | |
| C-Mount 0.5x, Focus Adjustable , for 1/2 CCD | A55.0925-1/2 | ||
| C-Mount 0.35x, Focus Adjustable, for 1/3 CCD | A55.0925-1/3 | ||
| Photo Adapter with PK or MD mount, with 3.2x Photo Eyepiece | A55.0901-1 | ||
| Professional Photo C Mount, with Photo Eyepiece | A55.0910 | ||
| Fluorescent | Trinocular Head for Fluorescent View, 30° Inclined, Interpupillary Distance 50-75mm | A53.0907-T30RFL | |
| Infinity Plan Semi Apochromatic Fluorescence Objective | 4x/0.13,WD=15.3mm | A5F.0931-4 | |
| 10x/0.30,WD=8.7mm | A5F.0931-10 | ||
| 20x/0.50,WD=2.5mm | A5F.0931-20 | ||
| 40x/0.75,WD=0.72mm | A5F.0931-40 | ||
| 100x/1.30,WD=0.21mm | A5F.0931-100 | ||
| Dark Field | Dark Field Slide, for 4x~40x Objective | A5D.0915-K | |
| Polarizing | Polarizer | A5P.0911-P | |
| Analyser | A5P.0911-A | ||
| Phase Contrast | Centering Telescope, Dia.30mm | A5C.0910-30 | |
| Phase Contrast Slide, for 10x, 40x Infinity Objective | A5C.0915-IP1 | ||
| Phase Contrast Slide, for 20x,100x Infinity Objective | A5C.0916-IP2 | ||

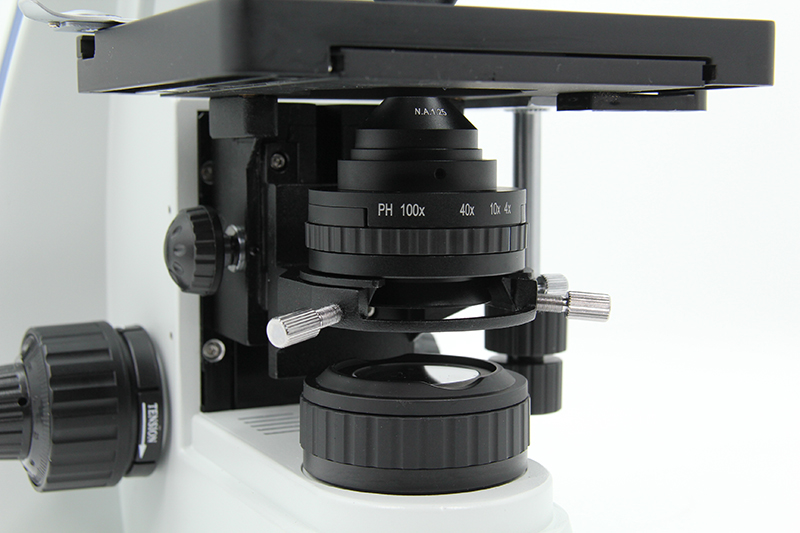

| N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condense Set, For 10x,20x,40x,100x Phase Contrast Observation | A5C.0912-KP | ||
| N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condenser + Dark Field Condenser Set, For 10x,40x,100x Phase Contrast Observation and Dark Filed Observation | A5C.0912-KPD | ||
| Infinity Plan Phase Contrast Objective 10x/0.25, W.D.=4.70mm | A5C.0937-10 | ||
| Infinity Plan Phase Contrast Objective 20x/0.50, W.D.=1.75mm | A5C.0937-20 | ||
| Infinity Plan Phase Contrast Objective 40x/0.65, W.D.=0.72mm | A5C.0937-40 | ||
| Infinity Plan Phase Contrast Objective 100x/1.25, W.D.=0.15mm | A5C.0937-100 | ||
