How to Select Digital Camera & Digital Microscope

How to Select Digital Camera & Digital Microscope？

What is Microscope Digital Camera?

In optical microscopes, the objects can only be observed through the naked eyes of human. When we find a target position under the microscope, it is often difficult to find it again after moving the sample, which leads to a lot of data loss, especially when we need to compare these data. The research and development of the microscope Digital Camera has successfully solved these distressing problems of researchers. The camera captures the sample image of each observation according to your need, so that the first-hand original data can be well preserved, which can not only be used as experimental data for comparison, it can also be permanently preserved as valuable reference data.

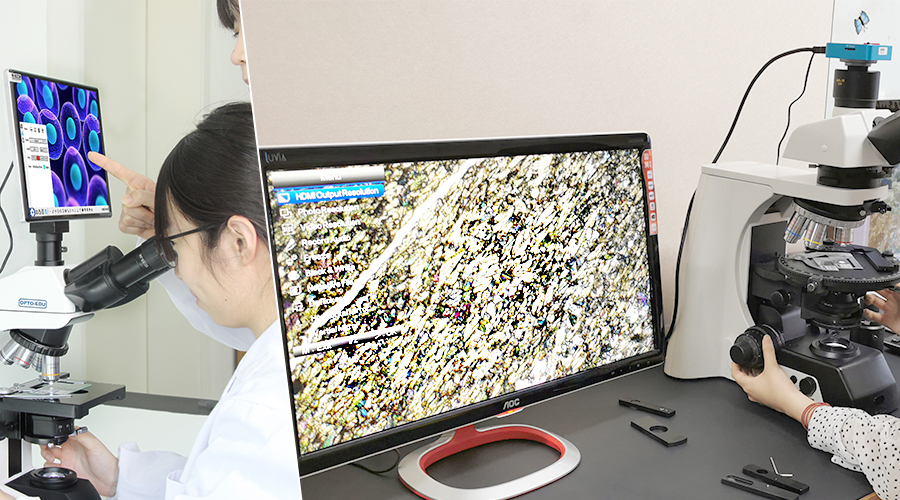

Use of Microscope Digital Camera

Microscope cameras play an important role in the fields of industry, agriculture, biology, and medical care. They are mainly used to support biological microscopes, metallographic microscopes, scanning equipment, and monitoring equipment. In industry, microscope cameras can be used in combination with metallographic microscopes for surface texture of industrial materials. In agriculture, it is used with professional optical equipment and so on. Biologically, the microscope camera can be used to observe and analyze etc.

How Dose Microscope Digital Camera Work

The optical image generated by the scene through the lens is projected onto the surface of the camera sensor (CMOS or CCD), and then converted into an electrical signal, converted into a digital image signal by A/D (analog-to-digital conversion), and then sent to the digital signal processing chip (DSP), then transmitted to the monitor through HDMI port or to computer through the USB interface for further processing.

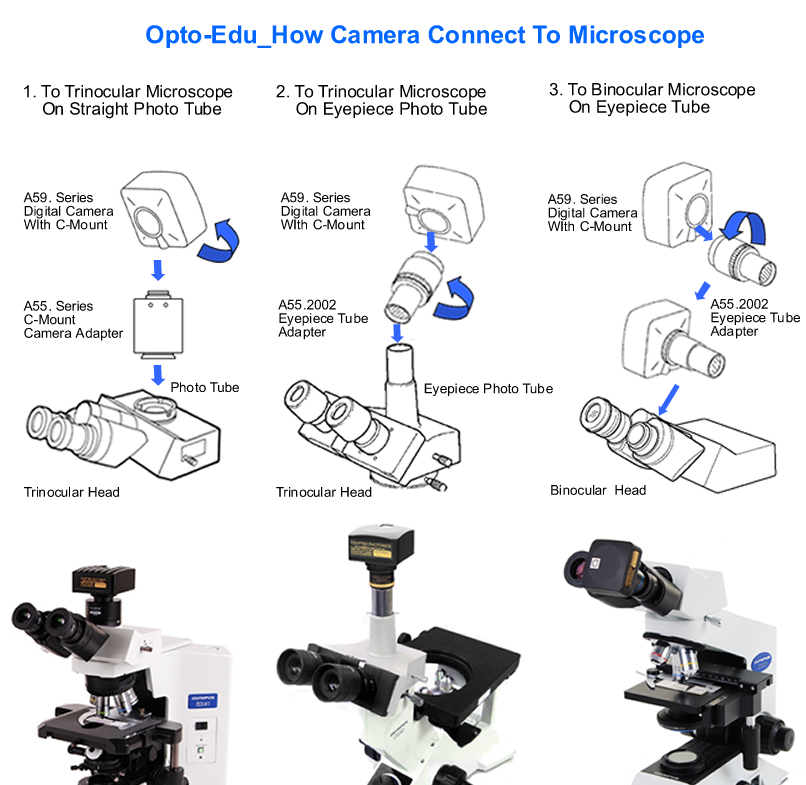

How Camera Connects to Microscope?

See below pictures of 3 ways to connect the digital camera to microscope. To add a digital camera to microscope, an interface must be added first. For a trinocular microscope, you need the standard C-Mount Camera Adapter to connect the digital camera onto the third photo tube of the trinocular head. For trinocular head with eyepiece photo tube, or binocular, monocular head with eyepiece tube, you will need an Eyepiece Tube Adapter to screw on the camera first, then insert it into the eyepiece eyetube.

Microscope Digital Camera Purchase Guide

There are several different parameters that should be taken into consideration when selecting a digital camera.

Output

Digital cameras have different output methods, including USB, HDMI, WIFI, WAN, LCD or Pad. The most common ones are USB, HDMI and Pad cameras.

USB2.0 or USB 3.0 are mainly used to output micro images to a computer or laptop's USB port. Usually it comes with image analysis software which can be installed on computer Windows systems to do a lot of measure and analysis work. Also, it is easy to capture & save pictures, videos to your computer by USB cameras.

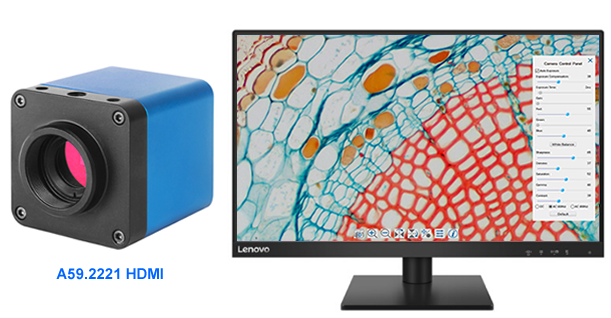

HDMI is also popular on the market, as it can output images to large monitors via HDMI cable directly, no need for a computer. It is quite suitable for those jobs that only need watching & taking pictures. Now, some new HDMI models also support USB mouse & keyboard to control UI on monitor, so it can do some simple measure work too

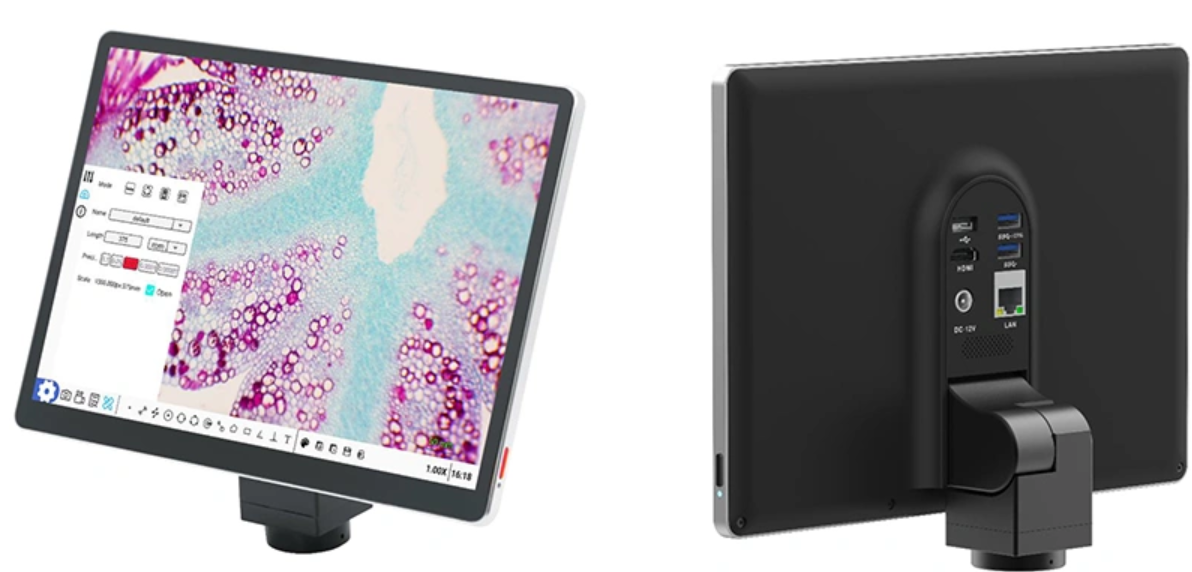

Pad camera, means an LCD, android or windows pad have been combined into a digital camera. So there is no need to buy a monitor or computer separately, with this all-in-one camera you can do all the work. The most popular model is the A59.3521 Android pad digital camera as below:

Pixel

Pixel interpolation: Interpolation is a method to simulate the peripheral pixel values according to the color parameters of the central pixel point. It is a special software means for digital cameras to enlarge digital photos. Interpolated pixels are not the effective pixels of the digital camera itself. Through the DSP chip set inside the digital camera, when the image needs to be enlarged, the algorithm is used to add the pixels that need to be added after the image is enlarged. For photosensitive elements with the same effective pixel, the larger the size, the larger the unit area of each pixel, the better the photosensitive performance, and more image details can be recorded.

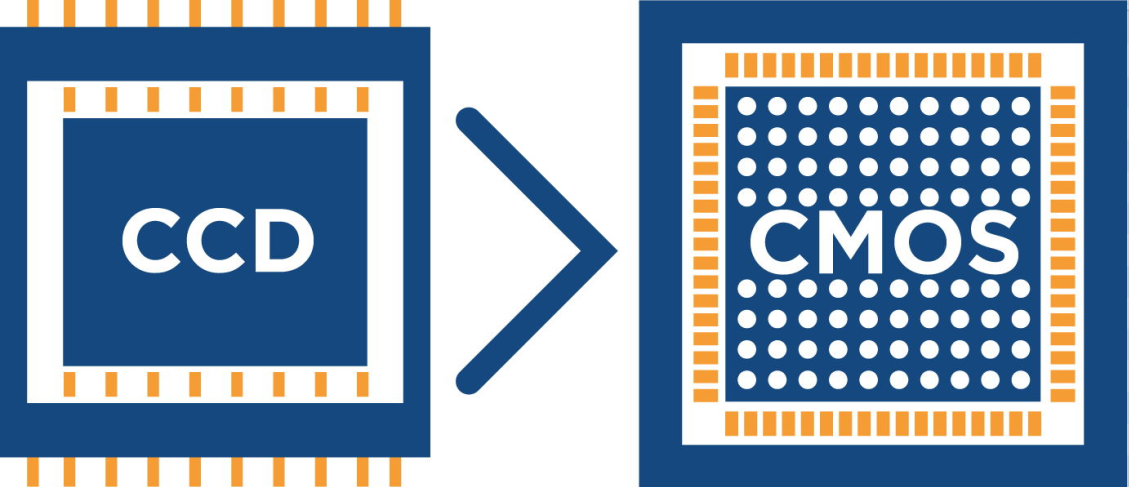

Sensor

CCD (Charge Coupled Device) and CMOS (Complex Metal-Oxide Semiconductor). CCD is mainly used in high-end photography technology, while CMOS is used in products with lower image quality. At present, the size of CCD element is mostly 1/3 inch or 2/3 inch. There are also 1/1.8 inch ones. At the same resolution, the sensitivity of the larger component size is relatively high, and the imaging effect is also relatively good. In recent years, the latter evolved to the more advanced scientific CMOS (sCMOS) sensor, opening new possibilities for many researchers, including faster acquisition times for sCMOS cameras compared to CCD cameras.

CCD and CMOS have their own advantages, and the practical situation is also different. Generally, they are used for shooting in the open field, and the imaging requirements are not very high. It is recommended to select CMOS camera

As CMOS camera will fit most researchers’ needs these days. However, CMOS technology has caught up and light sensitivity is similar nowadays. However, for users of low-light photography, especially those of fluorescence photography, it is more appropriate to choose a CCD camera.

Frame Rate

Frame Per Second, usually expressed in fps is another important factor to consider, especially when captuer an object in high speed moving. If the frame rate of the viewed image is higher than 16fps, it will be considered as coherent. Higher frame rates can result in smoother and more realistic animation. Generally speaking, 30 fps is acceptable, and improving the performance to 60 fps can significantly improve the sense of interaction and realism, but generally speaking, if it exceeds 75 fps, it is not easy to notice that there is a significant improvement in smoothness.

How to Select Microscope Digital Camera

Opto-Edu has separated all the digital cameras into different categories according to their main character, as the picture shown below. We also listed the most popular models for your quick choice.

//www.optoedu.com/A59

● USB2.0 CMOS ●

A59.5101-2.0MA USB2.0 CMOS Digital Eyepiece Camera, 1.3M/2.0M
● Economy USB 2.0 Digital Eyepiece Camera Dia.23.2mm
● 1.3M, 2.0M Pixels Resolution Up To 1920x1080
● Compact Design Eyepiece Shape For All Kinds Microscope
● With Professional Image Analysis Software Strange View
● Software Support Window, Mac Computer

A59.2205 USB2.0 CMOS Digital Eyepiece Camera, 0.92M~12M
● USB2.0 Compact Digital Eyepiece Camera With Aptina CMOS Resloution 2.1M~12M
● Easy To Extend to C or CS- Mount Camera, Works On Microscope Eyepiece Tube or Video Port
● High-speed USB2.0 Interface And High Frame Rate Video Display Keep Screen Smooth
● Auto White Balance, Auto-exposure, Brightness, Contrast, Chroma & Saturation Can Be Adjusted
● With Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

A59.4910 USB2.0 CMOS Digital Camera, 5.0M, Fix USB Cable
● 5.0M USB2.0 1/2.5" CMOS Digital Camera
● Real Time Preview, Image/Video Capture
● Professional Measuring & Analysis Software
● Support Windows, Mac, Linux System
● C-Mount, Eyepiece Tube Adapter To Use With All Microscopes

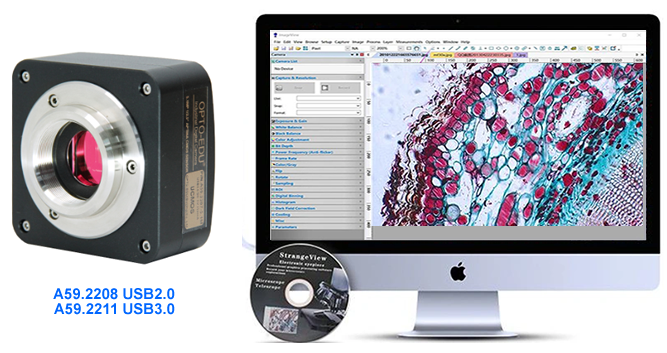

A59.2208 USB2.0 CMOS Digital Camera, 1.3M~14M
● USB2.0 Digital Camera With Aptina CMOS Sensors Resloution 1.3M~14M
● Integrated Zinc Aluminum Alloy Housing, With Ultra-Fine TM Color Engine
● High-speed USB2.0 Interface And High Frame Rate Video Display Keep Screen Smooth
● Auto White Balance, Auto-exposure, Brightness, Contrast, Chroma & Saturation Can Be Adjusted
● With Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

● USB3.0 CMOS ●

A59.2211 Digital Camera, USB3.0 CMOS, C Mount + Eyepiece
● USB 3.0 Output, With Professional Analysis Software
● 3.1M ~ 18.0M Pixels USB3.0 CMOS Sensor
● Standard C-Mount For Using In Trinocular Photo Port
● Support WinXP, Win7, Win10, iOS, Linux System
● Adapter Ring 30mm, 30.5mm Optional For Using In Eyepiece Tube

A59.2213 USB3.0 CMOS Digital Camera, High Fps, Fluorescent Image, 1.5M~45M (For fluorescent microscope)
● USB3.0 Digital Camera SONY Exmor Back-illuminated CMOS Sensors Resloution 1.5M~45M
● Super High Sensitivity Up To 2350mV(IMX385), Ultra Low Noise For Fluorescent Image
● Ultra-Fine Color Hardware Color Enginne Ensuring High FPS Up To 15 Frames @ 20M
● Real-time 8/12/14/16 Bit Depth Switch, Integrated CNC Aluminum Alloy Compact Housing
● With Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

A59.2225 USB3.0 CMOS Cooled Digital Camera, Fluorescent Image, GS Shutter

(For fluorescent microscope)
● USB3.0 Digital Camera With SONY Exmor CMOS Sensors Resloution 1.7M~45M
● Two-Stage TE-Cooling Electric Fan, Sensor Chip Cooling -42°C Below Ambient Temperature
● Special Design For Fluorescent & DIC Image View Under Low Light, Up To 1 Hour Exposure
● Support Both Video & Trigger Modes, WIth IR-CUT/AR Coated Window, Ultra-Fine TM Color Engine
● With Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

● USB3.0 CCD ●

A59.2226 USB3.0 CCD Cooled Digital Camera, Fluorescent Image

(For fluorescent microscope)
● USB3.0 Digital Camera With ExView HAD CCD IISensors Resloution 1.4M~12M
● Two-Stage TE-Cooling Electric Fan, Sensor Chip Cooling -42°C Below Ambient Temperature
● Special Design For Fluorescent & DIC Image View Under Low Light, Up To 1 Hour Exposure
● Ultra-Fine TM Color Engine With Perfect Color Reproduction Capability
● With Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

● HDMI+USB ●

A59.4231 HDMI+USB+TF Digital Camera, 48M, USB Measure
● Resolution 48M 1/2.9" CMOS Panasonic Sensor, Pixel Size 1.335x1.335μm
● HDMI Monitor +USB Computer Output At Same Time, Support TF Card Max 64G
● HDMI 1080p 60 fps, Photo Resolution 60M, Video Resolution 4K@25fps
● USB2.0 Output To Computer With Opto-Edu Image View Measure Software
● Shortcut Buttons To Set White Balance Auto/Manual, Sharpness, Contrast, etc.

A59.4902 HDMI+USB Digital Camera 3.5M, Manual Focus
● 3.5M High Quality 1/3" CMOS Digital Camera
● HDMI & USB Dual Image Output, SD Card Built-in
● Unique Designed Manual Focusing Knob Enlarge Focusing Range
● C-Mount & Eyepiece Tube Adapter Connect All Microscopes
● Professional Analysis Software Support Measuring Function

A59.2241 4K HDMI+USB+SD Digital Camera, 8.0M, Mouse+USB Measure
● 4K HDMI+USB+SD Card Digital Camera With Sony Exmor CMOS Sensors Resloution 8.0M
● 4K/1080P Auto Switch According to Display Resolution, Save Image & Record Video to SD Card
● Built-in HDMI Mouse Control Panel For Image Capture & Video Record To SD Card
● Built-in Toolbar Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Functions
● Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

A59.3507 HDMI+Type-C, Mouse Control Measuring Digital Camera, 2.0M
● HDMI+Type C UVC+USB Disk Image Output Picture & Video
● 2.0M Full HD Resolution 1920*1080@60FPS For HDMI & USB Output
● UVC Real Time Image Output To PC With S-Eye Measure Software
● USB2.0 Mouse Control Menu On HDMI Interface Menu With Measure Function
● Type C DC5V/2A Power Supply By Adapter or Power Bank

● WIFI+HDMI/USB/WAN ●

A59.4920-W 5G WIFI+USB Digital Camera, 5.0M, 30Fps, Win,Android,iOS

(WIFI+USB)
● 5G WIFI 5.0M CMOS High Speed 30Fps Digital Camera
● 1/2.5" High Quality CMOS Sensor Excellent Color Restoration
● 5G WIFI & USB 2.0 Data Output Support Computer Win7, Win10, iMac
● C-Mount & Eyepiece Tube Adapter Optional
● Professional Analysis Software Support Measuring Function

A59.2223 HDMI+WIFI+SD Digital Camera, 1080p/5.0M, Mouse Measure (WIFI+HDMI)
● HDMI+WIFI+SD Card Digital Camera With CMOS Sensors Resloution 1080p/5.0M
● Built-in HDMI Mouse Control Panel For Image Capture & Video Record To SD Card
● Built-in Toolbar Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Functions
● Ultra-Fine TM Color Engine With Perfect Color Reproduction Capability (USB)
● Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

A59.4974 5G WIFI+4K HDMI+USB Disk Digital Camera, 12.0M, C-Mount, HDMI Measuring

(WIFI+HDMI)
● 12M 5G WIFI+4K HDMI+USB Disk High Speed 30Fps Digital Camera
● No Need Computer, HDMI Interface With Built-in Operation Measure System & Office For Report Create Directly
● Built-in 32G Memory + USB 3.0 To USB Disk Storage, Control By USB 2.0 Mouse & Keyboard
● 5G WIFI Image Output System Perfectly Compatible With Three Main Systems of Windows, iOS And Android.
● Built-in 10+ Viewing Mode Perfectly Support Biological/Stereo/BF/DF/PL/PH/FL/DIC Etc.

A59.3508 WIFI+HDMI+USB+WAN, Mouse Control Measuring Digital Camera, 8.0M (WIFI+HDMI+USB+WAN)
● 4K HDMI+WIFI+USB+WAN Image Output Picture & Video
● HDMI Interface Menu with Measure Function Control by USB Mouse & Keyboard
● WIFI Wireless Transfer Real Time Image To PC Up To 120 Terminals in Network
● UVC (USB) Real Time Image Output to PC With S-Eye Measure Software
● 60FPS For HDMI & USB Output, Store Image To USB Hard Disk

A59.2243 4K HDMI+USB+WIFI+LAN+SD Digital Camera, 8.0M, Mouse Measure

(WIFI+HDMI+USB+WAN)
● 4K HDMI+USB+WIFI+LAN+SD Card Digital Camera With Sony Exmor CMOS Sensors Resloution 8.0M
● 4K/1080P Auto Switch According to Display Resolution, Save Image & Record Video to SD Card
● Built-in HDMI Mouse Control Panel For Image & Video Capture, Full Kinds of Measuring Function
● Optional WIFI Adapter On USB Port Enable HDMI/WiFi Output Simultaneously
● Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

A59.4972 5G WIFI+4K HDMI+USB+WAN Digital Camera, 12.0M, C-Mount, USB/WIFI Measuring (WIFI+HDMI+USB+WAN)
● 5G WIFI+4K HDMI+USB2.0+WAN 12.0M High Speed 60Fps Digital Camera
● 1/2.3" High Quality CMOS Sensor Excellent Color Restoration
● 5G WIFI & USB 2.0 Data Output Support Computer Win7, Win10, iMac
● Perfectly Compatible With Three Main Systems of Windows, iOS And Android.
● Professional Analysis Software Support Measuring, Image Stiching, Field Of View Extend

● LCD Camera ●

A59.5117/A59.5119 7"/9" LCD Digital Camera, 2.0M, USB+TF Card
● 7"/9" IPS LCD High Resolution 1024x760 Pixels, USB+AV+TF Card Output
● 2.0M 1/2.75" CMOS, 1920x1080 Pixels, 30 Fps
● TF Card Max 32G, USB2.0 Output, With Measuring Software For Win/iMac
● Powered by Low Voltage 5V DC USB Adapter
● Eyepiece Tube 23.2mm Adapter For Teaching or Trinocular Head Microscope

A59.3509 9" LCD Digital Camera, USB2.0 +Mouse Measure, 5.0M
● 9" LCD Screen High Resolution 1024*600 Pixels
● 5.0M Digital Camera 1/2.8" CMOS Sony Sensor
● USB2.0 Real Time Image Output + TF Card Storage
● USB Mouse Control Menu For Measure Function
● DC12V/2A, 100~240V Power Adapter

A59.3550 11.6" LCD Digital Camera, HDMI+Mouse Measure, 5.0M
● 11.6" LCD Screen High Resolution 1920*1080 Pixels
● 5.0M Digital Camera 1/2.8" CMOS Sony Sensor
● HDMI Real Time Image Output + USB Hard Disk Storage
● USB Mouse Control Menu For Measure Function
● DC12V/2A, 100~240V Power Adapter

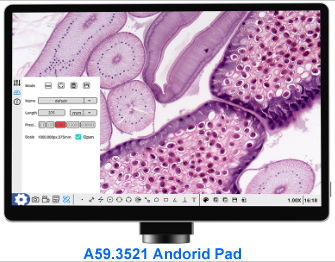

A59.3521 10.5" Touch Screen Android Pad Digital Camera, 8.0M

(Andorid Pad)
● 10.5" Touch Screen Android Pad + 4K 8.0M Digital All-in-One Camera For Microscope
● Turn On & See Micro Image Directly Through Pre-Installed S-Eye Measure Software
● Control by Touch Screen & USB Mouse+Keyboard To Measure No Need Computer
● 4K 8.0M 1/1.8" CMOS Digital Camera Resolution 3840*2158@30FPS Shape Image
● Built-in Android 11 System Support 90 Language, With Memory RAM 2G + ROM 16G

A59.3551 11.6" Win10 Tablet Digital Camera, 16.0M (Win10 Pad)
● 11.6" LCD Resolution 1920*1080 Win10 Tablet 64 Bits
● 16M Digital Camera 1/2.3" CMOS Sony Sensor
● 2.4G/5G WIFI, Bluetooth, USB3.0, HDMI, Ethernet Port
● S-EYE Measure Software Installed
● Type C Power Supply DC12V/2A Adapter

● Auto Focus ●

A59.2239 Auto Focus 4K HDMI+WIFI+USB Camera, Mouse Measure
● Auto Focus 4K HDMI+WIFI+USB+SD Card Digital Camera With Sony Exmor/STARVIS CMOS Sensors 8.0M
● 4K/1080P Auto Switch According to Display Resolution, Save Image & Record Video to SD Card
● Built-in HDMI Mouse Control Panel For Image & Video Capture, Full Kinds of Measuring Function
● Optional WIFI Adapter On USB Port Enable HDMI/WiFi Output Simultaneously
● Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

A59.2240 Auto Focus HDMI+WIFI+SD Camera, Mouse Measure
● Auto Focus HDMI+WIFI+SD Card Digital Camera With Sony CMOS Sensors Resloution 1080p/5.0M
● Auto/Manual Focus With The Movement of The Sensor, Record 1080p Video ASF Format to SD Card
● HDMI/WiFi Output Simultaneously, With Built-in Mouse Control Panel For HDMI, Image View For WIFI
● Ultra-Fine TM Color Engine With Perfect Color Reproduction Capability (WIFI)
● Advanced Video & Image Processing Software Image View, Support SDK For Win/Linux/Mac/Android

A59.0912 Auto Focus 4K HDMI+WIFI+USB Camera, Mouse Measure
● Auto Focus 4K HDMI+USB+TF Card Digital Camera With 12.0M CMOS Sensors
● Auto Focus Function Save Time & Energy In Daily Inspection Work
● 4K Ultra HD Image Resolution 4000x3000 12M CMOS High Frame Rate 60 FPS
● USB 2.0 + HDMI Dual Output Real Time Image, With Measuring Software on PC
● Capture & Save Pictures or Videos To TF Card Max Support 64G

A59.3811 Auto Focus HDMI+USB+SD Digital Camera, 6.0M, Mouse Control
● HDMI+USB2.0 Auto Focus Digital Camera
● 6.0M Resolution 1/2.8" CMOS Sensor
● Mouse Control Menu & Measuring Under HDMI Interface
● HDMI+USB2.0+SD Card Data Output
● Standard C-Mount For Using In Trinocular Photo Port

A59.3820 3D Super EDF Auto-Focus Measuring HDMI Digital Camera
● 3D+2D Measure By Mouse & Keyboard Control Under HDMI Interface, No Need Computer
● Combine Dynamic Color Camera, Precise Z-axis Motorize Stage, PC & Software 4 in 1
● Super Extend Depth of Field (EDF) Auto Focus To View Different Height Points In One Picture
● One Key 3D Modeling, 2D Automatic Batch Measurement Eliminate Human Errors
● Standard C-Mount For Using With Biological, Metallurgical, Stereo Microscope

What is Digital Microscope?

Digital microscope, also known as video microscope, is used to transform live object images seen by the microscope into digital and analog images on the microscope's own screen or computer. It is mainly for teaching purposes, or measuring, analysis work.

The main advantage of digital microscope is that the traditional optical microscope can only be used by one person, so it is difficult to share the image of the microscope, and to take the image in the microscope, special instruments are often needed. However, because the digital microscope can be connected with the computer, the video in the microscope can be played through the projector connected to the classroom, so that students in the classroom can watch the video together, which is also helpful for the management of classroom order.

The differences between digital microscope and optical microscope:

1. It has the function of microscopic photography, which can preserve the observed microscopic effects and form graphic documents that can be circulated to relevant departments; The optical microscope can only be observed through the eyepiece and cannot be used for microscopic photography. 2. Connected to the computer, multiple people can observe at the same time; optical microscope can only be observed by one person. 3. Preview on the computer screen can reduce eye fatigue; optical microscopes need to be observed through the eyepiece at all times, which is easy to cause eye fatigue. 4. The imaging device of the digital microscope can measure, print graphic reports, video and other functions; optical microscope can only conduct microscopic observation. 5. Digital microscope is a new era in the development of modern scientific instruments, which has many functions that optical microscope does not have. It has developed rapidly in scientific research, product testing, teaching demonstration, archaeology, etc.

How to Select Digital Microscope

● Digital Biological ●

A31.5121-T Digital Biological Microscope, 5.0M
● 5.0M Digital Camera Built-in Monocular Or Trinocular Head With
● Totol Magnification 40x-1000x Achromatic Optical System
● Double Layer Mechancial Stage 115x125mm With Abbe N.A.1.25 Condenser
● Coaxial Coarse & Fine Focusing Knob LED Light Source Brightness Adjustable
● With 10 Prepared Slides, With Experiment Kit, Pack In Hand Carry Case+Carton

A31.2601-5.0M Digital Biological Microscope, 5.0M
● Dustproof, Moisture-proof, Built-in 3.2M/5.0M Digital Camera USB2.0 Output
● Binocular Head WF10x/20mm Achromatic 4x10x40x100x Objectives
● Abbe Condenser N.A. 1.25, With Aperture Iris Diaphragm
● Double Slides Holder, Easy To View And Compare Two Slides
● Flexible Knob, Comfortable Feeling, Reliable Operation

A31.6603-5.0M Digital Biological Microscope, 5.0M
● Buitl-in 5.0M Digital Camera 1/2" CMOS, Resolution 2952x1944, 15-30fps
● Light Split E20:P80 Binocular Head With Dustproof Moisture-Proof Design
● Supplied With Professional Analysis Software, Pad Holder Optional
● Binocular, WF10x/20, Quadruple, Infinity E-Plan 4x10x40x100x Objectives
● 3W LED Light Source With Safety Low Voltage Charger

A31.1030 Digital Laboratory Microscope, Coded Nosepiece & LCD, 8.0M
● Brand New 2022 Compact High Level School Digital Biological Microscope
● Coded Nosepiece & LCD Screen For Magnification & Brightness Display
● Brightness Memory, Color Temperature Adjust, Auto Power Off (ECO)
● PL10x/20mm Eyepiece, NIS Series Infinity Plan Objective 4x10x40x100x
● N.A.1.25 Abbe Condenser With Color Objective Position Scales

A31.1062-5.0M Digital Binocular Laboratory Microscope, 5.0M
● Brand New Design 5.0M WIFI + USB2.0 Digital Laboratory Research Microscope
● Coding Quintuple Nosepiece LCD Screen Base With Brightness Memory Function
● Large Rackless Safty Working Stage 230x150mm, Moving Range 78x54mm
● Infinity Plan NIS60 Objective 4x10x40x100x, Water 100x Immersion Available
● Upgradeable To Dark Field, Polarizing, Phase Contrast & Fluorescent Function

● Digital Stereo ●

A32.6401-12M Digital Stereo Microscope, 0.7x~4.5x, 12M, HDMI+SD+WIFI(Optional)
● 0.7x~4.5x Zoom Lens 14x-90x Total Magnification On 10.6" LCD
● Full HD 12.0M Image And 1080p/30fps Video
● Upper + Side LED Light Brightness Adjustable
● SD Card + HDMI Output, WIFI Card Optional
● Black Pole Stand 38*25cm With Pole Dia.25mm

A32.1239-1.3M Digital Stereo Microscope, 1.3M
● 1.3M/3.0M USB2.0 Digital Camera Built-in Binocular Head
● Total Magnification10x/20x/40x With 1x/2x/4x Lens And WF10x/20 Eyepiece
● Track Stand With Coarse Focusing Knob & Handle For Easy Carrying
● Separate Power Switch For Up/Bottom Light Source
● Up 1W LED, Bottom 7x20mA LED Light Source, Brightness Adjustable

A32.0914 Auto Focus Digital Stereo Microscope, 1x~14x, 2.0M, HDMI Measure
● Newly Designed 2022 All-in-One Auto Focus Digital Stereo Microscope
● 2.0M Color Digital Camera With 1/2.8'' CMOS Resolution 1920*1080@60fps
● Optical Zoom Lens 1-14x, Digital Zoom 1-6x To Enlarge Image Furthermore
● Working Distance 100mm To Infinity, Captuer, Save Image & Video to TF Card
● HDMI Output, With Mouse Control Measure, LED Ring Light 5500K, Pole Stand

● Digital LCD Biological ●

A33.5121-TH 7" LCD Biological + USB Portable Dual Lens Digital Microscope, 2.0M, Trinocular
● Best Economical 7" LCD Digital Biological Microscope Model For School & Blood Checking
● Dual System 40x-1600x 2.0M Digital Biological + 1.5x~50x Portable Skin Microscope
● One Key Switch Micro Image Shown On 7" LCD Screen Between Biological & Portable
● Save Photo, Video On TF Card Directly, Or Output To Computer USB With Measure Software
● Supplied In Portable Hand Carry Case, With Prepared Slide & Experiment Kit For Student

A33.1009 9" LCD Digital Biological Microscope, 5.0M HDMI+USB
● High Cost-Effective 9” LCD 5.0M Digital Biological Microscope For Hospital or Laboratory
● Upgrade Option Full Range With Dark Field, Phase Contrast, Polarizing, Fluorescent For Laboratory Research
● WF10x/18mm High Eyepoint Eyepiece, Achromatic Objective 4x10x40x100x, Plan Objectives Optional
● 9” LCD Screen + 5.0M Digital Camera With Built-in Measure Software For Take Photo, Video & Measure
● Save Photo, Video On TF Card Directly, Or Output Real Time Image To Computer By USB Connect

A33.1502 10.5" LCD Touch Screen Digital Microscope, 8.0M, Android Pad
● 10.5" Touch Screen Android Pad + 4K 8.0M Digital Camera With Measure Software
● Control by Touch Screen & USB Mouse+Keyboard To Measure No Need Computer
● Built-in Android 11 System Support 90 Language, With Memory RAM 2G + ROM 16G
● High Contrast Achromatic Objectives 4x,10x,40x100x, Upgradeable To Infinity Plan System
● Double Layer Mechanical Stage 143*132mm, High Brightness 3W LED Kohler Illumination

● Digital LCD Stereo ●

A36.5102 7" LCD Stereo + USB Portable Dual Lens Digital Microscope, 2.0M+1.3M
● Brand New Design Dual Lens LCD + Portable Digital Stereo Microscope For Different Purposes
● 0.7x~4.5x Zoom Stereo Trinocular Microscope With WF10x/20mm Eyepiece
● 7.0" LCD, Main Body 2.0M Camera, 8.17x-53x Zoom For Real Time Clear Watching
● Portable USB2.0 1.3M Digital Microscope, 1.5x-25x Zoom For Large Size Objective Watch on LCD
● USB Output To Win/Mac, With Professional StrangeView Measuring Software

A36.3601 11.6" LCD Digital Measure Stereo Microscope, 110.5x 5.0M
● 11.6" LCD 5.0M HD Camera All-In-One Design
● Real-time Observation, Photo, Video, Measurement, Storage, Data Output
● Total Magnifiation 17.2x-110.5x With 0.7x~4.5x Zoom Lens
● Mouse Control Menu Support Measuring, Photo & Video Record
● Image Output To HDMI, TF Card, USB Disk

● Portable Digital Microscope ●

A36.5049 4" LCD Digital Microscope With Polarizer, 10x-300x/1200x, 12M

(LCD)
● 4" LCD Handheld Polarzing Digital Microscope 300x Optical Magnification Up To 1200x
● 12M Photo & 1080p Video Capture To MicroSD Card Max 32G
● HDMI, AV & USB Output With Measuring Software Support Win/Mac
● Manual Focus Range 0-100mm, Up LED Brightness Adjustable, With Polarizing Lens Built-in
● Built-in Recharging Battery For Working 3 Hours In Any Where

A36.5058 5" LCD Digital Microscope With Polarizer, 10x-300x/1200x, 12M

(LCD)
● 5" LCD Polarzing Digital Microscope 300x Optical Magnification Up To 1200x
● 12M Photo & 1080p Video Capture To MicroSD Card Max 32G
● HDMI, AV & USB Output With Measuring Software Support Win/Mac
● Manual Focus Range 7-50mm, Up/Down LED Brightness Adjustable, With Polarizing Lens Built-in
● Built-in Recharging Battery For Working 3 Hours, Jewlery Holder Optional

A34.4191 USB Digital Microscope, 1000x (USB)
● USB Digital Handheld Microscope 50x-1000x
● 1/6.5" 3.0M CMOS 640x480 @30FPS Digital Camera Inside
● Color Gift Box With Flexible Universal Stand, Instruction Manual, Calibration Ruler, CD
● 8 LEDs Light Source Built-in Coaxial Illumination Brightness Adjustable
● USB Output To Computer With Software Support Win/Mac

A34.4199 WIFI+USB Miroscope, 1000x, 2.0M, iPad/Android/Win/Mac

(WIFI)
● 2.0M WIFI Range 10m Share Real Time Image To Mobile Phone, iPhone, iPad
● Magnification Zoom 50x to 1000x To View All Details
● WIFI Support Android, IOS, USB Support PC Win, Mac System
● Quick Capture Button To Take Photo JPG, Record Video MP4/AVI Format
● Powered By DC 5V USB Adapter, With 900mAh Rechargeable Battery For 3 Hours Work

A34.5017 WIFI Digital Miroscope, 200x, 2.0M, iPad/Android (WIFI)
● Total Magnification 10x-200x
● 2.0M WIFI Miroscope For iPad/Android
● With Tiny Capture App , With Rechargeable Battery
● 6 LEDs Ring Light Built-in Brightness Adjustable
● Pole Stand With Holder Focusing Range 50mm

For any further questions or inquires about digital camera & microscopes, you are welcome to contact us at [email protected]. We will be happy to assist in selecting the Best Suit model!
Written By Leslie, 2022-12

How to Select Digital Camera & Digital Microscope？
